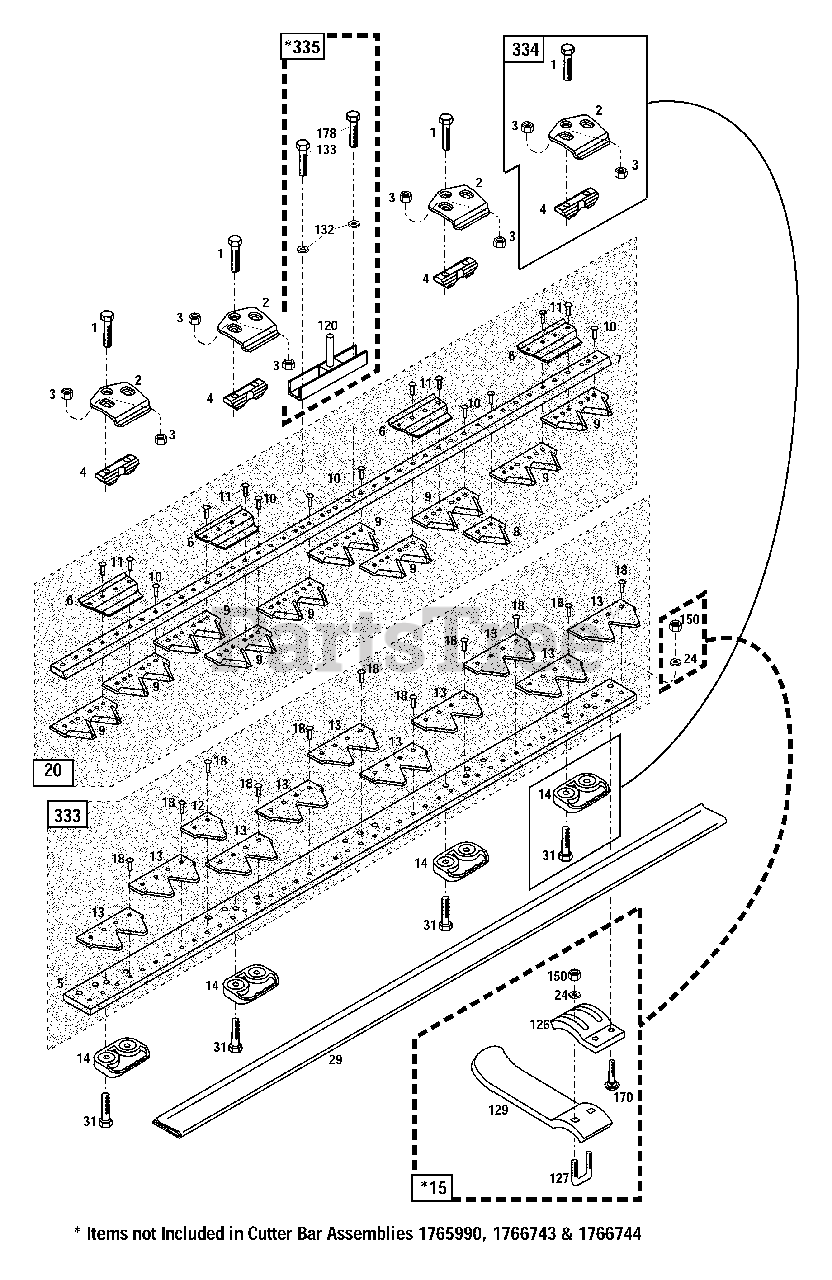

34337 - Troy-Bilt Sicklebar Mower (SN: 343371100101 - 343371599999) Blades Parts Diagram

Sicklebar Mower

Blades Parts Diagram

  • Title

1

MTD 1860218

Hex Hd. Screw, M8 x 0.30

$

$

Not available

2

Troy-Bilt 1766746

Hold-Down Clip

$67.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 1766747

Lock Nut, M8
(Superseded to 712-0692)

$6.99

$

In Stock, only 2 left!

0

4

Troy-Bilt 1766748

Knife Guide

$33.99

$

Usually ships in 3-6 days

0

5

MTD 1765991

34" Ledger Plate Bar

$

$

Not available

Troy-Bilt 1766753

38" Ledger Plate Bar

$

$

Not available

Troy-Bilt 1766754

42" Ledger Plate Bar

$

$

Not available

6

MTD 1766755

Wear Plate

$

$

Not available

7

Troy-Bilt 1766929

34" Blade Knife Bar

$

$

Not available

Troy-Bilt 1766756

38" Blade Knife Bar

$308.99

$

In Stock, only 1 left!

0

Troy-Bilt 1766757

42" Blade Knife Bar

$296.99

$

Usually ships in 3-6 days

0

8

MTD 1766758

Blade (single)

$

$

Not available

9

Troy-Bilt 1767069

Blade (double) 34"

$40.99

$

In Stock, Qty 7

0

Troy-Bilt 1767069

Blade (double) 38"

$40.99

$

In Stock, Qty 7

0

Troy-Bilt 1767069

Blade (double) 42"

$40.99

$

In Stock, Qty 7

0

10

Troy-Bilt 1768294

Rivet Section, 5 x 17 (pack of 12)

$22.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 1768295

Rivet Section, 5 x 20 (pack of 12)

$

$

Not available

12

Troy-Bilt 1766764

Ledger Plate (single)

$

$

Not available

13

Troy-Bilt 1766765

Ledger Plate (double)

$

$

Not available

14

Troy-Bilt 1766767

Runner

$34.99

$

Usually ships in 3-6 days

0

15

MTD 1766769

Skid Assembly

Note: (Incl. Refs. 16, 23, 24, 127, 150 & 170)

$

$

Not available

18

Troy-Bilt 1768296

Ledger Rivet, 6 x 20 (pack of 12)

$

$

Not available

20

Troy-Bilt 1765992

34" Blade Assembly
(Superseded to GW-34509)

Note: (Incl. Refs. 6, 7, 8, 9, 10 & 11)

$339.99

$

In Stock, only 1 left!

0

MTD 1766762

38" Blade Assembly

Note: (Incl. Refs. 6, 7, 8, 9, 10 & 11)

$

$

Not available

Troy-Bilt 1766763

42" Blade Assembly
(Superseded to GW-34511)

Note: (Incl. Refs. 6, 7, 8, 9, 10 & 11)

$447.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 1107382

Flat Washer, 5/16
(Superseded to 936-0275)

$

$

Not available

29

MTD 1766777

Blade Guard, 34"

$

$

Not available

MTD 1766934

Blade Guard, 38"

$

$

Not available

Troy-Bilt 1766935

Blade Guard, 42"

$

$

Not available

31

Troy-Bilt 1766768

Hex Hd. Screw, M8 x 45

$4.99

$

Usually ships in 3-6 days

0

120

Troy-Bilt 1773057

Knife Head

$204.99

$

Usually ships in 3-6 days

0

126

MTD 1766770001

Shoe Holder

$

$

Not available

127

MTD 1767071

U-Bolt, 5/16

$

$

Not available

129

MTD 1766773001

Shoe

$

$

Not available

132

Troy-Bilt 1773271

Flat Washer (hardened), 5/16

$

$

Not available

133

Troy-Bilt 1773424

Hex Hd. Capscrew, M8 x 12

$3.99

$

Usually ships in 3-6 days

0

150

Troy-Bilt 1983038

Nylock Nut, 5/16-18
(Superseded to 912-0429)

$4.49

$

In Stock, Qty 20+

0

170

Troy-Bilt 1186100

Carriage Bolt, 5/16-18 x 1, Grade 5

$

$

Not available

178

Troy-Bilt 1757032

Loctite(R) Thread Compound
(Superseded to GW-97092)

$17.99

$

Usually ships in 3-6 days

0

?332

Troy-Bilt 1766766

Blade Maintenance Kit

Note: (Incl. Ref. # 8 [qty. 1], 9 [qty. 4], 10 [qty. 12], 11 [qty. 6], 132 [qty. 2] & 133 [qty. 2]); Not included with unit, order separately.

$

$

Currently unavailable

333

MTD 1770597

34" Ledger Plate Assembly

$

$

Not available

MTD 1770598

38" Ledger Plate Assembly

$

$

Not available

Troy-Bilt 1770599

42" Ledger Plate Assembly

$834.99

$

Usually ships in 3-6 days

0

334

Troy-Bilt 1766792

Hold-Down Clip Kit

Note: (Incl. Refs. # 1 [qty. 1], 2 [qty. 1], 3 [qty. 3], 4 [qty. 1], 14 [qty. 1] & 31 [qty. 2])

$157.99

$

Usually ships in 3-6 days

0

335

Troy-Bilt 1773564

Knife Head & Pitman Kit

Note: (Incl. Refs. 77, 79, 81, 130, 162 & 178 from page 33, and Refs. 120, 132 and 133 listed above); Not included with unit, order separately.

$

$

Currently unavailable

$

$

Not available
