34337 - Troy-Bilt Sicklebar Mower (SN: 343371100101 - 343371199999) Drive Parts Diagram

Sicklebar Mower

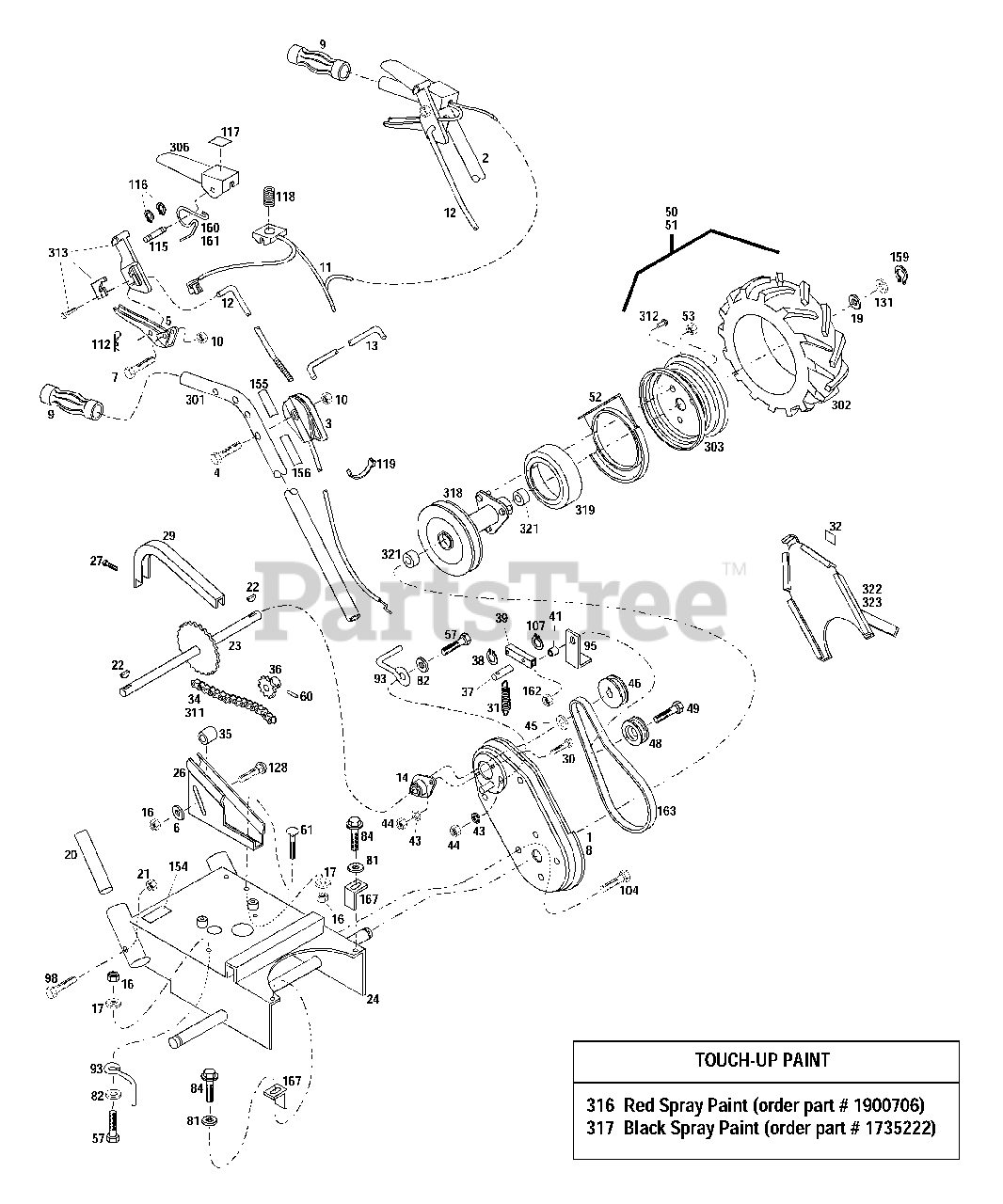

Drive Parts Diagram

  • Title

1

MTD 1767711010

Left Wheel Drive Housing

$

$

Not available

2

MTD 1765981001

Left Handlebar

$

$

Not available

3

MTD 1767717

Throttle

$

$

Not available

4

MTD 1100807

Hex Head Capscrew, 1/4-20 x 2

$

$

Not available

5

MTD 1766603

Wheel Clutch Lever

$

$

Not available

6

Troy-Bilt 1107382

Flat Washer, 5/16
(Superseded to 936-0275)

$

$

Not available

7

Troy-Bilt 1100811

Hex Head Capscrew, 1/4-20 x 1-1/2
(Superseded to 710-0606)

$5.49

$

In Stock, Qty 9

0

8

MTD 1767712010

Right Wheel Drive Housing

$

$

Not available

9

Troy-Bilt 9126

Handle Grip
(Superseded to 720-0274)

$11.99

$

In Stock, only 1 left!

0

10

Troy-Bilt 1110106

Center Locknut, 1/4-20

$

$

Not available

11

MTD 1768430

Operator Interlock Harness

Note: (Incl. Refs. 313 & 325. Also Ref. 134 from "General Assembly)

$

$

Not available

12

MTD 1768426

Wheel Clutch Rod

$

$

Not available

13

MTD 1766608

Handlebar Bridge

$

$

Not available

14

Troy-Bilt 1767552

Flange Bearing

$

$

Not available

16

Troy-Bilt 1186230

Hex Nut, 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

17

Troy-Bilt 1110645

Lockwasher, 5/16
(Superseded to 936-0104)

$4.99

$

Usually ships in 3-6 days

0

19

MTD 1107387

Flat Washer, 3/4

$

$

Not available

20

MTD 1766611

Shock Absorber

$

$

Not available

21

Troy-Bilt 1732499

Top Locknut, 5/16-18
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

22

Troy-Bilt 1104436

Woodruff Key, #9, 3/16 x 3/4
(Superseded to 914-0868)

$3.99

$

In Stock, only 4 left!

0

23

Troy-Bilt 1767545

Counter Shaft

$

$

Currently unavailable

24

MTD 1773216010

Engine Deck

$

$

Not available

26

MTD 1766890010

Chain Idler Bracket

$

$

Not available

27

Troy-Bilt 1186009

Hex Head Screw, #10-24 x 1/2

$

$

Not available

29

MTD 1766622010

Chain Cover

$

$

Not available

30

Troy-Bilt 1766623

Carriage Bolt, 1/4-20 x 1/2
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

31

MTD 1766624

Wheel Clutch Spring

$

$

Not available

32

Troy-Bilt 1769517

Decal, Top

$

$

Currently unavailable

34

MTD 1766627

Chain

Note: (Incl. Ref. 311)

$

$

Not available

35

MTD 1766628

Chain Idler

$

$

Not available

36

MTD 1766629

Sprocket, 12T

$

$

Not available

37

MTD 1766630

Idler Arm Pivot

$

$

Not available

38

Troy-Bilt 1185257

Snap Ring, 3/8, "E" Type
(Superseded to 916-0125)

$

$

Not available

39

MTD 1766631

Wheel Clutch Idler Arm

$

$

Not available

41

MTD 1766714

Wheel Idler Spacer

$

$

Not available

43

Troy-Bilt 1100241

Lockwasher, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

44

Troy-Bilt 1186229

Hex Nut, 1/4-20
(Superseded to 712-3006)

$4.99

$

In Stock, Qty 19

0

45

MTD 1769982

Spacer

$

$

Not available

46

MTD 1766636

Counter Shaft Pulley

$

$

Not available

48

Troy-Bilt 1710566

Idler Pulley

$

$

Currently unavailable

49

Troy-Bilt 1100049

Hex Head Capscrew, 3/8-16 x 2-1/4
(Superseded to 710-3011)

$6.99

$

In Stock, Qty 20+

0

50

MTD 1770480

Left Wheel Assembly

Note: (Incl. Refs. 302, 303 & 312)

$

$

Not available

51

Troy-Bilt 1770470

Right Wheel Assembly

Note: (Incl. Refs. 302, 303 & 312)

$

$

Currently unavailable

52

Troy-Bilt 1769972010

Belt Seal

$

$

Currently unavailable

53

Troy-Bilt 1764070

Top Locknut, 3/8-24
(Superseded to 712-3054)

$4.49

$

In Stock, Qty 20+

0

57

Troy-Bilt 1100044

Hex Head Capscrew, 5/16-18 x 3/4
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

60

MTD 1120210

Roll Pin, 3/16 x 1

$

$

Not available

61

Troy-Bilt 1186469

Carriage Bolt, 5/16-18 x 3/4
(Superseded to 710-0451)

$4.49

$

In Stock, Qty 20+

0

81

Troy-Bilt 1773272

Flat Washer (hardened), 5/16

$

$

Not available

82

Troy-Bilt 1100255

Flat Washer, 5/16
(Superseded to 736-0262)

$3.99

$

Usually ships in 3-6 days

0

84

MTD 1773423

Hex Head Capscrew, 3/8-16 x 3/4, Grade 8

$

$

Not available

93

MTD 1768516

Belt Guide

$

$

Not available

95

MTD 1764121001

Belt Guide

$

$

Not available

98

Troy-Bilt 1111607

Hex Head Capscrew, 5/16-18 x 2-1/4, Grade 5
(Superseded to 710-0395)

$4.99

$

In Stock, only 1 left!

0

104

Troy-Bilt 1740496

Self-Tapping Screw, 5/16-18 x 5/8
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

107

MTD 1185219

Retaining Ring, 1/2

$

$

Not available

112

Troy-Bilt 1717897

Hair Pin

$3.49

$

Usually ships in 3-6 days

0

115

Troy-Bilt 1765993

Pivot Pin, 1/4

$

$

Currently unavailable

116

Troy-Bilt 1766992

Crescent Ring

$

$

Not available

117

MTD 1765925

Decal, Operator Presence Control

$

$

Not available

118

MTD 1765923

Compression Spring

$

$

Not available

119

Troy-Bilt 1735531

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

128

MTD 1186102

Carriage Bolt, 5/16-18 x 1-1/4

$

$

Not available

131

Troy-Bilt 1701447

Shim Washer

$4.49

$

In Stock, Qty 8

0

154

MTD 1767091

Decal, Oil Drain

$

$

Not available

155

MTD 1767645

Decal, Throttle

Note: Used on Models 34061, 34062, 34337

$

$

Not available

MTD 1767111

Decal, Throttle

Note: Used on Models 34063, 34064

$

$

Not available

156

MTD 1767124

Decal, Place Hand

$

$

Not available

159

Troy-Bilt 1185388

Retaining Ring
(Superseded to 916-0231)

$

$

Not available

160

MTD 1767128

Left Control Return Spring

$

$

Not available

161

Troy-Bilt 1767129

Right Control Return Spring

$

$

Currently unavailable

162

Troy-Bilt 1110108

Center Locknut, 3/8
(Superseded to 712-0375)

$4.49

$

In Stock, Qty 6

0

163

Troy-Bilt 1766808

V-Belt

$33.99

$

Usually ships in 3-6 days

0

167

MTD 1773460

Belt Guide

$

$

Not available

301

MTD 1767159

Right Handlebar Assembly

Note: (Incl. Refs. 155 & 156)

$

$

Not available

302

Troy-Bilt 1767718

Tire, 13 x 5 x 6 Traction Lug
(Superseded to 734-04163A)

$114.99

$

Usually ships in 3-6 days

0

303

MTD 1770455

Wheel Rim Assembly

$

$

Not available

306

MTD 1767160

Operator Presence Control Lever Assembly

Note: (Incl. Ref. 117 )

$

$

Not available

311

Troy-Bilt 1730343

Chain Connector Link
(Superseded to 913-0139)

$

$

Not available

312

Troy-Bilt 1718086

Valve Stem
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

313

Troy-Bilt 1768429

Thumb Latch Assembly

$

$

Currently unavailable

316

Troy-Bilt 1900706

Red Spray Paint (13 oz. can)
(Superseded to 788-0638A)

Note: Not included with unit, order separately.

$24.99

$

Usually ships in 3-6 days

0

317

Troy-Bilt 1735222

Black Spray Paint (13 oz. can)
(Superseded to 788-0637A)

Note: Not included with unit, order separately.

$30.99

$

In Stock, only 1 left!

0

318

Troy-Bilt 1770460

Drive Hub/Pulley

$

$

Currently unavailable

319

MTD 1770465

Spacer Tube

$

$

Not available

321

MTD 1766810

Bearing

$

$

Not available

322

MTD 1770490

Right Belt Cover Assembly

Note: (Incl. Ref. 32)

$

$

Not available

323

MTD 1770495

Left Belt Cover Assembly

Note: (Incl. Ref. 32)

$

$

Not available

?324

MTD 1767112

Service Kit

Note: (Incl. Ref. 163, Air Filter Elements, Spark Plug, Instructions); Not included with unit, order separately.

$

$

Not available

?325

Troy-Bilt 1767256

Cable Tie

$

$

Currently unavailable
