34311 - Troy-Bilt 21" Mulching Walk-Behind Mower (SN: 343110100101 - 343110499999) REPLACENENT FRONT WHEEL ARMS Parts Diagram

21" Mulching Walk-Behind Mower

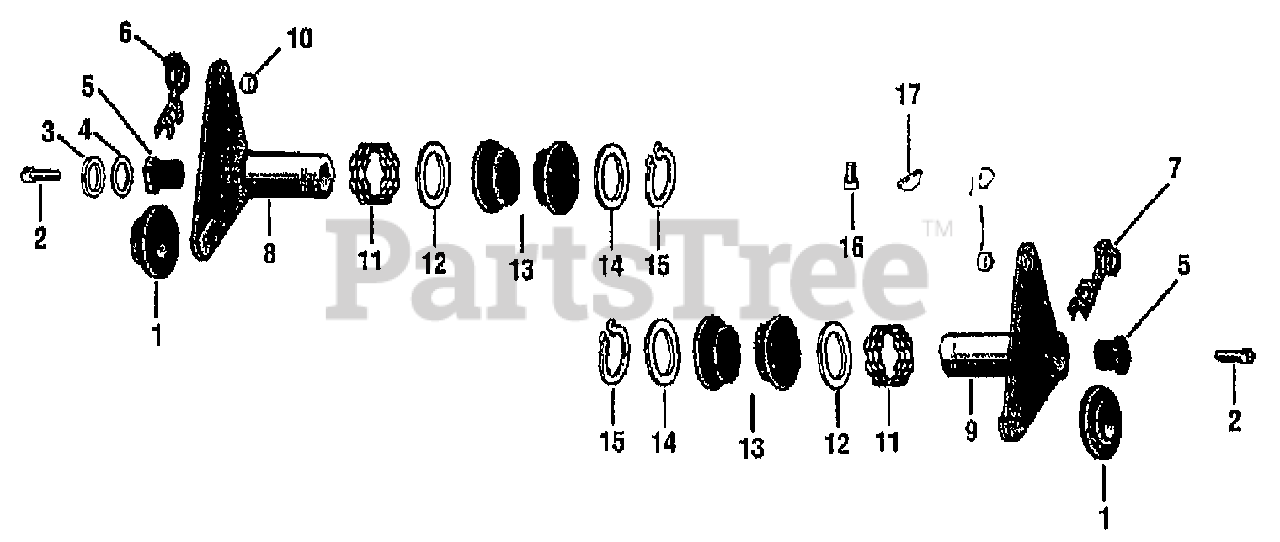

REPLACENENT FRONT WHEEL ARMS Parts Diagram

  • Title

Troy-Bilt 1904214

KIT-WHL FRONT ARM REPLACEMENT

$

$

Not available

1

Troy-Bilt 1902333

HUB-WHEEL SPACER

$6.49

$

In Stock, only 1 left!

0

2

Troy-Bilt 1903399

SCR-HXSKT 1/4-20X.75 NYL

$4.49

$

Usually ships in 3-6 days

0

3

MTD 1902283

WASHER-.92X.5X.03 HT

$

$

Not available

4

Troy-Bilt 1902284

WASHER-.92X.5X.016 HT

$11.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 1903744

BEARING-CARRIER (PLASTIC)

$15.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 1765551

CLIP-ROD LH

$8.99

$

In Stock, only 1 left!

0

7

Troy-Bilt 1765550

CLIP-ROD RH

$11.99

$

In Stock, only 1 left!

0

8

Troy-Bilt 1909933001

ARM-WHEEL LT

$

$

Not available

9

Troy-Bilt 1909927001

ARM-WHEEL RT

$85.99

$

In Stock, only 1 left!

0

10

MTD 1768962

BUSHING-NYLINER (PLASTIC)

$

$

Not available

11

MTD 1909948

SPRING-CREST

$

$

Not available

12

Troy-Bilt 1703073

WASHER-THRUST
(Superseded to 1915058)

$

$

Not available

13

Troy-Bilt 1766500

BEARING-AXLE ARM REAR

$

$

Not available

14

Troy-Bilt 1185816

WASHER-SPEC

$3.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 1909950

RING-HEAVY EXT .984 ID
(Superseded to 716-04104)

$4.49

$

In Stock, Qty 20+

0

16

Troy-Bilt 1903631

SCR-SET SQ 1/4-20 W/NYLOC

$3.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 1908671

KEY-WOODRUFF .125X.5
(Superseded to 914-0112)

$

$

Not available
