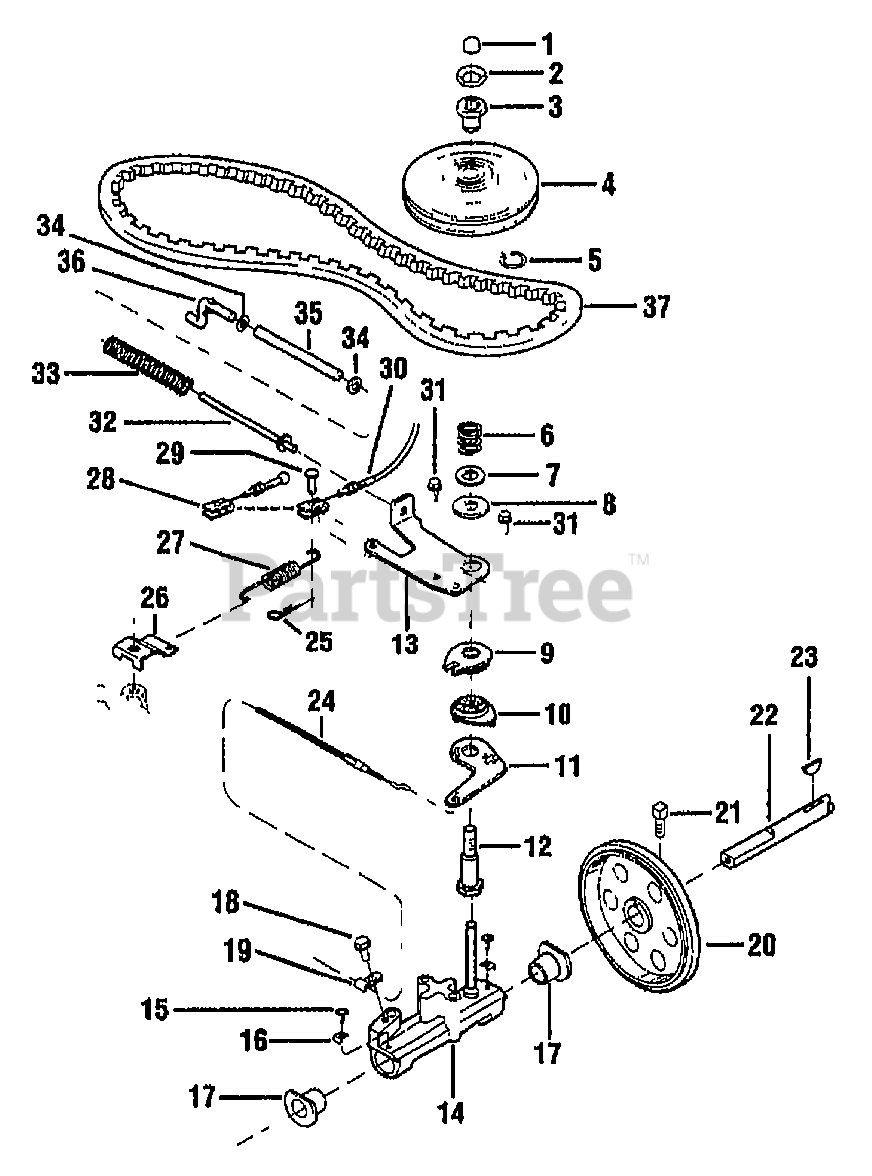

34311 - Troy-Bilt 21" Mulching Walk-Behind Mower (SN: 343110100101 - 343110499999) DRIVE SYSTEM Parts Diagram

21" Mulching Walk-Behind Mower

DRIVE SYSTEM Parts Diagram

  • Title
1

$

$

Not available

2

Troy-Bilt 1765749

NUT-H/LK 1/2-20

$

$

Not available

3

Troy-Bilt 1909875

NUT-HEX 1/2-20X.5

$22.99

$

Usually ships in 3-6 days

0

4

MTD 1903414

ASSM-SHEAVE W/BEARING

$

$

Not available

5

Troy-Bilt 1909985

RING-RETAINING (SNAP)

$

$

Not available

6

MTD 1909998

SPRING-COMPRESSION

$

$

Not available

7

Troy-Bilt 94003

WASHER-1.0X.632X.03 ZP

$

$

Currently unavailable

8

MTD 1909984

WASHER-.605X1.102X.08

$

$

Not available

9

MTD 1903745

PLATE-RAMP UPPER

$

$

Not available

10

Troy-Bilt 1903746

PLATE-RAMP LOWER

$13.99

$

Usually ships in 3-6 days

0

11

MTD 1909977

ARM-CONTROL

$

$

Not available

12

MTD 1909868

SLEEVE-ADJUST

$

$

Not available

13

Troy-Bilt 1909870

PLATE-ANCHOR PLATED

$41.99

$

Usually ships in 3-6 days

0

14

MTD 1904119

ASSM-CARRIER W/STUD

$

$

Not available

15

Troy-Bilt 1909983

SCR-TORX HD

$

$

Not available

16

Troy-Bilt 1909889

CLIP-BRG RETAIN BLK OXIDE

$

$

Not available

17

Troy-Bilt 1903744

BEARING-CARRIER

$15.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 1767754

SCR-HW M10-24 THRFRM
(Superseded to 710-04460)

$

$

Not available

19

MTD 1715127

CLAMP-HOUSING

$

$

Not available

20

Troy-Bilt 1909975

DISC-DRIVE/FRICTION

$86.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 1903631

SCR-SET SQ 1/4-20 W/NYLOC

$3.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 1909402

AXLE-DRIVE ROUND NGMM

$83.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 1908671

KEY-WOODRUFF .125X.5
(Superseded to 914-0112)

$

$

Not available

24

Troy-Bilt 1909996

CABLE-DRIVE CONTROL
(Superseded to 1909996P)

$

$

Not available

25

Troy-Bilt 9338

PIN-CLIP .08
(Superseded to 714-04048)

$8.49

$

In Stock, only 2 left!

0

26

$

$

Not available

27

MTD 1909848

SPRING-SPEED CONTROL

$

$

Not available

28

MTD 1909999

CABLE-SINGLE SPD CONTROL {34021}

$

$

Not available

29

Troy-Bilt 1915000

PIN-SPEED CONTROL

$

$

Not available

30

MTD 1909980

ASSM-ARM CONTROL {NOT 34020,34021}

$

$

Not available

31

Troy-Bilt 1754128

SCR-FLANGE 1/4-20X3/4 GR5

$3.99

$

In Stock, only 2 left!

0

32

MTD 1909973

ROD-BELT ADJ

$

$

Not available

33

Troy-Bilt 97137

SPRING-COMPRESSION

$

$

Currently unavailable

34

Troy-Bilt 9900

WASHER-FLAT 1/4 SAE

$

$

Currently unavailable

35

Troy-Bilt 1909945

SLEEVE-BELT

$4.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 1903671

KIT-SVC ANCHOR Z ROD
(Superseded to 1902339)

$12.99

$

Usually ships in 3-6 days

0

37

Troy-Bilt 1909946

BELT-V NGMM

$

$

Not available
