34309 - Troy-Bilt Trailblazer VIII Sicklebar Mower (SN: 343090100101 & Above) CUTTER DRIVE, ENGINE & WHEEL DRIVE Parts Diagram

Trailblazer VIII Sicklebar Mower

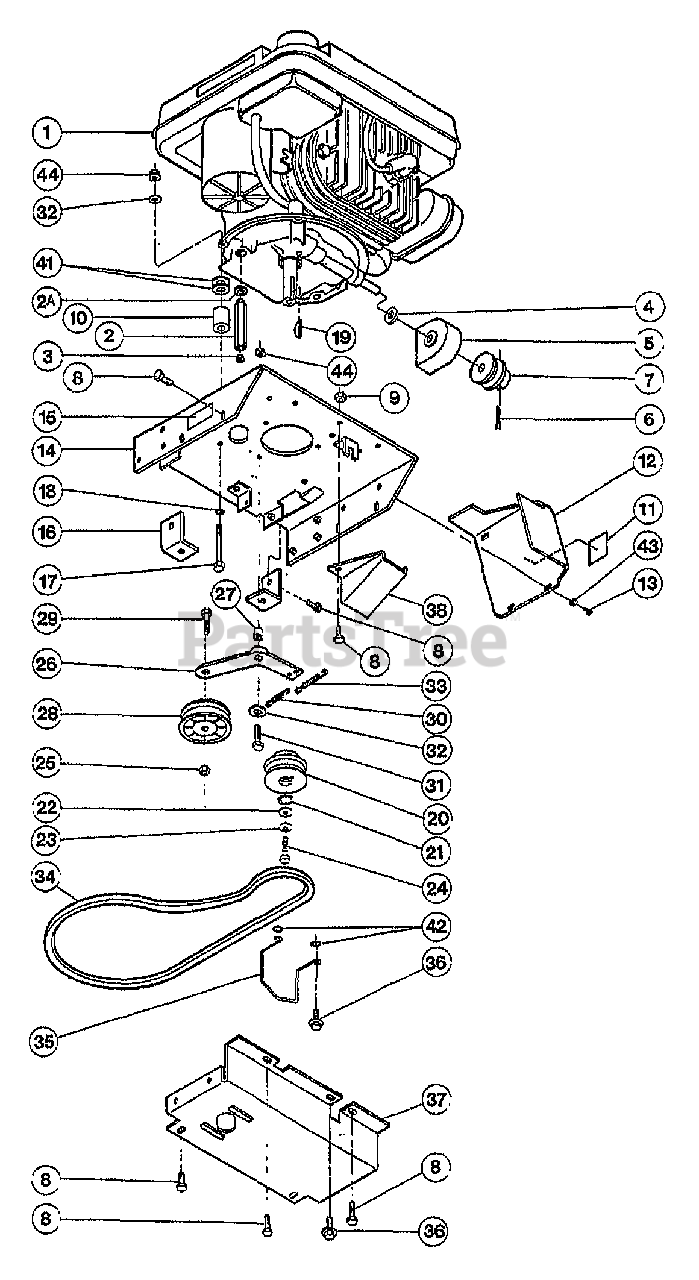

CUTTER DRIVE, ENGINE & WHEEL DRIVE Parts Diagram

  • Title

1

0

ENGINE, TEC. 4HP, ELECTRIC START #TVS-105- 53629J

$

$

Not available

1

0

ENGINE, TEC. 4HP, STD. START #TVS-105-53630J

$

$

Not available

1

0

ENGINE, TEC. 3.5HP, STD. START #TVS-90-43637H

$

$

Not available

2

MTD 1908115

PLUG-OIL DRAIN

$

$

Not available

2A

MTD 1908179

GASKET-DRAIN PLUG

$

$

Not available

3

Troy-Bilt 30572

PLUG, ENGINE OIL DRAIN TUBE, 3/8

$

$

Currently unavailable

4

Troy-Bilt 94013

WASHER-FELT

$

$

Currently unavailable

5

Troy-Bilt 40022

ASSM-BELT GUIDE PTO

$

$

Currently unavailable

6

Troy-Bilt 97069

PIN-COTTER .188X1.5

$

$

Currently unavailable

7

Troy-Bilt 40020

PULLEY-ENG PTO MACHINE

$

$

Currently unavailable

8

Troy-Bilt 90038

SCR-HFLK 5/16-18X.62 G5ZP

$

$

Currently unavailable

9

Troy-Bilt 9848

NUT-HFLK 5/16-18 ZP

$

$

Currently unavailable

10

Troy-Bilt 97094

SPACER-1.125X.343X1.125

$

$

Currently unavailable

11

MTD 55053

DECAL-HOT SURFACE

$

$

Not available

12

MTD 1901318

COVER-BELT W/DECAL (INCL. 11)

$

$

Not available

13

Troy-Bilt 1900396

SCR-HW M10-32X.5 THRD ROLL

$5.99

$

Usually ships in 3-6 days

0

14

MTD 1900962010

PLATE-DECK #40092P

$

$

Not available

15

Troy-Bilt 40158

DECAL-OIL DRAIN TUBE

$

$

Currently unavailable

16

MTD 1900969010

SUPT-DECK #40094P

$

$

Not available

17

Troy-Bilt 90068

SCR HH 5/16-18X2.75 G8

$

$

Currently unavailable

18

Troy-Bilt 94020

WASHER-BELLEVILLE .328 ID

$

$

Currently unavailable

19

Troy-Bilt 97041

KEY-WOODRUFF .156X.625

$

$

Currently unavailable

20

MTD 40023

PULLEY-CRANKSHAFT MACH

$

$

Not available

21

Troy-Bilt 97066

RING-RET INTERNAL

$

$

Currently unavailable

22

Troy-Bilt 9933

WASHER-1.25X.375X.1

$

$

Currently unavailable

23

MTD 9925

WASHER-.994X.413X.145

$

$

Not available

24

Troy-Bilt 9549

SCR-HH 3/8-24X1.0 G5

$

$

Currently unavailable

25

Troy-Bilt 9831

NUT-HFLK 3/8-16

$

$

Currently unavailable

26

Troy-Bilt 40126

ARM-IDLER BLADE DR

$

$

Currently unavailable

27

Troy-Bilt 97064

BUSHING-.5X.31X.843 LG

$

$

Currently unavailable

28

MTD 40142

PULLEY-FLAT IDLER (BLADE)

$

$

Not available

29

Troy-Bilt 90047

SCR-HFLK 3/8-16X1.50

$

$

Currently unavailable

30

Troy-Bilt 96404

SPRING-RETURN

$

$

Currently unavailable

31

MTD 9466

SCR-HH 5/16-18X1.5 G5
(Superseded to 690-900-0040)

$3.49

$

Usually ships in 3-6 days

0

32

Troy-Bilt 9902

WASHER-FLAT 5/16 SAE

$

$

Currently unavailable

33

Troy-Bilt 96403

SPRING-CABLE

$

$

Currently unavailable

34

Troy-Bilt 97043

BELT-CUTTER BAR

$

$

Currently unavailable

35

Troy-Bilt 40132

GUIDE-BELT

$

$

Currently unavailable

36

Troy-Bilt 90065

SCR-HXFL 5/16-18X.5 G5

$

$

Currently unavailable

37

MTD 1900952010

COVER-BELT CUTTERBAR RED

$

$

Not available

38

MTD 1900970010

GUARD-PAINTED 40133P

$

$

Not available

?39

Troy-Bilt EB396800-2

SPART ARRESTER ASSEMBLY

$

$

Currently unavailable

?40

Troy-Bilt 90002

SCREW, #8 x 3/8, HEX FLANGE LOCK, SELF- THREADING

$

$

Currently unavailable

41

Troy-Bilt 9929

WASHER, FLAT, 1 1/8" OUTER DIA. x 11/32" INNER DIA.
(Superseded to GW-9929)

$3.99

$

Usually ships in 3-6 days

0

42

Troy-Bilt 9919

WASHER-LK .312 EXT TOOTH

$

$

Currently unavailable

43

94019

WASHER-#10 TYPE B PLN

$

$

Not available

44

Troy-Bilt 92017

NUT-TOP/LK 5/16-18

$

$

Currently unavailable
