34303 - Troy-Bilt Trailblazer VII Sicklebar Mower (SN: 343030100101 - 343030101975) WHEEL DRIVE & WHEELS Parts Diagram

Trailblazer VII Sicklebar Mower

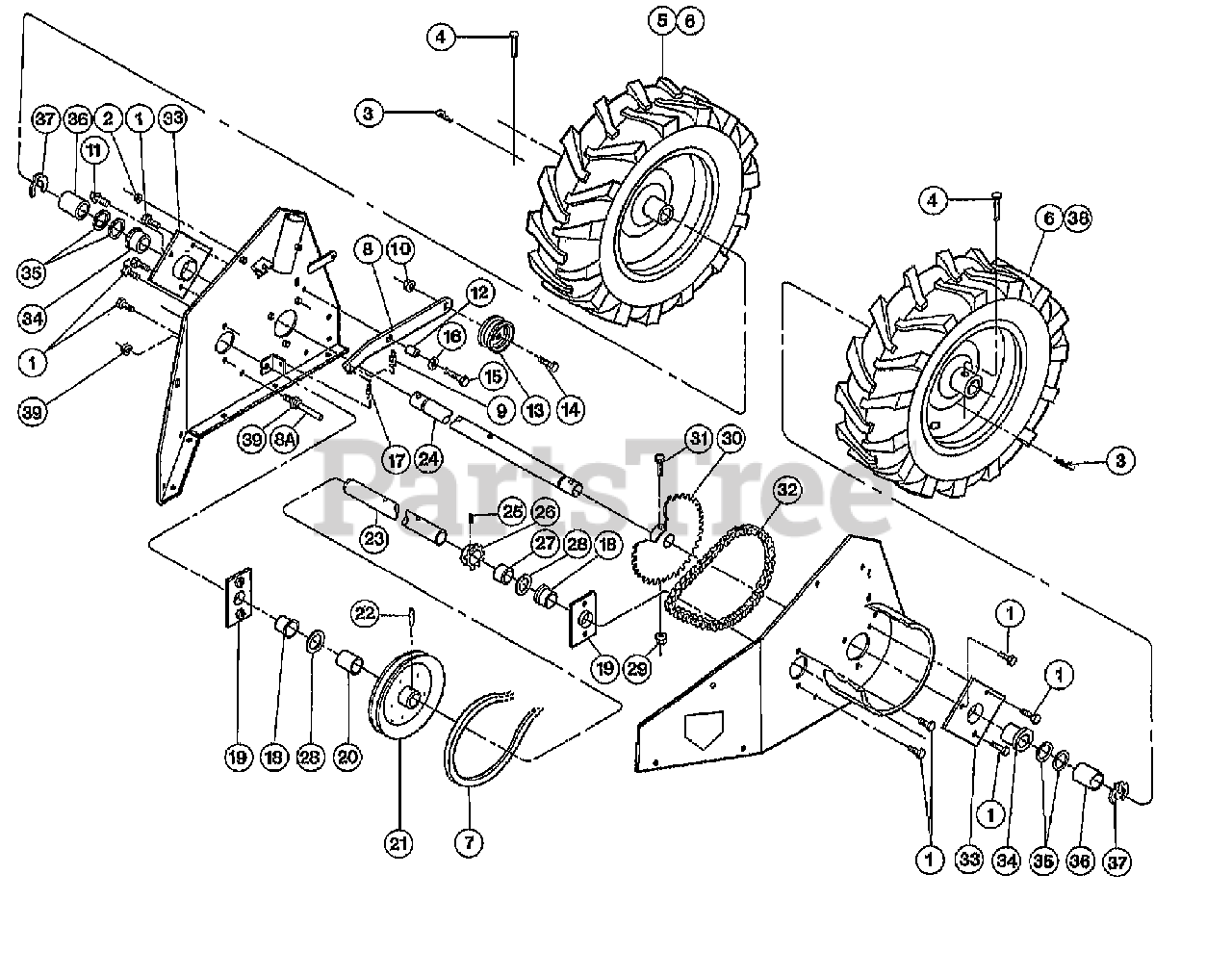

WHEEL DRIVE & WHEELS Parts Diagram

  • Title

1

Troy-Bilt 90038

SCR-HFLK 5/16-18X.62 G5

$

$

Currently unavailable

2

Troy-Bilt 9848

NUT-HFLK 5/16-18

$

$

Currently unavailable

3

Troy-Bilt 9338

PIN-CLIP .08
(Superseded to 714-04048)

$8.49

$

In Stock, only 2 left!

0

4

Troy-Bilt 9380

PIN-CLEVIS
(Superseded to 711-04126)

$4.49

$

In Stock, Qty 13

0

4

Troy-Bilt 9355

PIN-QUICK RELEASE (REPLACES ITEMS 3 & 4)

$

$

Currently unavailable

5

Troy-Bilt 40180-2

ASSM-TIRE&WHEEL RH GRAY

$

$

Currently unavailable

6

Troy-Bilt 1234-1

TIRE-BTT 4.80/4.00X8.00

$

$

Currently unavailable

7

Troy-Bilt 97042

BELT-WHEEL DRIVE

$

$

Currently unavailable

8

Troy-Bilt 40129

ARM-IDLER WHEEL DRIVE

$

$

Currently unavailable

8A

Troy-Bilt 97065

PIN-BELT GUIDE

$

$

Currently unavailable

9

Troy-Bilt 96403

SPRING-CABLE

$

$

Currently unavailable

10

Troy-Bilt 9831

NUT-HFLK 3/8-16

$

$

Currently unavailable

11

Troy-Bilt 90065

SCR-HXFL 5/16-18X.5 G5

$

$

Currently unavailable

12

Troy-Bilt 97064

BUSHING-.5X.31X.843 LG

$

$

Currently unavailable

13

Troy-Bilt 40128

PULLEY-IDLER(BLADE DRIVE)

$

$

Currently unavailable

14

Troy-Bilt 90047

SCR-HFLK 3/8-16X1.50

$

$

Currently unavailable

15

MTD 9466

SCR-HH 5/16-18X1.5 G5
(Superseded to 690-900-0040)

$3.49

$

Usually ships in 3-6 days

0

16

Troy-Bilt 9902

WASHER-FLAT 5/16 SAE

$

$

Currently unavailable

17

Troy-Bilt 96404

SPRING-RETURN

$

$

Currently unavailable

18

Troy-Bilt 40039

BUSHING-FLANGE JACKSHAFT

$

$

Currently unavailable

19

Troy-Bilt 40037P

PLATE-JACKSHAFT PNT.

$

$

Currently unavailable

20

Troy-Bilt 97061

SPACER-JACKSHAFT

$

$

Currently unavailable

21

Troy-Bilt 40034

PULLEY-JACKSHAFT

$

$

Currently unavailable

22

Troy-Bilt 97072

PIN-SPIROL 3/16 X 1.50

$

$

Currently unavailable

23

Troy-Bilt 40032

SHAFT-JACK MACH

$

$

Currently unavailable

24

Troy-Bilt 40031

SHAFT-WHEEL MACH

$

$

Currently unavailable

25

Troy-Bilt 97045

PIN-SPIROL .188X1.12

$

$

Currently unavailable

26

MTD 40033

SPROCKET-9T

$

$

Not available

27

Troy-Bilt 97062

SPACER-JCKSHFT SPKT SIDE

$

$

Currently unavailable

28

Troy-Bilt 50043

WASHER-#1.25X.75X.06
(Superseded to 736-04304)

$4.49

$

In Stock, Qty 12

0

29

Troy-Bilt 92016

NUT-H/LK 5/16-18 NYLOCK

$

$

Currently unavailable

30

Troy-Bilt 40134

SPROCKET-36T WELD

$

$

Currently unavailable

31

Troy-Bilt 9741

BOLT-HH 5/16-18 X 2 G5
(Superseded to 710-3103)

$4.49

$

In Stock, Qty 20+

0

32

Troy-Bilt 97044

CHAIN-ROLLER #41

$

$

Currently unavailable

33

Troy-Bilt 40027P

FLANGE, AXLE BUSHING

$

$

Currently unavailable

34

Troy-Bilt 40029

BUSHING/AXLY NYLONG

$

$

Currently unavailable

35

Troy-Bilt 1166-1

SHIM-1.375X1.015X.062
(Superseded to 736-04309)

$4.49

$

In Stock, Qty 20+

0

36

Troy-Bilt 97060

SPACER-AXLE T/BLAZER

$

$

Currently unavailable

37

Troy-Bilt 9511

RING-HEAVY EXT .906 ID
(Superseded to 716-04104)

$4.49

$

In Stock, Qty 20+

0

38

Troy-Bilt 40025-1

ASSM-TIRE&WHEEL LH GRAY

$

$

Currently unavailable

39

Troy-Bilt 92017

NUT-TOP/LK 5/16-18 ZP

$

$

Currently unavailable
