343 R - Husqvarna String Trimmer (SN: 20064000001 - 20103600000) CRANKCASE Parts Diagram

String Trimmer

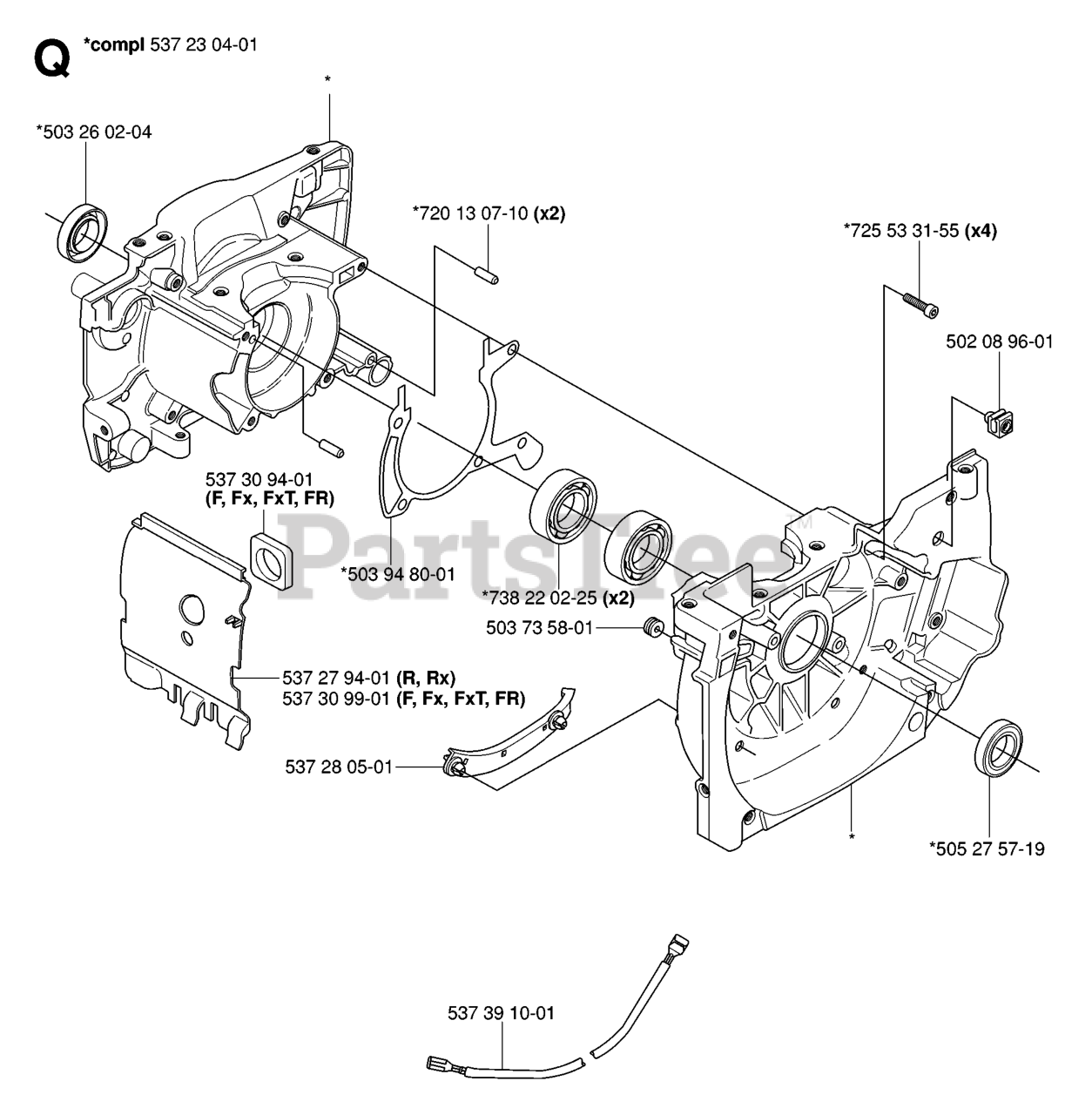

CRANKCASE Parts Diagram

  • Title

720 13 07-10

Husqvarna 720130710

PIN 5X14
(Superseded to 720130752)

$8.99

$

Usually ships in 3-10 days

0

725 53 31-55

Husqvarna 725533155

SCREW MC6S 5X20
(Superseded to 525824902)

$6.49

$

In Stock, only 2 left!

0

505 27 57-19

Husqvarna 505275719

SEAL RING

$19.99

$

In Stock, Qty 6

0

503 26 02-04

Husqvarna 503260204

SEALING RING

$14.99

$

In Stock, Qty 6

0

738 22 02-25

Husqvarna 738220225

BALL BEARING-6202-C3 SKF

$31.99

$

In Stock, only 1 left!

0

537 27 94-01

Husqvarna 537279401

AIR CONDUCTOR

$

$

Not available

537 30 94-01

Husqvarna 537309401

SEAL

$

$

Not available

537 23 04-01

Husqvarna 537230401

CRANKCASE

$125.99

$

Usually ships in 3-10 days

0

537 39 10-01

Husqvarna 537391001

SHORTING LEAD

$9.22

$

Usually ships in 3-10 days

0

537 28 05-01

Husqvarna 537280501

HOLDER

$

$

Not available

503 73 58-01

Husqvarna 503735801

FUEL TANK BUSHING
(Superseded to 580457501)

$7.99

$

In Stock, Qty 20+

0

503 94 80-01

Husqvarna 503948001

GASKET

$4.99

$

Usually ships in 3-10 days

0

537 30 99-01

Husqvarna 537309901

AIR CONDUCTOR

$

$

Not available

502 08 96-01

Husqvarna 502089601

CABLE SOCKET

$4.46

$

Usually ships in 3-10 days

0
