343 F - Husqvarna Brush Cutter (SN: 20043100001 - 20064000000) BEVEL GEAR Parts Diagram

Brush Cutter

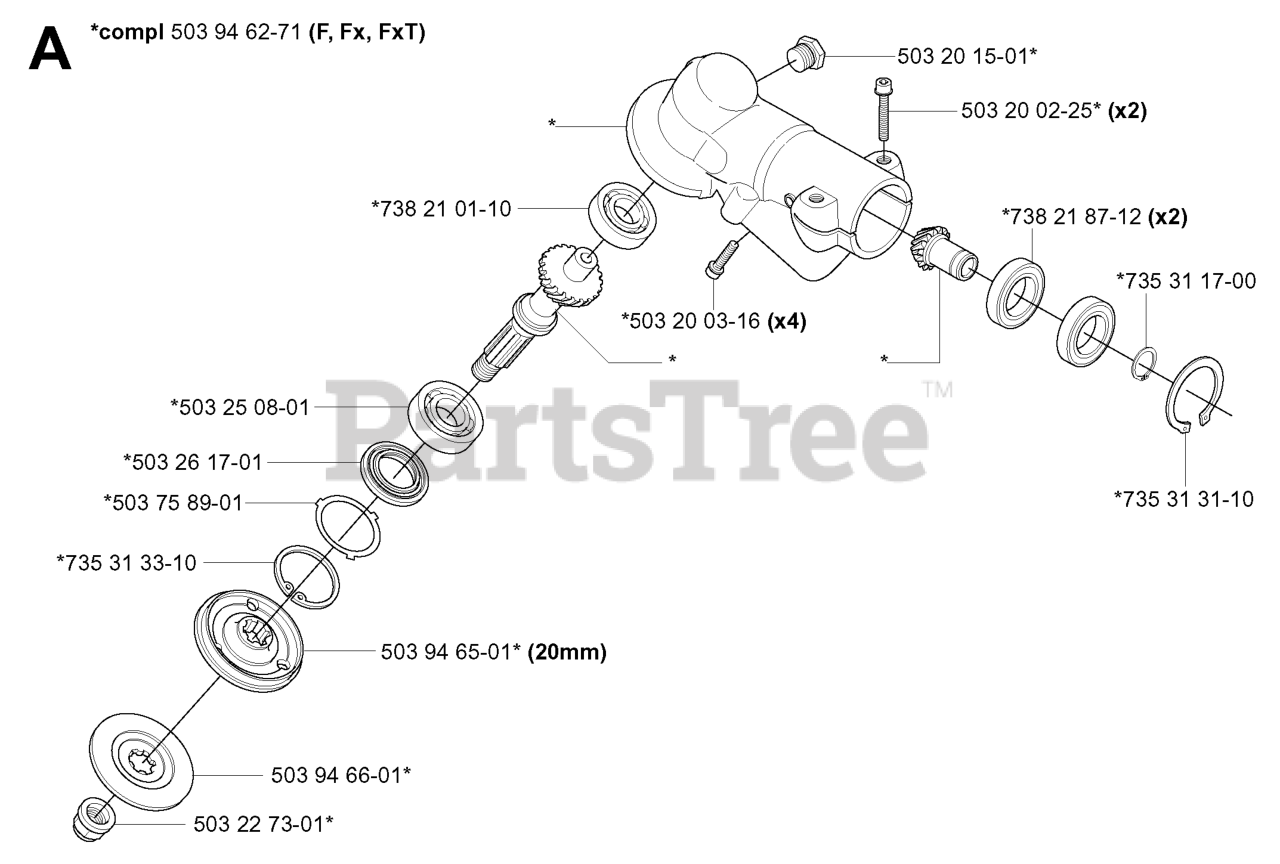

BEVEL GEAR Parts Diagram

  • Title

735 31 33-10

Husqvarna 735313310

RETAINING RING SGH 35

$3.49

$

Usually ships in 3-10 days

0

503 94 65-01

Husqvarna 503946501

CARRIER

Note: 20MM

$

$

Not available

503 75 89-01

Husqvarna 503758901

WASHER

$2.23

$

In Stock, only 1 left!

0

735 31 31-10

Husqvarna 735313110

RETAINING RING

$4.99

$

In Stock, only 3 left!

0

503 26 17-01

Husqvarna 503261701

SEAL

$13.99

$

In Stock, only 1 left!

0

735 31 17-00

Husqvarna 735311700

RETAINING RING SGA 15

$3.49

$

In Stock, Qty 7

0

738 21 87-12

Husqvarna 738218712

BALL BEARING

$31.99

$

Usually ships in 3-10 days

0

503 94 66-01

Husqvarna 503946601

FLANGE
(Superseded to 537343502)

$26.99

$

In Stock, only 1 left!

0

503 94 62-71

Husqvarna 503946271

BEVEL GEAR
(Superseded to 504103503)

Note: F, FX, FXT

$

$

Not available

503 20 03-16

Husqvarna 503200316

SCREW

$6.49

$

In Stock, Qty 20+

0

503 25 08-01

Husqvarna 503250801

BALL BEARING

$24.99

$

In Stock, Qty 9

0

503 22 73-01

Husqvarna 503227301

BLADE NUT
(Superseded to 502291101)

$7.99

$

In Stock, only 1 left!

0

738 21 01-10

Husqvarna 738210110

BALL BEARING

$24.99

$

Usually ships in 3-10 days

0

503 20 02-25

Husqvarna 503200225

SCREW

$4.99

$

In Stock, Qty 7

0

503 20 15-01

Husqvarna 503201501

PLUG

$9.99

$

In Stock, only 1 left!

0
