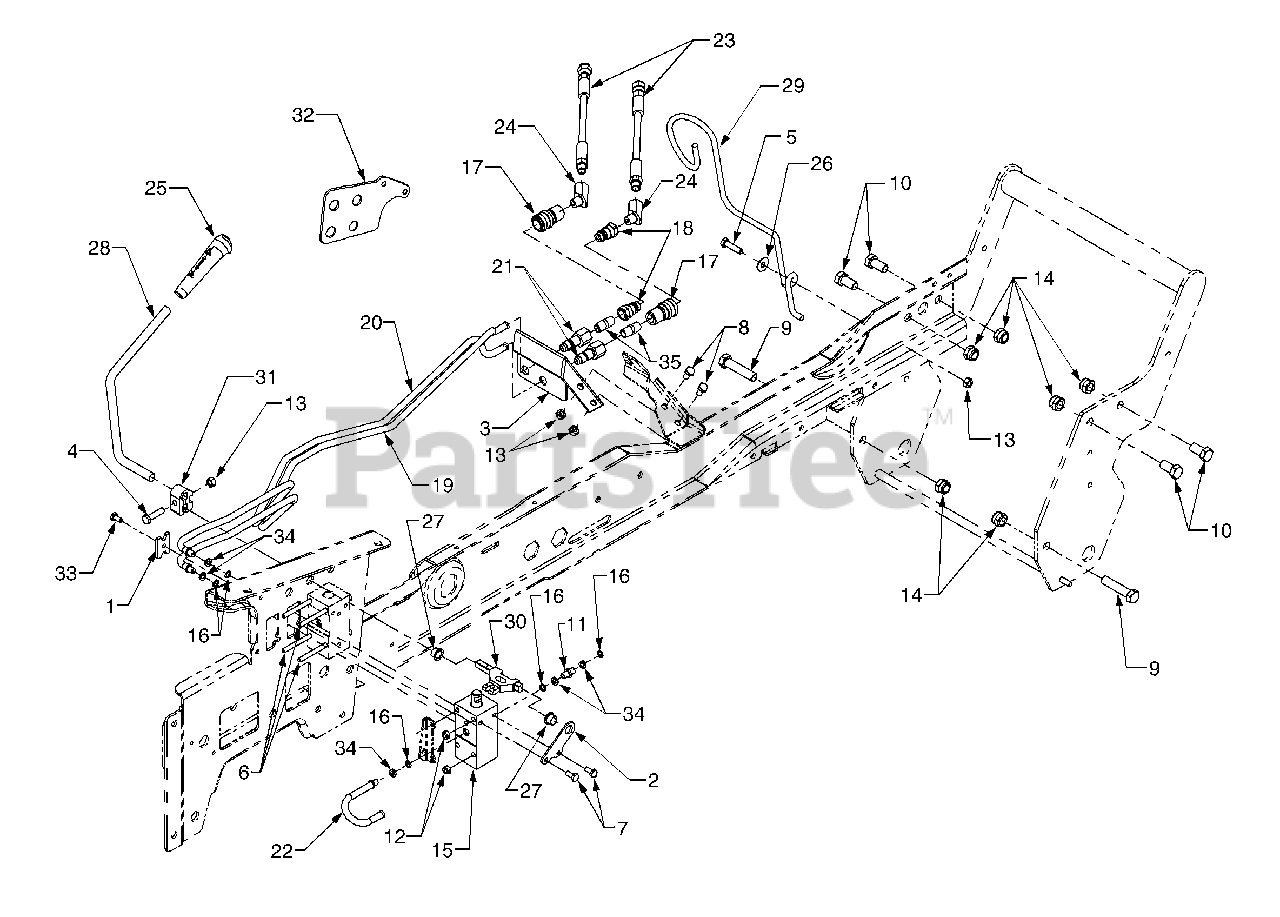

343 (190-343-100) - Cub Cadet Front Hitch att Hydraulics Parts Diagram

Front Hitch

Hydraulics Parts Diagram

  • Title

1

Cub Cadet 703-1803

Clamp, Double Valve
(Superseded to 903-1803)

$

$

Not available

2

Cub Cadet 703-3154

Bracket, Lift Valve
(Superseded to 703-3154-0637)

Variations

Cub Cadet 703-3154-0637

Lift Valve Bracket - POWDER BLACK (0637)

$33.99

$

In Stock, only 1 left!

0

$33.99

$

In Stock, only 1 left!

0

3

Cub Cadet 703-3184

0498 Bulkhead, Fitting
(Superseded to 703-3184-0498)

Variations

Cub Cadet 703-3184-0498

BULKHEAD-FITTING - OLD CUB YELLOW (0498)

$

$

Not available

$

$

4

Cub Cadet 710-0528

Screw, Hex Cap 5/16-18 x 1.25 GR5

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-0805

Screw, Hex Cap 5/16-18 x 1.5 GR5
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-1058

Screw, Hex Cap, 1/4-20 x 4.0

$5.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-3013

Screw, Hex Cap, 1/4-20 x .5 GR5

$4.99

$

In Stock, Qty 11

0

8

Cub Cadet 710-3025

Screw, Hex Cap 5/16-18 x .625 GR5

$3.99

$

In Stock, Qty 8

0

9

Cub Cadet 710-3104

Screw, Hex Cap 1/2-13 x 2.25 GR5

$8.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-3131

Screw, Hex Cap 1/2-13 x 1.0 GR5

$5.49

$

In Stock, only 1 left!

0

11

Cub Cadet 711-3294

Fitting, Union

$36.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 712-0291

Nut, Hex Center Lock, 1/4-20

$4.49

$

In Stock, Qty 8

0

13

Cub Cadet 712-0429

Nut, Hex Insert Lock, 5/16-18

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 712-3083

Nut, Hex Insert Lock, 1/2-13

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 717-3452

Valve Assembly, Hydraulic
(Superseded to 717P3452)

$473.99

$

In Stock, only 1 left!

0

16

Cub Cadet 721-3021

O-Ring, .301 ID x .070 Dia.
(Superseded to 921-3021)

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 727-3014

Fitting,Body Coupling

$106.99

$

In Stock, only 1 left!

0

Cub Cadet 731-3022

Cap, Protective

$20.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 727-3023

Fitting, Nose Coupling

$51.99

$

In Stock, only 3 left!

0

Cub Cadet 727-3024

Cap, Coupling

$57.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 727-3141

Tube, Hydraulic Lift (Up)

$111.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 727-3142

Tube, Hydraulic Lift (Down)

$117.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 727-3145

Fitting, Bulkhead, 3/8 Tube

$

$

Not available

Cub Cadet 912-3035

Jam Nut 9/16-18 for Bulkhead Fitting
(Superseded to 712-3035)

$6.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 727-3149

Tube, Hyd. Return, Aux. Valve #1

$

$

Not available

23

Cub Cadet 727-3157

Hose, Lift

$93.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 727-3165

Fitting, 45° Pipe Street

$

$

Not available

25

Cub Cadet 731-3259

Knob, Valve Handle

$19.99

$

In Stock, only 2 left!

0

26

Cub Cadet 736-0159

Washer, Flat, .349 x .88 x .063

$4.49

$

In Stock, Qty 20+

0

27

Cub Cadet 741-0491

Bearing, Nylon Flange, .5 ID

$5.49

$

In Stock, only 3 left!

0

28

Cub Cadet 747-3350A

Handle, Hydraulic Valve, Aux. #1

$44.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 747-3372

Rod, Hose Support

$

$

Not available

30

Cub Cadet 748-3081A

Link, Lift

$46.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 748-3082

Clamp, Handle

$36.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 703-3442-0716

Bulkhead, Fitting

Note: Replaces Ref.No. 3 (703-3184) on tractors built after Mfg. Code 1H018G

$

$

Not available

33

Cub Cadet 710-3015

Screw, Hex Cap, 1/4-20 x .75 GR5

$3.99

$

In Stock, Qty 20+

0

34

Cub Cadet 721-0492

O-Ring, Backup, .327 x .433 x .05

$4.49

$

In Stock, Qty 20+

0

35

Cub Cadet 727-3170

Fitting, Pipe Nipple, 1/4 x .875

$

$

Not available
