34230 - Toro Stand-On Spreader/Sprayer (SN: 408000000 - 412799999) Spreader Assembly Parts Diagram

Stand-On Spreader/Sprayer

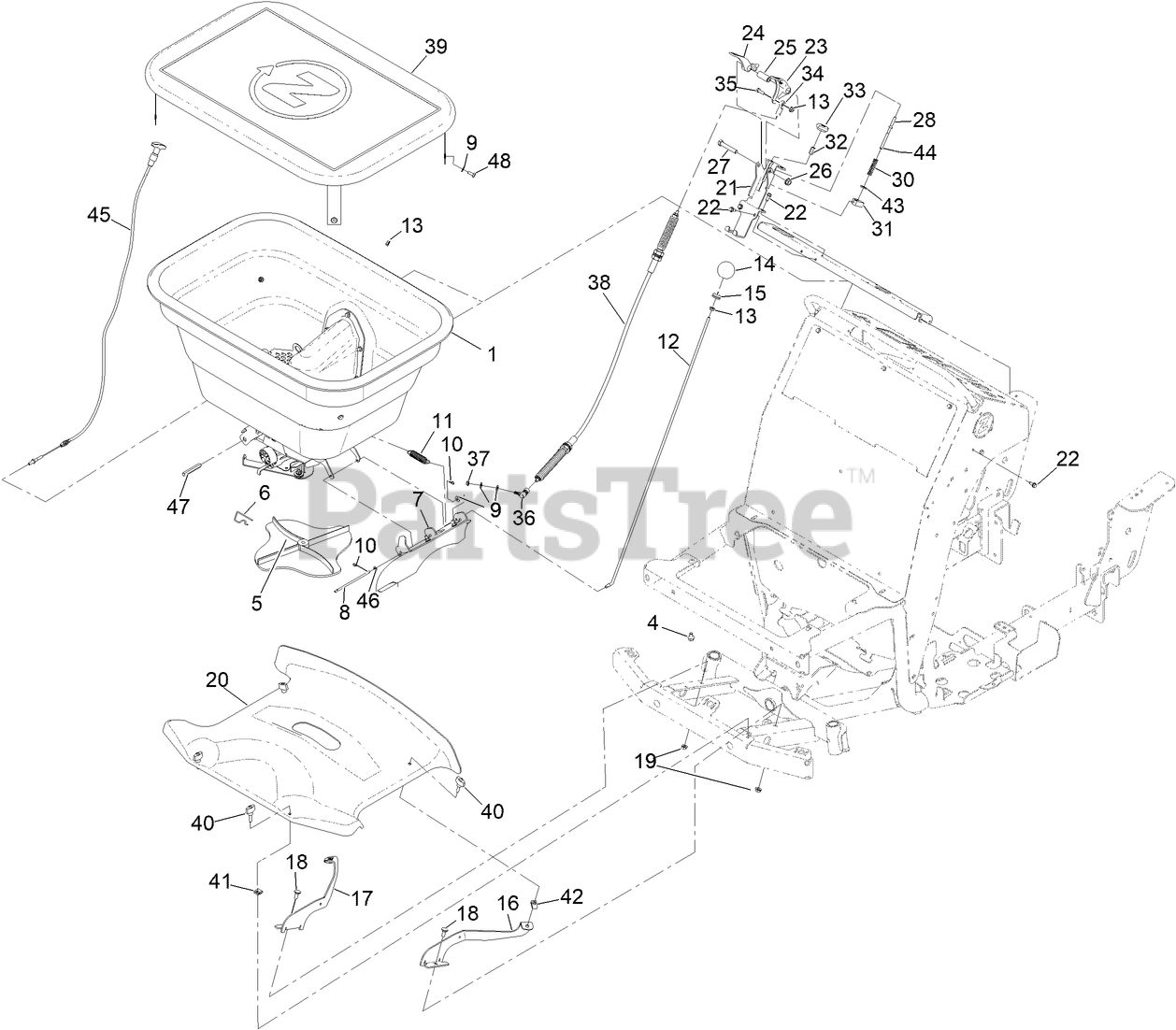

Spreader Assembly Parts Diagram

  • Title

1

SPREADER HOPPER ASM

Note: Not serviced separately

$

$

Not available

4

Toro 142-4255

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

5

Toro 142-3506

SPINNER-SPREADER

$41.99

$

In Stock, only 2 left!

0

6

Toro 142-3541

CLIP-SPINNER

$10.99

$

In Stock, only 2 left!

0

7

SIDE DEFLECTOR ASM

Note: Not serviced separately

$

$

Not available

8

Toro 135-2558

PIN-DEFLECTOR

$29.99

$

Usually ships in 3-6 days

0

9

Toro 360-0140

WASHER-FLAT

$0.99

$

In Stock, Qty 8

0

10

Toro 126-1631

PIN-COTTER, HAIR

$2.99

$

Usually ships in 3-6 days

0

11

Toro 126-2127

SPRING-EXTENSION

$7.99

$

In Stock, only 2 left!

0

12

Toro 126-2190

ROD-CONTROL, DEFLECTOR

$41.99

$

Usually ships in 3-6 days

0

13

Toro 135-2880

NUT-HF

$1.49

$

In Stock, only 1 left!

0

14

Toro 121-1877

KNOB-RATE, FLOW

$9.99

$

Usually ships in 3-6 days

0

15

Toro 1-633630

GROMMET

$5.99

$

In Stock, Qty 8

0

16

Toro 126-2145

BRACKET-COVER, FRONT (LH)

$50.99

$

Usually ships in 3-6 days

0

17

Toro 126-2146

BRACKET-COVER, FRONT (RH)

$50.99

$

Usually ships in 3-6 days

0

18

Toro 126-0695

SCREW-CARR

$1.49

$

Usually ships in 3-6 days

0

19

Toro 135-2881

NUT-HF

$1.99

$

In Stock, only 1 left!

0

20

Toro 126-2063

COVER-FRONT, SPREADER/SPRAYER

$196.99

$

Usually ships in 3-6 days

0

21

Toro 126-3133

MOUNT-HANDLE

$41.99

$

Usually ships in 3-6 days

0

22

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 9

0

23

Toro 126-3947

LEVER-SPREAD, WIDE

$10.99

$

Usually ships in 3-6 days

0

24

Toro 126-3948

LEVER-SPREAD, NARROW

$10.99

$

Usually ships in 3-6 days

0

25

Toro 126-3984

SPACER

$13.99

$

Usually ships in 3-6 days

0

26

Toro 135-2882

NUT-HF

$2.99

$

In Stock, Qty 8

0

27

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

28

Toro 126-3929

LINK-ADJUST, NARROW

$27.99

$

Usually ships in 3-6 days

0

30

Toro 125-0547

SPRING-COMPRESSION, BAIL

$1.99

$

Usually ships in 3-6 days

0

31

Toro 126-3147

STOP-SPREAD, NARROW

$29.99

$

Usually ships in 3-6 days

0

32

Toro 126-4891

NUT-COUPLER

$10.99

$

Usually ships in 3-6 days

0

33

Toro 126-3905

KNOB

$11.99

$

Usually ships in 3-6 days

0

34

Toro 2411-41

ROD END-BALL JOINT

$42.99

$

Usually ships in 3-6 days

0

35

Toro 126-0498

SCREW-HH

$1.49

$

In Stock, only 3 left!

0

36

Toro 126-2005

BALL-JOINT

$27.99

$

Usually ships in 3-6 days

0

37

Toro 126-2725

NUT-HEX, NI

$1.49

$

Usually ships in 3-6 days

0

38

Toro 126-1783

CABLE

$196.99

$

Usually ships in 3-6 days

0

39

Toro 126-2815

COVER-HOPPER

$101.99

$

In Stock, only 3 left!

0

40

Toro 126-5846

KNOB-T

$14.99

$

In Stock, only 3 left!

0

41

Toro 126-3740

NUT-RETAINER, U STYLE

$5.49

$

In Stock, only 1 left!

0

42

Toro 126-3739

NUT-RETAINER

$5.49

$

Usually ships in 3-6 days

0

43

Toro 3256-78

WASHER-FLAT

$1.99

$

Usually ships in 3-6 days

0

44

Toro 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

45

Toro 126-4150

CABLE-CONTROL, TURN LOCK

$97.99

$

Usually ships in 3-6 days

0

46

Toro 126-0759

WASHER-FLAT

$1.49

$

In Stock, Qty 7

0

47

Toro 126-4655

POST-HEX, DIFFUSER GUIDE

$21.99

$

Usually ships in 3-6 days

0

48

Toro 126-1290

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0
