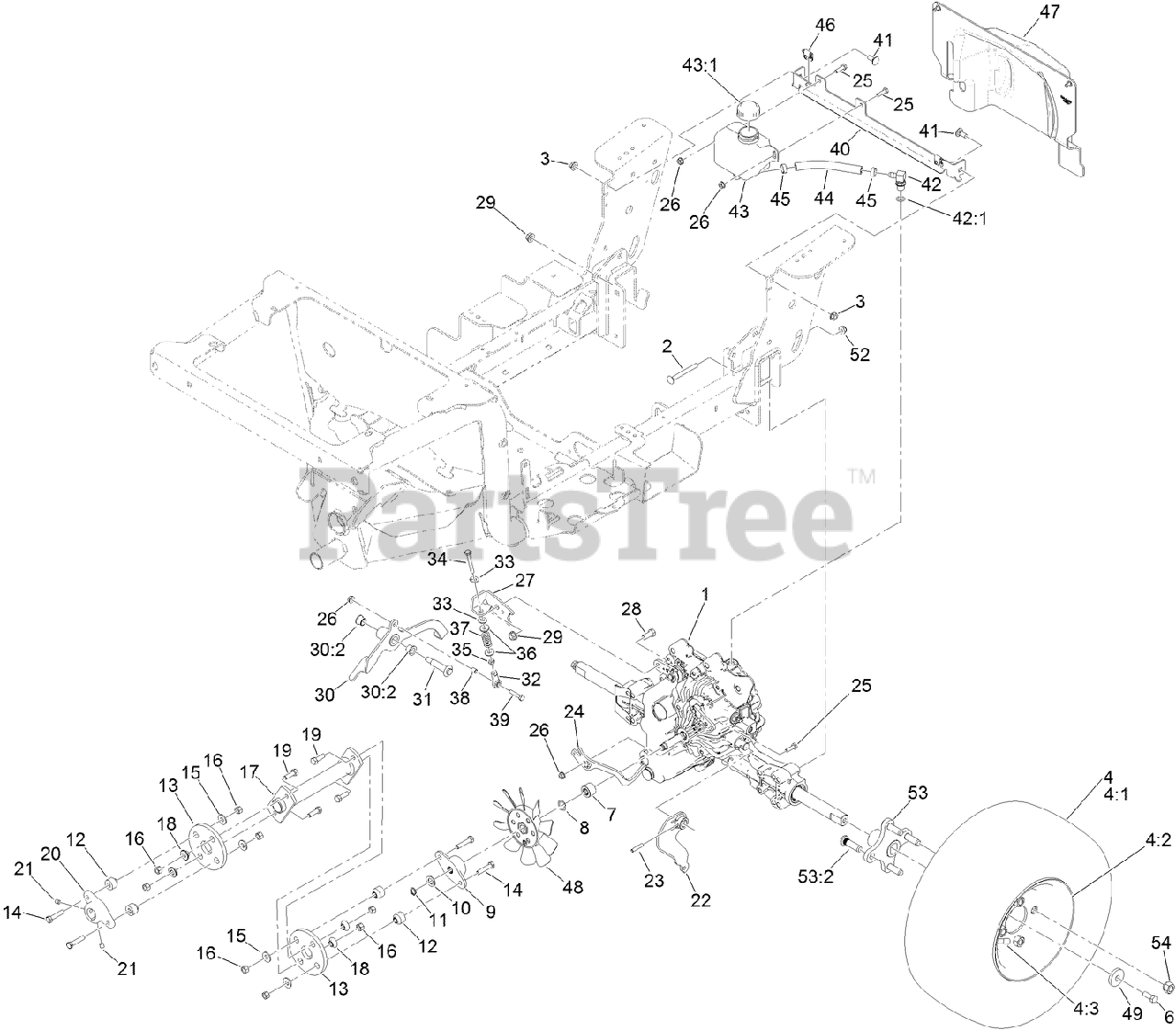

34230 - Toro Stand-On Spreader/Sprayer (SN: 408000000 - 412799999) Ground Drive Assembly Parts Diagram

Stand-On Spreader/Sprayer

Ground Drive Assembly Parts Diagram

  • Title

1

Toro 126-2814

TRANSAXLE

$2315.99

$

Usually ships in 3-6 days

0

1:99

Toro 126-9688

KIT-SEAL

Note: Not illustrated

$14.99

$

Usually ships in 3-6 days

0

1:99

Toro 135-3175

KIT-TRANSMISSION SEAL

Note: Not illustrated

$90.99

$

Usually ships in 3-6 days

0

1:99

Toro 142-4793

PLUG-BORE 20

Note: Not illustrated

$11.99

$

Usually ships in 3-6 days

0

2

Toro 3230-26

SCREW-CARR

$4.49

$

Usually ships in 3-6 days

0

3

Toro 135-2881

NUT-HF

$1.99

$

In Stock, only 1 left!

0

4

Toro 135-1898

WHEEL AND TIRE ASM (GREY)

$184.99

$

Usually ships in 3-6 days

0

4:1

Toro 119-8907

TIRE-4 PLY

$176.99

$

Usually ships in 3-6 days

0

4:2

Toro 135-1899

WHEEL (GREY)

$86.99

$

Usually ships in 3-6 days

0

4:3

Toro 232-27

See Supercession: 5108
(Superseded to 5108)

$6.99

$

In Stock, Qty 14

0

4:99

Toro 107-2491

TUBE-TIRE

Note: Not illustrated

$83.99

$

In Stock, only 2 left!

0

6

Toro 135-1711

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

7

Toro 126-2983

SPACER-SHAFT, INPUT

$36.99

$

Usually ships in 3-6 days

0

8

Toro 3290-317

WASHER-SPRING

$2.49

$

In Stock, only 1 left!

0

9

Toro 116-9787

HUB-SHAFT, TRANSAXLE

$85.99

$

Usually ships in 3-6 days

0

10

Toro 605256

SPACER

$2.99

$

In Stock, Qty 20+

0

11

Toro 32151-61

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

12

Toro 27-6590

SPACER-COUPLING, RUBBER

$16.99

$

Usually ships in 3-6 days

0

13

Toro 115-4523

COUPLING-RUBBER

$56.99

$

In Stock, Qty 20+

0

14

Toro 3210-8

SCREW-HH

$4.49

$

In Stock, only 3 left!

0

15

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 32152-5

NUT-HEX

$3.99

$

In Stock, only 2 left!

0

17

Toro 135-5223-03

SHAFT-DRIVE

$61.99

$

Usually ships in 3-6 days

0

18

Toro 125-9249

SPACER-COUPLER, RUBBER

$2.99

$

In Stock, only 3 left!

0

19

Toro 3210-5

SCREW-HH

$3.99

$

In Stock, Qty 5

0

20

Toro 116-9788

HUB-SHAFT, ENGINE

$97.99

$

Usually ships in 3-6 days

0

21

Toro 3246-18

SETSCREW

$5.49

$

Usually ships in 3-6 days

0

22

Toro 126-6243-03

ARM-MOTION

$59.99

$

Usually ships in 3-6 days

0

23

Toro 126-4295

PIN-SPIRAL

$2.99

$

Usually ships in 3-6 days

0

24

Toro 126-2811-03

ARM-RELEASE

$21.99

$

Usually ships in 3-6 days

0

25

Toro 126-0498

SCREW-HH

$1.49

$

In Stock, only 3 left!

0

26

Toro 135-2880

NUT-HF

$1.49

$

In Stock, only 1 left!

0

27

Toro 126-3937-03

ARM-BRAKE

$19.99

$

Usually ships in 3-6 days

0

28

Toro 126-0520

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

29

Toro 135-2882

NUT-HF

$2.99

$

In Stock, Qty 20+

0

30

Toro 126-0433

BRAKE LEVER ASM

$95.99

$

Usually ships in 3-6 days

0

30:2

Toro 116-4279

BEARING-FLANGE

$4.49

$

In Stock, Qty 20+

0

31

Toro 92-1057

BOLT-SHOULDER

$3.99

$

In Stock, Qty 20+

0

32

Toro 2411-41

ROD END-BALL JOINT

$42.99

$

Usually ships in 3-6 days

0

33

Toro 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 3 left!

0

34

Toro 126-4009

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

35

Toro 3220-1

NUT-JAM

$1.49

$

In Stock, only 2 left!

0

36

Toro 3256-78

WASHER-FLAT

$1.99

$

Usually ships in 3-6 days

0

37

Toro 1-323245

SPRING-COMPRESSION

$6.49

$

In Stock, Qty 12

0

38

Toro 612503

SPACER

$5.49

$

Usually ships in 3-6 days

0

39

Toro 321-8

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

40

Toro 126-4423-03

BRACKET-MOUNT, TANK

$30.99

$

Usually ships in 3-6 days

0

41

Toro 126-0695

SCREW-CARR

$1.49

$

Usually ships in 3-6 days

0

42

Toro 126-2927

FITTING-90 DEG

$26.99

$

Usually ships in 3-6 days

0

42:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

43

Toro 126-2578

TANK ASM

$101.99

$

Usually ships in 3-6 days

0

43:1

Toro 126-2579

CAP-TANK

$12.99

$

Usually ships in 3-6 days

0

44

Toro 126-2842

HOSE-EXPANSION

$5.49

$

Usually ships in 3-6 days

0

45

Toro 126-3749

CLAMP

$1.49

$

Usually ships in 3-6 days

0

46

Toro 119-1730

RECEPTACLE-CLIP, MINI

$2.99

$

Usually ships in 3-6 days

0

47

Toro 126-1462

TRANSAXLE COVER ASM

$218.99

$

Usually ships in 3-6 days

0

48

Toro 126-2980

FAN-7 INCH

$21.99

$

Usually ships in 3-6 days

0

49

Toro 1-543610

WASHER-CLUTCH

$6.49

$

In Stock, Qty 16

0

52

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

53

Toro 126-9884

WHEEL HUB ASM

$52.99

$

Usually ships in 3-6 days

0

53:2

Toro 10-6830

STUD-TYPE, DRIVE
(Superseded to 111512)

$

$

Not available

54

Toro 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, only 4 left!

0
