3421H74-B - Poulan Lawn Tractor (2006-10) DRIVE Parts Diagram

Lawn Tractor

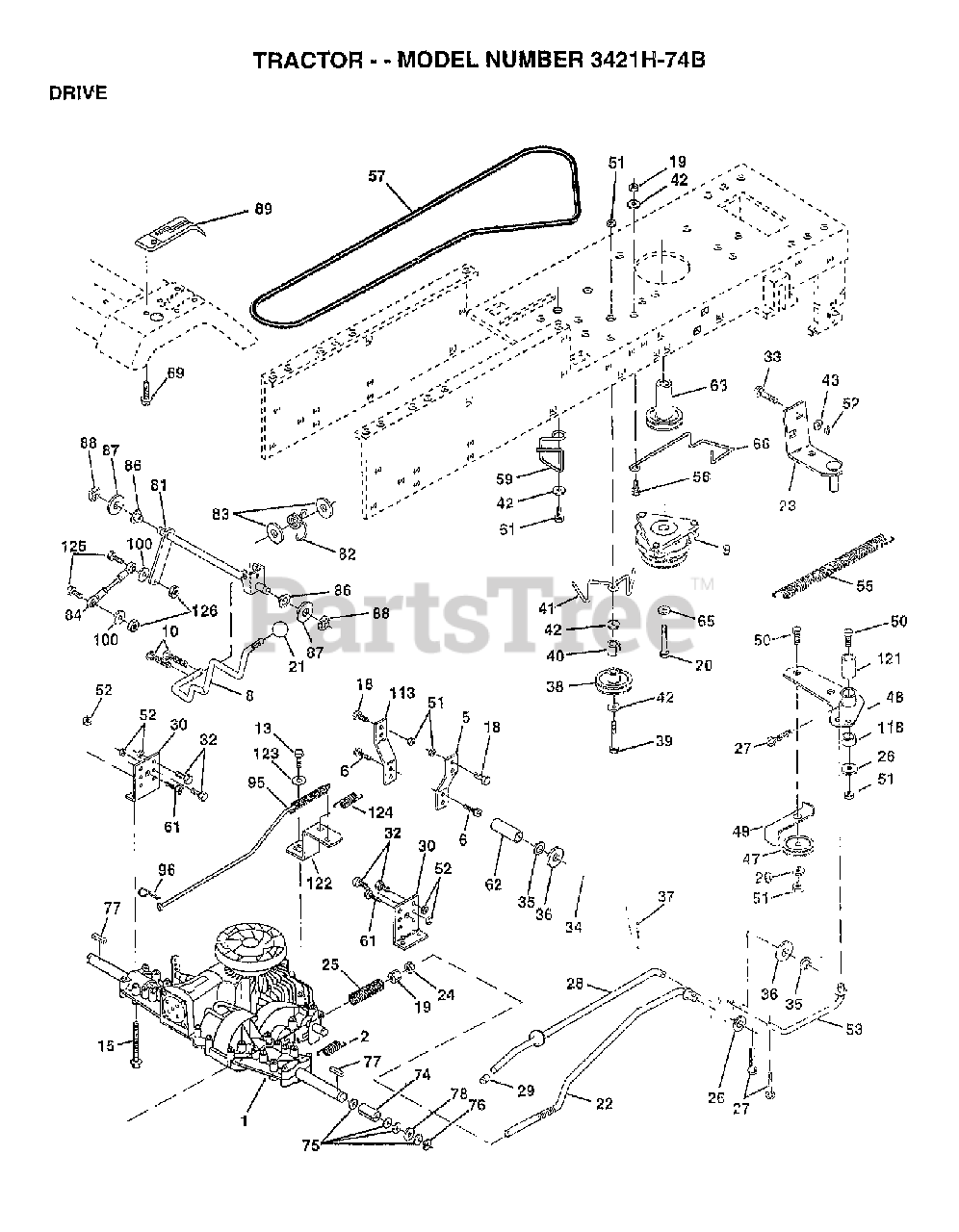

DRIVE Parts Diagram

  • Title

1

Poulan TBD

Note: 205026B

$

$

Not available

2

Poulan 532110422

SPRING T
(Superseded to 532146682)

$8.99

$

In Stock, only 2 left!

0

5

Poulan 532121520

STRAP TORQUE

$7.99

$

In Stock, only 3 left!

0

6

Poulan 817490512

Screw, Lt
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

8

Poulan 532141003

ROD SHIFT

$

$

Not available

9

Poulan 532137140

(Superseded to 532142600)

$

$

Not available

10

Poulan 876020416

PIN COTTER

$3.99

$

Usually ships in 3-10 days

0

13

Poulan 871040412

BOLT LT

$6.49

$

Usually ships in 3-10 days

0

15

Poulan 874490544

BOLT HEX 5/16-18 GR 5

$4.99

$

Usually ships in 3-10 days

0

17

Poulan 532126197

WASHER

$8.99

$

In Stock, only 3 left!

0

18

Poulan 874780616

BOLT

$6.49

$

Usually ships in 3-10 days

0

19

Poulan 532062336

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

20

Poulan 871170768

BOLT
(Superseded to 532173937)

$4.99

$

In Stock, only 1 left!

0

21

Poulan 532106933

KNOB T (1/2-HOLE)

$7.99

$

In Stock, only 1 left!

0

22

Poulan 532130804

ROD BRAKE

$31.99

$

Usually ships in 3-10 days

0

23

Poulan 532137141

BRACKET ASM MTG
(Superseded to 137141)

$

$

Not available

24

Poulan 873350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

25

Poulan 532106888

SPRING ROD LT
(Superseded to 532151332)

$6.49

$

In Stock, only 1 left!

0

26

Poulan 819131316

WASHER

$4.99

$

In Stock, Qty 5

0

27

Poulan 876020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

28

Poulan 532145204

$

$

Not available

29

Poulan 532071673

PLUNGER CAP

$5.99

$

Usually ships in 3-10 days

0

30

Poulan 532130807

BRACKET TRANSAXLE

$3.99

$

Usually ships in 3-10 days

0

32

Poulan 874760512

BOLT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

33

Poulan 872140506

BOLT
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

34

Poulan 532155071

SHAFT, FOOT PEDAL

$

$

Not available

35

Poulan 532120183

BEARING.NYLON

$6.99

$

In Stock, only 3 left!

0

36

Poulan 819211616

WASHER LT

$6.49

$

Usually ships in 3-10 days

0

37

Poulan 532001572

Drive Pin, 3/16 X 1"
(Superseded to 532002882)

$4.99

$

In Stock, Qty 7

0

38

Poulan 532004859

FLAT IDLER PULLEY
(Superseded to 532123674)

$31.99

$

In Stock, only 1 left!

0

39

Poulan 874760644

BOLT

$6.49

$

Usually ships in 3-10 days

0

40

Poulan 532004470

SPACER T
(Superseded to 532124965)

$6.49

$

Usually ships in 3-10 days

0

41

Poulan 532154777

(Superseded to 532165838)

$

$

Not available

42

Poulan 819131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, Qty 5

0

43

Poulan 819111012

WASHER T

$6.49

$

Usually ships in 3-10 days

0

47

Poulan 532127783

Idler Pulley
(Superseded to 532139245)

$37.99

$

In Stock, only 1 left!

0

48

Poulan 532154604

BELLCRANK ASSEMBLY

$

$

Not available

49

Poulan 532123205

RETAIN BELT

$6.49

$

Usually ships in 3-10 days

0

50

Poulan 874760624

Hex Bolt
(Superseded to 874930624)

$7.99

$

Usually ships in 3-10 days

0

51

Poulan 873680600

LOCKNUT
(Superseded to 596322601)

$3.99

$

In Stock, Qty 6

0

52

Poulan 873680500

LOCKNUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

53

Poulan 532105710

(Superseded to 532199652)

$13.99

$

Usually ships in 3-10 days

0

55

Poulan 532105709

SPRING, RETURN LT

$11.99

$

Usually ships in 3-10 days

0

56

Poulan 874760620

BOLT

$7.49

$

Usually ships in 3-10 days

0

57

Poulan 532156971

Belt
(Superseded to 584448801)

$

$

Not available

59

Poulan 532104777

(Superseded to 532136715)

$

$

Not available

61

Poulan 817490612

(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

62

Poulan 532008883

PEDAL COVER

$6.49

$

Usually ships in 3-10 days

0

63

Poulan 532140189

PULLEY CLU ELEC

$42.99

$

Usually ships in 3-10 days

0

65

Poulan 810040700

LOCKWASHER
(Superseded to 539990247)

$3.99

$

In Stock, Qty 20+

0

66

Poulan 532154778

KEEPER BELT ENGINE

$12.99

$

Usually ships in 3-10 days

0

69

Poulan 532142432

SCREW.HI-LO.CONSOLE

$6.49

$

Usually ships in 3-10 days

0

74

Poulan 532156972

SPACER, AXLE PVST

$6.99

$

Usually ships in 3-10 days

0

75

Poulan 532121749

WASHER

$3.49

$

Usually ships in 3-10 days

0

76

Poulan 812000001

E-RING LT

$4.99

$

Usually ships in 3-10 days

0

77

Poulan 532123583

SQUARE KEY

$4.99

$

In Stock, only 4 left!

0

78

Poulan 532121748

WASHER

$4.99

$

In Stock, Qty 20+

0

81

Poulan 532156969

SHAFT ASM CROSS HYDRO

$14.99

$

Usually ships in 3-10 days

0

82

Poulan 532123782

SPRING,TORSION

$

$

Not available

83

Poulan 819171216

WASHER
(Superseded to 19171216)

$2.99

$

Usually ships in 3-10 days

0

84

Poulan 532156962

ROD, TIE PVST 20"

$

$

Not available

86

Poulan 532071208

BUSHING.STEERING.ROD

$3.99

$

Usually ships in 3-10 days

0

87

Poulan 819212016

WASHER D

$6.49

$

Usually ships in 3-10 days

0

88

Poulan 812000008

KLIP RING

$6.49

$

Usually ships in 3-10 days

0

89

Poulan 532151147

$

$

Not available

95

Poulan 532156970

ROD ASM BYPASS PVST

$

$

Not available

96

Poulan 532004497

RETAINER M

$9.99

$

In Stock, Qty 12

0

100

Poulan 819111216

WASHER M
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0

113

Poulan 532127285

STRAP TORQUE LH LT

$

$

Not available

118

Poulan 532154774

$

$

Not available

121

Poulan 532154419

NYLINER CLUTCHING

$

$

Not available

122

Poulan 532156963

PLATE BYPASS PVST
(Superseded to 156963)

$2.49

$

Usually ships in 3-10 days

0

123

Poulan TBD

$

$

Not available

124

Poulan 532156967

RETURN SPRING

$6.99

$

Usually ships in 3-10 days

0

125

Poulan 874780516

BOLT.FIN.HEX.5/16-18UNC X 1.00

$6.49

$

Usually ships in 3-10 days

0

126

Poulan 532001685

Lock Nut
(Superseded to 532068478)

$3.99

$

Usually ships in 3-10 days

0
