34215 - Toro Stand-On Spreader/Sprayer (SN: 316000001 - 316999999) (2016) ENGINE ASSEMBLY Parts Diagram

Stand-On Spreader/Sprayer

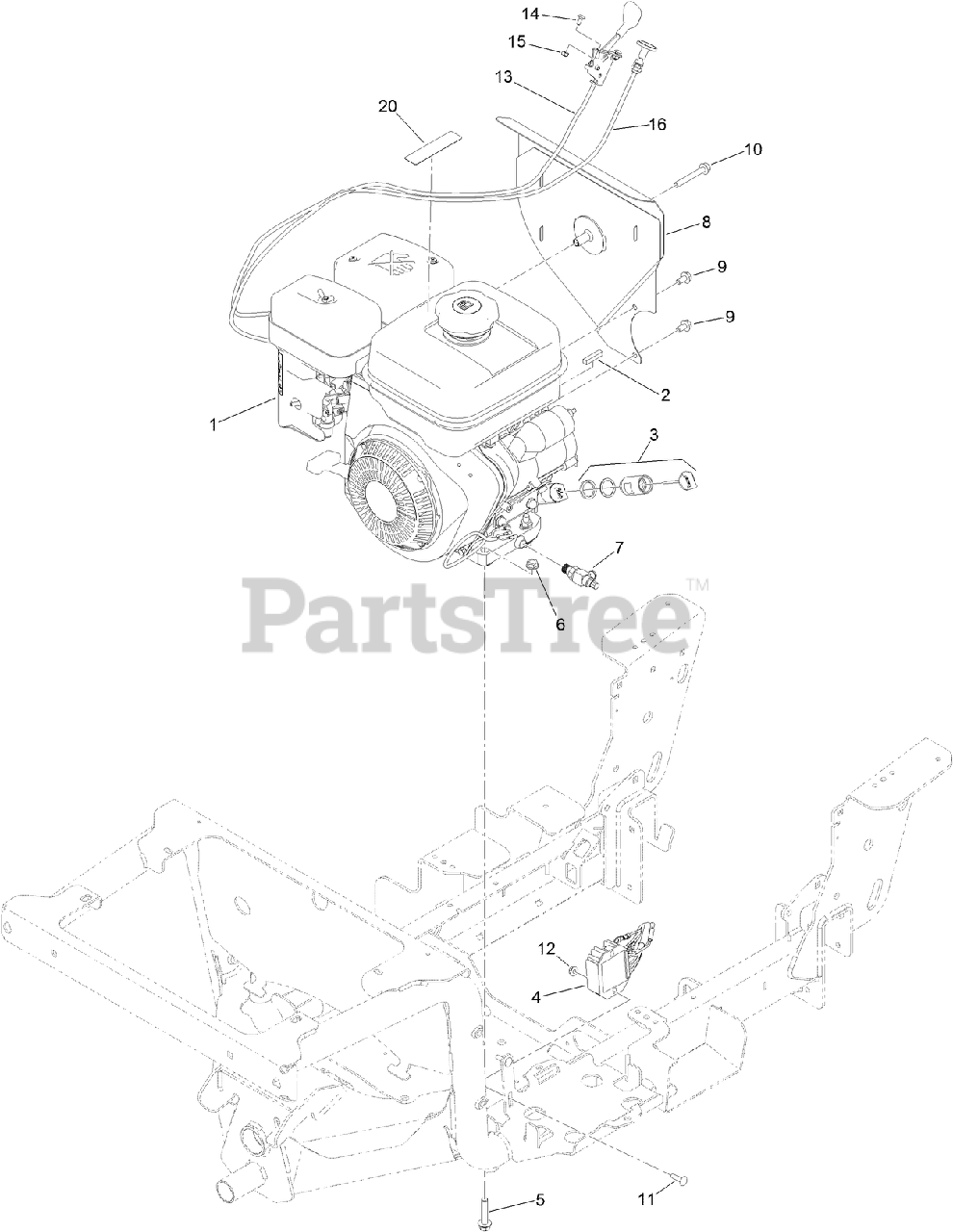

ENGINE ASSEMBLY Parts Diagram

  • Title
1

ENGINE-SUBARU, EX27

Note: Not serviced separately

$

$

Not available

2

Toro 126-2532

KEY-CRANKSHAFT

$13.99

$

Usually ships in 3-6 days

0

3

Toro 126-1432

EXTENDER-DIPSTICK

$90.99

$

Usually ships in 3-6 days

0

4

Toro 126-4658

REGULATOR
(Superseded to 142-3392)

$537.99

$

Usually ships in 3-6 days

0

5

Toro 126-2710

SCREW-HHF

$12.99

$

Usually ships in 3-6 days

0

6

Toro 126-2233

NUT-HF
(Superseded to 135-2882)

$2.99

$

In Stock, Qty 20+

0

7

Toro 103-6602

Valve-Oil Drain

$86.99

$

Usually ships in 3-6 days

0

8

Toro 126-2426

HEAT SHIELD ASM

$197.99

$

Usually ships in 3-6 days

0

9

Toro 117-1836

SCREW-HHF, LOCK

$10.99

$

Usually ships in 3-6 days

0

10

Toro 33104-060

SCREW-HHF

$37.99

$

Usually ships in 3-6 days

0

11

Toro 126-1455

SCREW-CARR

$1.49

$

Usually ships in 3-6 days

0

12

Toro 126-2231

NUT-HF
(Superseded to 135-2882)

$2.99

$

In Stock, Qty 20+

0

13

Toro 126-2240

CONTROL-THROTTLE

$42.99

$

Usually ships in 3-6 days

0

14

Toro 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 20+

0

15

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

16

Toro 126-2285

CABLE-CHOKE, PUSH/PULL

$35.99

$

In Stock, only 4 left!

0

20

Toro 117-2718

DECAL-ARRESTER, SPARK

$7.99

$

In Stock, only 1 left!

0
