34215 - Toro Stand-On Spreader/Sprayer (SN: 315000001 - 315999999) (2015) FRAME ASSEMBLY Parts Diagram

Stand-On Spreader/Sprayer

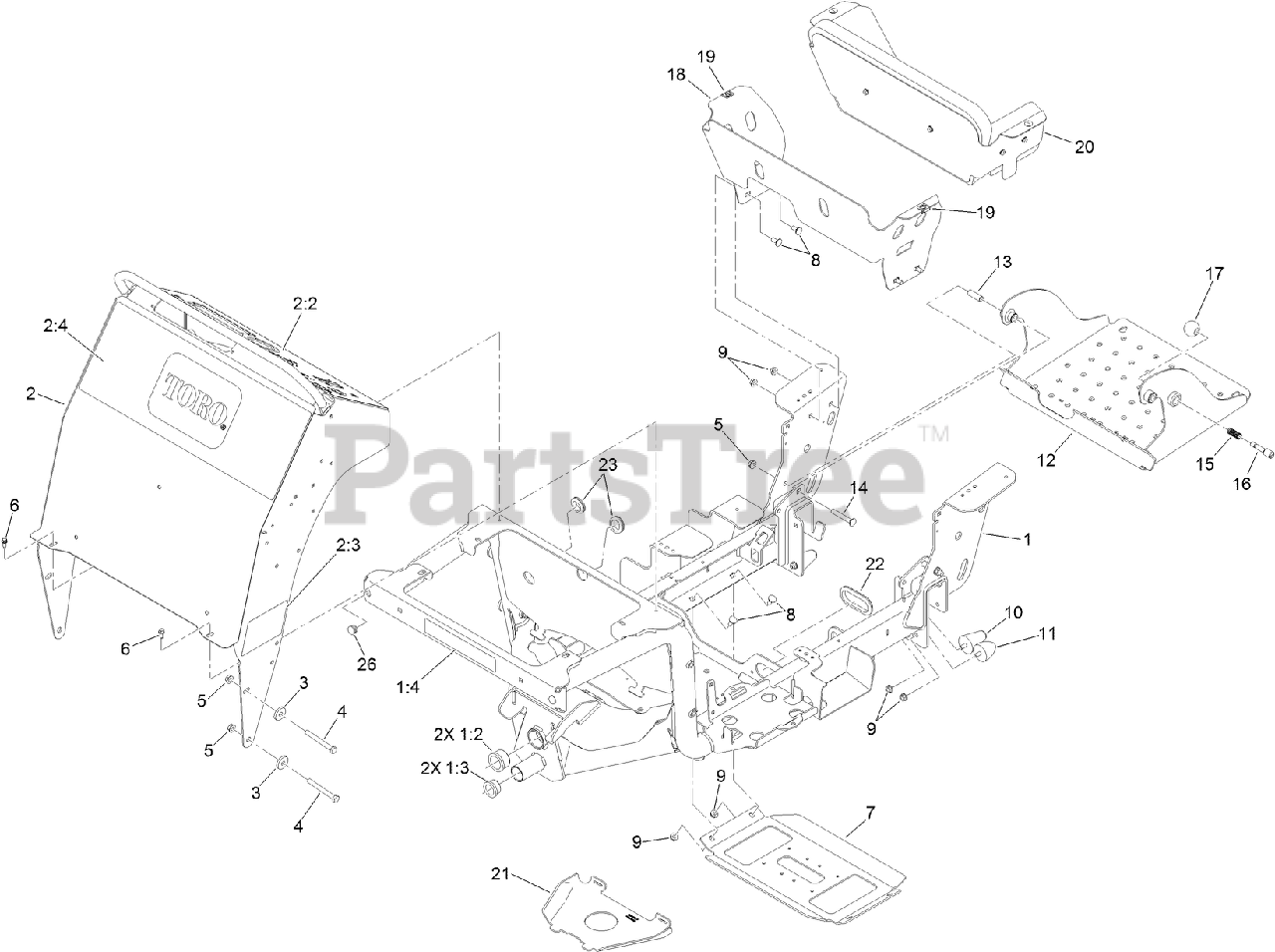

FRAME ASSEMBLY Parts Diagram

  • Title
1

Toro 126-0198

FRAME ASM

$3484.99

$

Usually ships in 3-6 days

0

1:2

Toro 126-3008

BEARING-FLANGED

$20.99

$

Usually ships in 3-6 days

0

1:3

Toro 126-3002

BEARING-FLANGED

$15.99

$

Usually ships in 3-6 days

0

1:4

Toro 126-4994

DECAL-DOWN, TIE

$7.99

$

Usually ships in 3-6 days

0

2

Toro 126-2724

CONTROL TOWER ASM
(Superseded to 126-6401)

$729.99

$

Usually ships in 3-6 days

0

2:2

Toro 126-2195

DECAL-CONTROLS

$33.99

$

Usually ships in 3-6 days

0

2:3

Toro 126-5186

DECAL-SERVICE AID

$8.99

$

Usually ships in 3-6 days

0

2:4

Toro 126-2826

DECAL-TORO

$48.99

$

Usually ships in 3-6 days

0

3

Toro 126-3875

WASHER

$5.49

$

In Stock, only 2 left!

0

4

Toro 126-2661

SCREW-HH

$5.49

$

In Stock, only 2 left!

0

5

Toro 126-2233

NUT-HF
(Superseded to 135-2882)

$2.99

$

In Stock, Qty 20+

0

6

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 15

0

7

Toro 126-1415

GUARD-LOWER

$227.99

$

Usually ships in 3-6 days

0

8

Toro 126-0695

SCREW-CARR

$1.49

$

Usually ships in 3-6 days

0

9

Toro 126-2232

NUT-HF
(Superseded to 135-2881)

$1.99

$

In Stock, only 1 left!

0

10

Toro 114-1925

BUMPER-RUBBER

$26.99

$

In Stock, only 3 left!

0

11

Toro 114-1926

BUMPER-RUBBER

$28.99

$

In Stock, Qty 20+

0

12

Toro 126-0435

OPERATOR PLATFORM ASM

$874.99

$

Usually ships in 3-6 days

0

13

Toro 126-0434

BUSHING-PIVOT, PLATFORM

$15.99

$

Usually ships in 3-6 days

0

14

Toro 126-0702

SCREW-CARR

$3.49

$

Usually ships in 3-6 days

0

15

Toro 114-5348

SPRING

$2.99

$

In Stock, Qty 20+

0

16

Toro 119-8650

PIN-LATCH

$20.99

$

In Stock, only 1 left!

0

17

Toro 1-603175

KNOB-BALL

$11.99

$

In Stock, Qty 6

0

18

Toro 126-1234-03

MOUNT-PAD, KNEE

$113.99

$

Usually ships in 3-6 days

0

19

Toro 119-1730

RECEPTACLE-CLIP, MINI

$2.99

$

Usually ships in 3-6 days

0

20

KNEE PAD ASM

Note: Not serviced separately

$

$

Not available

21

Toro 126-2567

SHIELD-DUST

$90.99

$

Usually ships in 3-6 days

0

22

Toro 237-164

GROMMET

$20.99

$

Usually ships in 3-6 days

0

23

Toro 240-5

GROMMET

$16.99

$

Usually ships in 3-6 days

0

26

Toro 126-5147

PLUG-TUBE

$1.99

$

Usually ships in 3-6 days

0
