342084 - Poulan Lawn Tractor (2007-01) ELECTRICAL Parts Diagram

Lawn Tractor

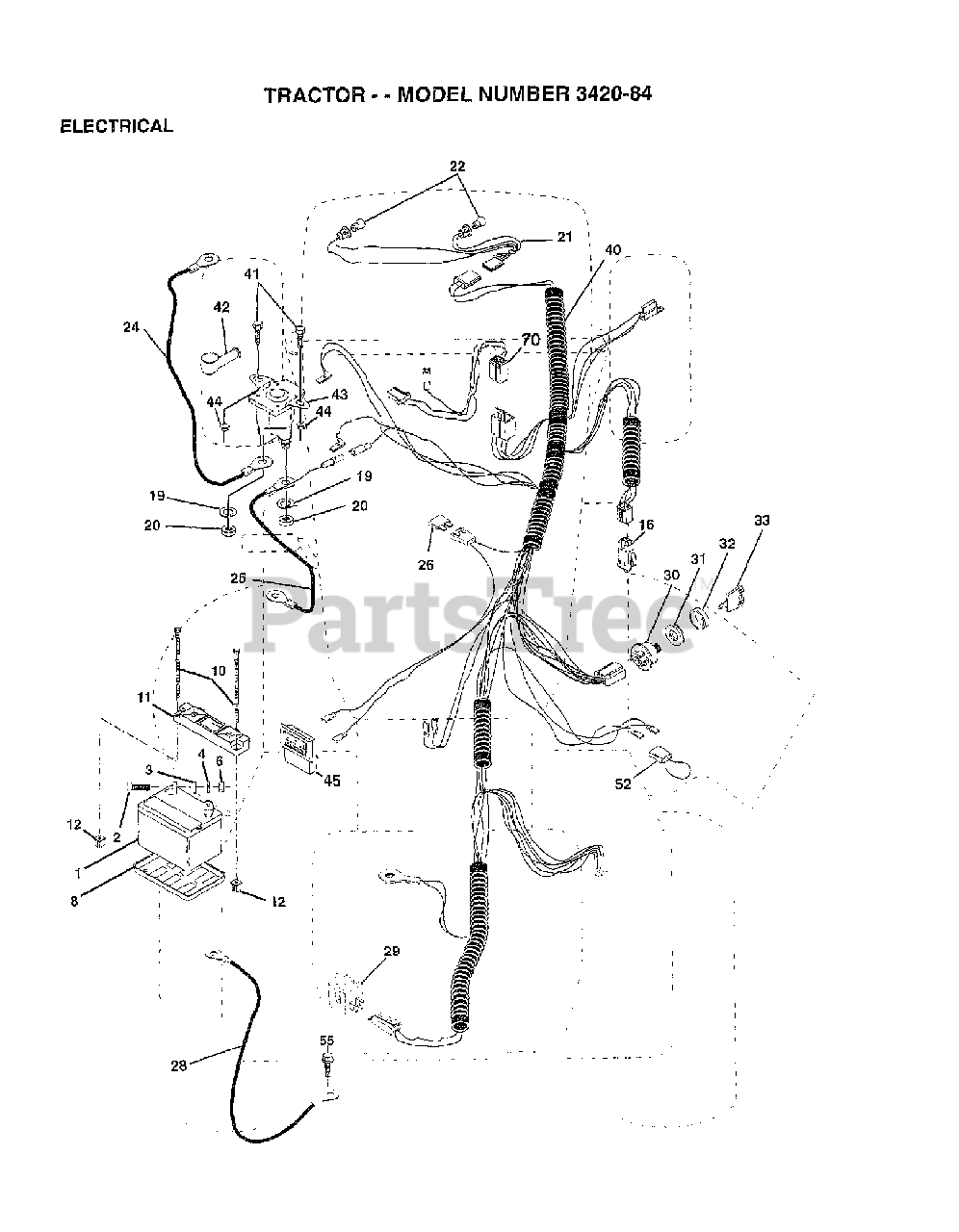

ELECTRICAL Parts Diagram

  • Title
1

Poulan 532144925

(Superseded to 532123899)

$194.99

$

In Stock, only 2 left!

0

$

$

Not available

3

Poulan 819091016

WASHER
(Superseded to 596582301)

$3.99

$

In Stock, Qty 5

0

4

Poulan 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

6

Poulan 873220400

NUT
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

8

Poulan 532007603

TRAY.BATTERY

$6.99

$

Usually ships in 3-10 days

0

10

Poulan 532145211

BOLT 1/4-20 X 7.5
(Superseded to 532150177)

$

$

Not available

11

Poulan 532150109

BATTERY HOLDDOWN

$

$

Not available

12

Poulan 532145769

(Superseded to 532150177)

$

$

Not available

16

Poulan 532153664

(Superseded to 532176138)

$22.99

$

In Stock, Qty 5

0

19

Poulan 810090400

(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

20

Poulan 873350400

NUT
(Superseded to 873220400)

$6.49

$

In Stock, only 1 left!

0

$

$

Not available

22

Poulan 532004152

LIGHTBULB

$4.99

$

Usually ships in 3-10 days

0

24

Poulan 532004799

BATTERY CABLE

$10.99

$

Usually ships in 3-10 days

0

25

Poulan 532146148

CABLE BATTERY 6 GA 22" W/16W

$18.99

$

Usually ships in 3-10 days

0

26

Poulan 532006347

FUSE *
(Superseded to 532108824)

$6.49

$

Usually ships in 3-10 days

0

28

Poulan 532145491

CABLE GROUND 6 GA 21" 90T BLK

$10.99

$

Usually ships in 3-10 days

0

29

Poulan 532121305

SWITCH SEAT
(Superseded to 532421062)

$14.99

$

In Stock, only 1 left!

0

30

Poulan 532140301

SWITCH.IGNITION.4.POSITION

$37.99

$

In Stock, only 1 left!

0

31

Poulan 532109788

NUT
(Superseded to 532124211)

$5.99

$

In Stock, only 1 left!

0

32

Poulan 532123620

COVER KEY IGNITIO
(Superseded to 532141226)

$5.99

$

Usually ships in 3-10 days

0

33

Poulan 532122147

KEY.MOLDED.GENERIC

$

$

Not available

$

$

Not available

41

Poulan 871110408

BOLT
(Superseded to 71110408)

$2.99

$

Usually ships in 3-10 days

0

42

Poulan 532000719

TERMINAL COVER
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

43

Poulan 532145673

Solenoid Kit, .95
(Superseded to 532146154)

$24.99

$

In Stock, only 2 left!

0

44

Poulan 873640400

NUT.HEX.KEPS.1/4-20

$

$

Not available

45

Poulan 532121433

AMMETER
(Superseded to 532122822)

$20.99

$

In Stock, only 1 left!

0

52

Poulan 532141940

WIRE PROTECTION LOOP

$7.49

$

Usually ships in 3-10 days

0

55

Poulan 817490508

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

70

Poulan 532140413

HARNESS, ENGINE

$

$

Not available
