342074B - Poulan Lawn Tractor (2006-10) MOWER LIFT LEVER Parts Diagram

Lawn Tractor

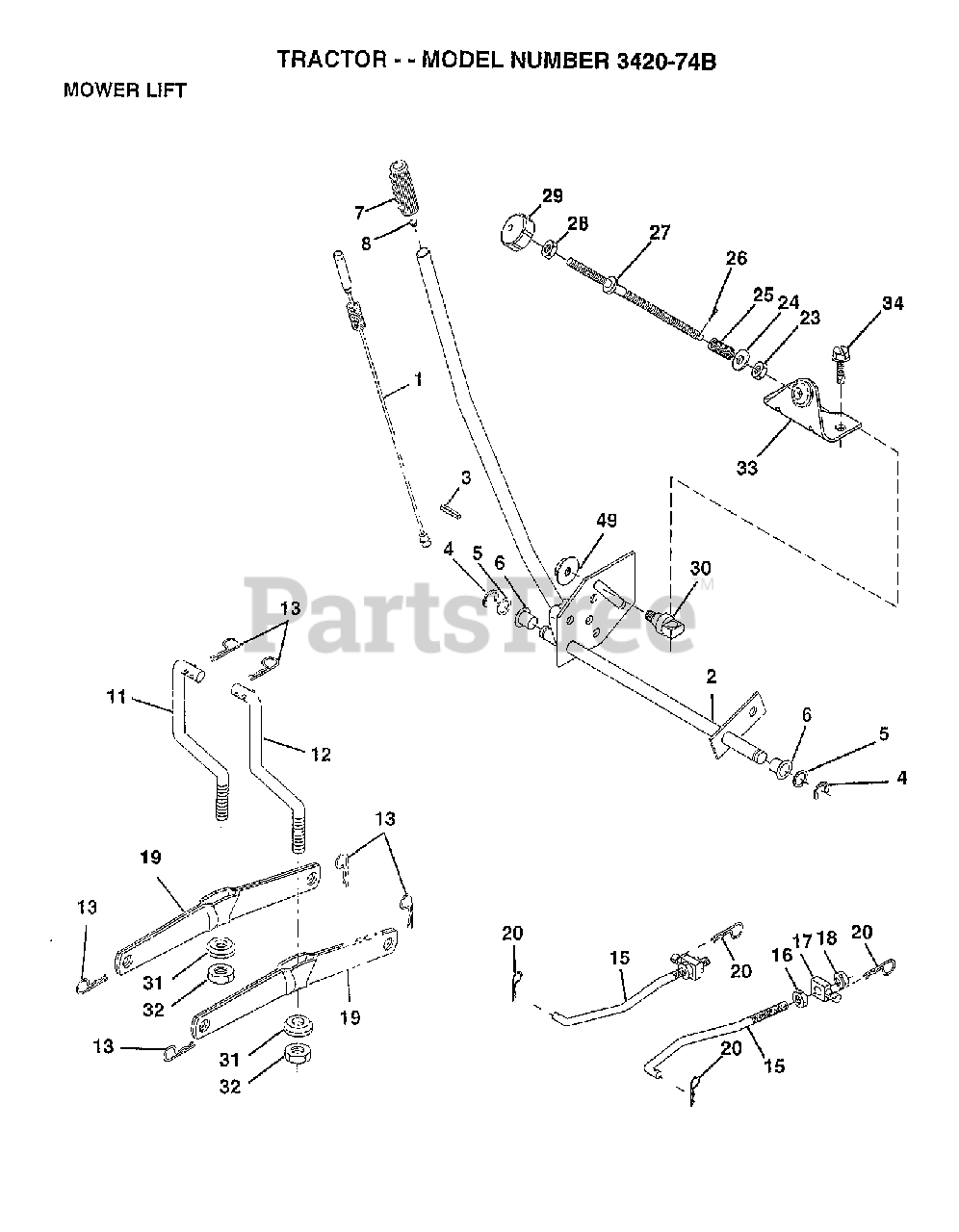

MOWER LIFT LEVER Parts Diagram

  • Title
1

Poulan 532159460

WIRE ASM INNER W/ PLUNGER LT

$26.99

$

Usually ships in 3-10 days

0

$

$

Not available

3

Poulan 532138284

PIN GROOVE

$6.49

$

Usually ships in 3-10 days

0

4

Poulan 812000002

RETAINING RING LT

$7.49

$

In Stock, only 1 left!

0

5

$6.49

$

In Stock, only 2 left!

0

6

Poulan 532120183

BEARING.NYLON

$6.99

$

In Stock, only 3 left!

0

7

Poulan 532109413

GRIP
(Superseded to 532125631)

$7.99

$

In Stock, only 1 left!

0

8

Poulan 532124526

PLUNGER BUT KIT
(Superseded to 532125925)

$

$

Not available

10

Poulan 532122512

SPRING, COMP T

$9.49

$

Usually ships in 3-10 days

0

11

Poulan 532139865

LINK LIFT LH
(Superseded to 532145537)

$26.99

$

In Stock, only 1 left!

0

12

Poulan 532139866

Lift Link Assembly, RH
(Superseded to 532145536)

$26.99

$

In Stock, only 3 left!

0

13

Poulan 532004939

RETAINER SPRING
(Superseded to 596919601)

$3.99

$

In Stock, Qty 20+

0

15

Poulan 532127218

FRONT LINK

$17.99

$

In Stock, only 4 left!

0

16

Poulan 873350800

NUT.HEX.JAM.1/2-13
(Superseded to 596433401)

$3.99

$

In Stock, Qty 16

0

17

Poulan 532130171

(Superseded to 532175689)

$

$

Not available

18

Poulan 873800800

NUT.LK.W/WSH.1/2.
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

19

Poulan 532139868

ARM.REAR.SUSPENSION

$15.99

$

Usually ships in 3-10 days

0

20

Poulan 532003146

SPRING RETAINER

$3.99

$

In Stock, Qty 20+

0

23

$

$

Not available

24

Poulan 532067510

WASHER
(Superseded to 819131016)

$6.49

$

In Stock, Qty 5

0

25

Poulan 532137150

SPRING.COMP.INF.H

$6.49

$

Usually ships in 3-10 days

0

26

Poulan 876020308

(Superseded to 532003145)

$

$

Not available

27

Poulan 532137167

ROD.LIFT.ADJUSTABLE

$7.49

$

In Stock, only 2 left!

0

28

Poulan 873350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

29

Poulan 532138057

KNOB INF 3/8-16

$8.99

$

Usually ships in 3-10 days

0

30

Poulan 532150233

TRUNNION

$12.99

$

Usually ships in 3-10 days

0

31

Poulan 532140302

(Superseded to 532169865)

$

$

Not available

32

Poulan 873540600

NUT CROWNLOCK 3/8-24

$4.99

$

Usually ships in 3-10 days

0

49

Poulan 532145212

Flange Hex Lock Nut, 3/8-16
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

50

Poulan 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0
