342074 - Poulan Lawn Tractor (2006-10) STEERING Parts Diagram

Lawn Tractor

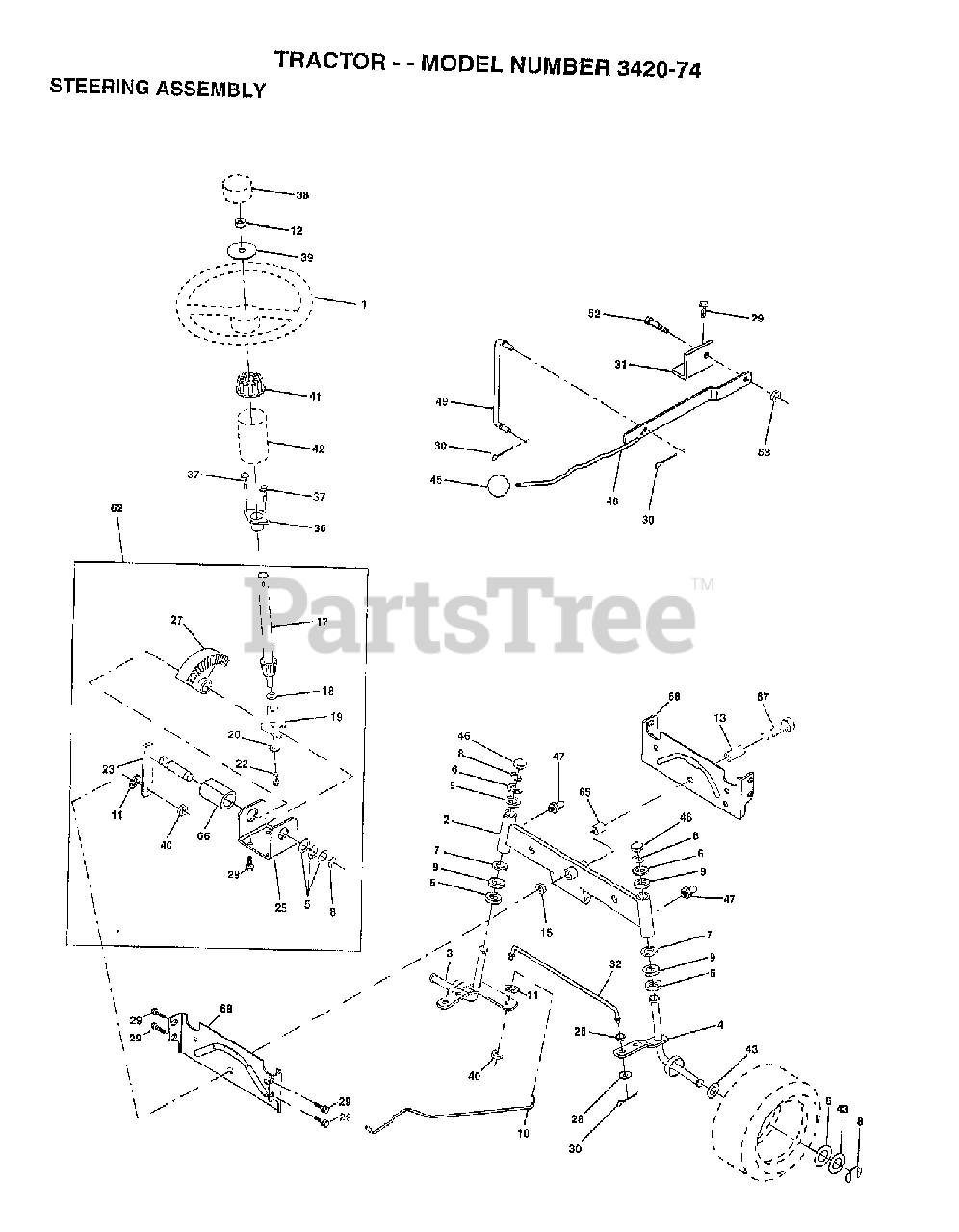

STEERING Parts Diagram

  • Title

1

Poulan 532121472

Steering Wheel
(Superseded to 532150546)

$78.99

$

Usually ships in 3-10 days

0

2

Poulan 532154427

Half Axle Assembly, Welded
(Superseded to 532175131)

$46.99

$

Usually ships in 3-10 days

0

3

Poulan 532154422

SPINDLE.ASM.LH
(Superseded to 532156483)

$26.99

$

Usually ships in 3-10 days

0

4

Poulan 532154423

(Superseded to 532157473)

$26.99

$

In Stock, only 1 left!

0

5

Poulan 532006266

WASHER THRUST

$7.49

$

In Stock, Qty 11

0

6

Poulan 532121748

WASHER

$4.99

$

In Stock, Qty 20+

0

7

Poulan 819272016

WASHER

$6.49

$

In Stock, only 2 left!

0

8

Poulan 812000029

RING CLIP

$4.99

$

Usually ships in 3-10 days

0

9

Poulan 532003366

BEARING.STEERING.COLUMN

$4.99

$

In Stock, Qty 20+

0

10

Poulan 532156438

DRAGLINK-STAMPED

$93.99

$

In Stock, only 1 left!

0

11

Poulan 810040600

WASHER, LOCK 3/8
(Superseded to 539990118)

$1.99

$

Usually ships in 3-10 days

0

12

Poulan 873940800

NUT.HEX.1/2-20

$7.49

$

In Stock, only 4 left!

0

13

Poulan 532154779

BEARING AXLE

$10.99

$

In Stock, only 1 left!

0

15

Poulan 873601000

LOCK NUT
(Superseded to 873681000)

$3.49

$

Usually ships in 3-10 days

0

17

Poulan 532156543

STEERING SHAFT

$66.99

$

In Stock, only 1 left!

0

18

Poulan 532057079

THRUST WASHER

$6.49

$

In Stock, Qty 11

0

19

Poulan 532124035

SHAFT,SUPPORT
(Superseded to 532160395)

$10.99

$

In Stock, Qty 8

0

20

Poulan 532126684

WASHER
(Superseded to 819091016)

$4.99

$

Usually ships in 3-10 days

0

22

Poulan 871200410

(Superseded to 532165857)

$6.49

$

In Stock, only 4 left!

0

23

Poulan 532124033

SHAFT,PITMAN
(Superseded to 532127501)

$

$

Not available

25

Poulan 532154406

BRACKET STEERING

$8.99

$

In Stock, only 1 left!

0

26

Poulan 532120754

BUSHING STEERING
(Superseded to 532126847)

$5.99

$

In Stock, only 2 left!

0

27

Poulan 532136874

GEAR.SECTOR

$80.99

$

In Stock, only 1 left!

0

28

Poulan 819131416

WASHER
(Superseded to 819131414)

$6.49

$

In Stock, only 2 left!

0

29

Poulan 817490612

(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

30

Poulan 876020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

32

Poulan 532130465

(Superseded to 532192757)

$34.99

$

In Stock, only 2 left!

0

36

Poulan 532145207

BUSHING STRG 3/4

$6.49

$

Usually ships in 3-10 days

0

37

Poulan 532152927

SCREW.TT.#10-32X.5.3/8.FLANGE

$7.49

$

In Stock, only 2 left!

0

38

Poulan 532126805

INSERT STR WHL
(Superseded to 532150546)

$78.99

$

Usually ships in 3-10 days

0

39

Poulan 532100712

$

$

Not available

40

Poulan 532007810

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

41

Poulan 532100711

(Superseded to 532186737)

$9.49

$

In Stock, Qty 8

0

43

Poulan 532121749

WASHER

$3.49

$

Usually ships in 3-10 days

0

46

Poulan 532121232

CAP.SPINDLE.BLACK

$4.99

$

In Stock, Qty 9

0

47

Poulan 532006855

ZERK.GREASE.TAPERED
(Superseded to 532183226)

$7.49

$

In Stock, only 2 left!

0

62

Poulan 532156595

STEERING KIT
(Superseded to 532167905)

$159.99

$

In Stock, only 1 left!

0

65

Poulan 532154780

SPACER AXLE

$9.99

$

Usually ships in 3-10 days

0

66

Poulan 532154404

BEARING ARM

$6.49

$

In Stock, only 3 left!

0

67

Poulan 874781044

BOLT.HEX.FINISHED.5/8

$

$

Not available

68

Poulan 532154429

AXLE, BRACE

$21.99

$

Usually ships in 3-10 days

0
