342074 - Poulan Lawn Tractor (2006-10) CHASSIS ENCLOSURES Parts Diagram

Lawn Tractor

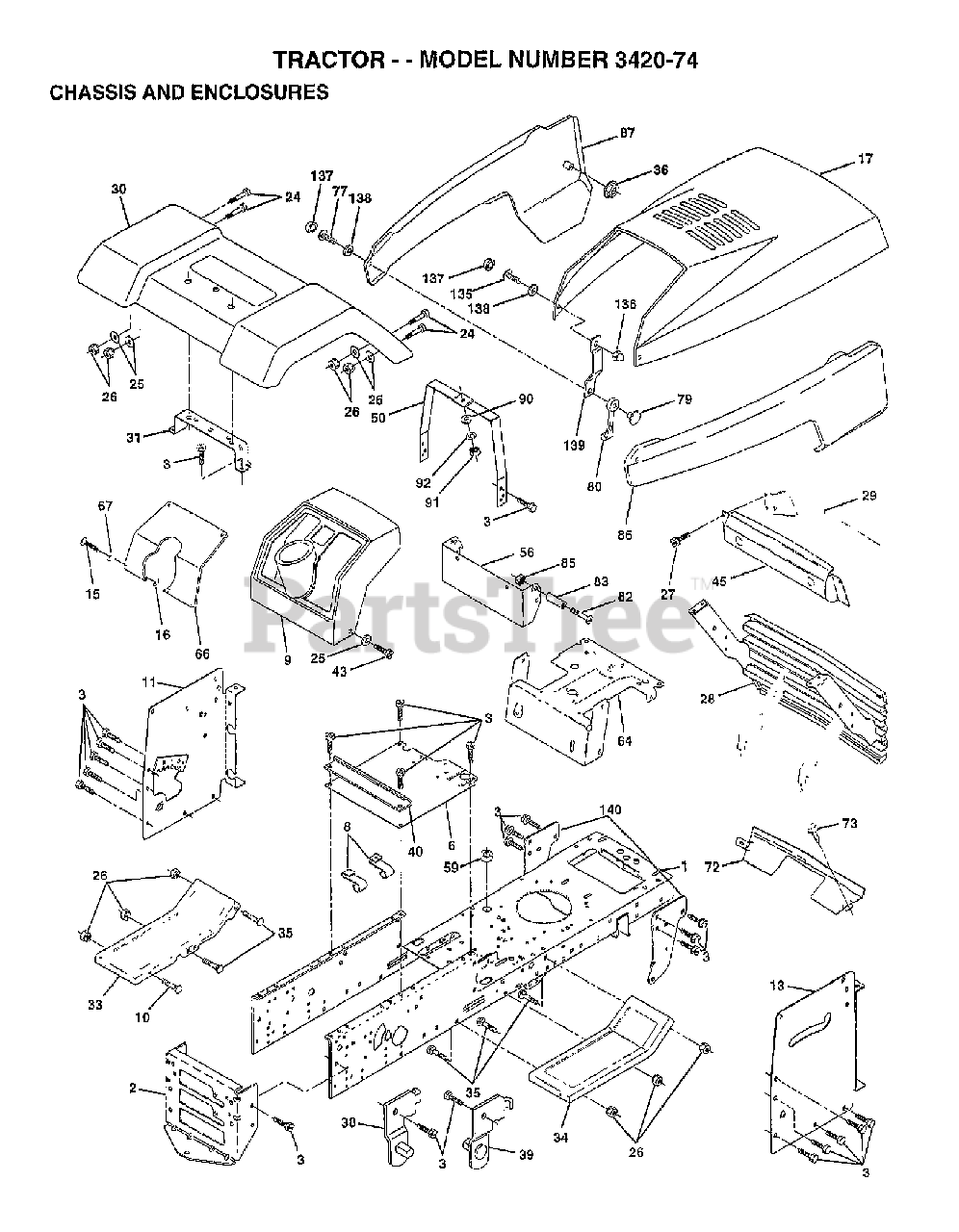

CHASSIS ENCLOSURES Parts Diagram

  • Title

1

Poulan 532155051

$

$

Not available

2

Poulan 532140356

(Superseded to 532145009)

$

$

Not available

3

Poulan 817490612

(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

6

Poulan 532155923

SADDLE FLAT

$14.99

$

Usually ships in 3-10 days

0

8

Poulan 532126471

CLIP,INSULATOR

$4.99

$

Usually ships in 3-10 days

0

9

Poulan 532140398

$

$

Not available

10

Poulan 872140608

(Superseded to 872110608)

$6.49

$

Usually ships in 3-10 days

0

11

Poulan TBD

$

$

Not available

13

Poulan TBD

$

$

Not available

15

Poulan 874180512

SCREW

$

$

Not available

16

Poulan 873310500

NUT

$3.99

$

Usually ships in 3-10 days

0

17

Poulan TBD

Note: 150301X424

$

$

Not available

24

Poulan 874780616

BOLT

$6.49

$

Usually ships in 3-10 days

0

25

Poulan 819131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, only 2 left!

0

26

Poulan 532062336

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

27

Poulan 817030814

(Superseded to 532161464)

$

$

Not available

28

Poulan TBD

$

$

Not available

29

Poulan TBD

$

$

Not available

30

Poulan TBD

Note: 147310X424

$

$

Not available

31

Poulan 532139976

BRACKET.SUPPORT.FENDER

$17.99

$

Usually ships in 3-10 days

0

33

Poulan TBD

Note: 145244X424

$

$

Not available

34

Poulan TBD

Note: 145243X424

$

$

Not available

35

Poulan 872110606

BOLT

$4.99

$

Usually ships in 3-10 days

0

36

Poulan 532108067

PAL NUT LT
(Superseded to 108067X)

$

$

Not available

38

Poulan 532139886

BRACKET LH PIVOT

$8.99

$

Usually ships in 3-10 days

0

39

Poulan 532139887

BRACKET RH PIVOT

$

$

Not available

40

Poulan 532139977

SPACER

$

$

Not available

43

Poulan 817490616

SCREW GTV
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

45

Poulan 532147717

$

$

Not available

50

Poulan 532145205

DASH SUPT YP

$

$

Not available

59

Poulan 532110436

(Superseded to 532009151)

$

$

Not available

56

Poulan TBD

$

$

Not available

64

Poulan 532150272

DASH LOWER LT

$

$

Not available

66

Poulan TBD

Note: 156287X010

$

$

Not available

67

Poulan 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 18

0

72

Poulan TBD

Note: 144916X424

$

$

Not available

73

Poulan 817580408

SCREW CRT
(Superseded to 874780408)

$1.49

$

Usually ships in 3-10 days

0

79

Poulan 532124005

NUT.WELD
(Superseded to 532002029)

$

$

Not available

80

Poulan 532109808

LATCH.HOOD.

$6.99

$

In Stock, Qty 20+

0

82

Poulan 532087175

SCREW
(Superseded to 874981024)

$9.99

$

In Stock, Qty 10

0

83

Poulan 7206J

SPACER LT
(Superseded to 532007206)

Note: 7206J

$7.49

$

In Stock, Qty 8

0

85

Poulan 532054509

NUT **
(Superseded to 873731000)

$2.99

$

Usually ships in 3-10 days

0

86

Poulan TBD

Note: 150432X424

$

$

Not available

87

Poulan TBD

Note: 150431X424

$

$

Not available

90

Poulan 819091216

WASHER PM
(Superseded to 596204201)

$3.99

$

In Stock, only 1 left!

0

91

Poulan 873220400

NUT
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

92

Poulan 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

135

Poulan 874291006

SCREW 10-24X3/8

$2.99

$

Usually ships in 3-10 days

0

136

Poulan 532060867

NUT
(Superseded to 60867)

$

$

Not available

137

Poulan 532110356

SNAP CAP LT

$3.99

$

Usually ships in 3-10 days

0

138

Poulan 532110357

WASHER LT

$

$

Not available

139

Poulan 532150195

BRACKET.SUPPORT.HOOD/PANEL.NLA

$

$

Not available

140

Poulan 532158418

BRACKET SUSPENSION FRONT

$

$

Not available
