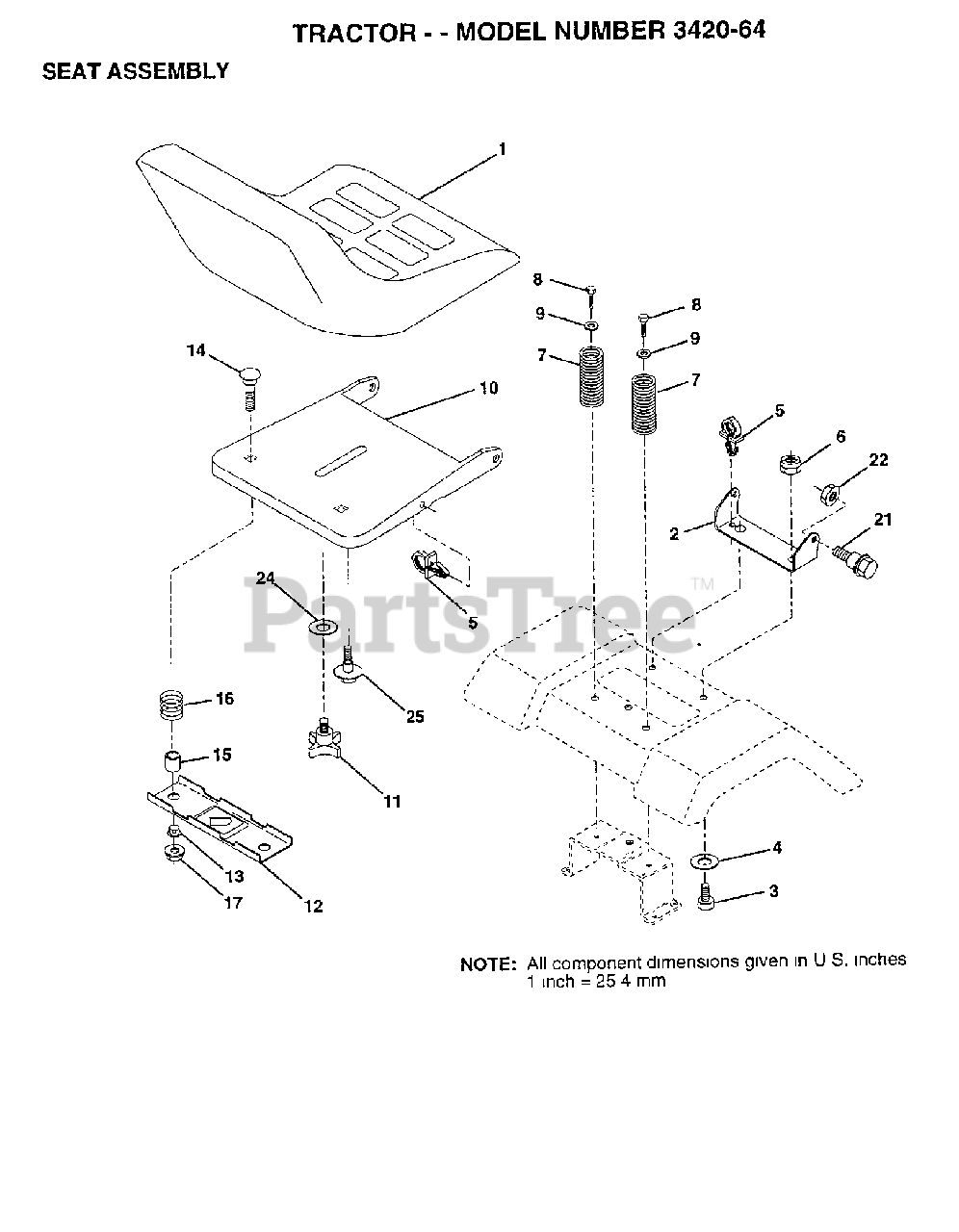

342064 - Poulan Lawn Tractor (2006-06) SEAT Parts Diagram

Lawn Tractor

SEAT Parts Diagram

  • Title

1

Poulan 532127429

(Superseded to 532140121)

$

$

Not available

2

Poulan 532105513

BRKT,SEAT PIVOT**
(Superseded to 532140551)

$6.49

$

Usually ships in 3-10 days

0

3

Poulan 874760614

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

4

Poulan 819131610

WASHER PM

$6.49

$

In Stock, Qty 7

0

5

Poulan 532145006

PUSH CLIP

$6.49

$

Usually ships in 3-10 days

0

6

Poulan 532062336

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

7

Poulan 532124181

SPRING COMPRESSION
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

8

Poulan 817490616

SCREW GTV
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

9

Poulan 819131614

(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

10

Poulan 532124294

PAN SEAT

$

$

Not available

11

Poulan 532120068

(Superseded to 532166369)

$10.99

$

In Stock, only 1 left!

0

12

Poulan 532121246

BRKT SWITCH
(Superseded to 532174648)

$10.99

$

Usually ships in 3-10 days

0

13

Poulan 532121248

BUSHING

$6.49

$

Usually ships in 3-10 days

0

14

Poulan 872050411

BOLT CARRIAGE 1/4-20X1 3/8

$

$

Not available

15

Poulan 532121249

SPACER SPLIT

$6.49

$

In Stock, only 2 left!

0

16

Poulan 532123740

SPRING COMPRESSED

$6.49

$

Usually ships in 3-10 days

0

17

Poulan 532123976

NUT T
(Superseded to 586668901)

$4.99

$

In Stock, Qty 18

0

21

Poulan 532153236

(Superseded to 532171852)

$4.99

$

In Stock, Qty 8

0

22

Poulan 873680500

LOCKNUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

24

Poulan 819171912

WASHER

$7.49

$

In Stock, only 1 left!

0

25

Poulan 532121144

BOLT, SHOULDER**
(Superseded to 532127018)

$7.49

$

Usually ships in 3-10 days

0
