342064 - Poulan Lawn Tractor (2006-06) DRIVE Parts Diagram

Lawn Tractor

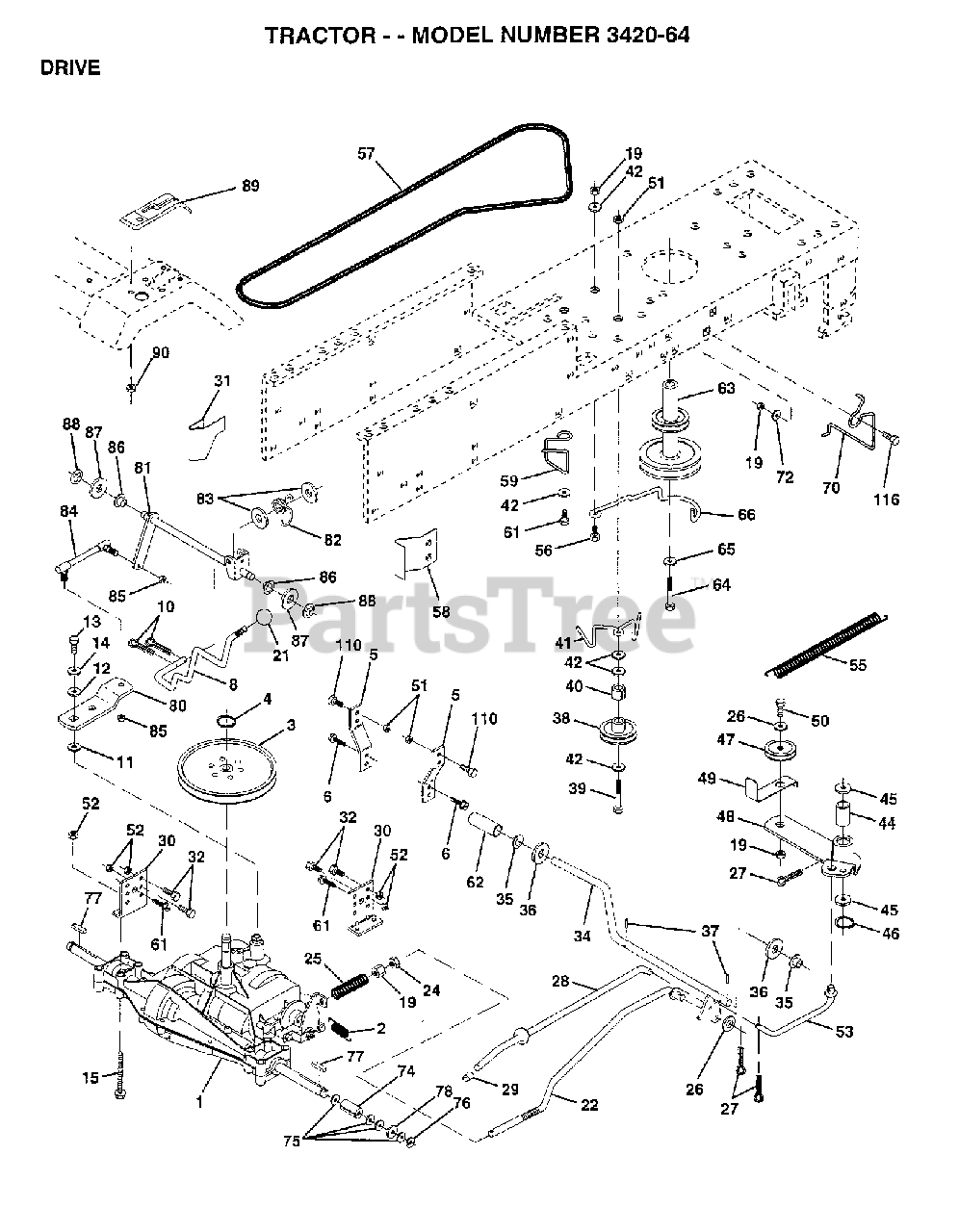

DRIVE Parts Diagram

  • Title

1

Poulan 532145605

TRANSAXLE ASSY 6 SPD
(Superseded to 532160664)

$

$

Not available

2

Poulan 532110422

SPRING T
(Superseded to 532146682)

$8.99

$

In Stock, only 2 left!

0

3

Poulan 532123666

PULLEY TRANS

$45.99

$

In Stock, only 1 left!

0

4

Poulan 812000028

RETAINING RING LT
(Superseded to 532002267)

$7.49

$

In Stock, Qty 7

0

5

Poulan 532121520

STRAP TORQUE

$7.99

$

In Stock, only 3 left!

0

6

Poulan 817490512

Screw, Lt
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

8

Poulan 532141003

ROD SHIFT

$

$

Not available

10

Poulan 876020416

PIN COTTER

$3.99

$

Usually ships in 3-10 days

0

11

Poulan 532105701

WASH-SHFT PLT LT

$6.49

$

Usually ships in 3-10 days

0

12

Poulan 819151216

WASHER
(Superseded to 19151216)

$

$

Not available

13

Poulan 871040412

BOLT LT

$6.49

$

Usually ships in 3-10 days

0

14

Poulan 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

15

Poulan 874490544

BOLT HEX 5/16-18 GR 5

$4.99

$

Usually ships in 3-10 days

0

18

Poulan 874780616

BOLT

$6.49

$

Usually ships in 3-10 days

0

19

Poulan 532062336

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

21

Poulan 532106933

KNOB T (1/2-HOLE)

$7.99

$

In Stock, only 1 left!

0

22

Poulan 532130804

ROD BRAKE

$31.99

$

Usually ships in 3-10 days

0

24

Poulan 873350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

25

Poulan 532106888

SPRING ROD LT
(Superseded to 532151332)

$6.49

$

In Stock, only 1 left!

0

26

Poulan 819131316

WASHER

$4.99

$

In Stock, Qty 5

0

27

Poulan 876020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

28

Poulan 532145204

$

$

Not available

29

Poulan 532071673

PLUNGER CAP

$5.99

$

Usually ships in 3-10 days

0

30

Poulan 532130807

BRACKET TRANSAXLE

$3.99

$

Usually ships in 3-10 days

0

31

Poulan 532127275

KEEPER BELT LH

$

$

Not available

32

Poulan 874760512

BOLT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

34

Poulan 532151128

(Superseded to 151128)

$

$

Not available

35

Poulan 532120183

BEARING.NYLON

$6.99

$

In Stock, only 3 left!

0

36

Poulan 819211616

WASHER LT

$6.49

$

Usually ships in 3-10 days

0

37

Poulan 532001572

Drive Pin, 3/16 X 1"
(Superseded to 532002882)

$4.99

$

In Stock, Qty 7

0

38

Poulan 532004859

FLAT IDLER PULLEY
(Superseded to 532123674)

$31.99

$

In Stock, only 1 left!

0

39

Poulan 874760644

BOLT

$6.49

$

Usually ships in 3-10 days

0

40

Poulan 532004470

SPACER T
(Superseded to 532124965)

$6.49

$

Usually ships in 3-10 days

0

41

Poulan 532153399

$

$

Not available

42

Poulan 819131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, Qty 5

0

44

Poulan 532105706

BEARING LT (2 2)

$7.49

$

Usually ships in 3-10 days

0

45

Poulan 532110812

WASHER LT
(Superseded to 110812X)

$

$

Not available

46

Poulan 812000039

KLIP RING

$6.49

$

In Stock, Qty 7

0

47

Poulan 532127783

Idler Pulley
(Superseded to 532139245)

$37.99

$

Usually ships in 3-10 days

0

48

Poulan 532123789

$

$

Not available

49

Poulan 532123205

RETAIN BELT

$6.49

$

Usually ships in 3-10 days

0

50

Poulan 874760624

Hex Bolt
(Superseded to 874930624)

$7.99

$

Usually ships in 3-10 days

0

51

Poulan 873680600

LOCKNUT
(Superseded to 596322601)

$3.99

$

In Stock, Qty 7

0

52

Poulan 873680500

LOCKNUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

53

Poulan 532105710

(Superseded to 532199652)

$13.99

$

Usually ships in 3-10 days

0

55

Poulan 532105709

SPRING, RETURN LT

$11.99

$

Usually ships in 3-10 days

0

56

Poulan 874760620

BOLT

$7.49

$

Usually ships in 3-10 days

0

57

Poulan 532130801

Ground Drive Belt, 95.25
(Superseded to 532138255)

$39.99

$

In Stock, Qty 5

0

58

Poulan 532127274

KEEPER

$4.99

$

Usually ships in 3-10 days

0

59

Poulan 532104777

(Superseded to 532136715)

$

$

Not available

61

Poulan 817490612

(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

62

Poulan 532008883

PEDAL COVER

$6.49

$

Usually ships in 3-10 days

0

63

Poulan 532140186

PULLEY ENGINE

$113.99

$

Usually ships in 3-10 days

0

64

Poulan 871170764

(Superseded to 501606501)

$4.99

$

Usually ships in 3-10 days

0

65

Poulan 810040700

LOCKWASHER
(Superseded to 539990247)

$3.99

$

In Stock, Qty 20+

0

66

Poulan 532153400

(Superseded to 532129921)

$

$

Not available

70

Poulan 532134683

KEEPER BELT ENG

$

$

Not available

72

Poulan 532061537

WASHER
(Superseded to 819132012)

$1.99

$

Usually ships in 3-10 days

0

74

Poulan 532109502

SPACER LT

$

$

Not available

75

Poulan 532121749

WASHER

$3.49

$

Usually ships in 3-10 days

0

76

Poulan 812000001

E-RING LT

$4.99

$

Usually ships in 3-10 days

0

77

Poulan 532123583

SQUARE KEY

$4.99

$

In Stock, only 4 left!

0

78

Poulan 532121748

WASHER

$4.99

$

In Stock, Qty 20+

0

80

Poulan 532131487

SHIFT ARM
(Superseded to 131487)

$

$

Not available

81

Poulan 532136933

(Superseded to 532161077)

$

$

Not available

82

Poulan 532123782

SPRING,TORSION

$

$

Not available

83

Poulan 819171216

WASHER
(Superseded to 19171216)

$2.99

$

Usually ships in 3-10 days

0

84

Poulan 532132183

TIE ROD

$60.99

$

Usually ships in 3-10 days

0

85

Poulan 532150360

NUT LOCK CENTER 1/4 -28 FNTHD
(Superseded to 873610400)

$

$

Not available

86

Poulan 532071208

BUSHING.STEERING.ROD

$3.99

$

Usually ships in 3-10 days

0

87

Poulan 819212016

WASHER D

$6.49

$

Usually ships in 3-10 days

0

88

Poulan 812000008

KLIP RING

$6.49

$

Usually ships in 3-10 days

0

89

Poulan 532139964

CONSOLE

$

$

Not available

90

Poulan 532124346

NUT.PUSH.3/16

$7.99

$

In Stock, only 1 left!

0

110

Poulan 874760612

BOLT

$4.99

$

In Stock, only 3 left!

0

116

Poulan 872110610

BOLT
(Superseded to 872140614)

$4.99

$

Usually ships in 3-10 days

0
