342054 - Poulan Lawn Tractor (2006-03) STEERING Parts Diagram

Lawn Tractor

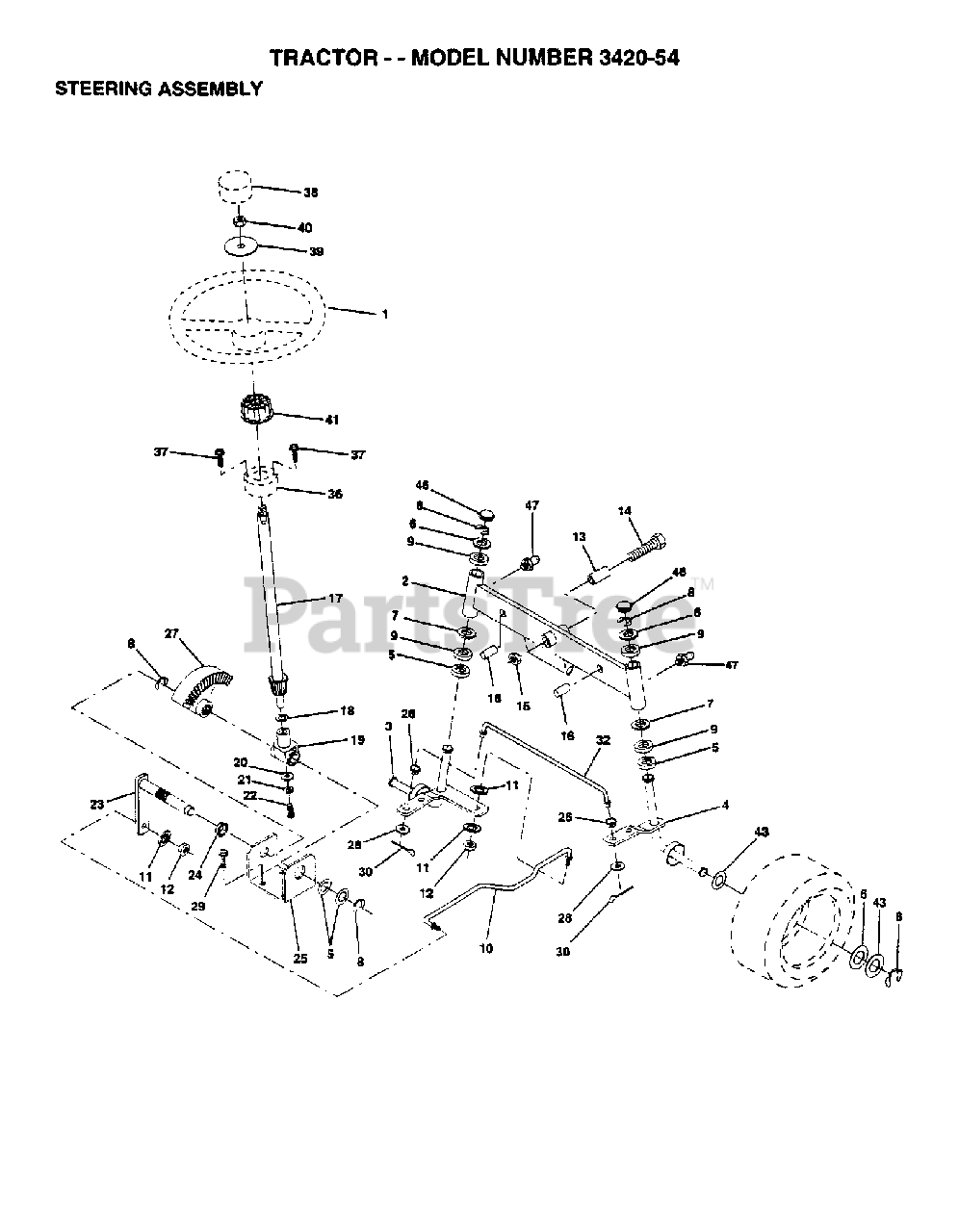

STEERING Parts Diagram

  • Title

1

Poulan 532121472

Steering Wheel
(Superseded to 532150546)

$78.99

$

Usually ships in 3-10 days

0

2

Poulan 532142033

AXLE ASSY
(Superseded to 142033)

$

$

Not available

3

Poulan 532135227

$

$

Not available

4

Poulan 532135228

$

$

Not available

5

Poulan 532006266

WASHER THRUST

$7.49

$

In Stock, Qty 11

0

6

Poulan 532121748

WASHER

$4.99

$

In Stock, Qty 20+

0

7

Poulan 819272016

WASHER

$6.49

$

In Stock, only 2 left!

0

8

Poulan 812000029

RING CLIP

$4.99

$

Usually ships in 3-10 days

0

9

Poulan 532003366

BEARING.STEERING.COLUMN

$4.99

$

In Stock, Qty 20+

0

10

Poulan 532130468

DRAG LINK

$93.99

$

In Stock, only 1 left!

0

11

Poulan 810040600

WASHER, LOCK 3/8
(Superseded to 539990118)

$1.99

$

Usually ships in 3-10 days

0

12

Poulan 873610600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

13

Poulan 532110438

(Superseded to 532155134)

$

$

Not available

14

Poulan 874011056

BOLT.HEX.5/8-11

$4.99

$

Usually ships in 3-10 days

0

15

Poulan 873601000

LOCK NUT
(Superseded to 873681000)

$3.49

$

Usually ships in 3-10 days

0

16

Poulan 532132624

$

$

Not available

17

Poulan 532128758

(Superseded to 532156543)

$66.99

$

In Stock, only 1 left!

0

18

Poulan 532057079

THRUST WASHER

$6.49

$

In Stock, Qty 11

0

19

Poulan 532124035

SHAFT,SUPPORT
(Superseded to 532160395)

$10.99

$

In Stock, Qty 8

0

20

Poulan 532126684

WASHER
(Superseded to 819091016)

$4.99

$

Usually ships in 3-10 days

0

21

Poulan 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

22

Poulan 871070410

(Superseded to 532165857)

$6.49

$

In Stock, only 4 left!

0

23

Poulan 532124033

SHAFT,PITMAN
(Superseded to 532127501)

$

$

Not available

24

Poulan 532109816

NYLINER T (7283A)

$6.49

$

In Stock, only 2 left!

0

25

Poulan 532124036

BRKT,STEERING

$

$

Not available

26

Poulan 532120754

BUSHING STEERING
(Superseded to 532126847)

$5.99

$

In Stock, only 2 left!

0

27

Poulan 532136874

GEAR.SECTOR

$80.99

$

In Stock, only 1 left!

0

28

Poulan 819131416

WASHER
(Superseded to 819131414)

$6.49

$

In Stock, only 2 left!

0

29

Poulan 817490612

(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

30

Poulan 876020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

32

Poulan 532130465

(Superseded to 532192757)

$34.99

$

In Stock, only 2 left!

0

36

Poulan 532145207

BUSHING STRG 3/4

$6.49

$

Usually ships in 3-10 days

0

37

Poulan 817541008

SCREW
(Superseded to 17541008)

$4.99

$

Usually ships in 3-10 days

0

38

Poulan 532126805

INSERT STR WHL
(Superseded to 532150546)

$78.99

$

Usually ships in 3-10 days

0

39

Poulan 532100712

$

$

Not available

40

Poulan 873940800

NUT.HEX.1/2-20

$7.49

$

In Stock, only 4 left!

0

41

Poulan 532100711

(Superseded to 532186737)

$9.49

$

In Stock, Qty 8

0

43

Poulan 532121749

WASHER

$3.49

$

Usually ships in 3-10 days

0

46

Poulan 532121232

CAP.SPINDLE.BLACK

$4.99

$

In Stock, Qty 9

0

47

Poulan 532006855

ZERK.GREASE.TAPERED
(Superseded to 532183226)

$7.49

$

In Stock, only 2 left!

0
