3420-74 B - Electrolux/AYP Lawn Tractor (1997) CHASSIS AND ENCLOSURES Parts Diagram

Lawn Tractor

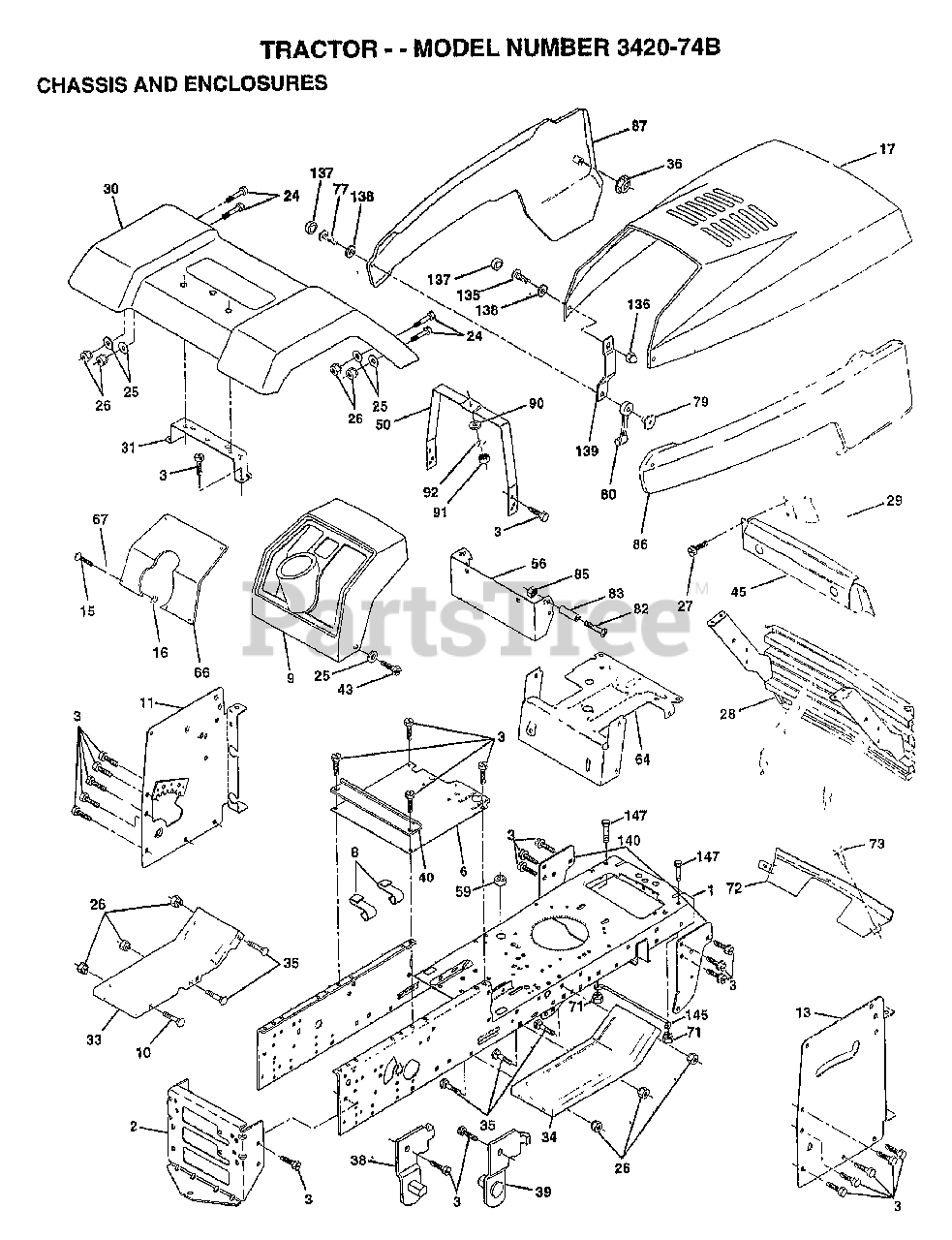

CHASSIS AND ENCLOSURES Parts Diagram

  • Title
1

Electrolux/AYP 159530

CHASSIS ASM
(Superseded to 160393)

$

$

Not available

2

Electrolux/AYP 140356

SUB= 145009

$

$

Not available

3

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

6

Electrolux/AYP 155923

SADDLE
(Superseded to 532155923)

$14.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 126471X

"CLIP,INSULATOR"
(Superseded to 532126471)

$4.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 140398

DASHBOARD BLACK
(Superseded to 584445901)

$21.99

$

Usually ships in 3-10 days

0

10

Murray 72140608

SUB= 72110608

$

$

Not available

11

Electrolux/AYP 145230

PANEL.DASH.LH.PNT

$

$

Not available

13

Electrolux/AYP 145219

PANEL.DASH.RH.
(Superseded to 582963501)

$17.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 74180512

SCREW
(Superseded to 874180512)

$

$

Not available

$2.99

$

Usually ships in 3-10 days

0

$218.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 74780616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 19131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, Qty 5

0

26

Electrolux/AYP 73800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 17030814

SUB= 91817030814
(Superseded to 532161464)

$

$

Not available

28

Electrolux/AYP 150196

GRILLE ASM PNT
(Superseded to 582975401)

$47.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 146959

PANEL.DASH.RH
(Superseded to 584317101)

$

$

Not available

$

$

Not available

31

Electrolux/AYP 139976

BRACKET SUPT FEND
(Superseded to 532139976)

$17.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 145244X424

FOOTREST.LH.LT/GT
(Superseded to 532182507)

$43.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 145243X424

FOOTREST.RH.LT/GT
(Superseded to 532182508)

$

$

Not available

35

Electrolux/AYP 72110606

BOLT
(Superseded to 872110606)

$4.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 108067X

PAL NUT LT
(Superseded to 532108067)

$

$

Not available

38

Electrolux/AYP 139886

BRACKET ASM LH
(Superseded to 532139886)

$8.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 139887

BRACKET ASM RH
(Superseded to 532139887)

$

$

Not available

40

Electrolux/AYP 139977

SPACER FENDER LT

$

$

Not available

43

Electrolux/AYP 17490616

SCREW GTV
(Superseded to 817000616)

$7.49

$

In Stock, only 3 left!

0

45

Electrolux/AYP 147717

BEZEL.ASM.
(Superseded to 583678801)

$

$

Not available

50

Electrolux/AYP 145205

DASH.SUPT.YP/HUSQ
(Superseded to 532145205)

$

$

Not available

59

$

$

Not available

56

Electrolux/AYP 150271

EXT DASH LTYT

$3.49

$

Usually ships in 3-10 days

0

64

Electrolux/AYP 150272

DASH.LOWER.LT
(Superseded to 583037501)

$21.99

$

Usually ships in 3-10 days

0

66

Electrolux/AYP 156287X010

"PLATE-DASH,SLKSCR"

$

$

Not available

67

Electrolux/AYP 19111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 11

0

72

Electrolux/AYP 144916X424

STRAP.GRILLE.424
(Superseded to 144916X428)

$

$

Not available

71

Electrolux/AYP 73680400

SUB= 73690400
(Superseded to 586668901)

$4.99

$

In Stock, Qty 15

0

73

Electrolux/AYP 17580408

SCREW CRT
(Superseded to 817580408)

$

$

Not available

79

Electrolux/AYP 2029J

WELDNUT
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

80

Electrolux/AYP 109808X

HOOD LATCH T
(Superseded to 532109808)

$6.99

$

In Stock, Qty 13

0

82

Electrolux/AYP 74981020

SCREW
(Superseded to 874981024)

$9.99

$

In Stock, Qty 9

0

83

Electrolux/AYP 7206J

SPACER LT
(Superseded to 532007206)

$7.49

$

In Stock, Qty 6

0

$2.49

$

Usually ships in 3-10 days

0

86

$92.99

$

Usually ships in 3-10 days

0

87

$

$

Not available

90

Electrolux/AYP 19091216

WASHER PM
(Superseded to 819091216)

$4.99

$

In Stock, only 1 left!

0

91

Electrolux/AYP 73220400

SUB= 50675
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

92

Electrolux/AYP 10040400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

135

Electrolux/AYP 74291006

SCREW.10-24X3/8.
(Superseded to 874291006)

$2.99

$

Usually ships in 3-10 days

0

136

Electrolux/AYP 60867

ACORN NUT RB
(Superseded to 532060867)

$4.99

$

In Stock, Qty 20+

0

137

Electrolux/AYP 110356X

SNAP CAP LT
(Superseded to 532110356)

$3.99

$

Usually ships in 3-10 days

0

138

Electrolux/AYP 110357X

WASHER LT
(Superseded to 532110357)

$

$

Not available

139

Electrolux/AYP 150195

BKT.SPT.HOOD/PANL
(Superseded to 532150195)

$

$

Not available

140

Electrolux/AYP 158418

BRKT SUSPENSION
(Superseded to 532158418)

$

$

Not available

145

Electrolux/AYP 156524

"ROD POVOT,CHASSIS"
(Superseded to 532409167)

$13.99

$

In Stock, only 2 left!

0

147

Electrolux/AYP 74760412

BOLT LT
(Superseded to 874760412)

$7.49

$

In Stock, only 1 left!

0
