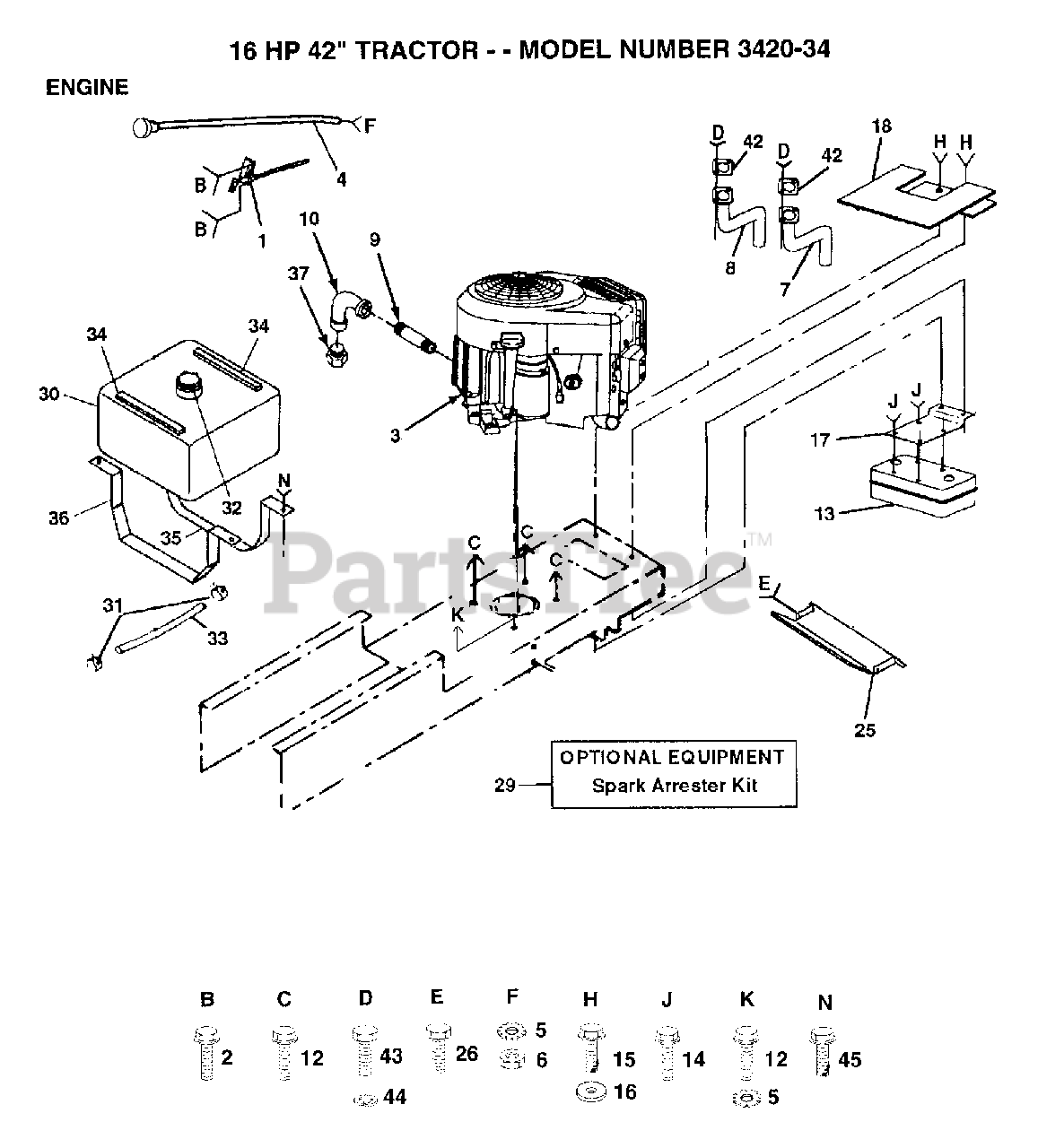

3420-34 - Electrolux/AYP Lawn Tractor (1993) ENGINE Parts Diagram

Lawn Tractor

ENGINE Parts Diagram

  • Title
1

Electrolux/AYP 132747

SUB= 532132748
(Superseded to 532132747)

$

$

Not available

2

Electrolux/AYP 17720410

SCREW LT
(Superseded to 817720410)

$

$

Not available

3

Electrolux/AYP 402777

ENGINE B&S 16HP

$

$

Not available

4

Electrolux/AYP 132781

CHOKE CONTROL
(Superseded to 532132781)

$

$

Not available

5

Electrolux/AYP 11050600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 73610600

SUB= 7810H
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 136988

SUB= 144068

$

$

Not available

8

Electrolux/AYP 136989

EXHAUST ASM LH
(Superseded to 532144069)

$37.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 13280336

PIPE NIPPLE LT
(Superseded to 532428287)

$18.99

$

In Stock, only 4 left!

0

10

Electrolux/AYP 13200300

ELBOW
(Superseded to 532428287)

$18.99

$

In Stock, only 4 left!

0

12

Electrolux/AYP 17490624

SCREW LT
(Superseded to 817060624)

$7.49

$

In Stock, only 1 left!

0

13

Electrolux/AYP 137978

SUB= 149723

$

$

Not available

14

Electrolux/AYP 17190408

SCREW ST
(Superseded to 817240408)

$7.49

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 17490512

SCREW
(Superseded to 583607701)

$7.49

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 19132012

WASHER
(Superseded to 819132012)

$1.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 122439X

BRACKET MUFFLER
(Superseded to 532122439)

$

$

Not available

18

Electrolux/AYP 128199

SUB= 145552

$

$

Not available

25

Electrolux/AYP 128953

HEAT SHIELD
(Superseded to 532128953)

$

$

Not available

26

Electrolux/AYP 17021008

SCREW
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

29

Electrolux/AYP 132922

SPARK ARREST KIT
(Superseded to 539132922)

$72.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 127813

SUB= 141291

$

$

Not available

31

Electrolux/AYP 123487X

HOSE CLAMP
(Superseded to 532123487)

$7.49

$

In Stock, only 1 left!

0

32

Electrolux/AYP 123549X

SUB= 158990
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

33

$

$

Not available

34

Electrolux/AYP 126564X

"STRIP,FORM"
(Superseded to 583671601)

$2.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 136360

STRAP ASM. F.TANK

$

$

Not available

36

Electrolux/AYP 123803X

"STRAP,TANK"

$2.99

$

Usually ships in 3-10 days

0

37

CHECK WITH SUPPLIER

$

$

Not available

42

Electrolux/AYP 8545J

SUB= 272250

$

$

Not available

43

Electrolux/AYP 74780412

SUB= 74780414
(Superseded to 874780412)

$

$

Not available

44

Electrolux/AYP 10040400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

45

Electrolux/AYP 17490608

SCREW LT
(Superseded to 817490608)

$6.49

$

Usually ships in 3-10 days

0
