3416 S (990872) - Simplicity Sovereign Garden Tractor, 16hp ELECTRIC STARTER-GENERATOR SYSTEM Parts Diagram

Sovereign Garden Tractor, 16hp

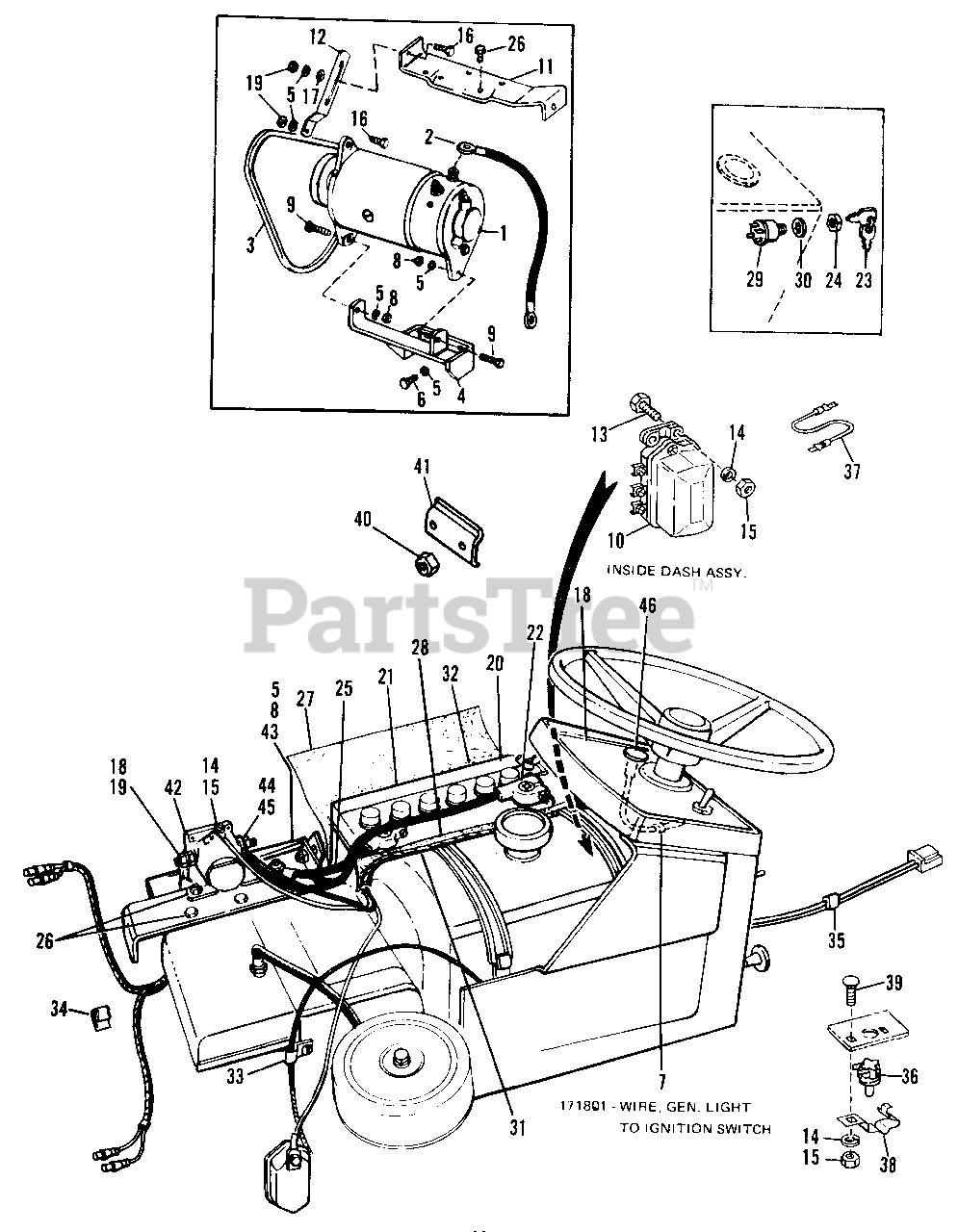

ELECTRIC STARTER-GENERATOR SYSTEM Parts Diagram

  • Title

1

Simplicity 122236

Motor-Generator

Note: FOR SERVICE CONTACT YOUR LOCAL UNITED MOTOR SERVICE DEALER (DELCO-REMY).

$

$

Not available

2

Simplicity 2122213

Generator Start Cable

$

$

Not available

3

Simplicity 2157524SM

V-BELT, 39.12"

$26.99

$

In Stock, only 1 left!

0

4

Simplicity 2157654SM

Support Assembly

$

$

Not available

5

Simplicity 2720001

Lockwasher, 5/16"

$

$

Not available

6

Simplicity 2705017

Hex Capscrew, 5/16"-18 x 3/4"

$

$

Not available

7

Simplicity 171801

Wire Ignition to Gen. Light

$

$

Not available

8

Simplicity 2717001

Full Hex Nut, 5/16"-18

$

$

Not available

9

Simplicity 2705019

Hex Capscrew, 5/16"-18 x 1-1/4"

$

$

Not available

10

Simplicity 122193

Voltage Regulator

Note: FOR SERVICE CONTACT YOUR LOCAL UNITED MOTOR SERVICE DEALER (DELCO-REMY).

$

$

Not available

11

Simplicity 176931

Bracket

$

$

Not available

12

Simplicity 2157102SM

Belt Tightener

$

$

Not available

13

Simplicity 2705030

Hex Capscrew, 1/4"-20 x 3/4"

$

$

Not available

14

Simplicity 2720003

Lockwasher, 1/4"

$

$

Not available

15

Simplicity 2717005

Full Hex Nut, 1/4"-20

$

$

Not available

16

Simplicity 2715048

Hex Capscrew, 5/16"-18 x 3/4"

$

$

Not available

17

Simplicity 2719002

Plain Washer, 5/16"

$

$

Not available

18

Simplicity 2172163

Circuit Breaker

$

$

Not available

19

Simplicity 2717001

Full Hex Nut, 5/16"-18

$

$

Not available

20

Simplicity 1685058SM

Battery

$

$

Not available

21

Simplicity 172277

Film, Battery

$

$

Not available

22

Simplicity 2171805

Cable (Battery to Solenoid)

$

$

Not available

23

Simplicity 1717163SM

Key and Ring Assembly

$8.99

$

In Stock, Qty 20+

0

24

Simplicity 122235

Special Hex Nut

$

$

Not available

25

Simplicity 2171811SM

Cable (Battery to Ground)

$

$

Not available

26

Simplicity 2715090

Screw Hex Thread Forming, 1/4"-20 x 1/2"

$

$

Not available

27

Simplicity 122142

Battery Insulation

$

$

Not available

28

Simplicity 172119

Fuel Tank Insulation

$

$

Not available

29

Simplicity 2122201SM

Starter Switch w/Keys

$

$

Not available

30

Simplicity 721509

Lockwasher Int., 9/16"

$

$

Not available

31

Simplicity 176710

Harness Assembly

$

$

Not available

32

Simplicity 2172175

Grommet

$

$

Not available

33

Simplicity 2106786

Clamp

$

$

Not available

34

Simplicity 165074

Speed Clip

$

$

Not available

35

Simplicity 2165073SM

Speed Clip

$2.99

$

Usually ships in 2-12 days

0

36

Simplicity 1609283SM

Switch

$

$

Not available

37

Simplicity 174702

Wire Assembly

$

$

Not available

38

Simplicity 176310

Spring Clip

$

$

Not available

39

Simplicity 2702029

Carriage Bolt, 1/4"-20 x 3/4"

$

$

Not available

40

Simplicity 2717525

Elastic Stop Nut

$

$

Not available

41

Simplicity 2171225SM

Battery Clamp

$10.99

$

In Stock, only 1 left!

0

42

Simplicity 2122216SM

Solenoid

$

$

Not available

43

Simplicity 2715090

Screw Hex Thread Forming, 1/4"-20 x 1/2"

$

$

Not available

44

Simplicity 2717007

Full Hex Nut, No. 10-32

$

$

Not available

45

Simplicity 2721003

Lockwasher, ext. No. 10

$

$

Not available

46

Simplicity 171295

Indicator Lamp Assembly

$

$

Not available
