Sovereign Garden Tractor, 16hp

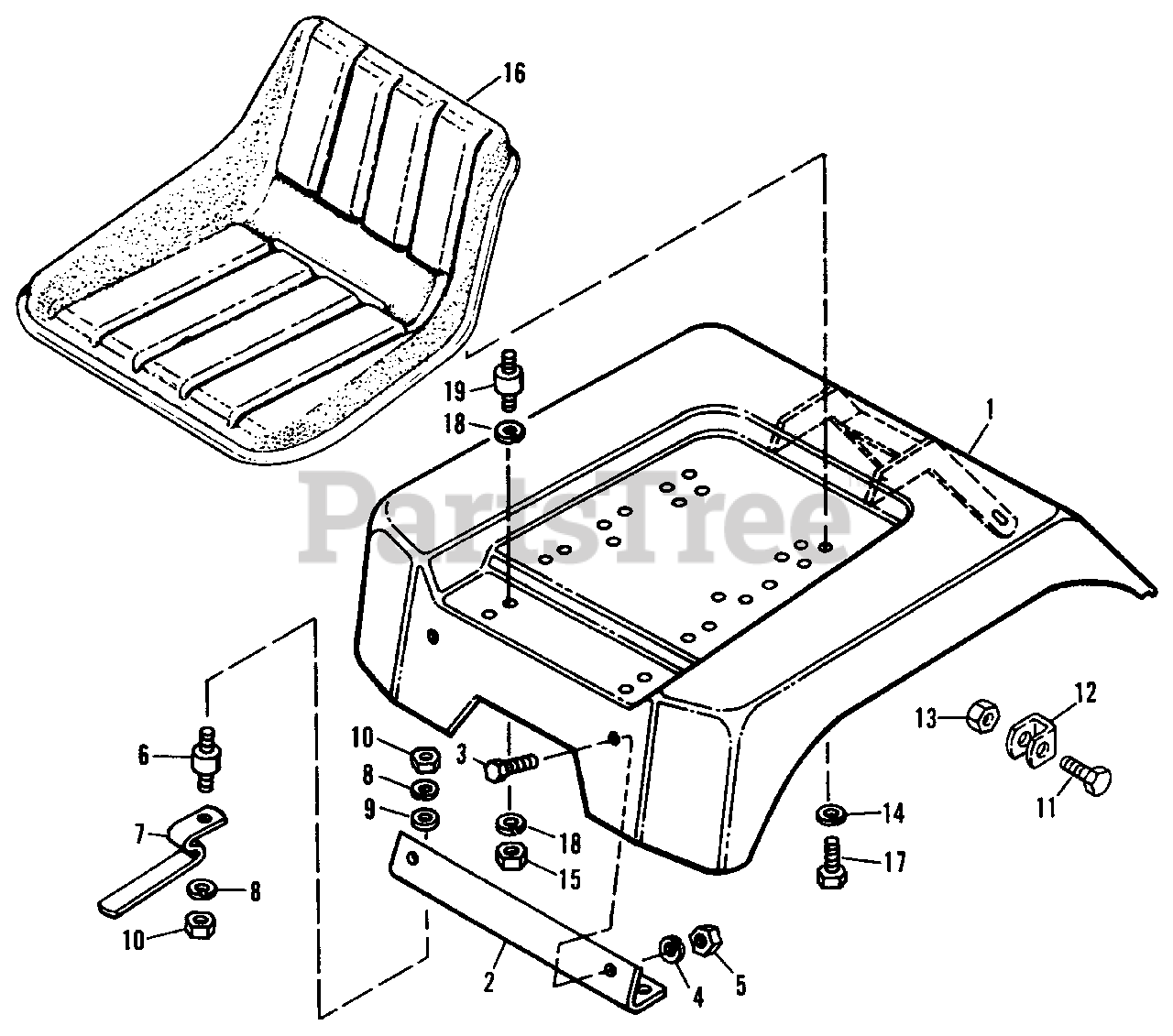

SEAT AND FENDERS Parts Diagram

  • Title

1

Simplicity 166111

Seat Deck Assembly

$

$

Not available

2

Simplicity 2164029SM

Seat Deck Bracket, Front

$

$

Not available

3

Simplicity 2705012

Hex Capscrew, 5/16"-18 x 5/8"

$

$

Not available

4

Simplicity 2720001

Lockwasher, 5/16"

$

$

Not available

5

Simplicity 2717001

Full Hex Nut, 5/16"-18

$

$

Not available

6

Simplicity 2157094SM

Cushion Connector, Front

$

$

Not available

7

Simplicity 1606823SM

Spring Clip

$

$

Not available

8

Simplicity 2720001

Lockwasher, 5/16"

$

$

Not available

9

Simplicity 2719006

Washer, 1/4"

$

$

Not available

10

Simplicity 2717001

Full Hex Nut, 5/16"-18

$

$

Not available

11

Simplicity 2705016

Hex Capscrew, 3/8"-16 x 1-1/4"

$

$

Not available

12

Simplicity 1607870SM

Seat Deck Stop
(Superseded to 1607870ASM)

$52.99

$

Usually ships in 2-12 days

0

13

Simplicity 2717510

Full Hex Lock Nut, 3/8"-16

$

$

Not available

14

Simplicity 2720001

Lockwasher, 5/16"

$

$

Not available

15

Simplicity 2717001

Full Hex Nut, 5/16"-18

$

$

Not available

16

Simplicity 1686712SM

Contour Seat Assembly

$487.99

$

Usually ships in 2-12 days

0

17

Simplicity 2705012

Hex Capscrew, 5/16"-18 x 5/8"

$

$

Not available

18

Simplicity 2720001

Lockwasher, 5/16"

$

$

Not available

19

Simplicity 2159085SM

Cushion Connector

$10.99

$

In Stock, only 2 left!

0
