3415 S (990758) - Simplicity Sovereign Garden Tractor, 15hp REAR LIFT DRAW BAR GROUP Parts Diagram

Sovereign Garden Tractor, 15hp

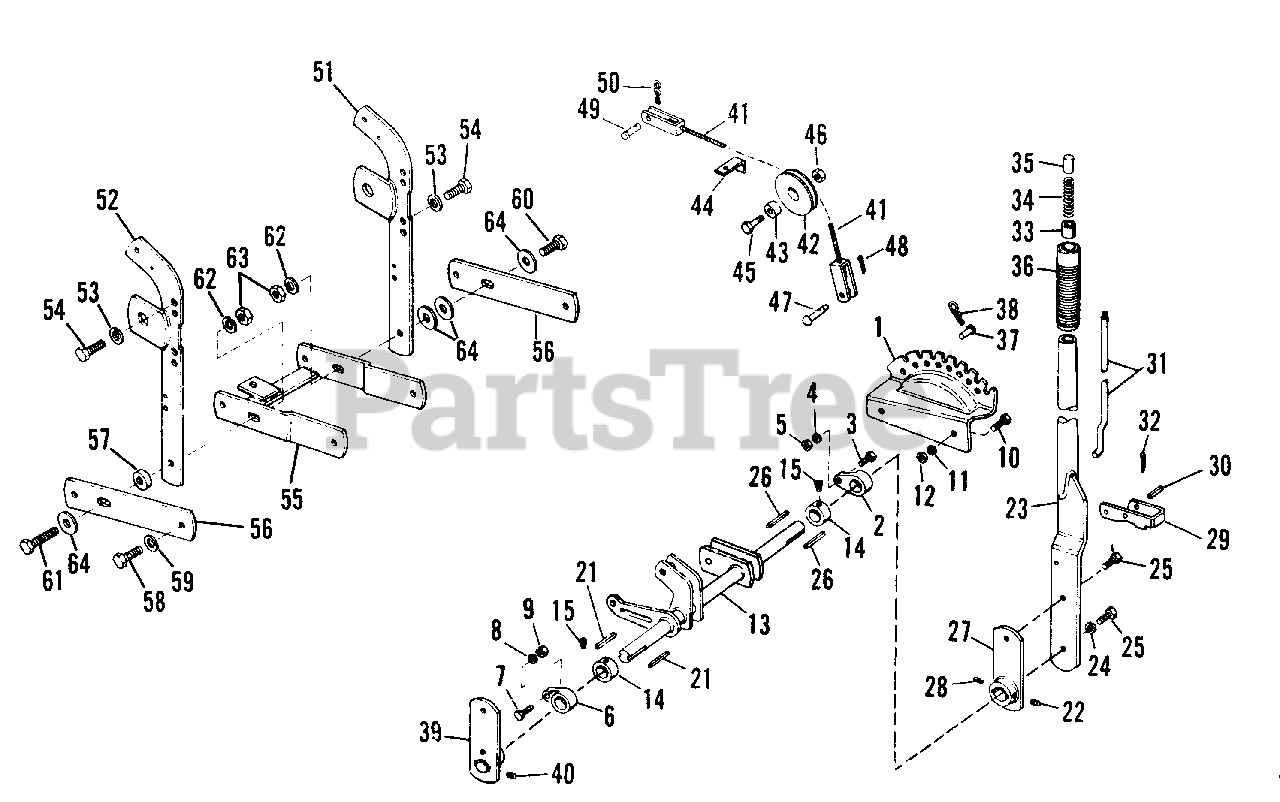

REAR LIFT DRAW BAR GROUP Parts Diagram

  • Title

1

Simplicity 171599

Lift Lever Quadrant

$

$

Not available

2

Simplicity 2170975SM

Lift Lever Bearing

$

$

Not available

3

Simplicity 2715046

Hex Cap Screw. 5/16"-18 x 1-1/4"

$

$

Not available

4

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

5

Simplicity 2717001

Full Hex Nut. 5/16"

$

$

Not available

6

Simplicity 170795

Lift Lever Bearing

$

$

Not available

7

Simplicity 2715046

Hex Cap Screw, 5/16"-18 x 1-1/4"

$

$

Not available

8

Simplicity 2720001

Lock Washer 5/16"

$

$

Not available

9

Simplicity 2717001

Hex Nut, 5/16"-18

$

$

Not available

10

Simplicity 2705004

Hex Cap Screw, 3/8"-16 x 3/4"

$

$

Not available

11

Simplicity 2720002

Lock Washer 3/8"

$

$

Not available

12

Simplicity 2717003

Full Hex Nut, 3/8"

$

$

Not available

13

Simplicity 174111

Lift Shaft Assy.

$

$

Not available

14

Simplicity 2157624

Set Collar

$

$

Not available

15

Simplicity 2713002

Set Screw Sq. Hd., 5/16"-18 x 3/8"

$

$

Not available

16

Simplicity 2154216SM

Lift Shaft

$15.99

$

Usually ships in 2-12 days

0

17

Simplicity 1729254SM

Set Collar
(Superseded to 703150)

$

$

Not available

18

Simplicity 2157695SM

Set Collar

$87.99

$

Usually ships in 2-12 days

0

19

Simplicity 2713002

Set Screw, 5/16"-18 x 3/8"

$

$

Not available

20

Simplicity 2713010

Set Screw

$

$

Not available

21

Simplicity 2157652

Key

$

$

Not available

22

Simplicity 2713502

Set Screw, 5/16"-18 x 1/4"

$

$

Not available

23

Simplicity 171589

Lift Lever Assy.

$

$

Not available

24

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

25

Simplicity 2715120

Hex Cap Screw, 3/8"-16 x 1"

$

$

Not available

26

Simplicity 2157120SM

Key

$6.99

$

In Stock, only 1 left!

0

27

Simplicity 171593

Lift Lever Assy, Inner Section

$

$

Not available

28

Simplicity 2713502

Set Screw 5/16"-18 x 1/4"

$

$

Not available

29

Simplicity 173039

Lift Lever Latch

$

$

Not available

30

Simplicity 723018

Roll Pin, 3/8" x 1-1/4"

$

$

Not available

31

Simplicity 170983

Latch Rod

$

$

Not available

32

Simplicity 2722001

Cotter Pin, 3/32" x 3/4"

$

$

Not available

33

Simplicity 154226

Spacer

$

$

Not available

34

Simplicity 2152006SM

Spring

$8.49

$

Usually ships in 2-12 days

0

35

Simplicity 2154227SM

Thumb Button

$

$

Not available

36

Simplicity 2156209

Handle Grip
(Superseded to 1713995SM)

$12.99

$

In Stock, only 1 left!

0

37

Simplicity 1708298SM

Pin

$

$

Not available

38

Simplicity 1918196SM

Spring Clip
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

39

Simplicity 2157625SM

Front Lift Lever Assy.

$233.99

$

Usually ships in 2-12 days

0

40

Simplicity 2713502

Set Screw, 5/16"-18 x 1/4"

$

$

Not available

41

Simplicity 2174085SM

Cable Assy., Lift

$

$

Not available

42

Simplicity 2172725SM

Pulley

$48.99

$

In Stock, only 1 left!

0

43

Simplicity 2157081SM

Spacer

$8.99

$

In Stock, only 4 left!

0

44

Simplicity 2174723SM

Cable Guard

$

$

Not available

45

Simplicity 2108418

Screw

$

$

Not available

46

Simplicity 2717524

Hex Jam Lock Nut, 3/8"-16

$

$

Not available

47

Simplicity 1729019SM

Pin
(Superseded to 703982)

$6.99

$

Usually ships in 2-12 days

0

48

Simplicity 2722005

Cotter Pin, 3/32" x 7/8"

$

$

Not available

49

Simplicity 1708298SM

Pin

$

$

Not available

50

Simplicity 1918196SM

Spring Clip
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

51

Simplicity 164304

Arm Assembly

$

$

Not available

52

Simplicity 164284

Arm Assembly

$

$

Not available

53

Simplicity 2720006

Lock Washer, 7/16"

$

$

Not available

54

Simplicity 2705041

Hex Cap Screw, 7/16"-14 x 1"

$

$

Not available

55

Simplicity 154202

Draw Bar Assembly

$

$

Not available

56

Simplicity 157091

Pull Bar

$

$

Not available

57

Simplicity 166076

Spacer

$

$

Not available

58

Simplicity 2705042

Hex Cap Screw, 7/16"-14 x 1-1/4"

$

$

Not available

59

Simplicity 2720006

Lock Washer, 7/16"

$

$

Not available

60

Simplicity 705039

Hex Cap Screw, 7/16"-14 x 1-1/2"

$6.99

$

In Stock, only 2 left!

0

61

Simplicity 2705047

Hex Cap Screw, 7/16"-14 x 3/4"

$

$

Not available

62

Simplicity 2720006

Lock Washer, 7/16"

$

$

Not available

63

Simplicity 2717022

Full Hex Nut, 7/16"-14

$

$

Not available

64

Simplicity 2719002

Plain Washer, 5/16"

$

$

Not available
