3415 S (990758) - Simplicity Sovereign Garden Tractor, 15hp PULLEY AND CONTROL GROUP Parts Diagram

Sovereign Garden Tractor, 15hp

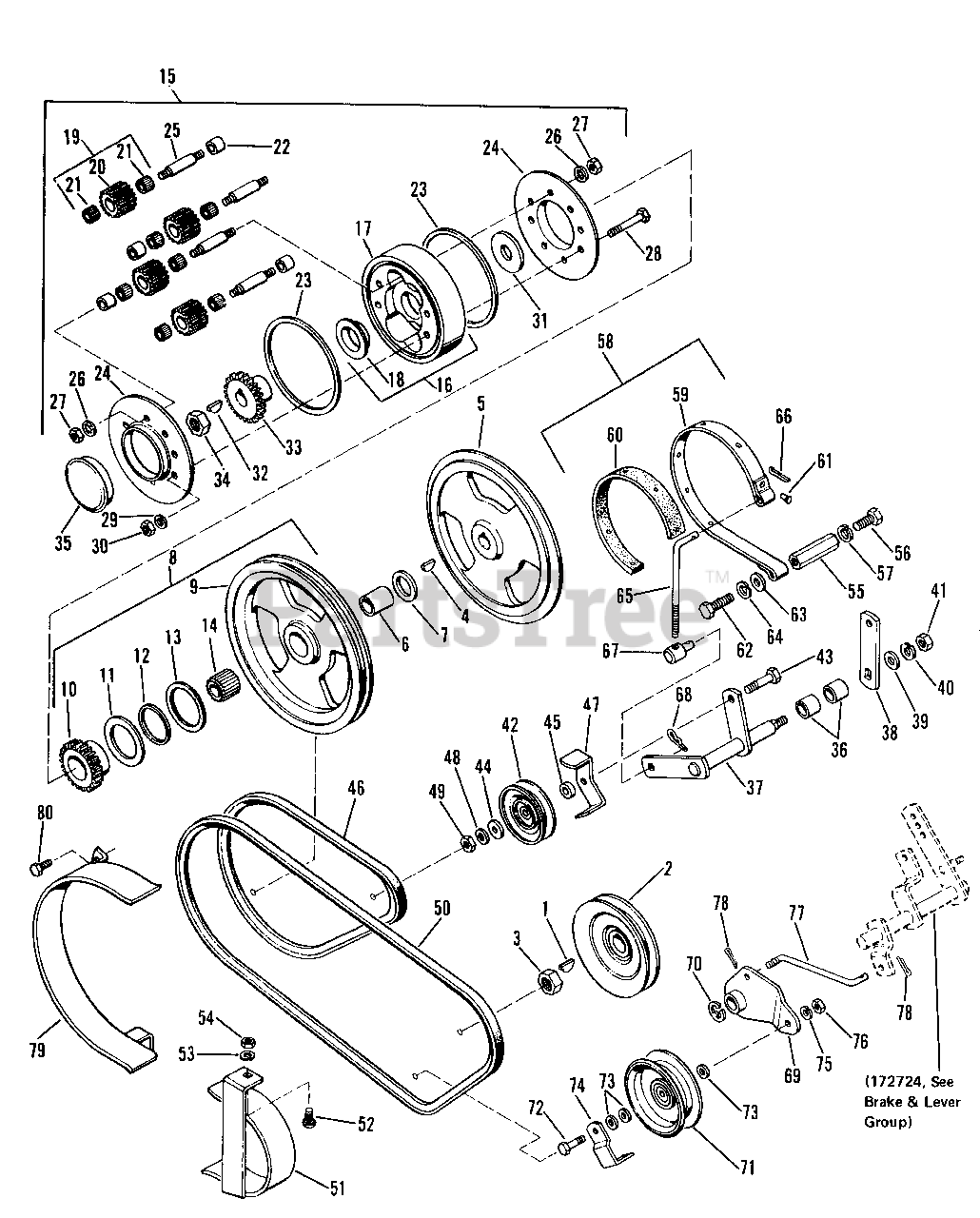

PULLEY AND CONTROL GROUP Parts Diagram

  • Title

1

Simplicity 2725504

Hi Pro Key 3/16" x 3/4"

$

$

Not available

2

Simplicity 2174359SM

Pulley

$98.99

$

Usually ships in 2-12 days

0

3

Simplicity 2717517

Jam Hex Nut, 3/4"-16

$

$

Not available

4

Simplicity 2725003

Key, Woodruff No. 9

$

$

Not available

5

Simplicity 173793

Half Sheave

$

$

Not available

6

Simplicity 2174568SM

Inner Race

$

$

Not available

7

Simplicity 2174570SM

Thrust Bearing

$16.99

$

In Stock, only 1 left!

0

8

Simplicity 174588

Sheave Assembly

$

$

Not available

9

Simplicity 173794

Sheave

$

$

Not available

10

Simplicity 173787

Gear Differential

$

$

Not available

11

Simplicity 2173790

Washer

$

$

Not available

12

Simplicity 157326

Ring

$

$

Not available

13

Simplicity 2173792

Seal

$

$

Not available

14

Simplicity 2174592

Bearing, Roller Seal

$

$

Not available

15

Simplicity 174585

Planetary Assembly

$

$

Not available

16

Simplicity 2174586

Planetary Carrier Sub-Assy.

$

$

Not available

17

Simplicity 2174586

Planetary Carrier

$

$

Not available

18

Simplicity 2173789SM

Bearing, Flange

$17.99

$

Usually ships in 2-12 days

0

19

Simplicity 2174587SM

Pinion Differential Assembly

$50.99

$

Usually ships in 2-12 days

0

20

Simplicity 2121311

Pinion Differential

$

$

Not available

21

Simplicity 2174567SM

Bearing, Needle

$19.99

$

In Stock, only 2 left!

0

22

Simplicity 2174569SM

Bearing, Sleeve

$

$

Not available

23

Snapper 2174399SM

"O" Ring

$12.99

$

In Stock, only 1 left!

0

24

Simplicity 2174404SM

Differential, Cover

$

$

Not available

25

Simplicity 2174025SM

Pinion, Pin

$25.99

$

Usually ships in 2-12 days

0

26

Simplicity 2721501

Lock Washer, Shakeproof

$

$

Not available

27

Simplicity 2717001

Full Hex Nut, 5/16"-18

$

$

Not available

28

Simplicity 2705020

Hex Cap Screw, 5/16"-18 x 2"

$

$

Not available

29

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

30

Simplicity 2717001

Full Hex Nut, 5/16"-18

$

$

Not available

31

Simplicity 174274

Washer, Thrust

$

$

Not available

32

Simplicity 2725504

Hi Pro Key, 3/16" x 3/4"

$

$

Not available

33

Simplicity 173788

Gear, Differential

$

$

Not available

34

Simplicity 2717517

Jam Hex Nut, 3/4"-16

$

$

Not available

35

Simplicity 174584

Hub Cap

$

$

Not available

36

Simplicity 2118092SM

Bushing

$7.99

$

Usually ships in 2-12 days

0

37

Simplicity 173864

Lever Assembly

$

$

Not available

38

Simplicity 174427

Lever

$

$

Not available

39

Simplicity 2719001

Plain Washer, 3/8"

$

$

Not available

40

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

41

Simplicity 2717003

Full Hex Nut, 3/8"-16

$

$

Not available

42

Simplicity 2174561SM

Idler Pulley

$53.99

$

Usually ships in 2-12 days

0

43

Simplicity 2705009

Hex Cap Screw, 3/8"-16 x 1-1/2"

$

$

Not available

44

Simplicity 2719002

Plain Washer, 5/16"

$

$

Not available

45

Simplicity 2174870SM

Spacer

$45.99

$

Usually ships in 2-12 days

0

46

Simplicity 2174883SM

V-Belt

$22.99

$

In Stock, only 1 left!

0

47

Simplicity 174402

Guide Belt

$

$

Not available

48

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

49

Simplicity 2717003

Full Hex Nut, 3/8"-16

$

$

Not available

50

Simplicity 2174731SM

V-Belt

$32.99

$

In Stock, only 1 left!

0

51

Simplicity 174424

Belt Guard Assembly

$

$

Not available

52

Simplicity 2703004

Carriage Bolt, 3/8"-16 x 3/4"

$

$

Not available

53

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

54

Simplicity 2717003

Full Hex Nut, 3/8"-16

$

$

Not available

55

Simplicity 174386

Brake Anchor

$

$

Not available

56

Simplicity 2705005

Hex Cap Screw, 3/8"-16 x 1"

$

$

Not available

57

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

58

Simplicity 2174381

Brake Band Assembly

$

$

Not available

59

Simplicity 1679423SM

Brake Band

$73.99

$

Usually ships in 2-12 days

0

60

Simplicity 2174383

Brake Lining

$

$

Not available

61

Simplicity 2724502

Rivet No. 7 x 1/4"

$

$

Not available

62

Simplicity 2705009

Hex Cap Screw, 3/8"-16 x 1-1/2"

$

$

Not available

63

Simplicity 2719002

Plain Washer, 5/16"

$

$

Not available

64

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

65

Simplicity 174385

Rod

$

$

Not available

66

Simplicity 2722001

Cotter Pin, 3/32" x 3/4"

$

$

Not available

67

Simplicity 108172

Pivot

$

$

Not available

68

Simplicity 2722001

Cotter Pin, 3/32" x 3/4"

$

$

Not available

69

Simplicity 2173861SM

Idler Lever Assembly
(Superseded to 2173861ASM)

$104.99

$

Usually ships in 2-12 days

0

70

Simplicity 2158596

Retaining Ring

$

$

Not available

71

Simplicity 2174497

Pulley
(Superseded to 1723952SM)

$43.99

$

Usually ships in 2-12 days

0

72

Simplicity 2705009

Hex Cap Screw, 3/8"-16 x 1-1/2"

$

$

Not available

73

Simplicity 2719002

Plain Washer, 5/16"

$

$

Not available

74

Simplicity 2106717

Guide Belt

$

$

Not available

75

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

76

Simplicity 2717003

Full Hex Nut, 3/8"- 16

$

$

Not available

77

Simplicity 2164088SM

Clutch Link

$

$

Not available

78

Simplicity 2722001

Cotter Pin, 3/32" x 3/4"

$

$

Not available

79

Simplicity 174394

Pulley Guard Assembly

$

$

Not available

80

Simplicity 2715155

Taptite Hex Hd. Washer Screw, 5/16"-18 x 5/8"

$

$

Not available
