3415 S (990758) - Simplicity Sovereign Garden Tractor, 15hp FRONT LIGHT GROUP Parts Diagram

Sovereign Garden Tractor, 15hp

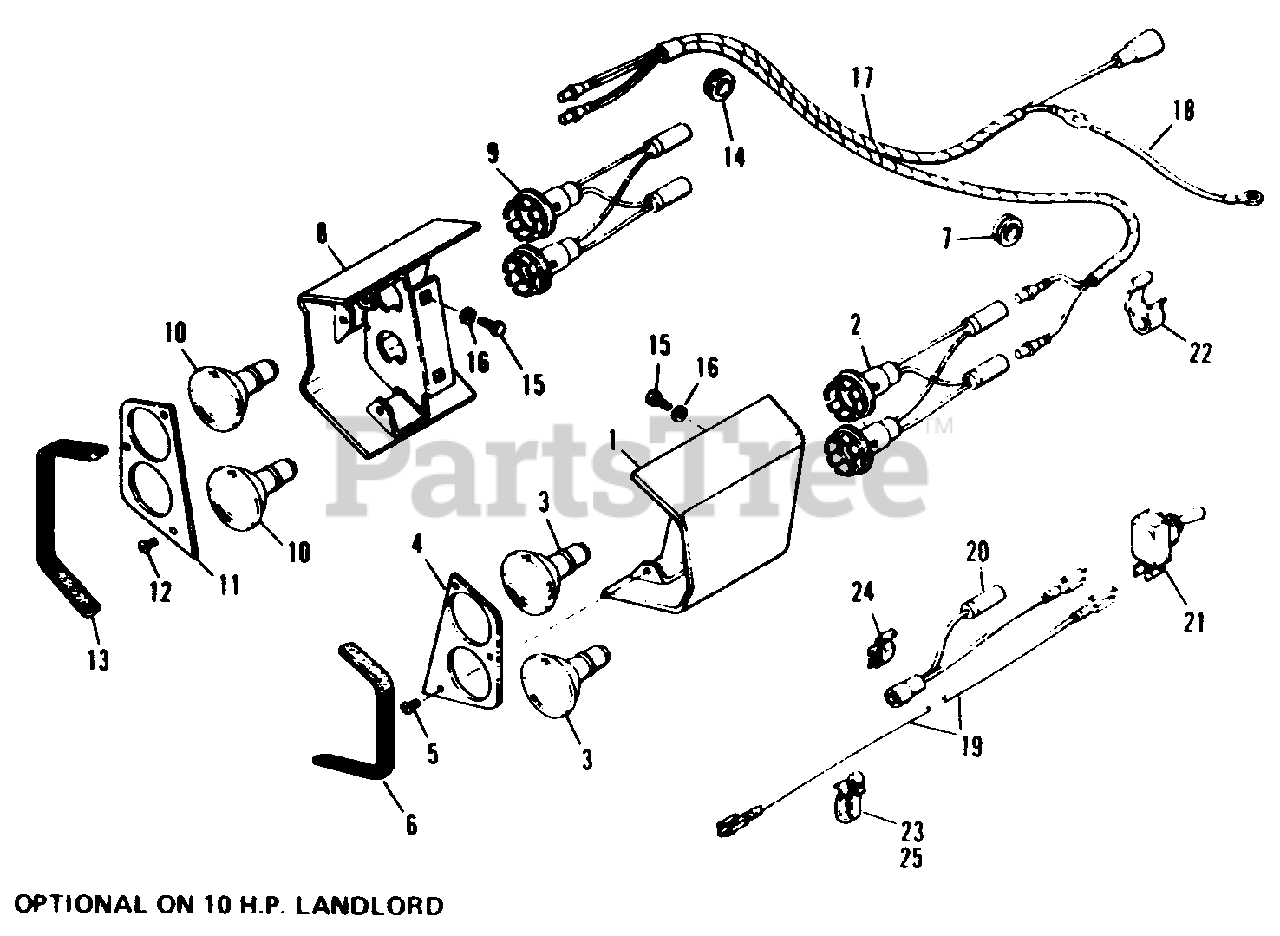

FRONT LIGHT GROUP Parts Diagram

  • Title

1

Simplicity 172286

Shroud & Plate Assy. L.H.

$

$

Not available

2

Simplicity 172290

Lamp Socket & Wire Assy.

$

$

Not available

3

Simplicity 172048

Headlight

$

$

Not available

4

Simplicity 172243

Plate, Front

$

$

Not available

5

Simplicity 714019

Screw, Round Head Phillips Swageform No. 12-24 x 1/2"

$

$

Not available

6

Simplicity 172269

Moulding

$

$

Not available

7

Simplicity 2172176SM

Grommet

$6.49

$

In Stock, only 2 left!

0

8

Simplicity 172285

Shroud & Plate Assy. R.H.

$

$

Not available

9

Simplicity 172290

Lamp Socket & Wire Assy.

$

$

Not available

10

Simplicity 172048

Headlight

$

$

Not available

11

Simplicity 172243

Plate, Front

$

$

Not available

12

Simplicity 714019

Screw, Round Head, Phillips Swageform No. 12-24 x 1/2"

$

$

Not available

13

Simplicity 172269

Moulding

$

$

Not available

14

Simplicity 2172176SM

Grommet

$6.49

$

In Stock, only 2 left!

0

15

Simplicity 2705002

Hex Cap Screw, 1/4"-20 N.C. x 1/2"

$

$

Not available

16

Simplicity 2720003

Lock Washer, 1/4" Std.

$

$

Not available

17

Simplicity 172294

Harness Assy.

$

$

Not available

18

Simplicity 172295

Wire Assy., Ground

$

$

Not available

19

Simplicity 172296

Wire Assy., Light Switch

$

$

Not available

20

Simplicity 172297

Wire Assy., Indicator Lamp

$

$

Not available

21

Simplicity 2122184SM

Switch, Toggle

$22.99

$

Usually ships in 2-12 days

0

22

Simplicity 2172436SM

Cable Clip Tinnerman, Front Frame

$4.49

$

In Stock, only 3 left!

0

23

Simplicity 2172434SM

Cable Clip Tinnerman, Rear Frame

$4.99

$

Usually ships in 2-12 days

0

24

Simplicity 172433

Cable Clip Tinnerman, Top of Grille

$

$

Not available

25

Simplicity 2172434SM

Cable Clip Tinnerman

$4.99

$

Usually ships in 2-12 days

0
