3415 H (990759) - Simplicity Sovereign Garden Tractor, 15hp ENGINE AND DRIVE SHAFT LANDLORD Parts Diagram

Sovereign Garden Tractor, 15hp

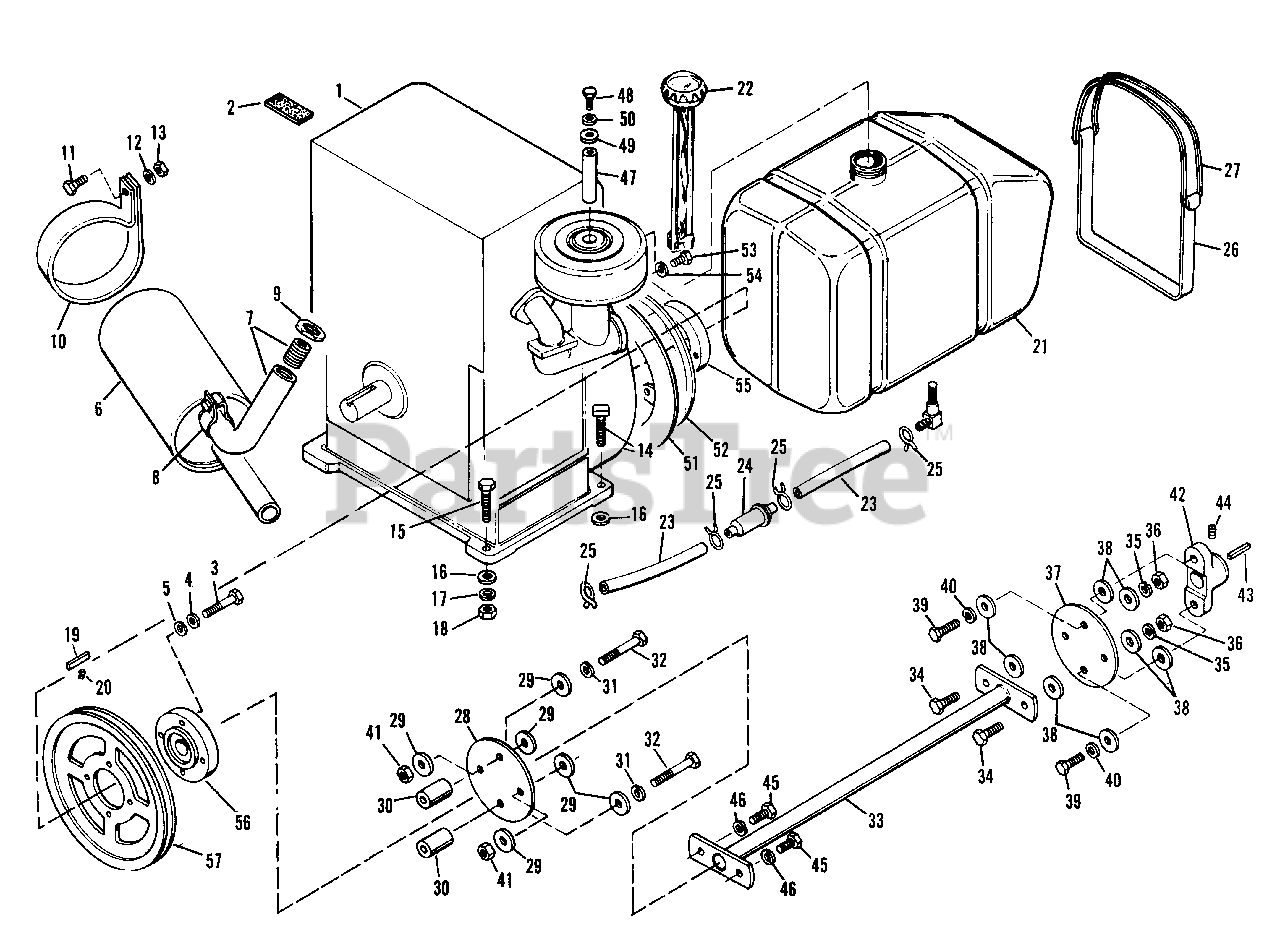

ENGINE AND DRIVE SHAFT LANDLORD Parts Diagram

  • Title

1

ENGINE, Briggs & Stratton, Model 325431, Type 0126-01

$

$

Not available

2

Simplicity 2173335

Pad, Fuel Tank

$

$

Not available

3

Simplicity 2715068

* Hex Cap Screw, 5/16"-18 x 2"

$

$

Not available

4

Simplicity 2719002

* Plain Washer, 5/16 "

$

$

Not available

5

Simplicity 2720001

* Lock Washer, 5/16"

$

$

Not available

6

Simplicity 2170456

Muffler, Exhaust

$

$

Not available

7

Simplicity 2172195

Elbow & Nipple Assy.

$

$

Not available

8

Simplicity 2172061SM

Muffler Clamp
(Superseded to 2831893SM)

$

$

Not available

9

Simplicity 2154378SM

Lock Nut

$6.99

$

Usually ships in 2-12 days

0

10

Simplicity 2171880SM

Strap, Muffler

$32.99

$

Usually ships in 2-12 days

0

11

Simplicity 2705012

Hex Cap Screw, 5/16"-18 N.C.x 5/8"

$

$

Not available

12

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

13

Simplicity 2717001

Hex Nut, Full, 5/16"-18 N.C.

$

$

Not available

14

Simplicity 172455

Rec't. Head Screw, 3/8"- 16 N.C. x 1-5/16"

$

$

Not available

15

Simplicity 2705009

Hex Cap Screw, 3/8"-16 N.C. x 1-1/2"

$

$

Not available

16

Simplicity 2719001

Plain Washer, 3/8" Std.

$

$

Not available

17

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

18

Simplicity 2717003

Hex Nut Full, 3/8"-16 N.C.

$

$

Not available

19

Simplicity 2171241SM

KEY, Hi-Pro

$5.99

$

Usually ships in 2-12 days

0

20

Simplicity 2713504

Cup Pt. Socket Head Set Screw, 5/16"-18 N.C. x 5/8"

$

$

Not available

21

Simplicity 2171115

Tank, Fuel

$

$

Not available

22

Simplicity 2171252SM

Cap, Fuel Tank

$31.99

$

In Stock, Qty 20+

0

23

Simplicity 123204

Hose, Fuel, Flexible

$

$

Not available

24

Simplicity 2173206SM

Fuel Filter
(Superseded to 394358S)

$5.99

$

In Stock, Qty 20+

0

25

Simplicity 2154372

Clamp, Hose

$

$

Not available

26

Simplicity 2171330SM

Strap, Tank

$43.99

$

Usually ships in 2-12 days

0

27

Simplicity 2172744SM

Strap, Fuel Tank

$18.99

$

Usually ships in 2-12 days

0

28

Simplicity 2173026SM

Coupling

$39.99

$

In Stock, only 1 left!

0

29

Simplicity 2157424SM

Washer, Special

$7.49

$

In Stock, Qty 5

0

30

Snapper 1729273SM

Bearing, Pivot Block

$76.99

$

In Stock, only 1 left!

0

31

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

32

Simplicity 2715036

Hex Cap Screw, 3/8"-16x2-1/4"

$

$

Not available

33

Simplicity 2172328SM

Shaft Assy., Drive
(Superseded to 2172328ASM)

$

$

Not available

34

Simplicity 2172677

Hex Cap Screw, 3/8"-16 x 1-1/8"

$

$

Not available

35

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

36

Simplicity 2717003

Hex Full Nut, 3/8"-16

$

$

Not available

37

Simplicity 2173026SM

Coupling

$39.99

$

In Stock, only 1 left!

0

38

Simplicity 2157424SM

Washer, Special

$7.49

$

In Stock, Qty 5

0

39

Simplicity 2172677

Hex Cap Screw, 3/8"-16 N.C. x 1-1/8"

$

$

Not available

40

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

41

Simplicity 2717003

Hex Nut, Full, 3/8"-16 N.C.

$

$

Not available

42

Simplicity 2172264SM

Flange, Drive Shaft

$

$

Not available

43

Simplicity 2157427SM

Key, Drive Shaft

$5.49

$

In Stock, only 1 left!

0

44

Simplicity 2715049

Cup Pt. Socket Head Set Screw, 3/8"-24 N.F. x 3/8"

$

$

Not available

45

Simplicity 2172677

Hex Cap Screw, 3/8"-16 N.C. x 1-1/8"

$

$

Not available

46

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

47

Simplicity 157126

Air Cleaner Spacer

$

$

Not available

48

Simplicity 2715018

Hex Cap Screw, 1/4"-20 N.C. x 5/8"

$

$

Not available

49

Simplicity 2719006

Plain Washer, 1/4"

$

$

Not available

50

Simplicity 2720003

Lock Washer, 1/4"

$

$

Not available

51

Simplicity 157099

* Flywheel Shroud

$

$

Not available

52

Simplicity 157306

* Shroud

$

$

Not available

53

Simplicity 2705002

* Hex Capscrew 1/4"-20 x 1/2"

$

$

Not available

54

Simplicity 2720003

* Lock Washer, 1/4"

$

$

Not available

55

Simplicity 157355

* Spacer

$

$

Not available

56

Simplicity 157305

* Engine Pulley

$

$

Not available

57

Simplicity 172673

* Drive Hub

$

$

Not available
