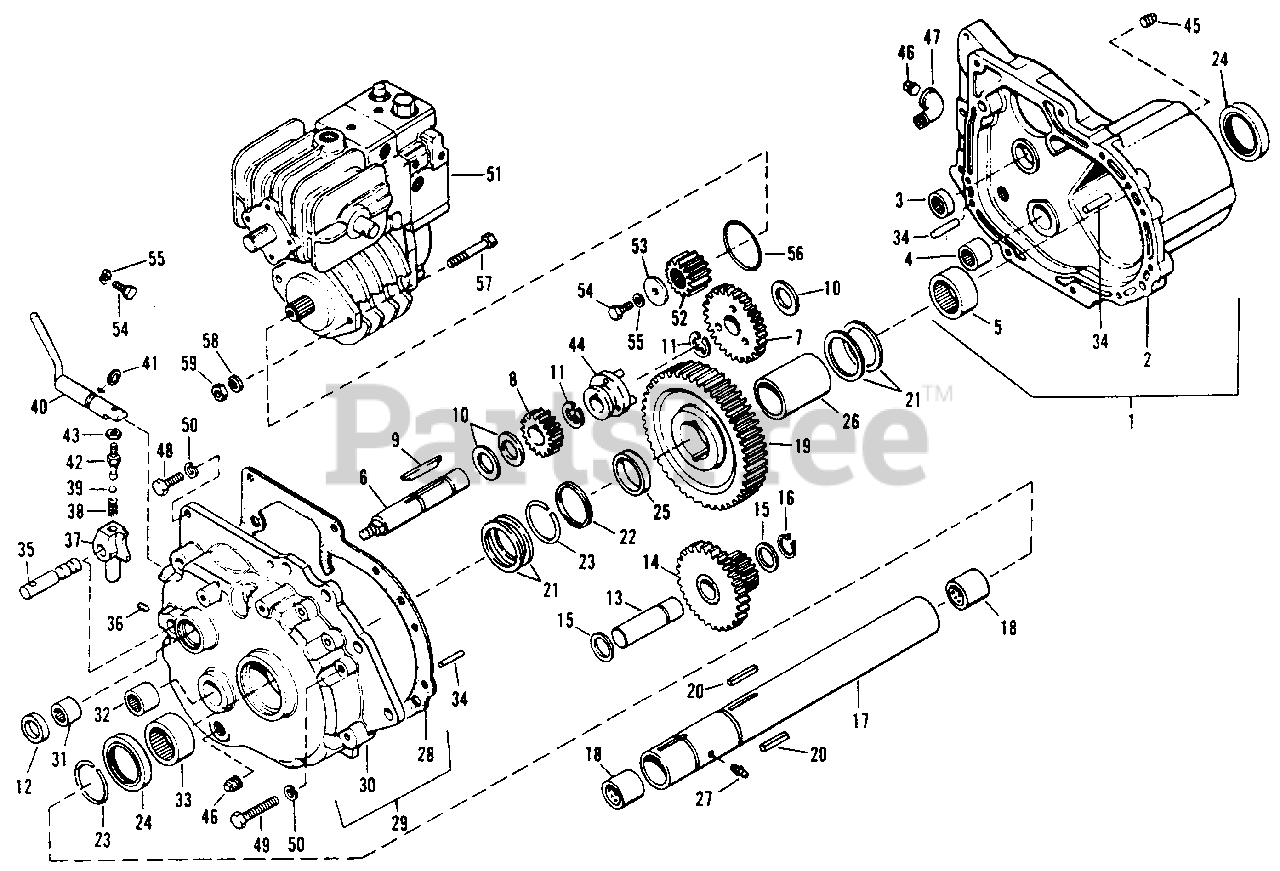

3414 H (990980) - Simplicity Baron Lawn Tractor, 14hp TRANSMISSION GROUP Parts Diagram

Baron Lawn Tractor, 14hp

TRANSMISSION GROUP Parts Diagram

  • Title

1

Simplicity 166105

Gear Complete (Incl. 2-5)

$

$

Not available

2

Simplicity 166001

Gear Case

$

$

Not available

3

Simplicity 2154271SM

Needle Bearing

$

$

Not available

4

Simplicity 2166018SM

Needle Bearing

$32.99

$

Usually ships in 2-12 days

0

5

Simplicity 2157519SM

Needle Bearing

$

$

Not available

6

Simplicity 2176246

Brake Shaft

$

$

Not available

7

Simplicity 176245

Gear - 1st Interm.

$

$

Not available

8

Simplicity 2176243SM

Sliding Pinion

$59.99

$

Usually ships in 2-12 days

0

9

Simplicity 176244

Key

$

$

Not available

10

Simplicity 2166013

Washer

$

$

Not available

11

Simplicity 2176980SM

Retainer Ring

$2.99

$

In Stock, only 2 left!

0

12

Simplicity 2166021SM

Oil Seal

$

$

Not available

13

Simplicity 2166012SM

Shaft, Interm.

$23.99

$

Usually ships in 2-12 days

0

14

Simplicity 2176236SM

Pinion & Gear Assembly

$216.99

$

Usually ships in 2-12 days

0

15

Simplicity 2166016

Washer

$

$

Not available

16

Simplicity 2166017SM

Retaining Ring

$1.99

$

Usually ships in 2-12 days

0

17

Simplicity 2166066

Axle Tube Assembly
(Superseded to 1670864SM)

$524.99

$

Usually ships in 2-12 days

0

18

Simplicity 2164224

Bushing

$

$

Not available

19

Simplicity 2166006

Drive Gear

$

$

Not available

20

Simplicity 2154096SM

Key

$6.99

$

In Stock, only 1 left!

0

21

Simplicity 2154097SM

Washer

$

$

Not available

22

Simplicity 2166167

Washer

$

$

Not available

23

Simplicity 2154268SM

Snap Ring

$7.49

$

In Stock, only 3 left!

0

24

Simplicity 2154269SM

Seal

$

$

Not available

25

Simplicity 2166040SM

Spacer (R.H. Side)

$11.99

$

Usually ships in 2-12 days

0

26

Simplicity 2166041SM

Spacer (L.H. Side)

$31.99

$

Usually ships in 2-12 days

0

27

Simplicity 2727002

Grease Fitting

$

$

Not available

28

Simplicity 2166043SM

Gear Case Gasket

$16.99

$

In Stock, Qty 7

0

29

Simplicity 166103

Gear Case Cover Sub. Assy., (Includes 30-33)

$

$

Not available

30

Simplicity 166002

Gear Case Cover
(Superseded to 709134)

$4.99

$

Usually ships in 2-12 days

0

31

Simplicity 2166019SM

Needle Bearing

$26.99

$

Usually ships in 2-12 days

0

32

Simplicity 2166018SM

Needle Bearing

$32.99

$

Usually ships in 2-12 days

0

33

Simplicity 2157519SM

Needle Bearing

$

$

Not available

34

Simplicity 2723007

Roll Pin, 3/8" x 1"

$

$

Not available

35

Simplicity 176239

Shifter Shaft

$

$

Not available

36

Simplicity 715019

Set Screw, 5/16"-18 x 1/2"
(Superseded to 715455)

$14.99

$

Usually ships in 2-12 days

0

37

Simplicity 176234

Shift Fork

$

$

Not available

38

Simplicity 2154323SM

Spring

$30.99

$

Usually ships in 2-12 days

0

39

Simplicity 2154262

Shift Lock Ball

$

$

Not available

40

Simplicity 176238

Shift Shaft Assembly

$

$

Not available

41

Simplicity 166023

"O" Ring

$

$

Not available

42

Simplicity 2166029SM

Shift Stem

$

$

Not available

43

Simplicity 2717029

Hex Jam Nut, 5/16"-24

$

$

Not available

44

Simplicity 176242

Drive Flange Assembly

$

$

Not available

45

Simplicity 2726002

Pipe Plug, 1/4"

$

$

Not available

46

Simplicity 2726003

Pipe Plug, 3/8"

$

$

Not available

47

Simplicity 2728501

Street Elbow, 3/8"

$

$

Not available

48

Simplicity 2705007

Hex Capscrew, 5/16"-18 x 1"

$

$

Not available

49

Simplicity 2705020

HexCapscrew, 5/16"-18 x 2"

$

$

Not available

50

Simplicity 2720001

Lockwasher, 5/16"

$

$

Not available

51

Simplicity 166097

Hydrostatic Pump & Motor Unit

$

$

Not available

52

Simplicity 2166003SM

Motor Shaft Pinion

$106.99

$

Usually ships in 2-12 days

0

53

Simplicity 2123144

Washer

$

$

Not available

54

Simplicity 2715088

HexCapscrew, 5/16"-24 x 3/4"

$

$

Not available

55

Simplicity 2720001

Lockwasher, 5/16"

$

$

Not available

56

Simplicity 2166026

"O" Ring

$

$

Not available

57

Simplicity 715064

Hex Capscrew, 7/16"-14 x 4"

$64.99

$

Usually ships in 2-12 days

0

58

Simplicity 2720006

Lockwasher, 7/16"

$

$

Not available

59

Simplicity 2717022

Full Hex Nut, 7/16"-14

$

$

Not available
