3414 H (990980) - Simplicity Baron Lawn Tractor, 14hp FRONT WHEELS, AXLE, TIE ROD & STEERING Parts Diagram

Baron Lawn Tractor, 14hp

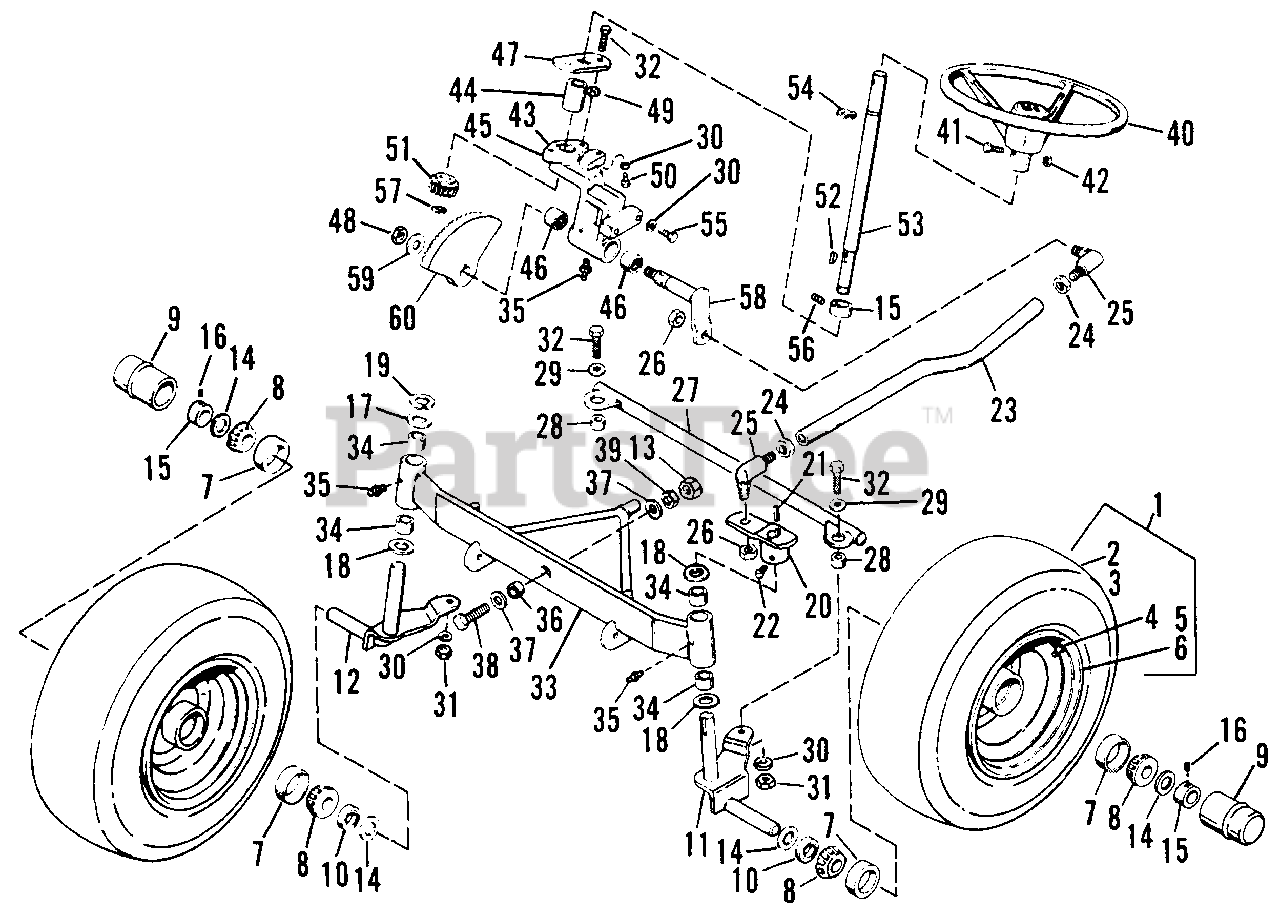

FRONT WHEELS, AXLE, TIE ROD & STEERING Parts Diagram

  • Title

1

Simplicity 171376

Wheel & Tire Assembly

$

$

Not available

2

Simplicity 2157490

Tire

$

$

Not available

3

Simplicity 2164247SM

Tube

$40.99

$

Usually ships in 2-12 days

0

4

Simplicity 2156305

Valve Stem & Cap

$

$

Not available

5

Simplicity 2171377

Wheel-Sub Assembly

$

$

Not available

6

Simplicity 2171378

Wheel (Front)

$

$

Not available

7

Simplicity 2154393SM

Bearing, Cup

$22.99

$

In Stock, only 3 left!

0

8

Simplicity 2154486SM

Bearing, Cone (Without Seal)

$36.99

$

In Stock, Qty 6

0

9

Simplicity 2154487SM

Hub Cap
(Superseded to 2154487YP)

$9.99

$

In Stock, Qty 20+

0

10

Simplicity 2170168SM

Seal

$38.99

$

Usually ships in 2-12 days

0

11

Simplicity 2171774ASM

Spindle Assy., L.H.

$353.99

$

Usually ships in 2-12 days

0

12

Simplicity 2157494SM

Spindle Assy., R.H.
(Superseded to 2157494ASM)

$148.99

$

Usually ships in 2-12 days

0

13

Simplicity 2717017

Hex Jam Nut, 1/2"-13

$

$

Not available

14

Simplicity 2171375SM

Spacer

$15.99

$

In Stock, Qty 12

0

15

Simplicity 1729254SM

Collar, Set
(Superseded to 703150)

$

$

Not available

16

Simplicity 2713503

Set Screw, 5/16"-18 x 5/16"

$

$

Not available

17

Simplicity 1729259SM

Washer (Use Beneath Snap Ring)

$5.99

$

In Stock, Qty 7

0

18

Simplicity 2108181

Washer

$

$

Not available

19

Simplicity 2157286

Ring, Retaining

$

$

Not available

20

Simplicity 2170998SM

Arm Assy., Strg. L.H.

$

$

Not available

21

Simplicity 2157427SM

Key

$5.49

$

In Stock, only 1 left!

0

22

Simplicity 2713006

Set Screw,5/16"-18 x 1/2"

$

$

Not available

23

Simplicity 171830

Rod, Tie

$

$

Not available

24

Simplicity 2717016

Hex Jam Nut, 1/2"-20 N.F.

$

$

Not available

25

Simplicity 2164272SM

Joint, Ball

$71.99

$

In Stock, Qty 8

0

26

Simplicity 2717528

Hex Nut, Jam Lock, 1/2"-20

$

$

Not available

27

Simplicity 2157499SM

Link Assy., Drag
(Superseded to 2157499ASM)

$122.99

$

Usually ships in 2-12 days

0

28

Simplicity 2154177SM

Spacer

$39.99

$

In Stock, only 1 left!

0

29

Simplicity 2719001

Washer, Plain, 3/8"

$

$

Not available

30

Simplicity 2720002

Lockwasher, 3/8"

$

$

Not available

31

Simplicity 2717003

Full Hex Nut, 3/8"-16 N.C.

$

$

Not available

32

Simplicity 2705016

Hex Capscrew, 3/8"-16 x 1-1/4"

$

$

Not available

33

Simplicity 1650553SM

Axle Assy., Front

$463.99

$

Usually ships in 2-12 days

0

34

Simplicity 2154289SM

Bushing

$12.99

$

Usually ships in 2-12 days

0

35

Simplicity 2727001

Fitting, Grease

$

$

Not available

36

Simplicity 2157618SM

Spacer

$23.99

$

Usually ships in 2-12 days

0

37

Simplicity 2719004

Plain Washer, 1/2"

$

$

Not available

38

Simplicity 2715159

Hex Capscrew

$

$

Not available

39

Simplicity 2718068

Nut, Toplo, 1/2"-13

$

$

Not available

40

Simplicity 2171196

Steering Wheel

$

$

Not available

41

Simplicity 2715046

Hex Capscrew, 5/16"-18 x 1-1/4"

$

$

Not available

42

Simplicity 2718050

Nut, Flange, Lock 5/16-18

$

$

Not available

43

Simplicity 1668625SM

Steering Bracket, Casting

$239.99

$

Usually ships in 2-12 days

0

44

Simplicity 2170992SM

Bushing, Steering

$25.99

$

Usually ships in 2-12 days

0

45

Simplicity 2171832

Casting and Bearing

$

$

Not available

46

Simplicity 2154258SM

Bearing, Needle

$26.99

$

In Stock, Qty 8

0

47

Simplicity 2171000SM

Plate, Steering

$49.99

$

Usually ships in 2-12 days

0

48

Simplicity 2717519

Hex Lock Nut, 7/16"-14 N.C.

$

$

Not available

49

Simplicity 2717524

Hex Jam Nut, 3/8"-16

$

$

Not available

50

Simplicity 2715030

Hex Capscrew, 3/8"-16 x 3/4"

$

$

Not available

51

Simplicity 2170988SM

Pinion, 15 T, Bevel

$

$

Not available

52

Simplicity 2725002

Key, Woodruff

$

$

Not available

53

Simplicity 171020

Shaft, Steering

$

$

Not available

54

Simplicity 2154264SM

Ring, Retaining

$5.99

$

Usually ships in 2-12 days

0

55

Simplicity 2705031

Hex Capscrew, 3/8"-16 x 7/8"

$

$

Not available

56

Simplicity 2713502

Set Screw, 5/16"-18 N.C. x 1/4"

$

$

Not available

57

Simplicity 2827793SM

"E" Ring
(Superseded to 703977)

$4.99

$

In Stock, Qty 14

0

58

Simplicity 170999

Arm Assy. Steering

$

$

Not available

59

Simplicity 2719003

Plain Washer, 7/16"

$

$

Not available

60

Simplicity 2170987SM

Gear, 23 T, Bevel

$62.99

$

Usually ships in 2-12 days

0
