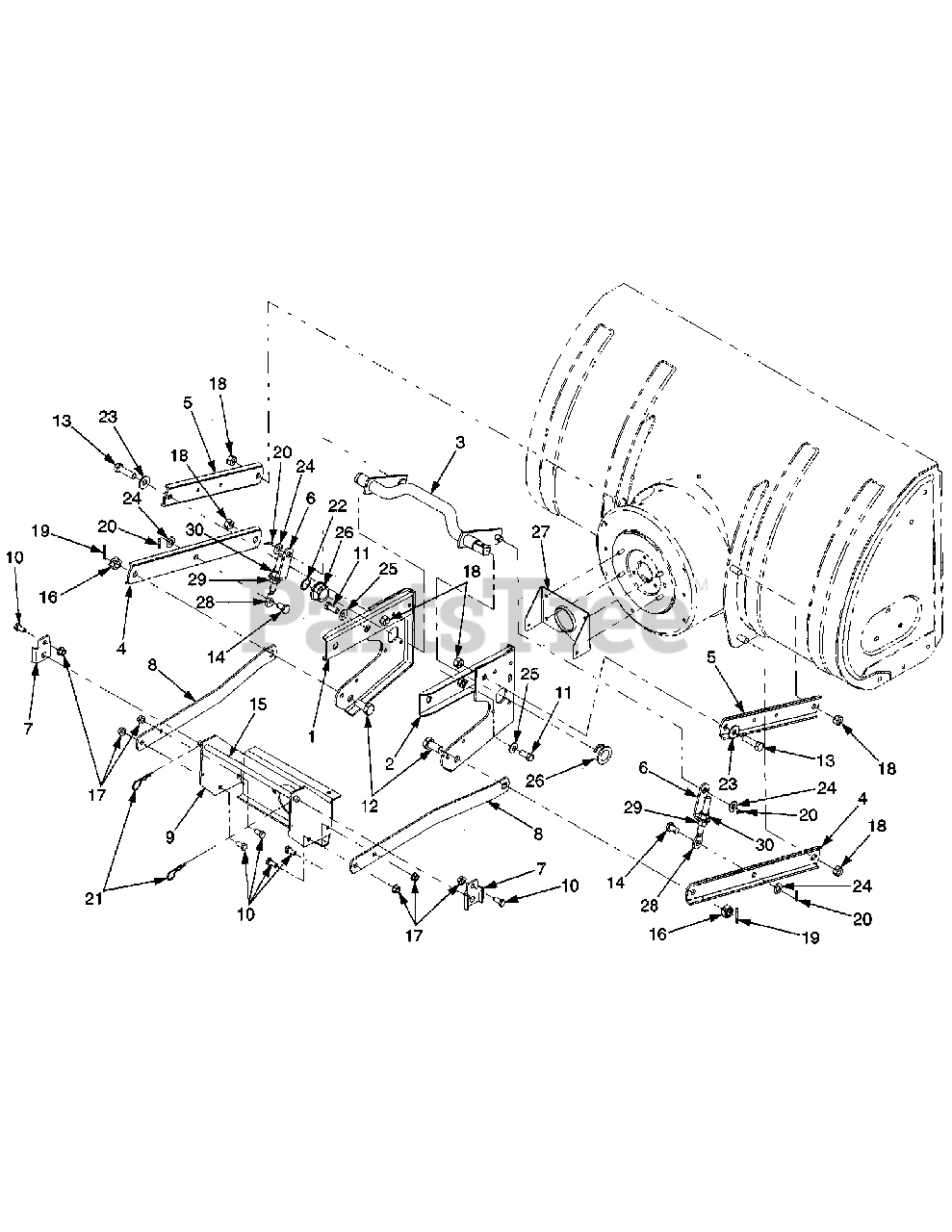

341 (190-341-100) - Cub Cadet 42" Snow Thrower Attachment Mounting Hitch And Sub Frame Parts Diagram

42" Snow Thrower Attachment

Mounting Hitch And Sub Frame Parts Diagram

  • Title
1

Cub Cadet 603-0268-0716

Hitch Plate. RH

$84.99

$

In Stock, only 1 left!

0

2

Cub Cadet 603-0269-0716

Hitch Plate. LH

$92.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 603-0799-0716

Rockshaft Assembly. Lift

$

$

Not available

4

$

$

Not available

5

$20.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-3716-0716

Link. Lift (Mfg . Code 1 H262G & After)

Note: Replaces 703-2726 by also ordering Ref. Nos. 28, 29,& 30

$21.99

$

In Stock, only 2 left!

0

7

Cub Cadet 703-2737-0716

Bracket. Frame Mounting

$13.99

$

In Stock, only 2 left!

0

8

Cub Cadet 703-2739-0716

Arm. Subframe

$

$

Not available

9

Cub Cadet 703-3413-0716

Bracket. Gearbox Mounting

$

$

Not available

10

Cub Cadet 710-0216

Screw. Hex Cap. 3/8-16 x .75 GR5

$4.49

$

In Stock, Qty 15

0

11

Cub Cadet 710-0505

Screw. Hex Cap. 7/16-14 x 1.0 GR5

$6.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 710-0964A

Screw. Hex Cap. 5/8-18 x 1.31 GR5

$11.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 710-3067

Screw. Hex Cap. 1/2-13 x 1.75 GR5

$6.99

$

In Stock, only 2 left!

0

14

Cub Cadet 711-0332

Pin. Clevis. . 5 x . 78 Lg
(Superseded to 911-0332)

$16.99

$

In Stock, Qty 17

0

15

Cub Cadet 711-3401

Rod..5x12.5Lg

$34.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 712-0386A

Nut. Hex Slotted. 518-1 8

$7.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 712-0431

Nut. Hex Flange Lock. 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

18

Cub Cadet 712-3022

Nut. Hex Center Lock. 112-1 3

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 714-0470

Pin. Cotter. 118 x 1.25

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 714-04040

Pin. Cotter Bow Tie

$1.49

$

In Stock, Qty 20+

0

21

Cub Cadet 714-3020

Pin. Internal Cotter

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 716-0102

Ring. Snap. 1.0 Dia . Shaft

$5.49

$

In Stock, Qty 20+

0

23

Cub Cadet 736-0179

Washer. Flat. . 531 x 1.25 x . 10 .

$4.99

$

In Stock, only 2 left!

0

24

Cub Cadet 736-0272

Washer. Flat. . 510 x 1.0 x . 062 .

$4.99

$

In Stock, Qty 20+

0

25

Cub Cadet 736-0407

Washer. Bell. . 45 x 1 0 . x . 062 ...

$3.99

$

In Stock, Qty 12

0

26

Cub Cadet 741-0170

Bearing. Flange w/Flats
(Superseded to 941-0170)

$19.99

$

In Stock, Qty 14

0

27

Cub Cadet 784-5703-0637

Bracket. Box Mounting

$48.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 711-0817

Link. Adjustment (Mfg . Code 1H262G & After)
(Superseded to 911-0817)

$14.99

$

In Stock, only 4 left!

0

29

Cub Cadet 712-0206

Nut. Hex. 1/2-13 GR5 (Mfg . Code 1H262G & After)

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 712-3083

Nut. Hex Insert Lock. 1/2-13 GR8 (Mfg. Code 1H262G & After)

$4.49

$

In Stock, Qty 20+

0
