341 (190-341-100) - Cub Cadet 42" Snow Thrower Attachment att Sprocket Box Assembly Parts Diagram

42" Snow Thrower Attachment

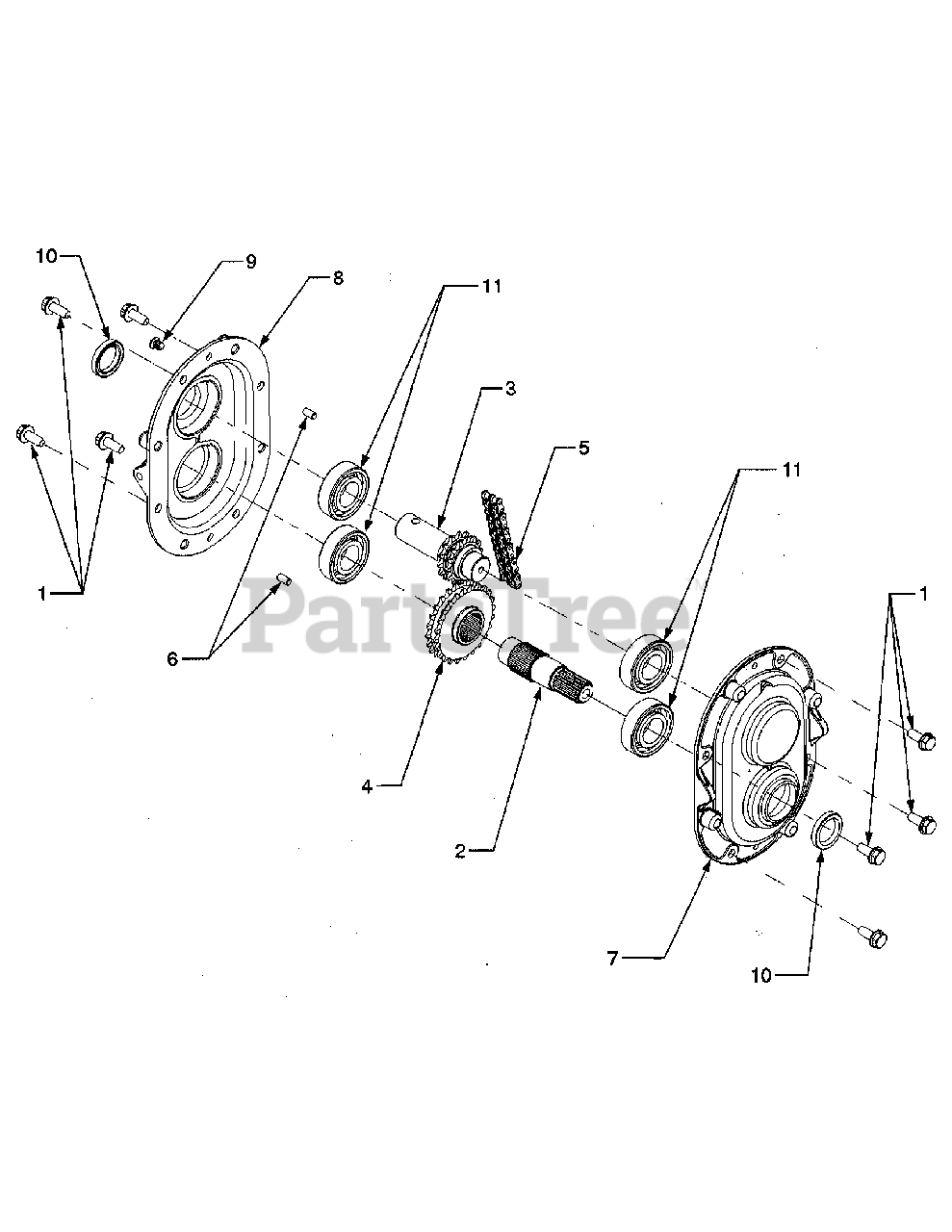

Sprocket Box Assembly Parts Diagram

  • Title

Cub Cadet 684-0143

Sprocket Box Assembly. Complete
(Superseded to 984-0143A)

$939.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 710-1260A

Screw. Hex Wash . Hd . Tapp 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

2

Cub Cadet 711-1078

Shaft. Output

$154.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 711-1347

Shaft. Input (w/ sprocket)

$556.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 713-0451

Sprocket. Drive

$

$

Not available

5

Cub Cadet 713-0452

Chain. Endless. #35-2 x 34 Links

$58.99

$

In Stock, only 4 left!

0

6

Cub Cadet 715-0154

Dowel Pin. 114 x 112

$5.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 719-0546

Housing. Gear

$89.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 719-0547

Housing. Gear
(Superseded to 919-0547A)

$97.99

$

In Stock, only 1 left!

0

9

Cub Cadet 721-0325

Plug. 114 x . 437

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 721-0391

Seal. Oil
(Superseded to 921-0391)

$10.99

$

In Stock, Qty 11

0

11

Cub Cadet 741-0301

Bearing. Ball
(Superseded to 941-0301)

$53.99

$

In Stock, only 4 left!

0

Cub Cadet 737-0300A

Grease. Benalene

Note: 5oz.

$34.99

$

In Stock, Qty 20+

0

Cub Cadet 759-3746

Sealant. Ultra Grey. 2 oz . Tube

$70.99

$

Usually ships in 3-6 days

0
