34074 - Troy-Bilt 33" Wide-Cut Walk-Behind Mower (SN: 340740100101 - 340740199999) DECK ASSEMBLY Parts Diagram

33" Wide-Cut Walk-Behind Mower

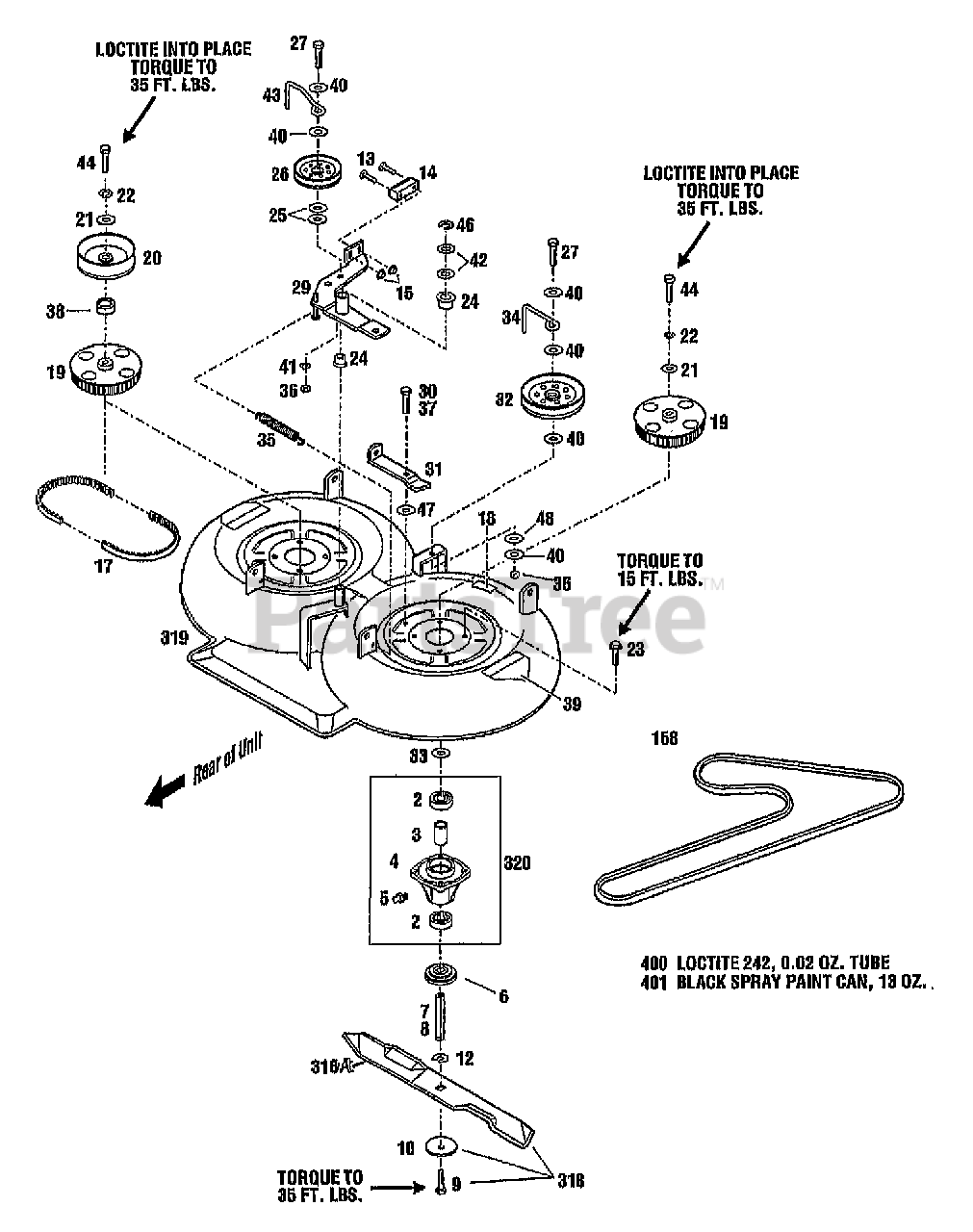

DECK ASSEMBLY Parts Diagram

  • Title
2

Troy-Bilt 1185574

BEARING-BALL
(Superseded to 1185574P)

$34.99

$

In Stock, Qty 13

0

$19.99

$

In Stock, only 2 left!

0

4

Troy-Bilt 1765092

HOUSING-SPINDLE
(Superseded to 1769048099)

$175.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 1185976

FITTING-GREASE 1/4-28X2.00
(Superseded to 937-0146)

$5.49

$

In Stock, only 2 left!

0

6

Troy-Bilt 1765029

SPACER-BLADE

$13.99

$

In Stock, Qty 10

0

7

Troy-Bilt 1766061

SHAFT-SPINDLE MED. RIGHT SIDE
(Superseded to 1918880)

$97.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 1768169

SPINDLE-SHAFT LONG LEFT SIDE
(Superseded to 1918880)

$97.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 1765196

SCR-HH 1/2-14X1.00

$3.99

$

In Stock, Qty 10

0

10

Troy-Bilt 1765197

WASHER-BELLEVILLE

$26.99

$

In Stock, only 4 left!

0

12

Troy-Bilt 1185649

RING-RETAINING EXT .694 ID

$

$

Not available

13

Troy-Bilt 1771081

SCR-FLAT HEAD

$3.49

$

In Stock, only 2 left!

0

14

Troy-Bilt 1771083

PAD-BRAKE

$

$

Not available

15

Troy-Bilt 1983039

NUT-H/LK M10-24 NYLOCK

$

$

Not available

17

Troy-Bilt 1764995

BELT-DRIVE
(Superseded to 1773600)

$48.99

$

In Stock, only 3 left!

0

18

MTD 1768435

DECAL-CAUTION PINCH POINT

$

$

Not available

19

Troy-Bilt 1770432

COGGED PULLEY, 56T
(Superseded to 913-04050)

$162.99

$

In Stock, only 1 left!

0

20

Troy-Bilt 1769362

PULLEY-BLADE DRIVE ZP
(Superseded to 1918625)

$

$

Not available

21

Troy-Bilt 1736484

WASHER-1.37X.453X.179 ZP
(Superseded to 736-0322)

$9.49

$

In Stock, Qty 8

0

22

Troy-Bilt 1100244

WASHER-LK .438 ZP
(Superseded to 936-0171)

$4.49

$

In Stock, only 4 left!

0

23

Troy-Bilt 1766984

SCR-HFLK 5/16-18X.75

$3.99

$

Usually ships in 3-6 days

0

24

$5.49

$

In Stock, only 3 left!

0

25

Troy-Bilt 1186393

NUT-HFLK 3/8-16 ZP

$3.49

$

In Stock, only 2 left!

0

26

Troy-Bilt 1762794

PULLEY-IDLER
(Superseded to 1918626)

$33.99

$

In Stock, only 1 left!

0

27

Troy-Bilt 1100062

SCR-HH 3/8-16X2.50

$

$

Not available

29

MTD 1770803001

ARM-IDLER
(Superseded to 1770803)

$

$

Not available

30

Troy-Bilt 1100044

SCR-HHC 5/16-18X.75 GR 5 ZP
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

31

MTD 1769768001

BRKT-BELT TENSION ADJ

$

$

Not available

32

$

$

Not available

33

Troy-Bilt 1766787

WASHER-THRUST .75 ID

$6.49

$

In Stock, only 2 left!

0

34

Troy-Bilt 1720717

GUIDE-BELT

$

$

Not available

35

Troy-Bilt 1756595

SPRING-EXTENSION

$17.99

$

In Stock, only 1 left!

0

36

Troy-Bilt 1186231

NUT-HEX 3/8-16 ZP
(Superseded to 912-3017)

$4.49

$

In Stock, Qty 20+

0

37

Troy-Bilt 1732499

NUT-TOP/LK 5/16-18 ZP
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

38

Troy-Bilt 1723996

SPACER-PULLEY ZP
(Superseded to 750-05218)

$7.49

$

In Stock, only 1 left!

0

39

Troy-Bilt 1739687

DECAL-OPEI CAUTION

$7.49

$

Usually ships in 3-6 days

0

40

Troy-Bilt 1768818

WASHER-.75X.406X.092
(Superseded to 736-0262)

$3.99

$

Usually ships in 3-6 days

0

41

Troy-Bilt 1100243

WASHER-LK .375
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

42

$4.49

$

In Stock, Qty 8

0

43

Troy-Bilt 1764135

GUIDE-BELT

$

$

Not available

44

Troy-Bilt 1769397

SCR-HH 7/16-14X1.25
(Superseded to 710-04070)

$3.99

$

In Stock, only 2 left!

0

46

Troy-Bilt 1113527

RING-RETAIN EXT .707 ID
(Superseded to 916-0101)

$3.99

$

In Stock, Qty 20+

0

47

Troy-Bilt 1982935

WASHER-.312 X .75
(Superseded to 936-3008)

$6.99

$

Usually ships in 3-6 days

0

48

Troy-Bilt 1185715

WASHER-LK .375 PYRAMIDAL

$

$

Not available

158

$44.99

$

In Stock, Qty 20+

0

318

NLA

KIT-2 BLADE WC MWR 33" (INCL. 9, 10 AND 318)

$

$

Not available

318A

Troy-Bilt 1769947

BLADE-33" MULCHING
(Superseded to 1772552)

$46.99

$

In Stock, only 2 left!

0

319

NLA

ASSM-DECK 33" (INCL. 39 & 18)

$

$

Not available

320

Troy-Bilt 1769048

ASSM-MOWER SPINDLE (INCL. 2-5)
(Superseded to 1769048099)

$175.99

$

Usually ships in 3-6 days

0

400

Troy-Bilt 97092

LOCTITE-242 (.5 ML TUBE)
(Superseded to GW-97092)

$17.99

$

Usually ships in 3-6 days

0

401

Troy-Bilt 1735222

PAINT-BLACK SPRAY
(Superseded to 788-0637A)

$30.99

$

In Stock, only 1 left!

0
