34073 - Troy-Bilt 33" Wide-Cut Walk-Behind Mower (SN: 340730100101 - 340730199999) DRIVE ASSEMBLY Parts Diagram

33" Wide-Cut Walk-Behind Mower

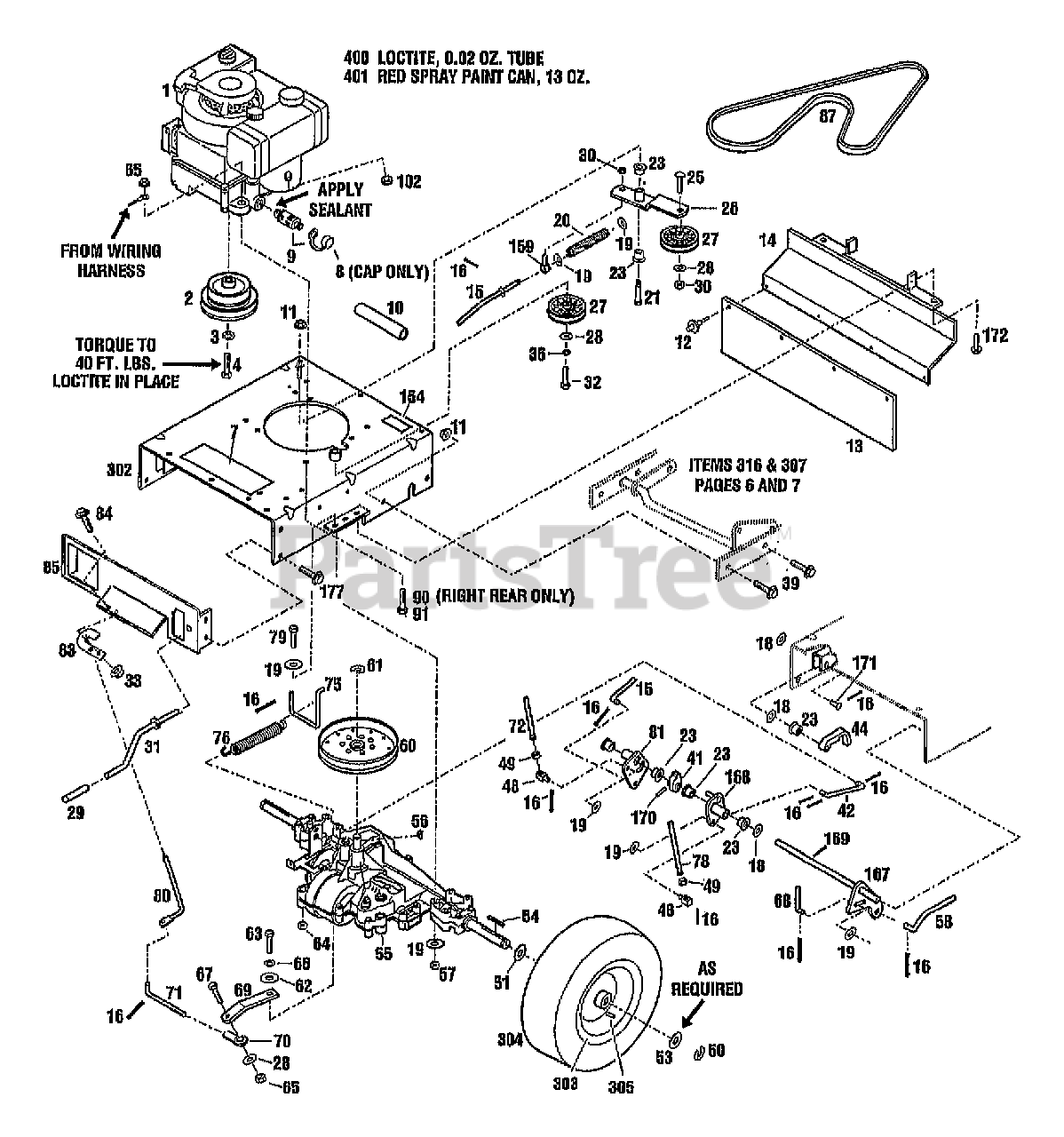

DRIVE ASSEMBLY Parts Diagram

  • Title

1

0

ENGINE, 8.5HP MODEL 196707-0155 (34071,34074)

$

$

Not available

1

0

ENGINE, 8.5HP MODEL 196702-0142 (34073,34075)

$

$

Not available

2

Troy-Bilt 1769904

PULLEY-ENGINE

$

$

Not available

3

Troy-Bilt 1100244

WASHER-LK .438 ZP
(Superseded to 936-0171)

$4.49

$

In Stock, only 4 left!

0

4

Troy-Bilt 1740949

SCR-HHC 7/16-20X1.75
(Superseded to 710-04092)

$4.49

$

Usually ships in 3-6 days

0

7

MTD 1770379

DECAL-WARNING

$

$

Not available

8

MTD 1766326

CAP-OIL DRAIN

$

$

Not available

9

Troy-Bilt 1768865

ASSM-OIL VALVE
(Superseded to 951-10517A)

$24.99

$

In Stock, only 3 left!

0

10

Troy-Bilt 1769006

HOSE-OIL DRAIN
(Superseded to 751-3141-14)

$11.99

$

In Stock, Qty 8

0

11

Troy-Bilt 1186393

NUT-HFLK 3/8-16 ZP

$3.49

$

In Stock, only 2 left!

0

12

Troy-Bilt 1727379

RIVET-POP 3/16 X 5/8

$3.49

$

Usually ships in 3-6 days

0

13

MTD 1769870

FLAP-SAFETY

$

$

Not available

14

MTD 1769869001

BRACKET-FLAP

$

$

Not available

15

Troy-Bilt 1769885

ROD-LOWER TRANS

$

$

Not available

16

Troy-Bilt 1185147

PIN-COTTER .093X.625
(Superseded to 914-0111)

$4.99

$

In Stock, Qty 13

0

18

Troy-Bilt 1890234

WASHER-FLAT .88X.5X.06 ZP
(Superseded to GW-20546)

$

$

Not available

19

Troy-Bilt 1107382

WASHER-FLAT 5/16 SAE
(Superseded to 936-0275)

$

$

Not available

20

Troy-Bilt 1711864

SPRING-COMPRESSION

$3.49

$

In Stock, Qty 5

0

21

Troy-Bilt 1763219

SCR-SHLDR 3/8-16

$10.99

$

In Stock, only 2 left!

0

23

Troy-Bilt 1715538

BUSHING-.5X.5 NYLON FLNG

$

$

Not available

25

MTD 1748393

SCR-CARR 3/8-16X1.75 G5 ZP

$

$

Not available

26

Troy-Bilt 1764920

ASSM-IDLER ARM ZP
(Superseded to 687-02011-0637)

$50.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 1756151

IDLER

$48.99

$

Usually ships in 3-6 days

0

28

Troy-Bilt 1107383

WASHER-FLAT 3/8 SAE
(Superseded to 736-3050)

$4.49

$

In Stock, Qty 16

0

29

Troy-Bilt 1715685

GRIP-PLASTIC
(Superseded to 720-0269)

$4.99

$

In Stock, only 1 left!

0

30

Troy-Bilt 1733398

NUT-LOCK 3/8-16
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

31

Troy-Bilt 1769895

ASSM-CRANK LIFT
(Superseded to 1915831)

$25.99

$

In Stock, only 1 left!

0

32

Troy-Bilt 1100086

SCR-HH 3/8-16X1.75 G5 ZP
(Superseded to 710-0347)

$5.49

$

In Stock, Qty 20+

0

33

Troy-Bilt 1186389

NUT-HF/LK 1/4-20 ZP

$3.49

$

Usually ships in 3-6 days

0

36

Troy-Bilt 1100243

WASHER-LK .375 @ DEPL
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

39

Troy-Bilt 1186347

SCR-HFLK 3/8-16X1.00 ZP
(Superseded to 710-04042)

$4.99

$

In Stock, only 2 left!

0

41

Troy-Bilt 1769881

CAM-INTERLOCK

$8.49

$

In Stock, only 1 left!

0

42

Troy-Bilt 1769877

ROD-LOWER BRAKE

$

$

Not available

44

Troy-Bilt 1770361

LATCH-INTERLOCK

$19.99

$

Usually ships in 3-6 days

0

48

Troy-Bilt 1725264

BLOCK-SWIVEL ZP

$

$

Not available

49

Troy-Bilt 1186258

NUT-HEX JAM 5/16-18
(Superseded to 712-3007)

$6.99

$

In Stock, only 3 left!

0

50

Troy-Bilt 1185388

RING-RET."E".577 ID
(Superseded to 916-0231)

$

$

Not available

51

Troy-Bilt 1708012

WASHER-1.5X.755X.062
(Superseded to 736-0188)

$4.49

$

In Stock, Qty 20+

0

53

Troy-Bilt 1701447

WASHER-1.25X.765X.049

$4.49

$

In Stock, Qty 18

0

54

Troy-Bilt 1769781

KEY-.188 SQ X 2.25
(Superseded to 714-0168)

$

$

Not available

55

0

TRANSMISSION ASSEMBLY, MODEL 915-027 (SEE GRIDS E-5, E-6 FOR BREAKDOWN)

$

$

Not available

56

Troy-Bilt 1104436

KEY-WOODRUFF .188X.75
(Superseded to 914-0868)

$3.99

$

In Stock, only 4 left!

0

57

Troy-Bilt 1732499

NUT-TOP/LK 5/16-18 ZP
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

58

MTD 1770247

ROD-LOWER BLADE

$

$

Not available

60

Troy-Bilt 1770326

PULLEY-TRANSAXLE

$128.99

$

Usually ships in 3-6 days

0

61

Troy-Bilt 1118808

RING-RETAIN .625 ID

$

$

Not available

62

Troy-Bilt 1107381

WASHER-FLAT 1/4 SAE
(Superseded to 936-3020)

$

$

Not available

63

Troy-Bilt 1100002

SCR-HH 1/4-28X.75 G5 ZP
(Superseded to 710-0412)

$5.99

$

In Stock, Qty 9

0

64

Troy-Bilt 1186391

NUT-HFLK 5/16-18 ZP
(Superseded to 712-04054)

$4.99

$

In Stock, Qty 20+

0

65

Troy-Bilt 1110108

NUT-H/LK 3/8-16
(Superseded to 712-0375)

$4.49

$

In Stock, Qty 6

0

66

Troy-Bilt 1100241

WASHER-LK .25 ZP
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

67

Troy-Bilt 1100043

SCR-HH 3/8-16X1.25
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 10

0

68

MTD 1769888

ROD-UPPER BLADE

$

$

Not available

69

MTD 1768140

ARM-TRANSMISSION ZP

$

$

Not available

70

Troy-Bilt 1767837

JOINT-BALL

$

$

Not available

71

Troy-Bilt 1768628

ROD-SHIFT LINK

$9.99

$

In Stock, only 1 left!

0

72

MTD 1769873

ROD-UPR TRANSMISSION

$

$

Not available

75

Troy-Bilt 1768624

ROD-SPRING ATTACHMENT

$

$

Not available

76

MTD 1768636

SPRING-EXTENSION

$

$

Not available

78

Troy-Bilt 1769872

ROD-UPPER BRAKE

$

$

Not available

79

Troy-Bilt 1111609

SCR-HH 5/16-18X2.75 G5 ZP
(Superseded to 710-0176)

$4.49

$

In Stock, only 2 left!

0

80

Troy-Bilt 1769874

LEVER-SHIFT

$33.99

$

Usually ships in 3-6 days

0

81

Troy-Bilt 1769875

ASSM-CLUTCH ARM ZP

$

$

Currently unavailable

83

Troy-Bilt 1768630010

BRKT-SHIFT ROD MTG
(Superseded to 1768630001)

$14.99

$

Usually ships in 3-6 days

0

84

Troy-Bilt 1186308

SCR-HFLK 1/4-20X.50 ZP
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

85

Troy-Bilt 1769852010

PLATE-BACK
(Superseded to 1769852001)

$

$

Not available

87

Troy-Bilt 1770334

BELT-V

$46.99

$

In Stock, only 4 left!

0

90

Troy-Bilt 1768194

SCR-THRD FRM 3/8-16X1.50
(Superseded to 710-1007)

$6.49

$

In Stock, only 1 left!

0

91

MTD 1762042

SCR-HH 3/8-16X1.0 THDFM

$

$

Not available

102

Troy-Bilt 1186229

NUT-HEX 1/4-20 ZP
(Superseded to 712-3006)

$4.99

$

In Stock, Qty 19

0

154

MTD 1901899

DECAL-AMERICAN LEGEND-SM

$

$

Not available

159

MTD 1769038

BOLT-EYE

$

$

Not available

167

MTD 1769882

SHAFT-PIVOT ZP

$

$

Not available

169

Troy-Bilt 1100350

PIN-COTTER .120X1.00 ZP
(Superseded to 914-0115)

$3.99

$

In Stock, Qty 20+

0

168

MTD 1769878

ASSM-BRAKE ARM ZP

$

$

Not available

170

Troy-Bilt 1187961

PIN-ROLL .156X1.0
(Superseded to 915-0249)

$6.99

$

In Stock, only 2 left!

0

171

Troy-Bilt 1730851

PIN-CLEVIS .5X1.25

$

$

Not available

172

Troy-Bilt 1724491

SCR-HFLK 5/16-18X.75
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

177

Troy-Bilt 1740496

SCR-HFLK 5/16-18X.625 STH
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

302

Troy-Bilt 1770659

ASSM-FRAME

$

$

Currently unavailable

303

Troy-Bilt 1768180

WHEEL

$

$

Not available

304

Troy-Bilt 1756444

TIRE
(Superseded to 734-04237)

$122.99

$

In Stock, only 1 left!

0

305

Troy-Bilt 1718086

STEM-VALVE
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

400

Troy-Bilt 97092

LOCTITE-242 (.5 ML TUBE)
(Superseded to GW-97092)

$17.99

$

Usually ships in 3-6 days

0

401

Troy-Bilt 1900706

PAINT-RED SPRAYCAN POWDER
(Superseded to 788-0638A)

$24.99

$

Usually ships in 3-6 days

0

?402

Troy-Bilt 1769846

KIT-SVC 8.5HP WIDECUT

$

$

Currently unavailable
