34067 - Troy-Bilt 22" High Wheel Walk-Behind Mower (SN: 340670100101 - 340670199999) DRIVE ASSEMBLY Parts Diagram

22" High Wheel Walk-Behind Mower

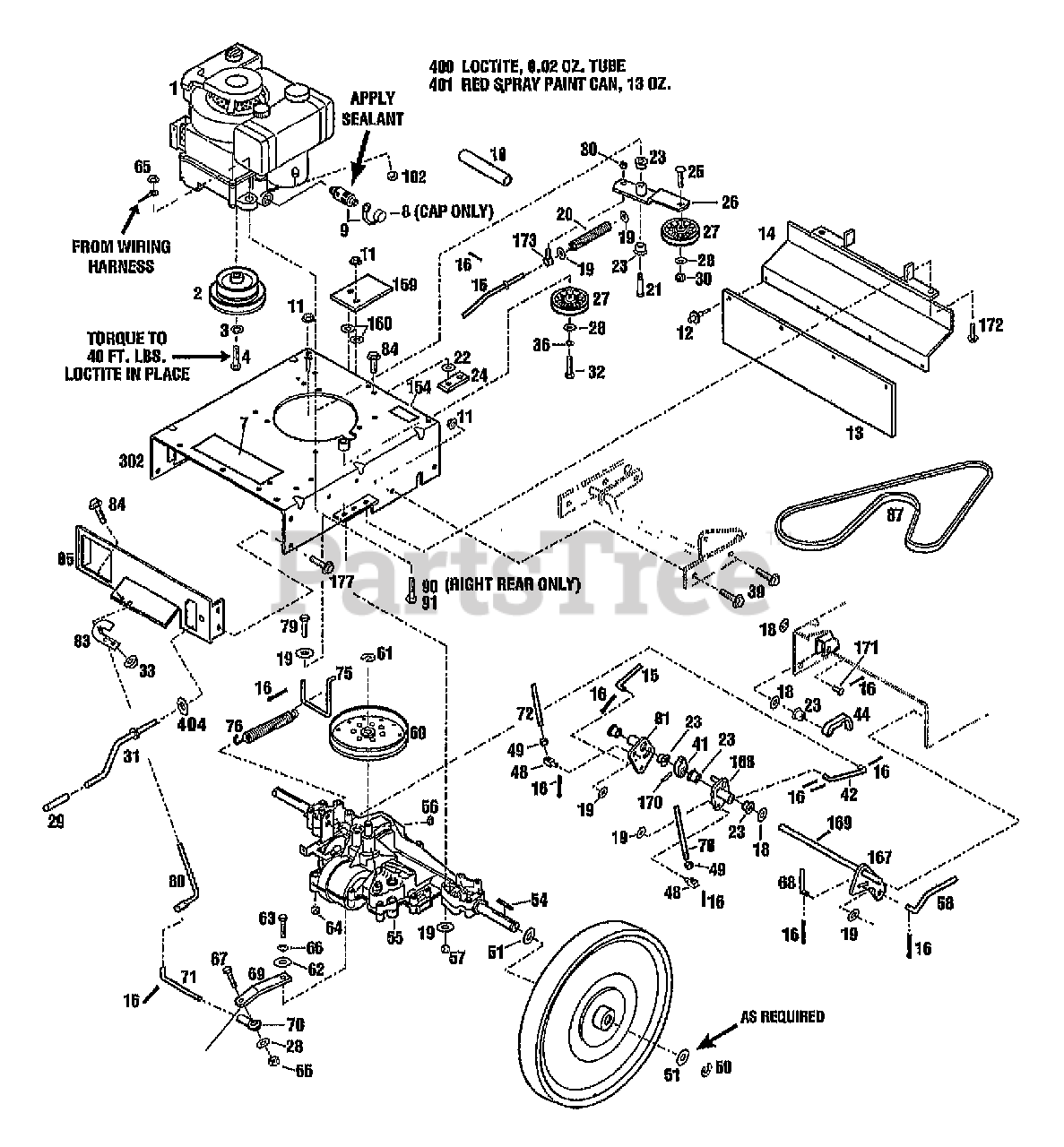

DRIVE ASSEMBLY Parts Diagram

  • Title

1

ENGINE, TEC. MODEL VLV55-501017A, 5.5HP ( 34069)

$

$

Not available

1

ENGINE, TEC. MODEL VLV55-501018A, 5.5HP ( 34067)

$

$

Not available

1

ENGINE, BRIGGS & STRATTON, MODEL 195702- 0136, 8HP (34068)

$

$

Not available

1

ENGINE, BRIGGS & STRATTON, MODEL 195707- 0137/0147, 8HP (34069)

$

$

Not available

2

Troy-Bilt 1769904

PULLEY-ENGINE

$

$

Not available

3

Troy-Bilt 936-0171

WASHER-LK .438 ZP
(Superseded to 736-0171)

$4.49

$

In Stock, only 4 left!

0

4

Troy-Bilt 1740949

SCR-HHC 7/16-20X1.75 (TORQUE TO 40FT. LBS. LOCTITE IN PLACE)
(Superseded to 710-04092)

$4.49

$

Usually ships in 3-6 days

0

7

MTD 1770379

DECAL-WARNING

Note: NLA

$

$

Not available

9

Troy-Bilt 951-10517A

ASSM-OIL VALVE (APPLY SEALANT)(INCL. 8)

$24.99

$

In Stock, only 3 left!

0

10

Troy-Bilt 751-3141-14

HOSE-OIL DRAIN

$11.99

$

In Stock, Qty 8

0

11

Troy-Bilt 1186393

NUT-HFLK 3/8-16 ZP

$3.49

$

In Stock, only 2 left!

0

12

Troy-Bilt 1727379

RIVET-POP 3/16 X 5/8

$3.49

$

Usually ships in 3-6 days

0

13

MTD 1769870

FLAP-SAFETY

$

$

Not available

14

MTD 1769869001

BRACKET-FLAP

$

$

Not available

15

Troy-Bilt 1769885

ROD-LOWER TRANS

$

$

Not available

16

Troy-Bilt 914-0111

PIN-COTTER .093X.625
(Superseded to 714-0111)

$4.99

$

In Stock, Qty 13

0

18

Troy-Bilt GW-20546

WASHER-FLAT .88X.5X.06 ZP

$

$

Not available

19

Troy-Bilt 936-0275

WASHER-FLAT 5/16 SAE
(Superseded to 736-0275)

$

$

Not available

20

Troy-Bilt 1711864

SPRING-COMPRESSION

$3.49

$

In Stock, Qty 5

0

21

Troy-Bilt 1763219

SCR-SHLDR 3/8-16

$10.99

$

In Stock, only 2 left!

0

22

MTD 1761608

WASHER-.865X.281X.1793

Note: NLA

$

$

Not available

23

Troy-Bilt 1715538

BUSHING-.5X.5 NYLON FLNG

$

$

Not available

24

MTD 1770650

NUT-SPEED

Note: NLA

$

$

Not available

25

MTD 1748393

SCR-CARR 3/8-16X1.75 G5 ZP

Note: NLA

$

$

Not available

26

Troy-Bilt 687-02011-0637

ASSM-IDLER ARM ZP

$50.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 1756151

IDLER

$48.99

$

Usually ships in 3-6 days

0

28

Troy-Bilt 736-3050

WASHER-FLAT 3/8 SAE

$4.49

$

In Stock, Qty 16

0

29

Troy-Bilt 720-0269

GRIP-PLASTIC

$4.99

$

In Stock, only 1 left!

0

30

Troy-Bilt 912-3000

NUT-LOCK 3/8-16
(Superseded to 712-3000)

$4.49

$

In Stock, Qty 9

0

31

Troy-Bilt 1915831

ASSM-CRANK LIFT

$25.99

$

In Stock, only 1 left!

0

32

Troy-Bilt 710-0347

SCR-HH 3/8-16X1.75 G5 ZP

$5.49

$

In Stock, Qty 20+

0

33

Troy-Bilt 1186389

NUT-HF/LK 1/4-20 ZP

$3.49

$

Usually ships in 3-6 days

0

36

Troy-Bilt 936-0169

WASHER-LK .375 @ DEPL
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

39

Troy-Bilt 710-04042

SCR-HFLK 3/8-16X1.00 ZP

$4.99

$

In Stock, only 2 left!

0

41

Troy-Bilt 1769881

CAM-INTERLOCK

$8.49

$

In Stock, only 1 left!

0

42

Troy-Bilt 1769877

ROD-LOWER BRAKE

$

$

Not available

44

Troy-Bilt 1770361

LATCH-INTERLOCK

$19.99

$

Usually ships in 3-6 days

0

48

Troy-Bilt 1725264

BLOCK-SWIVEL ZP

$

$

Not available

49

Troy-Bilt 712-3007

NUT-HEX JAM 5/16-18

$6.99

$

In Stock, only 3 left!

0

50

Troy-Bilt 916-0231

RING-RET."E".577 ID
(Superseded to 716-0231)

$

$

Not available

51

Troy-Bilt 736-0188

WASHER-1.5X.755X.062 (AS REQUIRED)

$4.49

$

In Stock, Qty 20+

0

52

MTD 1772550

ASSM-WHEEL & TIRE

Note: NLA

$

$

Not available

54

Troy-Bilt 914-0133

Key, 3/16X1.50
(Superseded to 714-0133)

$

$

Not available

55

TRANSMISSION ASSEMBLY, MODEL 915-026

Note: NLA

$

$

Not available

56

Troy-Bilt 914-0868

KEY-WOODRUFF .188X.75

$3.99

$

In Stock, only 4 left!

0

57

Troy-Bilt 1732499

NUT-TOP/LK 5/16-18 ZP
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

58

MTD 1769858

ROD-LOWER BLADE

Note: NLA

$

$

Not available

60

Troy-Bilt 1770326

PULLEY-TRANSAXLE

$128.99

$

Usually ships in 3-6 days

0

61

Troy-Bilt 1118808

RING-RETAIN .625 ID

$

$

Not available

62

Troy-Bilt 936-3020

WASHER-FLAT 1/4 SAE
(Superseded to 736-3020)

$

$

Not available

63

Troy-Bilt 710-0412

SCR-HH 1/4-28X.75 G5 ZP

$5.99

$

In Stock, Qty 9

0

64

Troy-Bilt 712-04054

NUT-HFLK 5/16-18 ZP

$4.99

$

In Stock, Qty 20+

0

65

Troy-Bilt 712-0375

NUT-H/LK 3/8-16 (FROM WIRING HARNESS)

$4.49

$

In Stock, Qty 6

0

66

Troy-Bilt 936-0329

WASHER-LK .25 ZP

$4.49

$

In Stock, Qty 11

0

67

Troy-Bilt 710-3005

SCR-HH 3/8-16X1.25

$3.99

$

In Stock, Qty 20+

0

68

MTD 1769888

ROD-UPPER BLADE

$

$

Not available

69

MTD 1915745001

ARM-TRANSMISSION ZP

$

$

Not available

70

Troy-Bilt 1767837

JOINT-BALL

$

$

Not available

71

Troy-Bilt 1768628

ROD-SHIFT LINK

$9.99

$

In Stock, only 1 left!

0

72

MTD 1769873

ROD-UPR TRANSMISSION

$

$

Not available

75

Troy-Bilt 1768624

ROD-SPRING ATTACHMENT

$

$

Not available

76

MTD 1768636

SPRING-EXTENSION

$

$

Not available

78

Troy-Bilt 1769872

ROD-UPPER BRAKE

$

$

Not available

79

Troy-Bilt 710-0176

SCR-HH 5/16-18X2.75 G5 ZP

$4.49

$

In Stock, only 2 left!

0

80

Troy-Bilt 1769874

LEVER-SHIFT

$33.99

$

Usually ships in 3-6 days

0

81

Troy-Bilt 1769875

ASSM-CLUTCH ARM ZP

Note: NLA

$

$

Currently unavailable

83

Troy-Bilt 1768630001

BRKT-SHIFT ROD MTG

$14.99

$

Usually ships in 3-6 days

0

84

Troy-Bilt 710-0599

SCR-HFLK 1/4-20X.50 ZP

$4.49

$

In Stock, Qty 20+

0

85

Troy-Bilt 1769852010

PLATE-BACK
(Superseded to 1769852001)

$

$

Not available

87

Troy-Bilt 1770334

BELT-V

$46.99

$

In Stock, only 4 left!

0

90

Troy-Bilt 710-1007

SCR-THRD FRM 3/8-16X1.50 (RIGHT REAR ONLY)

$6.49

$

In Stock, only 1 left!

0

91

MTD 1762042

SCR-HH 3/8-16X1.0 (RIGHT REAR ONLY)

Note: NLA

$

$

Not available

102

Troy-Bilt 712-3006

NUT-HEX 1/4-20 ZP {34069}

$4.99

$

In Stock, Qty 19

0

154

MTD 1901899

DECAL-AMERICAN LEGEND-SM

Note: NLA

$

$

Not available

159

MTD 1770618

SHIELD-ENGINE {34068,34069}

Note: NLA

$

$

Not available

160

Troy-Bilt 1701055

WASHER-FLAT 1.25X.406X.179 {34068,34069}

$6.49

$

Usually ships in 3-6 days

0

173

MTD 1769038

BOLT-EYE

Note: NLA

$

$

Not available

169

Troy-Bilt 914-0115

PIN-COTTER .120X1.00 ZP
(Superseded to 714-0115)

$3.99

$

In Stock, Qty 20+

0

167

MTD 1769882

SHAFT-PIVOT ZP

$

$

Not available

169

Troy-Bilt 914-0115

PIN-COTTER .120X1.00 ZP
(Superseded to 714-0115)

$3.99

$

In Stock, Qty 20+

0

168

MTD 1769878

ASSM-BRAKE ARM ZP

Note: NLA

$

$

Not available

170

Troy-Bilt 1187961

PIN-ROLL .156X1.0
(Superseded to 915-0249)

$6.99

$

In Stock, Qty 20+

0

171

Troy-Bilt 1730851

PIN-CLEVIS .5X1.25

$

$

Not available

172

Troy-Bilt 710-1260A

SCR-HFLK 5/16-18X.75

$3.99

$

In Stock, Qty 20+

0

177

Troy-Bilt 710-1260A

SCR-HFLK 5/16-18X.625 STH

$3.99

$

In Stock, Qty 20+

0

302

Troy-Bilt 1770659

ASSM-FRAME

Note: NLA

$

$

Currently unavailable

400

Troy-Bilt GW-97092

LOCTITE-242 (.5 ML TUBE)

$17.99

$

Usually ships in 3-6 days

0

401

Troy-Bilt 788-0638A

PAINT-RED SPRAYCAN POWDER (13 OZ.)

$24.99

$

Usually ships in 3-6 days

0

402

Troy-Bilt 1769844

KIT-SVC 5.5HP HIGHWHEEL MWR {34067,34066}

Note: NLA

$

$

Currently unavailable

402

Troy-Bilt 1769845

KIT-SVC 8HP HIGHWHEEL MWR {34068,34069}

Note: NLA

$

$

Currently unavailable

403

MTD 1766326

CAP-OIL DRAIN

Note: NLA

$

$

Not available

404

Troy-Bilt 1773599

WASHER-NYLON
(Superseded to 736-04070)

$

$

Not available
