34064 - Troy-Bilt 42" Sicklebar Mower (SN: 340640200101 - 340640199999) ENGINE AND CUTTER DRIVE 1 Parts Diagram

42" Sicklebar Mower

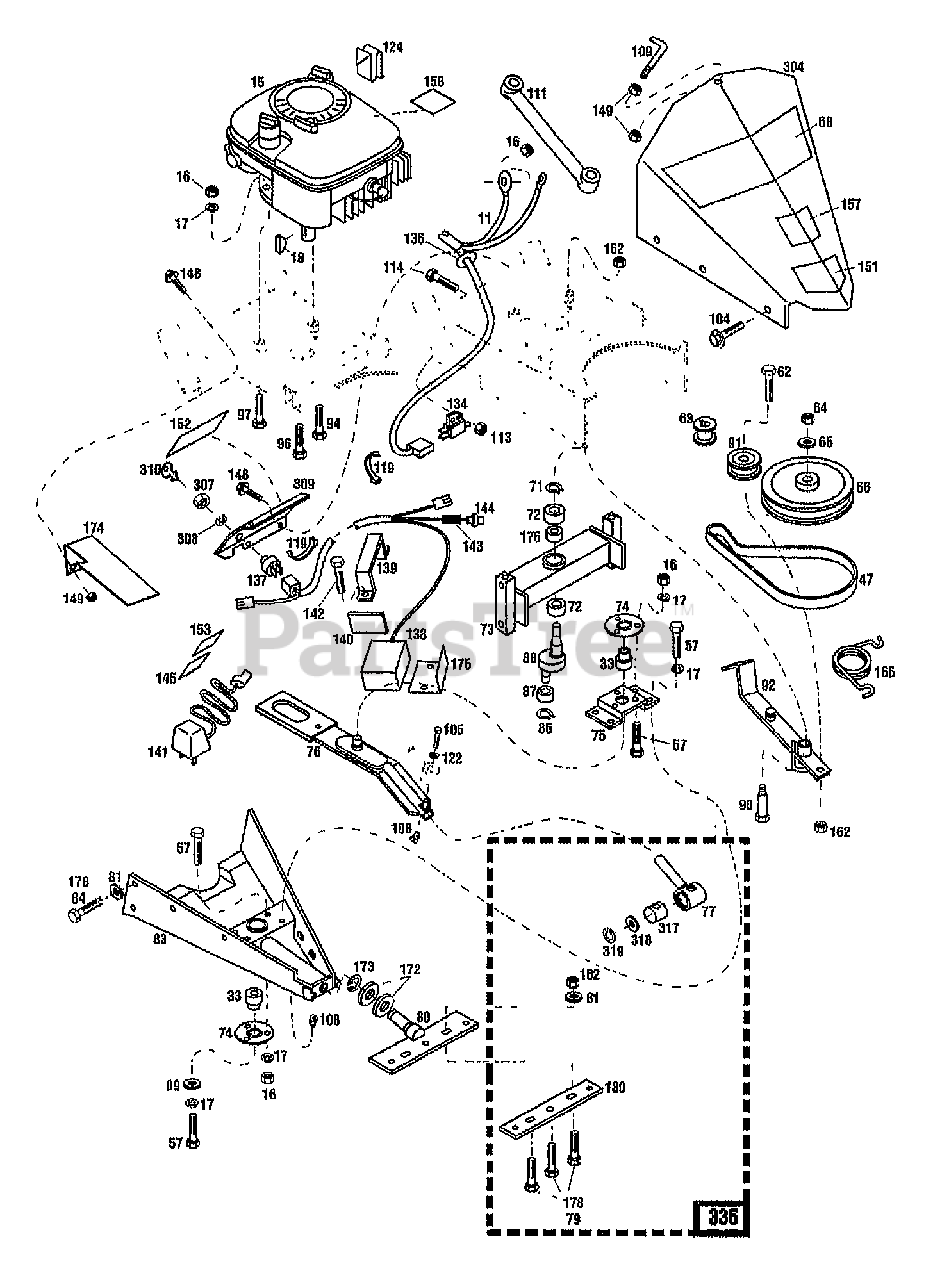

ENGINE AND CUTTER DRIVE 1 Parts Diagram

  • Title

11

MTD 1768430

HARNESS-OPERATOR INTERLK (INCL. 134, 313 & 325 PG. 3)

$

$

Not available

15

0

ENGINE, BRIGGS & STRATTON, 3.5HP (34061)

$

$

Not available

15

0

ENGINE, BRIGGS & STRATTON, 4HP (34062)

$

$

Not available

15

0

ENGINE, BRIGGS & STRATTON, 5HP (34063)

$

$

Not available

15

0

ENGINE, BRIGGS & STRATTON, 5HP W/ELEC. START (34064)

$

$

Not available

16

Troy-Bilt 1186230

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

17

Troy-Bilt 1110645

WASHER-LK .312 INT TOOTH
(Superseded to 936-0104)

$4.99

$

Usually ships in 3-6 days

0

18

MTD 1100275

KEY-WOODRUFF .156X.625

$

$

Not available

33

Troy-Bilt 1766626

INSERT-BEARING

$61.99

$

Usually ships in 3-6 days

0

47

Troy-Bilt 1767142

BELT-V

$36.99

$

Usually ships in 3-6 days

0

57

Troy-Bilt 1100044

SCR-HHC 5/16-18X.75 GR 5
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

62

Troy-Bilt 1100047

SCR-HH 3/8-16X1.5 G5
(Superseded to 710-0520)

$4.49

$

In Stock, Qty 5

0

63

MTD 1766650

PULLEY-ENGINE

$

$

Not available

64

MTD 1186216

NUT-HEX 5/8-18

$

$

Not available

65

Troy-Bilt 1107386

WASHER-1.305X.649X.098
(Superseded to 736-0237)

$4.49

$

In Stock, Qty 20+

0

66

MTD 1766651

SHEAVE-ECCENTRIC

$

$

Not available

68

MTD 1766926

DECAL-LOGO T/B SICKLEBAR

$

$

Not available

71

Troy-Bilt 1185102

RING-RETAIN EXT .984 ID
(Superseded to 716-0197)

$6.99

$

Usually ships in 3-6 days

0

72

MTD 1766657

BEARING-BALL

$

$

Not available

73

Troy-Bilt 1773137001

ASSM-ECCENTRIC HSG

$

$

Currently unavailable

74

MTD 1766664

RETAINER-BEARING

$

$

Not available

75

MTD 1766665

SUPT-BEARING UPPER

$

$

Not available

76

MTD 1773565

ASSM-ARM ECCENTRIC

$

$

Not available

77

Troy-Bilt 1773537

ASSY-PITMAN (INCL. 317-319)

$

$

Not available

79

Troy-Bilt 1773452

SCR-HHC 3/8-16X1.25 GR8
(Superseded to 00011444)

$4.49

$

In Stock, Qty 9

0

80

MTD 1772711001

ASSM-BLADE MOUNT BRKT

$

$

Not available

81

Troy-Bilt 1773272

WASHER .905X.390X.084 (HARDENED)

$

$

Not available

83

Troy-Bilt 1773218010

ASSM-FRONT HOUSING

$

$

Currently unavailable

84

MTD 1773423

SCR-HH 3/8-16X.75

$

$

Not available

86

Troy-Bilt 1118809

RING-RETAIN EXT .669 ID

$

$

Not available

87

Troy-Bilt 1766795

BEARING-ECCENTRIC

$

$

Not available

88

MTD 1766895

SHAFT-ECCENTRIC

$

$

Not available

89

MTD 1729245

WASHER-.312 X 1.378

$

$

Not available

90

Troy-Bilt 1736221

SCR-SHLDR 3/8-16

$

$

Currently unavailable

91

Troy-Bilt 1713803

IDLER-SHEAVE 3" X 1"
(Superseded to 956-3054)

$52.99

$

In Stock, only 2 left!

0

92

MTD 1767715001

LEVER-BLADE CLUTCH

$

$

Not available

94

Troy-Bilt 1111610

SCR-HH 5/16-18X3.0
(Superseded to 710-0189)

$6.49

$

In Stock, Qty 5

0

96

MTD 1111613

SCR-HH 5/16-18X4.0 G5

$

$

Not available

97

Troy-Bilt 1111611

SCR 5/16-18X3.00
(Superseded to 710-1266)

$9.99

$

Usually ships in 3-6 days

0

104

Troy-Bilt 1740496

SCR-HFLK 5/16-18X.625 STH
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

106

Troy-Bilt 1100806

SCR-HH 1/4-20X1.25
(Superseded to 710-0106)

$3.99

$

In Stock, Qty 12

0

108

Troy-Bilt 1767609

FITTING-GREASE .25-28X90
(Superseded to 737-3004)

$11.99

$

In Stock, Qty 6

0

109

Troy-Bilt 1766704

HOOK-UPPER .25

$

$

Not available

111

MTD 1766805

DIVERTER-WEED BUNGI

$

$

Not available

113

Troy-Bilt 1185985

NUT W/LKWASHER 10-24
(Superseded to 712-0272)

$3.99

$

Usually ships in 3-6 days

0

114

Troy-Bilt 1758070

SCR-HHS 10-24X.625
(Superseded to 710-0425)

$4.99

$

Usually ships in 3-6 days

0

119

Troy-Bilt 1735531

TIE-CABLE NYLON BLACK
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

122

Troy-Bilt 1100254

WASHER-.75X.312X.065
(Superseded to 936-0159)

$

$

Not available

124

MTD 1766558

CLIP-CABLE

$

$

Not available

130

MTD 1767687001

BRKT-DOUBLER

$

$

Not available

134

MTD 1751340

SWITCH

$

$

Not available

135

MTD 1766947

GROMMET

$

$

Not available

137

Troy-Bilt 1723798

SWITCH-EL IGNITION {34064}
(Superseded to 1900455P)

$

$

Not available

138

Troy-Bilt 1909647

BATTERY ES2.9-12 {34064}

$164.99

$

Usually ships in 3-6 days

0

139

Troy-Bilt 1772392

CLAMP-BATTERY (WB MOWERS) {34064}

$

$

Currently unavailable

140

MTD 1756549

PAD-BATTERY {34064}

$

$

Not available

141

Troy-Bilt 1768449

CHARGER-BATTERY {34064}
(Superseded to 725-13345)

$65.99

$

Usually ships in 3-6 days

0

142

Troy-Bilt 1763875

SCR-HFLK 1/4-20 X .375 {34064}

$

$

Currently unavailable

143

Troy-Bilt 1772168

FUSE-RAMP

$

$

Currently unavailable

144

MTD 1772130

HARNESS-START {34064}

$

$

Not available

145

MTD 1766959

DECAL-ELEC START ENG {34064}

$

$

Not available

148

MTD 1724492

SCR 1/4-20X.5 FL SELF TAP

$

$

Not available

149

Troy-Bilt 1186389

NUT-HF/LK 1/4-20

$3.49

$

Usually ships in 3-6 days

0

151

Troy-Bilt 1739687

DECAL-OPEI CAUTION

$7.49

$

Usually ships in 3-6 days

0

152

MTD 1767077

DECAL-WARN.OPER.INST

$

$

Not available

153

MTD 1901899

DECAL-AMERICAN LEGEND-SM

$

$

Not available

157

MTD 1767141

DECAL-DNG SHARP CUT BLADE

$

$

Not available

158

MTD 1983202

DECAL-WARN.HOT SURFACES

$

$

Not available

162

Troy-Bilt 1110108

NUT-H/LK 3/8-16
(Superseded to 712-0375)

$4.49

$

In Stock, Qty 6

0

166

MTD 1705792

SPRING-TORSION

$

$

Not available

172

Troy-Bilt 1773451

WASHER-FLAT .059 THK

$

$

Not available

173

Troy-Bilt 1118813

RING-RET EXT .938

$

$

Currently unavailable

174

MTD 1773528001

COVER-INTERLOCK SWITCH

$

$

Not available

175

MTD 1773529

REFLECTOR-HEAT {34064}

$

$

Not available

176

Troy-Bilt 1773530

SPACER

$

$

Currently unavailable

178

Troy-Bilt 1757032

LOCTITE-242 (.5 ML TUBE)
(Superseded to GW-97092)

$17.99

$

Usually ships in 3-6 days

0

304

MTD 1767156

HOOD W/DECALS (INCL. 151 & 157)

$

$

Not available

307

Troy-Bilt 1767139

NUT (IGNIT SWITCH) {34064}
(Superseded to 712-0252)

$5.99

$

Usually ships in 3-6 days

0

308

Troy-Bilt 1705093

WASHER-1.0X.64X.029 {34064}
(Superseded to 736-0302)

$

$

Not available

309

MTD 1767155

PLATE W/DECALS (INCL. 152)

$

$

Not available

310

MTD 1753986

KEY-IGNITION {34064}

$

$

Not available

317

Troy-Bilt 1772940

BEARING-PITMAN

$24.99

$

Usually ships in 3-6 days

0

318

Troy-Bilt 1715301

WASHER-1.115X.637X.06

$9.99

$

Usually ships in 3-6 days

0

319

Troy-Bilt 1767593

RING-SNAP

$4.49

$

Usually ships in 3-6 days

0
