34063 - Troy-Bilt 42" Sicklebar Mower (SN: 340630200101 - 340630199999) SICKLE BAR Parts Diagram

42" Sicklebar Mower

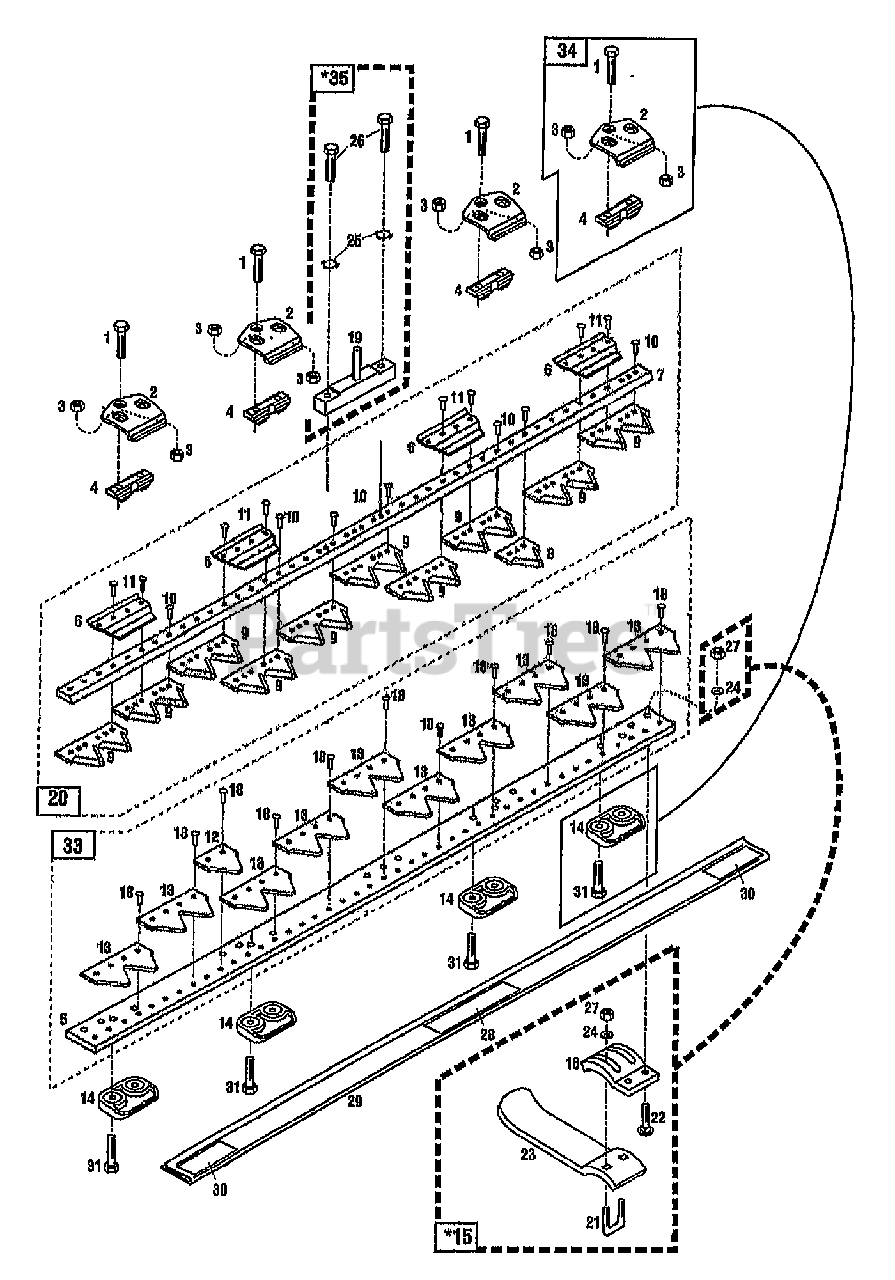

SICKLE BAR Parts Diagram

  • Title

Troy-Bilt 1765990

ASSM-CUTTER BAR 34"

$

$

Not available

MTD 1766743

ASSM-CUTTER BAR 38"

$

$

Not available

Troy-Bilt 1766744

ASSM-CUTTER BAR 42"

$1635.99

$

Usually ships in 3-6 days

0

1

MTD 1766745

SCR-HHC M8-1.25X30

$

$

Not available

2

Troy-Bilt 1766746

CLIP-HOLD DOWN

$67.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 1766747

NUT-H/LK M8
(Superseded to 712-0692)

$6.99

$

In Stock, only 2 left!

0

4

Troy-Bilt 1766748

GUIDE-KNIFE

$33.99

$

Usually ships in 3-6 days

0

5

MTD 1765991

KNIFE-BACK BAR 34"

$

$

Not available

5

Troy-Bilt 1766753

BAR-BACK 38"

$

$

Not available

5

Troy-Bilt 1766754

BAR-BACK 42"

$

$

Not available

6

MTD 1766755

PLATE-WEAR

$

$

Not available

7

Troy-Bilt 1766929

BAR-KNIFE 34"

$

$

Not available

7

Troy-Bilt 1766756

BAR-KNIFE 38"

$308.99

$

In Stock, only 1 left!

0

7

Troy-Bilt 1766757

BAR-KNIFE 42"

$296.99

$

Usually ships in 3-6 days

0

8

MTD 1766758

KNIFE SECTION SINGLE

$

$

Not available

9

Troy-Bilt 1767069

KNIFE SECTION DOUBLE 34"

$40.99

$

In Stock, Qty 7

0

9

Troy-Bilt 1767069

KNIFE SECTION DOUBLE 38"

$40.99

$

In Stock, Qty 7

0

9

Troy-Bilt 1767069

KNIFE SECTION DOUBLE 42"

$40.99

$

In Stock, Qty 7

0

10

Troy-Bilt 1768294

KIT-RIVET 5X17 12 PKG

$22.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 1768295

KIT-RIVET 5X20 12 PKG

$

$

Not available

12

Troy-Bilt 1766764

PLATE-LEDGER SINGLE

$

$

Not available

13

Troy-Bilt 1766765

PLATE-LEDGER DOUBLE

$

$

Not available

14

$34.99

$

Usually ships in 3-6 days

0

15

MTD 1766769

ASSM-SKID 2PC SET W/HDW (INCL. 16,21-24&27)

$

$

Not available

16

MTD 1766770001

SHOE-SPUR HOLDER PNT

$

$

Not available

?17

Troy-Bilt 1766774

WASHER-FLAT M8

$

$

Not available

18

Troy-Bilt 1768296

KIT-RIVET/SEC 6X20=12 PER

$

$

Not available

19

Troy-Bilt 1769052

KIT-KNIFE HEAD & PITMAN (04 & LOWER)
(Superseded to 1773525)

$

$

Not available

19

Troy-Bilt 1773057

HEAD-KNIFE (05 & HIGHER)

$204.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 1765992

ASSM-34" BLADE T/B SICKLEBAR (INCL. 6-11)
(Superseded to GW-34509)

$339.99

$

In Stock, only 1 left!

0

20

MTD 1766762

ASSM-38" KNIFE T/B SICKLEBAR (INCL. 6-11)

$

$

Not available

20

Troy-Bilt 1766763

ASSM-42" KNIFE T/B SICKLEBAR (INCL. 6-11)
(Superseded to GW-34511)

$447.99

$

Usually ships in 3-6 days

0

21

MTD 1767071

BOLT-U 5/16"-18

$

$

Not available

22

Troy-Bilt 1186100

SCR-CARR 5/16-18X1.0 G2 ZP

$

$

Not available

23

MTD 1766773001

SHOE-PNT

$

$

Not available

24

Troy-Bilt 1107382

WASHER-FLAT 5/16 SAE
(Superseded to 936-0275)

$

$

Not available

25

Troy-Bilt 1766751

WASHER-LK .312 INT TOOTH (04 & LOWER)
(Superseded to 936-0104)

$4.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 1773271

WASHER .703X.359X.065 (HARDENED)(05 & UP)

$

$

Not available

26

Troy-Bilt 1860217

BOLT-M8X25
(Superseded to 710-3206A)

$3.99

$

In Stock, Qty 13

0

27

Troy-Bilt 1110107

NUT-H/LK 5/16-18 (04 & LOWER)
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

27

Troy-Bilt 1983038

NUT-H/LK 5/16-18 NYLOCK (05 & UP)
(Superseded to 912-0429)

$4.49

$

In Stock, Qty 20+

0

28

Troy-Bilt 1766939

DECAL-DANGER

$

$

Currently unavailable

29

MTD 1766777

COVER-BLADE

$

$

Not available

29

MTD 1766934

GUARD-BLADE 38"

$

$

Not available

29

Troy-Bilt 1766935

GUARD-BLADE 42"

$

$

Not available

30

Troy-Bilt 1766940

DECAL-ESM

$

$

Currently unavailable

31

Troy-Bilt 1766768

SCR-HH M8X45

$4.99

$

Usually ships in 3-6 days

0

?32

Troy-Bilt 1766766

KIT-BLADE MAINT T/B SKLBR

$

$

Currently unavailable

33

MTD 1770597

ASSM-BACK BAR 34"

$

$

Not available

33

MTD 1770598

ASSM-BACK BAR 38"

$

$

Not available

33

Troy-Bilt 1770599

ASSM-BACK BAR 42"

$834.99

$

Usually ships in 3-6 days

0

34

Troy-Bilt 1766792

KIT-HOLD DOWN (INCL. 1-4,14,31)

$157.99

$

Usually ships in 3-6 days

0

35

Troy-Bilt 1773525

KIT-KNIFE HEAD & PITMAN (04 & LOWER)

$

$

Not available

35

Troy-Bilt 1773564

KIT-KNIFE HEAD/PITMAN (05 & UP)

$

$

Currently unavailable

?36

Troy-Bilt 1757032

LOCTITE-242 (.5 ML TUBE)
(Superseded to GW-97092)

$17.99

$

Usually ships in 3-6 days

0
