34044 - Troy-Bilt 33" Wide-Cut Walk-Behind Mower (SN: Original) HANDLEBAR AND CONSOLE Parts Diagram

33" Wide-Cut Walk-Behind Mower

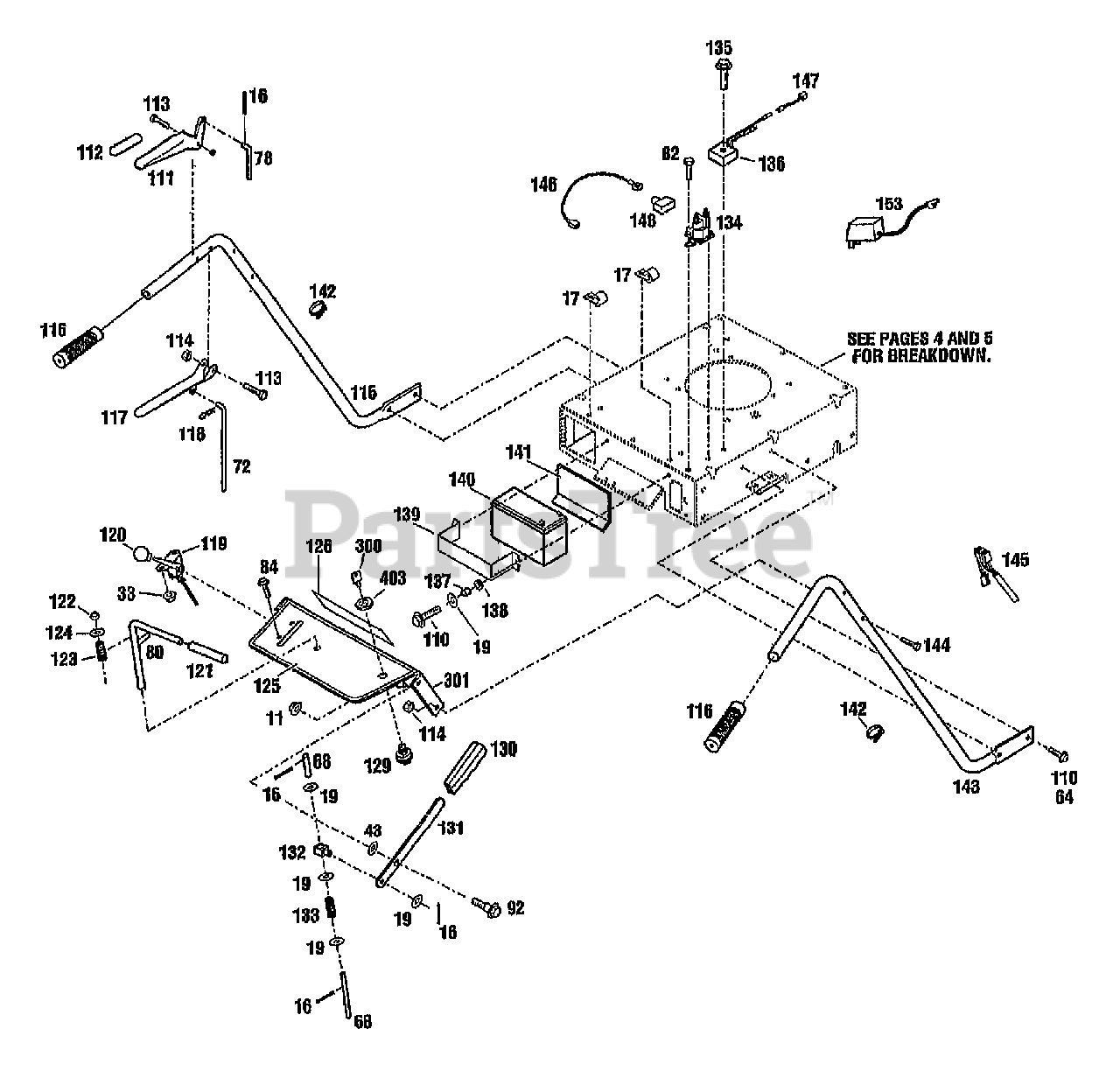

HANDLEBAR AND CONSOLE Parts Diagram

  • Title
11

Troy-Bilt 1186393

NUT-HFLK 3/8-16 ZP

$3.49

$

In Stock, only 2 left!

0

16

Troy-Bilt 1185147

PIN-COTTER .093X.625
(Superseded to 914-0111)

$4.99

$

In Stock, Qty 13

0

17

MTD 1747738

CLIP-J

$

$

Not available

19

Troy-Bilt 1107382

WASHER-FLAT 5/16 SAE
(Superseded to 936-0275)

$

$

Not available

33

Troy-Bilt 1186389

NUT-HF/LK 1/4-20 ZP

$3.49

$

Usually ships in 3-6 days

0

43

MTD 1702646

WASHER-FLAT 1.0X.516X.031

$

$

Not available

64

Troy-Bilt 1186391

NUT-HFLK 5/16-18 ZP
(Superseded to 712-04054)

$4.99

$

In Stock, Qty 20+

0

68

MTD 1768613

ROD-UPPER BLADE

$

$

Not available

72

MTD 1768609

ROD-UPPER TRANS MOWER

$

$

Not available

78

MTD 1768611

ROD-UPPER BRAKE

$

$

Not available

80

MTD 1768627

ASSM-SHIFT LEVER

$

$

Not available

82

MTD 1724492

SCR 1/4-20X.5 FL SELF TAP {34041}

$

$

Not available

84

Troy-Bilt 1186308

SCR-HFLK 1/4-20X.50 ZP
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

92

Troy-Bilt 1703051

BOLT-SHOULDER MOWER

$11.99

$

Usually ships in 3-6 days

0

110

Troy-Bilt 1186329

SCR-HFLK 5/16-18X.75 ZP
(Superseded to 710-04043)

$4.49

$

Usually ships in 3-6 days

0

111

MTD 1769791

KIT-HANDLE ASSM

$

$

Not available

112

MTD 1768452

DECAL-OPC MOWERS

$

$

Not available

113

Troy-Bilt 1100811

SCR-HH 1/4-20X1.5 G5ZP
(Superseded to 710-0606)

$5.49

$

In Stock, Qty 10

0

114

Troy-Bilt 1734398

NUT-HT LK 1/4-20
(Superseded to 912-0291)

$

$

Not available

115

Troy-Bilt 1764922010

HANDLEBAR-LH

$95.99

$

In Stock, only 1 left!

0

116

Troy-Bilt 1703539

GRIP-FLEX
(Superseded to 720-0274)

$11.99

$

In Stock, Qty 8

0

117

MTD 1768131001

HANDLE-CONTROL MOWER

$

$

Not available

118

Troy-Bilt 1717897

PIN-CLIP .08

$3.49

$

Usually ships in 3-6 days

0

119

Troy-Bilt 1768191

CABLE-THROTTLE CONTROL
(Superseded to 1768191P)

$

$

Not available

120

Troy-Bilt 1737118

KNOB
(Superseded to 731-0108)

$9.49

$

In Stock, only 2 left!

0

121

Troy-Bilt 1737041

GRIP-HANDLE
(Superseded to 720-0312)

$4.99

$

In Stock, Qty 5

0

122

Troy-Bilt 1715716

BUSHING-.5X.21 NYLON FLNG

$3.49

$

Usually ships in 3-6 days

0

123

MTD 1723428

SPRING

$

$

Not available

124

Troy-Bilt 1107385

WASHER-1.06X.531X.1 ZP
(Superseded to 936-0326)

$4.49

$

In Stock, only 2 left!

0

125

MTD 1768456

DECAL-WARNING STD WC {34044}

$

$

Not available

125

MTD 1768457

DECAL-WARNING ELEC WC {34041}

$

$

Not available

126

Troy-Bilt 1768389

DECAL-WIDE CUT T/B
(Superseded to 777D07931)

$

$

Not available

129

Troy-Bilt 1734196

ASSM-KEYSWITCH {34041}
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 20+

0

130

Troy-Bilt 1764984

GRIP-HANDLE
(Superseded to 720-0313)

$19.99

$

Usually ships in 3-6 days

0

131

Troy-Bilt 1768223

LEVER-MOWER ENGAGE ZP

$

$

Not available

132

MTD 1768170

BLOCK-PIVOT

$

$

Not available

133

MTD 1727343

SPRING-COMPRESSION

$

$

Not available

134

Troy-Bilt 1752137

SOLENOID {34041}
(Superseded to 1752137P)

$70.99

$

Usually ships in 3-6 days

0

135

MTD 1747027

SCR-HFLK {34041}

$

$

Not available

136

Troy-Bilt 1768464

REGULATOR
(Superseded to BS-794360)

$64.99

$

In Stock, only 2 left!

0

137

MTD 1749778

SPACER {34041}

$

$

Not available

138

Troy-Bilt 1769080

GROMMET {34041}

$

$

Not available

139

MTD 1768159010

BRACKET-BATTERY {34041}

$

$

Not available

140

Troy-Bilt 1768158

BATTERY {34041}

$270.99

$

Usually ships in 3-6 days

0

141

Troy-Bilt 1769081

PAD-BATTERY {34041}

$

$

Currently unavailable

142

Troy-Bilt 1735531

TIE-CABLE NYLON BLACK
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

143

Troy-Bilt 1764923010

HANDLEBAR-RH

$94.99

$

In Stock, only 1 left!

0

144

Troy-Bilt 1111601

SCR-HH 1/4-20X1.75 G5 ZP

$

$

Not available

145

MTD 1770371

HARNESS-WIRING {34041}

$

$

Not available

146

MTD 1768444

ASSM-WIRE LEAD {34041}

$

$

Not available

147

MTD 1768331

ADAPTER-HARNESS {34041}

$

$

Not available

148

Troy-Bilt 1734364

BOOT-CABLE {34041}

$

$

Currently unavailable

153

Troy-Bilt 1768449

CHARGER-BATTERY {34041}
(Superseded to 725-13345)

$65.99

$

Usually ships in 3-6 days

0

300

MTD 1753986

KEY-IGNITION {34041}

$

$

Not available

301

Troy-Bilt 1768640

ASSM-CONSOLE {34044} (INCL. 125)

$

$

Currently unavailable

301

Troy-Bilt 1768493

ASSM-CONSOLE {34041}

$

$

Not available

403

Troy-Bilt 1770592

NUT-IGNITION SWITCH

$

$

Currently unavailable

Troy-Bilt 1900706

PAINT-RED SPRAYCAN POWDER
(Superseded to 788-0638A)

$24.99

$

Usually ships in 3-6 days

0

Troy-Bilt 1735222

PAINT-BLACK SPRAY
(Superseded to 788-0637A)

$30.99

$

In Stock, only 1 left!

0
