34038 - Troy-Bilt 34" Trailblazer VIII Sicklebar Mower, 3.5hp CUTTER BAR ASSEMBLY Parts Diagram

34" Trailblazer VIII Sicklebar Mower, 3.5hp

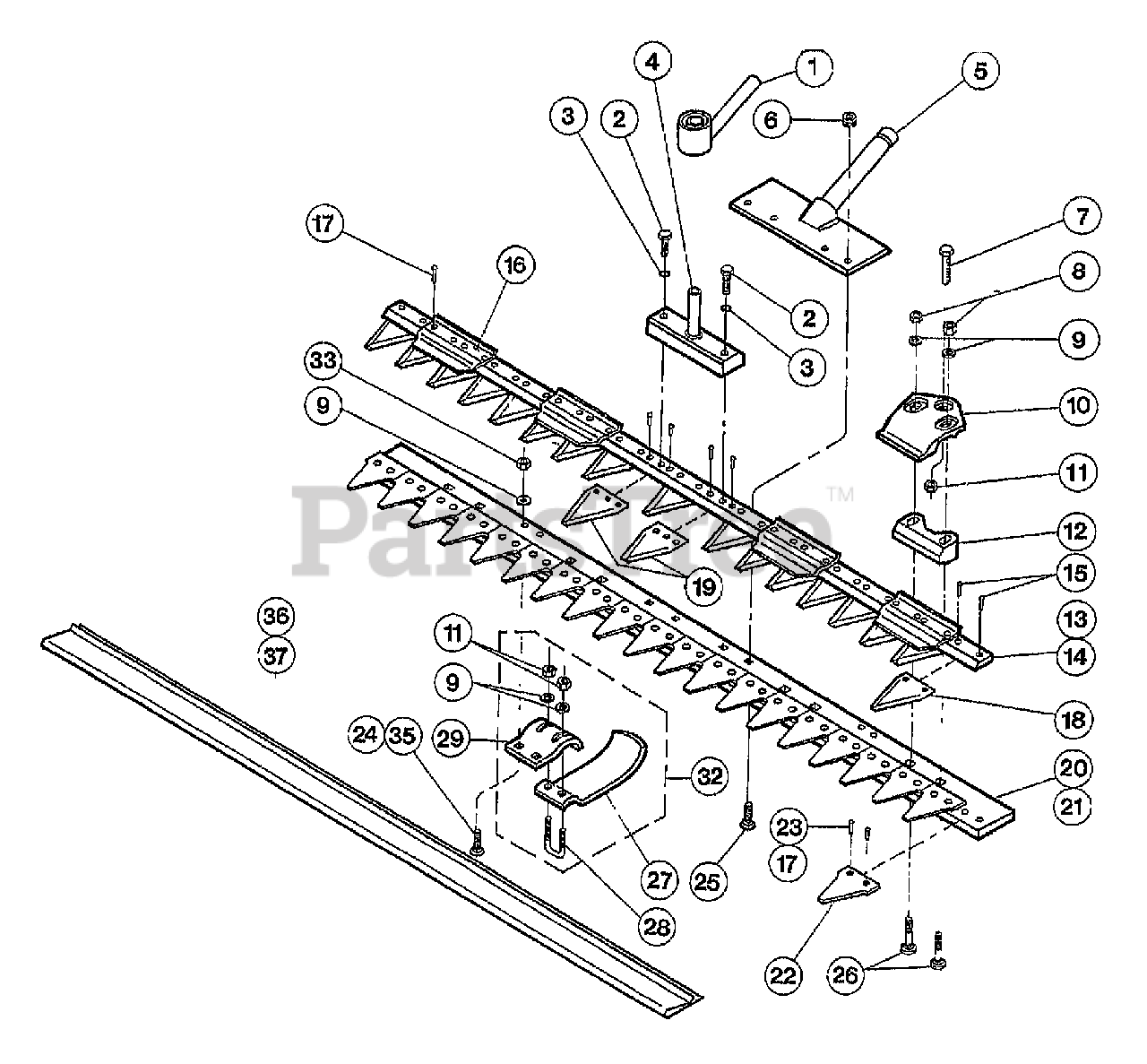

CUTTER BAR ASSEMBLY Parts Diagram

  • Title

1

Troy-Bilt 40090

ASSM-DRIVE SOCKET

$

$

Currently unavailable

2

Troy-Bilt 90055

SCR-HH M8X25 CL 10.9

$

$

Currently unavailable

3

Troy-Bilt 9919

WASHER-LK .312 EXT TOOTH

$

$

Currently unavailable

4

Troy-Bilt 1900958010

PIN-BAR MNT PNT #40088P

$

$

Currently unavailable

5

MTD 1900959010

MOUNT-CUTTERBAR #40083P

$

$

Not available

6

Troy-Bilt 92016

NUT-H/LK 5/16-18 NYLOCK

$

$

Currently unavailable

7

Troy-Bilt P406915

SCR-HH M8 X 30

$

$

Currently unavailable

8

Troy-Bilt P406904

NUT-M8

$

$

Currently unavailable

9

Troy-Bilt P406389

WASHER-FLAT 5/16 SAE

$

$

Currently unavailable

10

Troy-Bilt P406654

CLIP-BLADE GUIDE
(Superseded to GW-P406654)

$63.99

$

In Stock, Qty 6

0

11

Troy-Bilt P406930

NUT-M8 BRAKE

$

$

Currently unavailable

12

Troy-Bilt P406656

PLATE
(Superseded to GW-P406656)

$

$

Not available

13

Troy-Bilt P406663

ASSM-34" BLADE T/B SICKLEBAR

$

$

Currently unavailable

14

Troy-Bilt P406666

ASSM-38" KNIFE T/B SICKLEBAR

$

$

Currently unavailable

15

Troy-Bilt P404962

RIVETS, 5.3MM x 14MM, FOR 38-INCH BAR

$

$

Currently unavailable

15

0

RIVETS, 5.3MM x 14MM, FOR 34-INCH BAR

$

$

Not available

16

Troy-Bilt P406659

PLATE-WEAR

$

$

Currently unavailable

17

Troy-Bilt P404964

RIVETS, 5.3MM x 16MM, FOR 38-INCH BAR

$

$

Currently unavailable

17

0

RIVETS, 5.3MM x 16MM, FOR 34INCH BAR

$

$

Not available

18

Troy-Bilt P406657

BAR-CUTTER 2 HOLE BLADE SECTION

$

$

Currently unavailable

19

Troy-Bilt P406658

BLADE-SECTIONS 3 HOLES

$

$

Currently unavailable

20

Troy-Bilt P406476

BAR-LEDGER ASM W/BLADES

$

$

Currently unavailable

21

Troy-Bilt P406950

LEDGER BAR W/RIVET BLADE

$

$

Currently unavailable

22

Troy-Bilt P406655

BLADE, LEDGER BAR

$

$

Currently unavailable

23

Troy-Bilt P404965

RIVETS

$

$

Currently unavailable

24

Troy-Bilt P406905

SCR-CARR M8X30MM SQNK

$

$

Currently unavailable

25

Troy-Bilt 90057

SCR-CARR 5/16-18X1.25 G5

$

$

Currently unavailable

26

Troy-Bilt P406485

SCR-CARR M8X1.25X45

$

$

Currently unavailable

27

Troy-Bilt P406935

BOTTOM HEIGHT ADJ

$

$

Currently unavailable

28

Troy-Bilt P406965

BOLT-U M8 HEIGHT ADJUST

$

$

Currently unavailable

29

Troy-Bilt P406934

TOP HEIGHT ADJ

$

$

Currently unavailable

?30

0

THIS REF. NO. NOT USED

$

$

Not available

?31

0

THIS REF. NO. NOT USED

$

$

Not available

32

Troy-Bilt P406673

ASSM-ADJUSTABLE SKID

$

$

Currently unavailable

33

Troy-Bilt P406906

NUT-NYLOC M8

$

$

Currently unavailable

?34

0

THIS REF. NO. NOT USED

$

$

Not available

35

Troy-Bilt P406480

SCR-CARR M8X30MM

$

$

Currently unavailable

36

Troy-Bilt P406487

COVER-100CM BLADE

$

$

Currently unavailable

37

Troy-Bilt P406964

SHIELD-PLASTIC CUTTERBAR

$

$

Currently unavailable

MTD 40140

BAR-34" TRAILBLAZER

$

$

Not available

40141

BAR-38" TRAILBLAZER

$

$

Not available

Troy-Bilt P406732

KIT-MAINT TRAILBLAZER

$

$

Currently unavailable
