34038 - Troy-Bilt 26" High Wheel Walk-Behind Mower (SN: 340380200101 - 340380299999) FRONT FRAME ASSEMBLY Parts Diagram

26" High Wheel Walk-Behind Mower

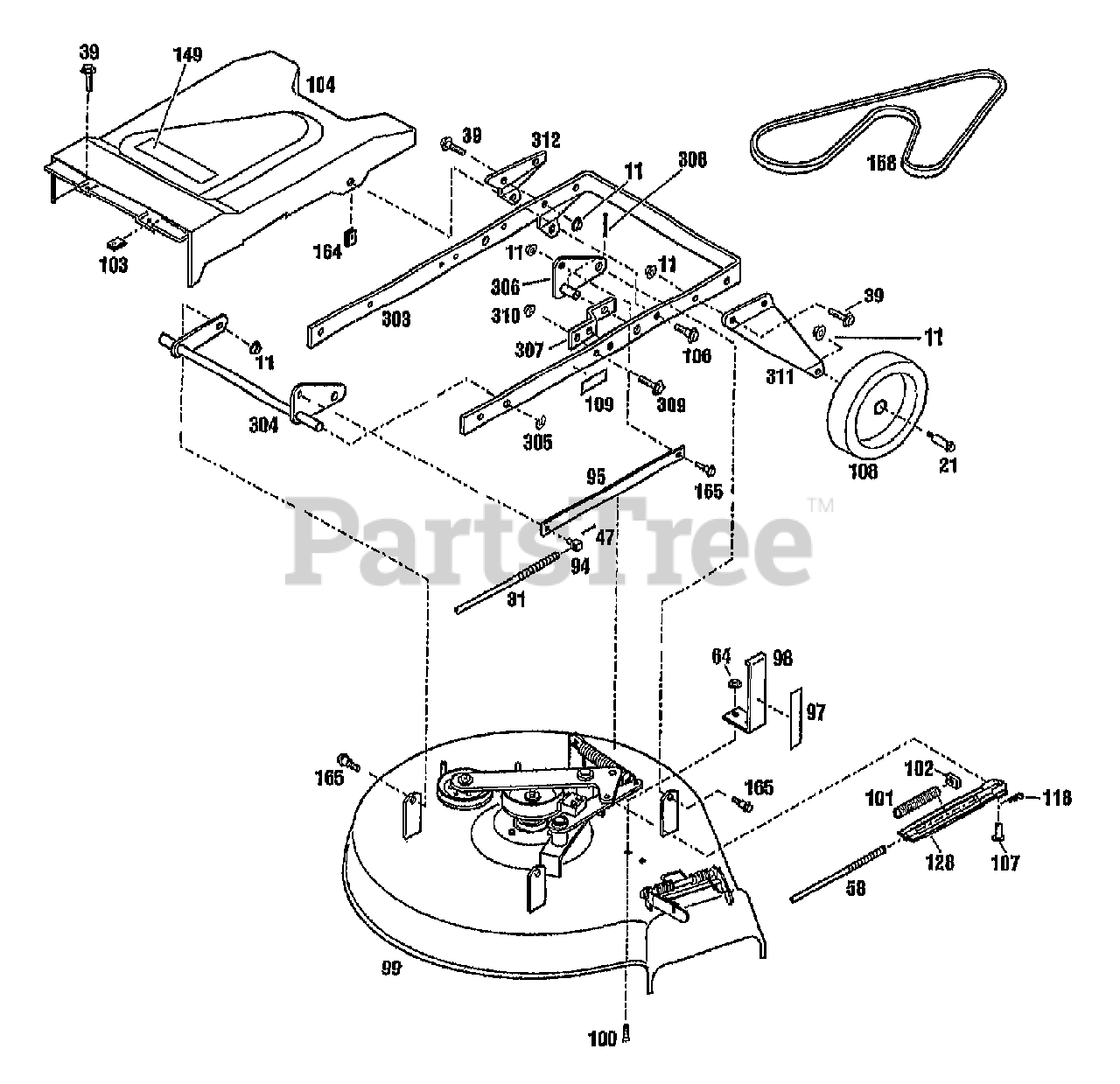

FRONT FRAME ASSEMBLY Parts Diagram

  • Title
11

Troy-Bilt 1186393

NUT-HFLK 3/8-16

$3.49

$

In Stock, only 2 left!

0

21

Troy-Bilt 1763219

SCR-SHLDR 3/8-16

$10.99

$

In Stock, only 2 left!

0

31

Troy-Bilt 1769895

ASSM-CRANK LIFT
(Superseded to 1915831)

$25.99

$

In Stock, only 1 left!

0

39

Troy-Bilt 1186347

SCR-HFLK 3/8-16X1.00
(Superseded to 710-04042)

$4.99

$

In Stock, only 2 left!

0

47

Troy-Bilt 1100349

PIN-COTTER .125 X .75
(Superseded to 914-0474)

$

$

Not available

58

Troy-Bilt 1768380

ROD-LOWER

$

$

Currently unavailable

64

Troy-Bilt 1186391

NUT-HFLK 5/16-18
(Superseded to 712-04054)

$4.99

$

In Stock, Qty 20+

0

94

MTD 1768231

BLOCK-PIVOT

$

$

Not available

95

MTD 1768230001

BAR-LEVELER

$

$

Not available

97

MTD 1768459

DECAL-CUTTING HEIGHT

$

$

Not available

98

MTD 1768470001

BRKT-HT ADJ/DOWN

$

$

Not available

99

0

DECK ASSEMBLY (GRID A-9)

$

$

Not available

100

Troy-Bilt 1186469

SCR-CARR 5/16-18X.75
(Superseded to 710-0451)

$4.49

$

In Stock, Qty 20+

0

101

MTD 1728908

SPRING

$

$

Not available

102

MTD 1768467

NUT-SPECIAL

$

$

Not available

103

MTD 1769100

CLIP-J TYPE

$

$

Not available

104

MTD 1768243

COVER-BELT

$

$

Not available

106

Troy-Bilt 1186310

SCR-HFLK 1/4-20X.75 G5

$3.99

$

Usually ships in 3-6 days

0

107

MTD 1757599

PIN-CLEVIS .25X.62

$

$

Not available

108

MTD 1761981

ASSM-TIRE & WHEEL

$

$

Not available

109

MTD 1768460

DECAL-CUT LINE

$

$

Not available

118

Troy-Bilt 1717897

PIN-CLIP .08

$3.49

$

Usually ships in 3-6 days

0

128

MTD 1768469

SPRING-YOKE ASSM

$

$

Not available

149

MTD 1768384

DECAL-LOGO TROY BILT

$

$

Not available

158

MTD 1747232

BELT-V

$

$

Not available

164

Troy-Bilt 1185893

NUT-SPEED

$

$

Not available

165

Troy-Bilt 1754125

SCR-SHLDR 3/8-16X.25 G5

$

$

Not available

303

MTD 1768195001

FRAME-FRONT {34038,34039}

$

$

Not available

303

MTD 1768081001

FRAME-FRONT {34037,34036}

$

$

Not available

304

$

$

Not available

305

Troy-Bilt 1177567

RING-RETAINING
(Superseded to 716-0106)

$4.49

$

In Stock, only 2 left!

0

306

MTD 1768362001

ARM-PIVOT

$

$

Not available

$

$

Currently unavailable

308

Troy-Bilt 1100352

PIN-COTTER .125X1.5

$4.49

$

In Stock, Qty 7

0

309

Troy-Bilt 1186330

SCR-LOCK
(Superseded to 710-04048)

$4.99

$

In Stock, Qty 7

0

310

Troy-Bilt 1186391

NUT-HFLK 5/16-18
(Superseded to 712-04054)

$4.99

$

In Stock, Qty 20+

0

311

MTD 1768096001

SUPPORT-WHEEL (FFRH)

$

$

Not available

312

MTD 1768097001

SUPPORT-WHEEL (FFLH)

$

$

Not available

Troy-Bilt 1900706

PAINT-RED SPRAYCAN POWDER
(Superseded to 788-0638A)

$24.99

$

Usually ships in 3-6 days

0

Troy-Bilt 1735222

PAINT-BLACK SPRAY
(Superseded to 788-0637A)

$30.99

$

In Stock, only 1 left!

0
