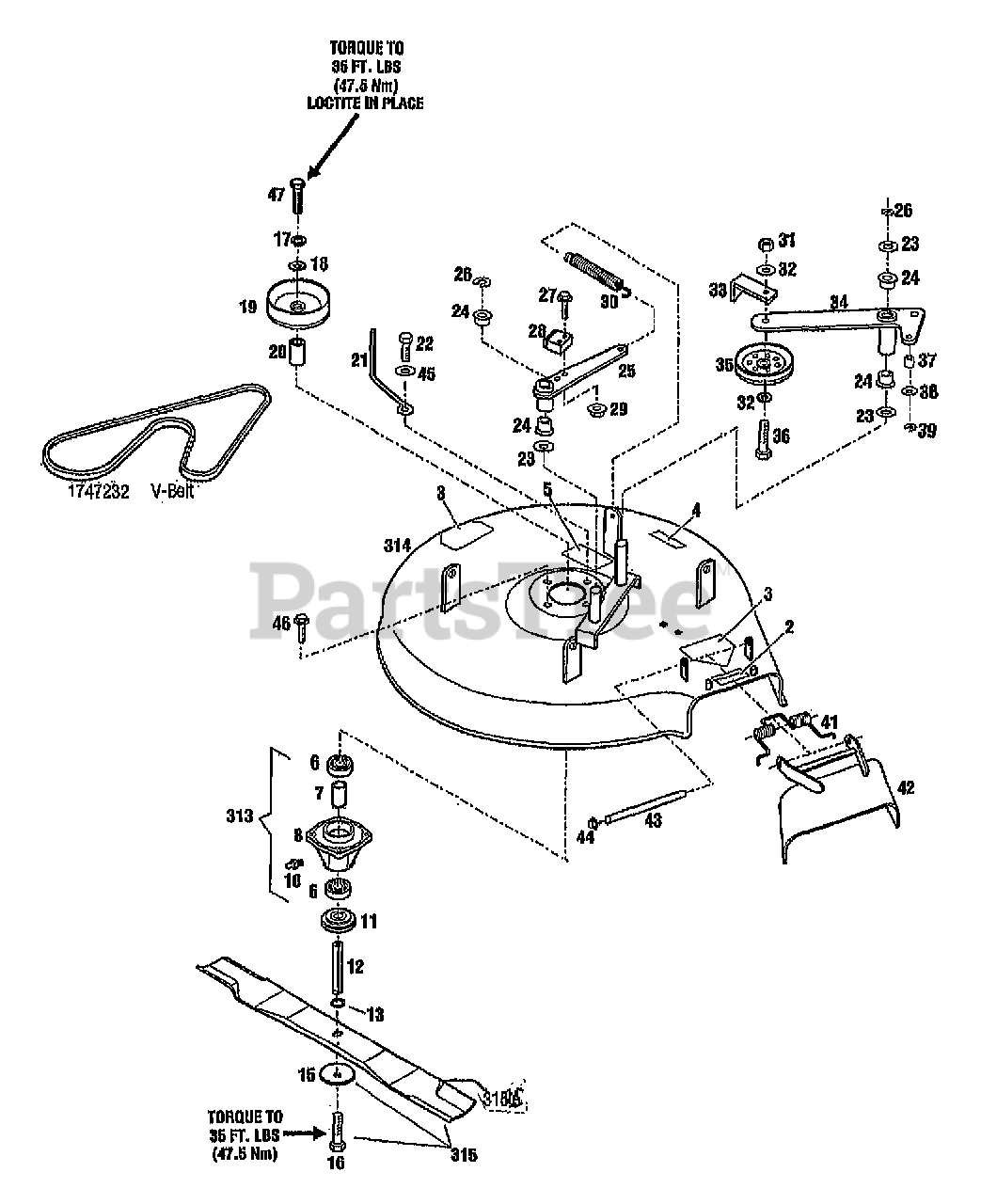

34037 - Troy-Bilt 22" High Wheel Walk-Behind Mower (SN: Original) DECK ASSEMBLY Parts Diagram

22" High Wheel Walk-Behind Mower

DECK ASSEMBLY Parts Diagram

  • Title

2

Troy-Bilt 1768451

DECAL-DANGER
(Superseded to 777S30503)

$11.99

$

In Stock, only 3 left!

0

3

Troy-Bilt 1739687

DECAL-OPEI CAUTION

$7.49

$

Usually ships in 3-6 days

0

4

MTD 1768387

DECAL-22" CUT {34037,34036}

$

$

Not available

4

MTD 1768388

DECAL-26" CUT {34038,34039}

$

$

Not available

5

MTD 1768435

DECAL-CAUTION PINCH POINT

$

$

Not available

6

Troy-Bilt 1185574

BEARING-BALL
(Superseded to 1185574P)

$34.99

$

In Stock, Qty 11

0

7

Troy-Bilt 1746869

SPACER

$19.99

$

In Stock, only 2 left!

0

8

Troy-Bilt 1765092

HOUSING-SPINDLE
(Superseded to 1769048099)

$175.99

$

In Stock, Qty 12

0

10

Troy-Bilt 1185976

FITTING-GREASE 1/4-28X2.00
(Superseded to 937-0146)

$5.49

$

In Stock, only 2 left!

0

11

Troy-Bilt 1768152

SPACER-BLADE

$

$

Not available

12

Troy-Bilt 1768169

SPINDLE-SHAFT LONG H/T
(Superseded to 1918880)

$97.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 1185649

RING-RETAINING EXT .694 ID

$

$

Not available

15

Troy-Bilt 1747637

WASHER-LK CONICAL .49 ID

$

$

Currently unavailable

16

Troy-Bilt 1765196

SCR-HH 1/2-14X1.00

$3.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 1100244

WASHER-LK .438 ZP
(Superseded to 936-0171)

$4.49

$

In Stock, only 4 left!

0

18

Troy-Bilt 1736484

WASHER-1.37X.453X.179 ZP
(Superseded to 736-0322)

$9.49

$

In Stock, Qty 8

0

19

MTD 1769832

ASSM-SHEAVE

$

$

Not available

20

MTD 1769359

SPACER-DR PULLEY HW MWR

$

$

Not available

21

Troy-Bilt 1718606

GUIDE-BELT

$

$

Currently unavailable

22

MTD 1769347

SCR-HFLK 5/16-18X1.25

$

$

Not available

23

MTD 1700821

WASHER-THRUST 1.1X.76X.05

$

$

Not available

24

MTD 1717263

BUSHING-NYLON

$

$

Not available

25

MTD 1768374

ASSM-BRAKE ARM

$

$

Not available

26

Troy-Bilt 1113527

RING-RETAIN EXT .707 ID
(Superseded to 916-0101)

$3.99

$

In Stock, Qty 20+

0

27

Troy-Bilt 1747939

SCR-HW M10-24X1.25 (INCL. WASHER)

$

$

Not available

28

MTD 1762245

PAD-BRAKE

$

$

Not available

29

Troy-Bilt 1185985

NUT W/LKWASHER 10-24 ZP
(Superseded to 712-0272)

$3.99

$

In Stock, only 1 left!

0

30

MTD 1700401

SPRING

$

$

Not available

31

Troy-Bilt 1110108

NUT-H/LK 3/8-16
(Superseded to 712-0375)

$4.49

$

In Stock, Qty 6

0

32

Troy-Bilt 1107383

WASHER-FLAT 3/8 SAE
(Superseded to 736-3050)

$4.49

$

In Stock, Qty 16

0

33

MTD 1769379001

GUIDE-BELT HW MWR

$

$

Not available

34

MTD 1768370

ASSM-IDLER ARM

$

$

Not available

35

MTD 1768125

IDLER 4" B-GROOVE

$

$

Not available

36

Troy-Bilt 1100086

SCR-HH 3/8-16X1.75 G5 ZP
(Superseded to 710-0347)

$5.49

$

In Stock, Qty 20+

0

37

MTD 1767807

BEARING-BALL

$

$

Not available

38

Troy-Bilt 1107381

WASHER-FLAT 1/4 SAE
(Superseded to 936-3020)

$

$

Not available

39

MTD 1768366

RING-RETAINING

$

$

Not available

41

MTD 1768600

SPRING-TORSION

$

$

Not available

42

MTD 1768604010

ASSM-HINGED DEFLECTOR

$

$

Not available

43

MTD 1768602

ROD-HINGE PIN

$

$

Not available

44

Troy-Bilt 1724791

NUT-PUSH 3/8 ZP
(Superseded to 926-0100)

$

$

Not available

45

Troy-Bilt 1107382

WASHER-FLAT 5/16 SAE
(Superseded to 936-0275)

$

$

Not available

46

Troy-Bilt 1766984

SCR-HFLK 5/16-18X.75

$3.99

$

Usually ships in 3-6 days

0

47

Troy-Bilt 1769397

SCR-HH 7/16-14X1.25
(Superseded to 710-04070)

$3.99

$

In Stock, Qty 20+

0

313

Troy-Bilt 1769048

ASSM-MOWER SPINDLE (INCL. 6-8 & 10)
(Superseded to 1769048099)

$175.99

$

In Stock, Qty 12

0

314

MTD 1768496

ASSM-DECK 22" {34037,34036}(INCL. DECALS)

$

$

Not available

314

Troy-Bilt 1768497

ASSM-DECK 26" {34038,34039}(INCL. DECALS)

$

$

Currently unavailable

315

Troy-Bilt 1768479

KIT-BLADE 22" (INCL. 15 & 16)

$

$

Currently unavailable

315

Troy-Bilt 1768480

KIT-BLADE 26" (INCL. 15 & 16)

$

$

Currently unavailable

315A

MTD 1769948

BLADE-22"

$

$

Not available

315A

Troy-Bilt 1769949

BLADE-26"

$94.99

$

Usually ships in 3-6 days

0

?322

Troy-Bilt 97092

LOCTITE-242 (.5 ML TUBE)
(Superseded to GW-97092)

$17.99

$

Usually ships in 3-6 days

0

Troy-Bilt 1900706

PAINT-RED SPRAYCAN POWDER
(Superseded to 788-0638A)

$24.99

$

Usually ships in 3-6 days

0

Troy-Bilt 1735222

PAINT-BLACK SPRAY
(Superseded to 788-0637A)

$30.99

$

In Stock, only 1 left!

0

MTD 1747232

BELT-V

$

$

Not available
