34035 - Troy-Bilt 42" Sicklebar Mower (SN: 340350200101 - 340350299999) MAIN ASSEMBLY Parts Diagram

42" Sicklebar Mower

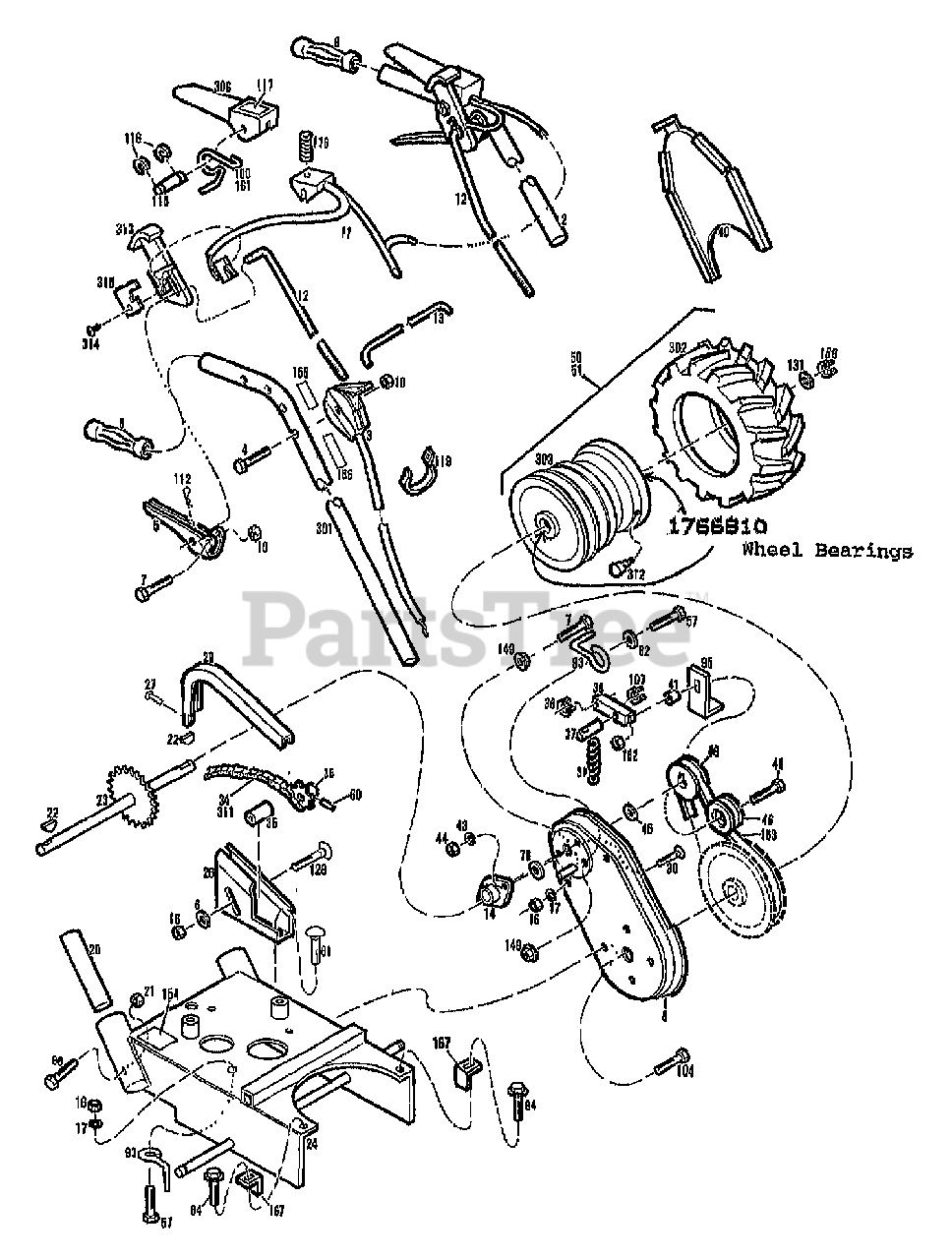

MAIN ASSEMBLY Parts Diagram

  • Title

MTD 1766810

WHEEL BEARING-BALL

$

$

Not available

?1

MTD 1767711010

ASSM-BELT GUARD LH

$

$

Not available

2

MTD 1765981001

HANDLEBAR-LH

$

$

Not available

3

MTD 1767717

ASSM-THROTTLE

$

$

Not available

4

Troy-Bilt 1111601

SCR-HH 1/4-20X1.75 G5 ZP

$

$

Not available

5

MTD 1766603

LEVER-WHEEL CLUTCH ZP

$

$

Not available

6

Troy-Bilt 1107382

WASHER-FLAT 5/16 SAE
(Superseded to 936-0275)

$

$

Not available

7

Troy-Bilt 1100811

SCR-HH 1/4-20X1.5 G5ZP
(Superseded to 710-0606)

$5.49

$

In Stock, Qty 10

0

8

MTD 1767712010

ASSM-BELT GUARD RH

$

$

Not available

9

Troy-Bilt 1703539

GRIP-FLEX
(Superseded to 720-0274)

$11.99

$

In Stock, Qty 11

0

10

Troy-Bilt 1110106

NUT-H/LK 1/4-20

$

$

Not available

11

MTD 1768430

HARNESS-OPERATOR INTERLK (INCL. 313-315)

$

$

Not available

12

MTD 1768426

ROD-WHEEL CLUTCH

$

$

Not available

13

MTD 1766608

BRIDGE-HANDLEBAR E-COAT

$

$

Not available

14

Troy-Bilt 1767552

BEARING-FLANGE

$

$

Not available

16

Troy-Bilt 1186230

NUT-HEX 5/16-18 ZP
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

17

Troy-Bilt 1110645

WASHER-LK .312 INT TOOTH
(Superseded to 936-0104)

$4.99

$

Usually ships in 3-6 days

0

20

MTD 1766611

ABSORBER-SHOCK

$

$

Not available

21

Troy-Bilt 1732499

NUT-TOP/LK 5/16-18 ZP
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

22

Troy-Bilt 1104436

KEY-WOODRUFF .188X.75
(Superseded to 914-0868)

$3.99

$

In Stock, only 4 left!

0

23

Troy-Bilt 1767545

ASSM-COUNTER SHAFT-PLATED

$

$

Currently unavailable

24

MTD 1767698010

DECK-ENGINE

$

$

Not available

26

MTD 1766890010

BRKT-CHAIN IDLER PNT

$

$

Not available

27

Troy-Bilt 1186009

SCR-HW M10-24X.5 STH ZP

$

$

Not available

?29

MTD 1766622010

COVER-CHAIN PNT

$

$

Not available

30

Troy-Bilt 1766623

SCR-CARR 1/4-20X.50
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

31

MTD 1766624

CLUTCH-SPRING WHEEL

$

$

Not available

34

MTD 1766627

CHAIN W/LINK (INCL. 311)

$

$

Not available

35

MTD 1766628

ROLLER-CHAIN IDLER

$

$

Not available

36

MTD 1766629

SPROCKET-CHAIN 12T

$

$

Not available

37

MTD 1766630

PIVOT-IDLER ARM

$

$

Not available

38

Troy-Bilt 1185257

RING-RET."E" .300 ID
(Superseded to 916-0125)

$

$

Not available

?39

MTD 1766631

ARM-IDLER WHEEL CLUTCH ZP

$

$

Not available

?40

MTD 1766632010

CVR-WHL/BELT GUARD PNT

$

$

Not available

41

MTD 1766714

SPACER-WHEEL IDLER

$

$

Not available

43

Troy-Bilt 1100241

WASHER-LK .25 ZP
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

44

Troy-Bilt 1186229

NUT-HEX 1/4-20 ZP
(Superseded to 712-3006)

$4.99

$

In Stock, Qty 19

0

?45

MTD 1766635

SPACER .625 ID

$

$

Not available

46

MTD 1766636

SHEAVE-COUNTER SHAFT

$

$

Not available

?48

Troy-Bilt 1710566

IDLER-FLAT

$

$

Currently unavailable

49

Troy-Bilt 1100049

SCR-HH 3/8-16X2.25 G5 ZP
(Superseded to 710-3011)

$6.99

$

In Stock, Qty 20+

0

50

MTD 1767701

ASSM-WHL&SEAL LH GRAY (INCL. 302, 303, 312)

$

$

Not available

51

Troy-Bilt 1767702

ASSM-WHL&SEAL RH GRAY (INCL. 302, 303, 312)

$

$

Currently unavailable

57

Troy-Bilt 1100044

SCR-HHC 5/16-18X.75 GR 5 ZP
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

60

MTD 1120210

PIN-ROLL .188X1.0

$

$

Not available

61

Troy-Bilt 1186469

SCR-CARR 5/16-18X.75
(Superseded to 710-0451)

$4.49

$

In Stock, Qty 20+

0

70

Troy-Bilt 1705093

WASHER-1.0X.64X.029
(Superseded to 736-0302)

$

$

Not available

82

Troy-Bilt 1100255

WASHER-FLAT 5/16 SAE
(Superseded to 736-0262)

$3.99

$

In Stock, Qty 10

0

84

Troy-Bilt 1186329

SCR-HFLK 5/16-18X.75 ZP
(Superseded to 710-04043)

$4.49

$

Usually ships in 3-6 days

0

93

MTD 1768516

GUIDE-BELT

$

$

Not available

95

MTD 1764121001

GUIDE-BELT WHL CLUTCH

$

$

Not available

98

Troy-Bilt 1111607

SCR-HH 5/16-18X2.25 G5ZP
(Superseded to 710-0395)

$4.99

$

In Stock, only 1 left!

0

104

Troy-Bilt 1740496

SCR-HFLK 5/16-18X.625 STH
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

107

MTD 1185219

RING-RET."E" .437 ID

$

$

Not available

112

Troy-Bilt 1717897

PIN-CLIP .08

$3.49

$

Usually ships in 3-6 days

0

115

Troy-Bilt 1765993

PIN-PIVOT .25"

$

$

Currently unavailable

116

Troy-Bilt 1766992

RING-CRESCENT EXT

$

$

Not available

117

MTD 1765925

DECAL-OPC CONTROLS

$

$

Not available

?118

MTD 1765923

SPRING-COMPRESSION

$

$

Not available

119

Troy-Bilt 1735531

TIE-CABLE NYLON BLACK
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

128

MTD 1186102

SCR-CARR 5/16-18X1.25 G2ZP

$

$

Not available

131

Troy-Bilt 1701447

WASHER-1.25X.765X.049

$4.49

$

In Stock, Qty 18

0

149

Troy-Bilt 1186389

NUT-HF/LK 1/4-20 ZP

$3.49

$

Usually ships in 3-6 days

0

154

MTD 1767091

DECAL-OIL DRAIN LOCATION

$

$

Not available

155

MTD 1767645

DECAL-THROTTLE {34032/033}

$

$

Not available

155

MTD 1767111

DECAL-THROTTLE SETTINGS {34034/035}

$

$

Not available

156

MTD 1767124

DECAL-PLACE HAN/PULL ROPE

$

$

Not available

159

Troy-Bilt 1185388

RING-RET."E".577 ID
(Superseded to 916-0231)

$

$

Not available

160

MTD 1767128

SPRING-CONTROL LH

$

$

Not available

161

Troy-Bilt 1767129

SPRING-CONTROL RH

$

$

Currently unavailable

162

Troy-Bilt 1110108

NUT-H/LK 3/8-16
(Superseded to 712-0375)

$4.49

$

In Stock, Qty 6

0

163

Troy-Bilt 1766808

BELT-V

$33.99

$

Usually ships in 3-6 days

0

167

MTD 1767328

GUIDE-BELT

$

$

Not available

301

MTD 1767159

HANDLEBAR-RH W/DECAL (INCL. 155 & 156)

$

$

Not available

302

Troy-Bilt 1767718

TIRE-LUG 13X5.00-6
(Superseded to 734-04163A)

$114.99

$

Usually ships in 3-6 days

0

303

MTD 1767703

ASSM-WHEEL

$

$

Not available

?305

Troy-Bilt 97092

LOCTITE-242 (.5 ML TUBE)
(Superseded to GW-97092)

$17.99

$

Usually ships in 3-6 days

0

306

MTD 1767160

LEVER W/DECAL (INCL. 117)

$

$

Not available

311

Troy-Bilt 1730343

LINK-CHAIN CONNECTOR
(Superseded to 913-0139)

$

$

Not available

312

Troy-Bilt 1718086

STEM-VALVE
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

313

Troy-Bilt 1768423

KIT-WHEEL CONTROL LK (S/BAR)

$

$

Currently unavailable

314

MTD 1765928

SCR-PHP M4-24X.31

$

$

Not available

315

Troy-Bilt 1765920

KIT-WHEEL CONTROL LK (S/BAR)

$

$

Currently unavailable

315

Troy-Bilt 1900706

PAINT-RED SPRAYCAN POWDER (13OZ. CAN)
(Superseded to 788-0638A)

$24.99

$

Usually ships in 3-6 days

0
