34034 - Troy-Bilt 42" Sicklebar Mower (SN: 340340100101 - 340340199999) MAIN ASSEMBLY Parts Diagram

42" Sicklebar Mower

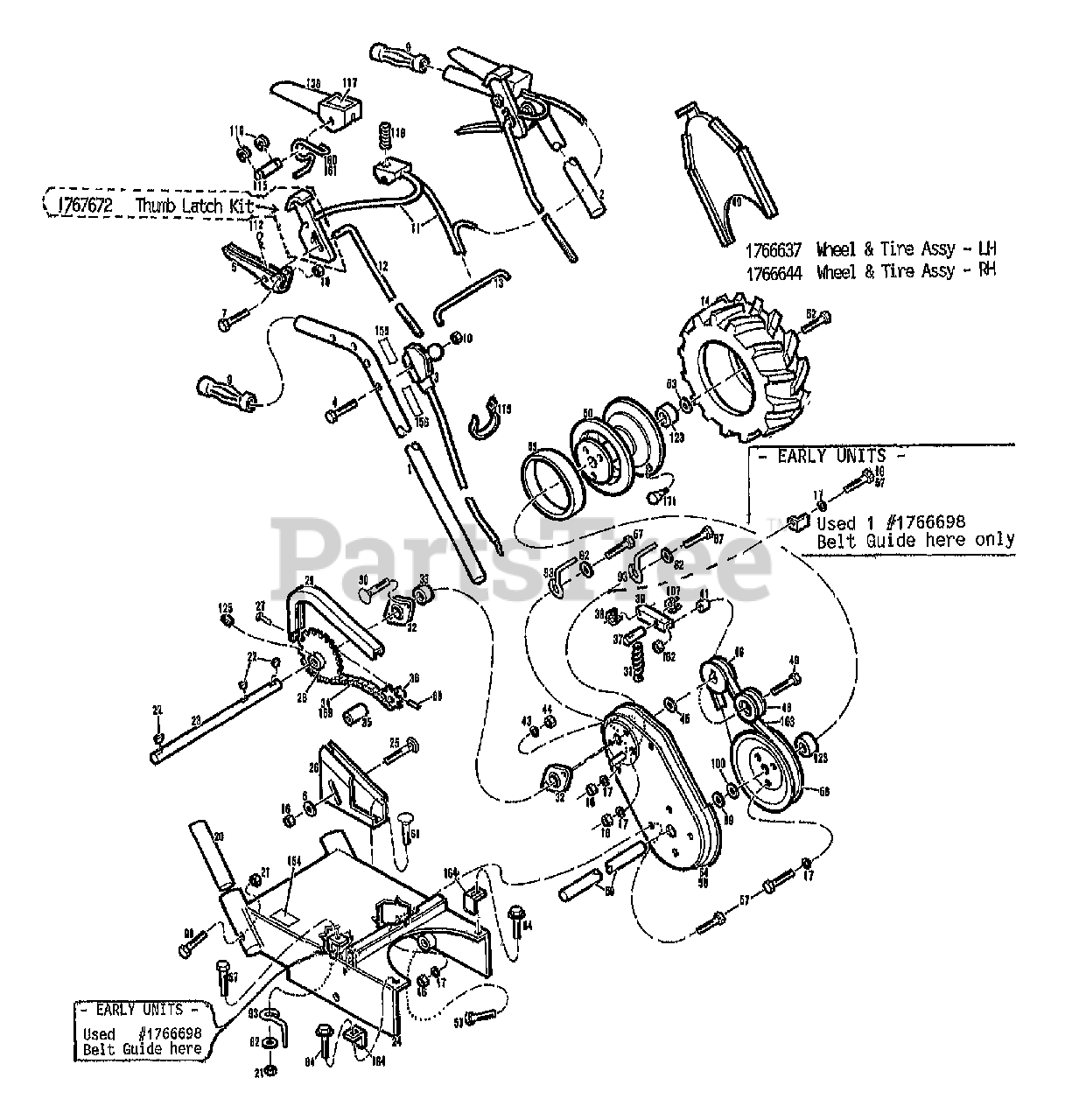

MAIN ASSEMBLY Parts Diagram

  • Title

Troy-Bilt 1767672

KIT-WHEEL CONTROL LK (S/BAR)

$

$

Currently unavailable

Troy-Bilt 1766637

ASSM-WHEEL & TIRE - LH

$

$

Currently unavailable

MTD 1766644

ASSM-WHEEL & TIRE - RH

$

$

Not available

MTD 1766698

GUIDE-BELT

$

$

Not available

Troy-Bilt 1900706

PAINT-RED SPRAYCAN POWDER
(Superseded to 788-0638A)

$24.99

$

Usually ships in 3-6 days

0

1

MTD 1767159

HANDLEBAR-RH W/DECAL (INCL. 155 & 156)

$

$

Not available

2

MTD 1765981001

HANDLEBAR-LH

$

$

Not available

3

MTD 1766602

ASSM-THROTTLE

$

$

Not available

4

Troy-Bilt 1111601

SCR-HH 1/4-20X1.75 G5

$

$

Not available

5

MTD 1766603

LEVER-WHEEL CLUTCH

$

$

Not available

6

Troy-Bilt 1107382

WASHER-FLAT 5/16 SAE
(Superseded to 936-0275)

$

$

Not available

7

Troy-Bilt 1100811

SCR-HH 1/4-20X1.5 G5
(Superseded to 710-0606)

$5.49

$

In Stock, Qty 10

0

9

Troy-Bilt 1703539

GRIP-FLEX
(Superseded to 720-0274)

$11.99

$

In Stock, Qty 11

0

10

Troy-Bilt 1110106

NUT-H/LK 1/4-20

$

$

Not available

11

MTD 1765924

HARNESS-OPERATOR INTERLK

$

$

Not available

12

MTD 1766607

ROD-WHEEL CLUTCH

$

$

Not available

13

MTD 1766608

BRIDGE-HANDLEBAR E-COAT

$

$

Not available

14

Troy-Bilt 1766639

TIRE-LUG 13X5.00-6
(Superseded to 734-04163A)

$114.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 1186230

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

17

Troy-Bilt 1110645

WASHER-LK .312 INT TOOTH
(Superseded to 936-0104)

$4.99

$

Usually ships in 3-6 days

0

20

MTD 1766611

ABSORBER-SHOCK

$

$

Not available

21

Troy-Bilt 1732499

NUT-TOP/LK 5/16-18
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

22

Troy-Bilt 1104436

KEY-WOODRUFF .188X.75
(Superseded to 914-0868)

$3.99

$

In Stock, only 4 left!

0

23

Troy-Bilt 1766612

SHAFT-COUNTER

$

$

Currently unavailable

24

Troy-Bilt 1766990010

ASSM-ENGINE DECK PNT

$

$

Currently unavailable

25

MTD 1186102

SCR-CARR 5/16-18X1.25 G2

$

$

Not available

26

MTD 1766890010

BRKT-CHAIN IDLER PNT

$

$

Not available

27

Troy-Bilt 1186009

SCR-HW M10-24X.5 STH

$

$

Not available

28

Troy-Bilt 1766621

SPROCKET-CHAIN 36T

$

$

Currently unavailable

29

MTD 1766622010

COVER-CHAIN PNT

$

$

Not available

30

Troy-Bilt 1766623

SCR-CARR 1/4-20X.50
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

31

MTD 1766624

CLUTCH-SPRING WHEEL

$

$

Not available

32

Troy-Bilt 1766625

BEARING-RETAIN

$

$

Currently unavailable

33

Troy-Bilt 1766626

INSERT-BEARING

$61.99

$

Usually ships in 3-6 days

0

34

MTD 1766627

CHAIN W/LINK

$

$

Not available

35

MTD 1766628

ROLLER-CHAIN IDLER

$

$

Not available

36

MTD 1766629

SPROCKET-CHAIN 12T

$

$

Not available

37

MTD 1766630

PIVOT-IDLER ARM

$

$

Not available

38

Troy-Bilt 1185257

RING-RET."E" .300 ID
(Superseded to 916-0125)

$

$

Not available

39

MTD 1766631

ARM-IDLER WHEEL CLUTCH

$

$

Not available

40

MTD 1766632010

CVR-WHL/BELT GUARD PNT

$

$

Not available

41

MTD 1766714

SPACER-WHEEL IDLER

$

$

Not available

43

Troy-Bilt 1100241

WASHER-LK .25
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

44

Troy-Bilt 1186229

NUT-HEX 1/4-20
(Superseded to 712-3006)

$4.99

$

In Stock, Qty 19

0

45

MTD 1766635

SPACER .625 ID

$

$

Not available

46

MTD 1766636

SHEAVE-COUNTER SHAFT

$

$

Not available

48

Troy-Bilt 1710566

IDLER-FLAT

$

$

Currently unavailable

49

Troy-Bilt 1100049

SCR-HH 3/8-16X2.25 G5
(Superseded to 710-3011)

$6.99

$

In Stock, Qty 20+

0

50

MTD 1767164

RIM-SICKLEBAR

$

$

Not available

52

MTD 1766645

SCR-HH 1/2-20X.75

$

$

Not available

53

MTD 1107384

WASHER-.94X.468X.065

$

$

Not available

54

MTD 1766646010

ASSM-BELT GUARD LH

$

$

Not available

55

Troy-Bilt 1766642010

SPACER-WHEEL PULLEY PNT

$

$

Currently unavailable

56

Troy-Bilt 1766643

SHEAVE-WHEEL

$

$

Currently unavailable

57

Troy-Bilt 1100044

SCR-HHC 5/16-18X.75 GR 5
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

58

MTD 1766648010

ASSM-BELT GUARD RH

$

$

Not available

59

Troy-Bilt 1766649

AXLE-WHEEL

$

$

Currently unavailable

60

MTD 1120210

PIN-ROLL .188X1.0

$

$

Not available

61

Troy-Bilt 1186469

SCR-CARR 5/16-18X.75
(Superseded to 710-0451)

$4.49

$

In Stock, Qty 20+

0

82

Troy-Bilt 1100255

WASHER-FLAT 5/16 SAE
(Superseded to 736-0262)

$3.99

$

In Stock, Qty 20+

0

84

Troy-Bilt 1186329

SCR-HFLK 5/16-18X.75
(Superseded to 710-04043)

$4.49

$

Usually ships in 3-6 days

0

93

MTD 1985176

GUIDE-BELT

$

$

Not available

98

Troy-Bilt 1111607

SCR-HH 5/16-18X2.25 G5
(Superseded to 710-0395)

$4.99

$

In Stock, only 1 left!

0

99

Troy-Bilt 1766788

WASHER-BOW .75

$

$

Currently unavailable

100

Troy-Bilt 1766787

THRUST WASHER

$6.49

$

In Stock, only 2 left!

0

107

MTD 1185219

RING-RET."E" .437 ID

$

$

Not available

112

Troy-Bilt 1717897

PIN-CLIP .08

$3.49

$

Usually ships in 3-6 days

0

115

Troy-Bilt 1765993

PIN-PIVOT .25"

$

$

Currently unavailable

116

Troy-Bilt 1766992

RING-CRESCENT EXT

$

$

Not available

117

MTD 1765925

DECAL-OPC CONTROLS

$

$

Not available

118

MTD 1765923

SPRING-COMPRESSION

$

$

Not available

119

Troy-Bilt 1735531

TIE-CABLE NYLON BLACK
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

122

Troy-Bilt 97092

LOCTITE-242 (.5 ML TUBE)
(Superseded to GW-97092)

$17.99

$

Usually ships in 3-6 days

0

123

MTD 1766810

BEARING-BALL

$

$

Not available

125

MTD 1103437

SCR-SET HX SOC HD 1/4-20

$

$

Not available

136

MTD 1767160

LEVER W/DECAL (INCL. 117)

$

$

Not available

154

MTD 1767091

DECAL-OIL DRAIN LOCATION

$

$

Not available

155

MTD 1767645

DECAL-THROTTLE

$

$

Not available

156

MTD 1767124

DECAL-PLACE HAN/PULL ROPE

$

$

Not available

160

MTD 1767128

SPRING-CONTROL LH

$

$

Not available

161

Troy-Bilt 1767129

SPRING-CONTROL RH

$

$

Currently unavailable

162

Troy-Bilt 1110108

NUT-H/LK 3/8-16
(Superseded to 712-0375)

$4.49

$

In Stock, Qty 6

0

163

Troy-Bilt 1766808

BELT-V

$33.99

$

Usually ships in 3-6 days

0

164

MTD 1767328

GUIDE-BELT

$

$

Not available

169

Troy-Bilt 1730343

LINK-CHAIN CONNECTOR
(Superseded to 913-0139)

$

$

Not available

170

Troy-Bilt 1900706

PAINT-RED SPRAYCAN POWDER
(Superseded to 788-0638A)

$24.99

$

Usually ships in 3-6 days

0

171

Troy-Bilt 1718086

STEM-VALVE
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0
