34034 - Troy-Bilt 42" Sicklebar Mower (SN: 340340100101 - 340340199999) ENGINE AND CUTTER DRIVE Parts Diagram

42" Sicklebar Mower

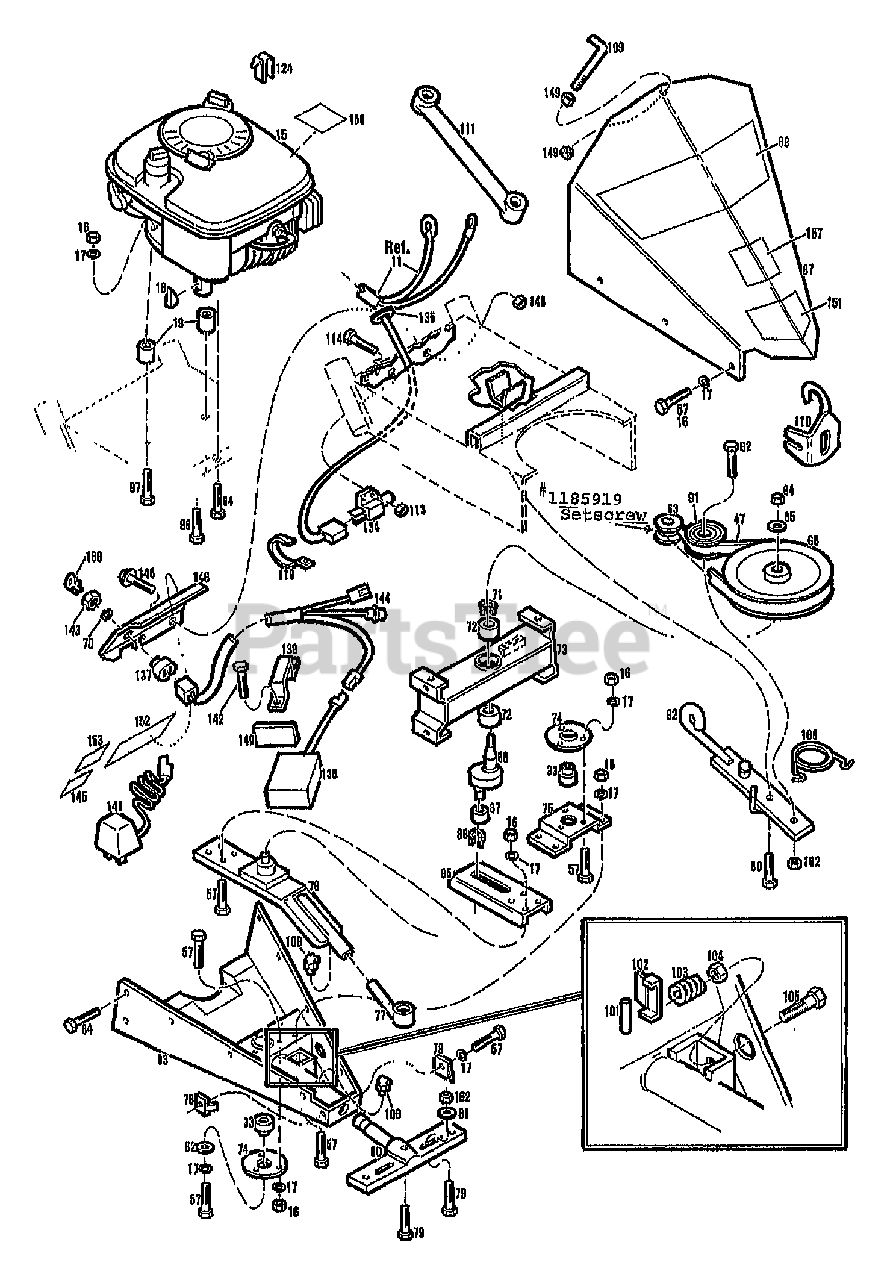

ENGINE AND CUTTER DRIVE Parts Diagram

  • Title

Troy-Bilt 1185919

SCR-SET HXSKT 5/16-18X.38
(Superseded to GW-9677)

$3.49

$

In Stock, only 2 left!

0

6

Troy-Bilt 1107382

WASHER-FLAT 5/16 SAE
(Superseded to 936-0275)

$

$

Not available

8

Troy-Bilt 1186307

SCR
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

11

MTD 1765924

HARNESS-OPERATOR INTERLK

$

$

Not available

15

0

ENGINE, BRIGGS & STRATTON, 3.5HP STD. #121782-0273-01 (MODEL 34032)

$

$

Not available

15

0

ENGINE, BRIGGS & STRATTON, 4HP STD. #122782- 0188-01 (MODEL 34033)

$

$

Not available

15

0

ENGINE, BRIGGS & STRATTON, 5HP STD. #126782- 0129-01 (MODEL 34034)

$

$

Not available

15

0

ENGINE, BRIGGS & STRATTON, 5HP STD. #126787- 0130-01 (MODEL 34035)

$

$

Not available

16

Troy-Bilt 1186230

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

17

Troy-Bilt 1110645

WASHER-LK .312 INT TOOTH
(Superseded to 936-0104)

$4.99

$

Usually ships in 3-6 days

0

18

MTD 1100275

KEY-WOODRUFF .156X.625

$

$

Not available

19

Troy-Bilt 1766944

SPACER-ENGINE

$

$

Not available

21

Troy-Bilt 1763944

CENTER LOCK NUT, 5/16-18

$

$

Currently unavailable

33

Troy-Bilt 1766626

INSERT-BEARING

$61.99

$

Usually ships in 3-6 days

0

42

Troy-Bilt 1186393

NUT-HFLK 3/8-16

$3.49

$

In Stock, only 2 left!

0

47

Troy-Bilt 1767142

BELT-V

$36.99

$

Usually ships in 3-6 days

0

57

Troy-Bilt 1100044

SCR-HHC 5/16-18X.75 GR 5
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

62

Troy-Bilt 1100047

SCR-HH 3/8-16X1.5 G5
(Superseded to 710-0520)

$4.49

$

In Stock, Qty 6

0

63

MTD 1766650

PULLEY-ENGINE (SER SCREW #1185919)

$

$

Not available

64

MTD 1186216

NUT-HEX 5/8-18

$

$

Not available

65

Troy-Bilt 1107386

WASHER-1.305X.649X.098
(Superseded to 736-0237)

$4.49

$

In Stock, Qty 20+

0

66

MTD 1766651

SHEAVE-ECCENTRIC

$

$

Not available

67

MTD 1767156

HOOD W/DECALS (INCL. 151 & 157)

$

$

Not available

68

MTD 1766926

DECAL-LOGO T/B SICKLEBAR

$

$

Not available

71

Troy-Bilt 1185102

RING-RETAIN EXT .984 ID
(Superseded to 716-0197)

$6.99

$

Usually ships in 3-6 days

0

72

MTD 1766657

BEARING-BALL

$

$

Not available

73

Troy-Bilt 1766658001

ASSM-HOUSING

$

$

Currently unavailable

74

MTD 1766664

RETAINER-BEARING

$

$

Not available

75

MTD 1766665010

SUPT-BEARING UPPER

$

$

Not available

76

MTD 1766666

ASSM-ARM ECCENTRIC

$

$

Not available

77

Troy-Bilt 1767035

KIT-KNIFE HEAD & PITMAN
(Superseded to 1773525)

$

$

Not available

78

Troy-Bilt 1766677

STOP-CUTTER BAR

$

$

Currently unavailable

79

Troy-Bilt 1186347

SCR-HFLK 3/8-16X1.00
(Superseded to 710-04042)

$4.99

$

In Stock, only 2 left!

0

80

Troy-Bilt 1766923001

ASSM-MOUNTING BRKT

$

$

Currently unavailable

81

Troy-Bilt 1100256

WASHER-.986X.437X.083
(Superseded to 736-3052)

$4.49

$

In Stock, Qty 20+

0

82

Troy-Bilt 1100255

WASHER-FLAT 5/16 SAE
(Superseded to 736-0262)

$3.99

$

Usually ships in 3-6 days

0

83

Troy-Bilt 1766681010

ASSM-HOUSING

$

$

Currently unavailable

84

Troy-Bilt 1186329

SCR-HFLK 5/16-18X.75
(Superseded to 710-04043)

$4.49

$

Usually ships in 3-6 days

0

85

MTD 1766687

ASSM-ARM ECCENTRIC

$

$

Not available

86

Troy-Bilt 1118809

RING-RETAIN EXT .669 ID

$

$

Not available

87

Troy-Bilt 1766795

BEARING-ECCENTRIC

$

$

Not available

88

MTD 1766895

SHAFT-ECCENTRIC

$

$

Not available

90

Troy-Bilt 1766693

SCR-SHOULDER

$

$

Currently unavailable

91

Troy-Bilt 1713803

IDLER-SHEAVE 3" X 1"
(Superseded to 956-3054)

$52.99

$

In Stock, only 2 left!

0

92

Troy-Bilt 1767294

KNIFE CLUTCH ARM WELDMENT

$

$

Currently unavailable

94

Troy-Bilt 1111610

SCR-HH 5/16-18X3.0
(Superseded to 710-0189)

$6.49

$

In Stock, Qty 5

0

96

MTD 1111613

SCR-HH 5/16-18X4.0 G5

$

$

Not available

97

Troy-Bilt 1111611

SCR 5/16-18X3.00
(Superseded to 710-1266)

$9.99

$

Usually ships in 3-6 days

0

101

Troy-Bilt 1732166

PIN-.375X1.5

$

$

Currently unavailable

102

MTD 1766700

PIN-RETAIN

$

$

Not available

103

Troy-Bilt 1766701

SPRING-COMPRESSION

$

$

Currently unavailable

104

Troy-Bilt 1766789

NUT-HT/LK

$

$

Currently unavailable

105

Troy-Bilt 1736485

SCR-HH 7/16-20X1.25 G5
(Superseded to 710-3029)

$4.49

$

In Stock, Qty 12

0

108

Troy-Bilt 1731504

FITTING-GREASE 90 DEGREE
(Superseded to 737-3004)

$11.99

$

In Stock, only 4 left!

0

109

Troy-Bilt 1766704

HOOK-UPPER .25

$

$

Not available

110

Troy-Bilt 1766705

ASSM-HOOK

$

$

Currently unavailable

111

MTD 1766805

DIVERTER-WEED BUNGI

$

$

Not available

113

Troy-Bilt 1185985

NUT W/LKWASHER 10-24
(Superseded to 712-0272)

$3.99

$

In Stock, only 1 left!

0

114

Troy-Bilt 1758070

SCR-HHS 10-24X.625
(Superseded to 710-0425)

$4.99

$

Usually ships in 3-6 days

0

119

Troy-Bilt 1735531

TIE-CABLE NYLON BLACK
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

124

MTD 1766558

CLIP-CABLE

$

$

Not available

134

MTD 1751340

SWITCH

$

$

Not available

135

MTD 1766947

GROMMET

$

$

Not available

137

Troy-Bilt 1723798

SWITCH-EL IGNITION {34035}
(Superseded to 1900455P)

$

$

Not available

138

MTD 1756550

KIT-BATTERY REPLACE {34035
(Superseded to 1903686)

$

$

Not available

139

MTD 1756551001

CLAMP-BATTERY {34035}

$

$

Not available

140

MTD 1756549

PAD-BATTERY {34035}

$

$

Not available

141

Troy-Bilt 1733251

CHARGER-ELEC BATTERY {34035}

$

$

Currently unavailable

142

Troy-Bilt 1763875

SCR-HFLK 1/4-20 X .375 {34035}

$

$

Currently unavailable

143

Troy-Bilt 1767139

NUT (IGNIT SWITCH)
(Superseded to 712-0252)

$5.99

$

Usually ships in 3-6 days

0

144

MTD 1766945

HARNESS-STARTING {34035}

$

$

Not available

145

MTD 1766959

DECAL-ELEC START ENG {34035}

$

$

Not available

146

MTD 1767155

PLATE W/DECALS (INCL. 145, 152 & 153)

$

$

Not available

148

Troy-Bilt 1186308

SCR-HFLK 1/4-20X.50
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

149

Troy-Bilt 1186389

NUT-HF/LK 1/4-20

$3.49

$

Usually ships in 3-6 days

0

151

Troy-Bilt 1739687

DECAL-OPEI CAUTION

$7.49

$

Usually ships in 3-6 days

0

152

MTD 1767077

DECAL-WARN.OPER.INST

$

$

Not available

153

MTD 1901899

DECAL-AMERICAN LEGEND-SM

$

$

Not available

157

MTD 1767141

DECAL-DNG SHARP CUT BLADE

$

$

Not available

158

MTD 1983202

DECAL-WARN.HOT SURFACES

$

$

Not available

162

Troy-Bilt 1110108

NUT-H/LK 3/8-16
(Superseded to 712-0375)

$4.49

$

In Stock, Qty 6

0

166

MTD 1705792

SPRING-TORSION

$

$

Not available

168

MTD 1753986

KEY-IGNITION

$

$

Not available
