34032 - Troy-Bilt 34" Sicklebar Mower (SN: 340320200101 - 340320299999) SICKLE BAR Parts Diagram

34" Sicklebar Mower

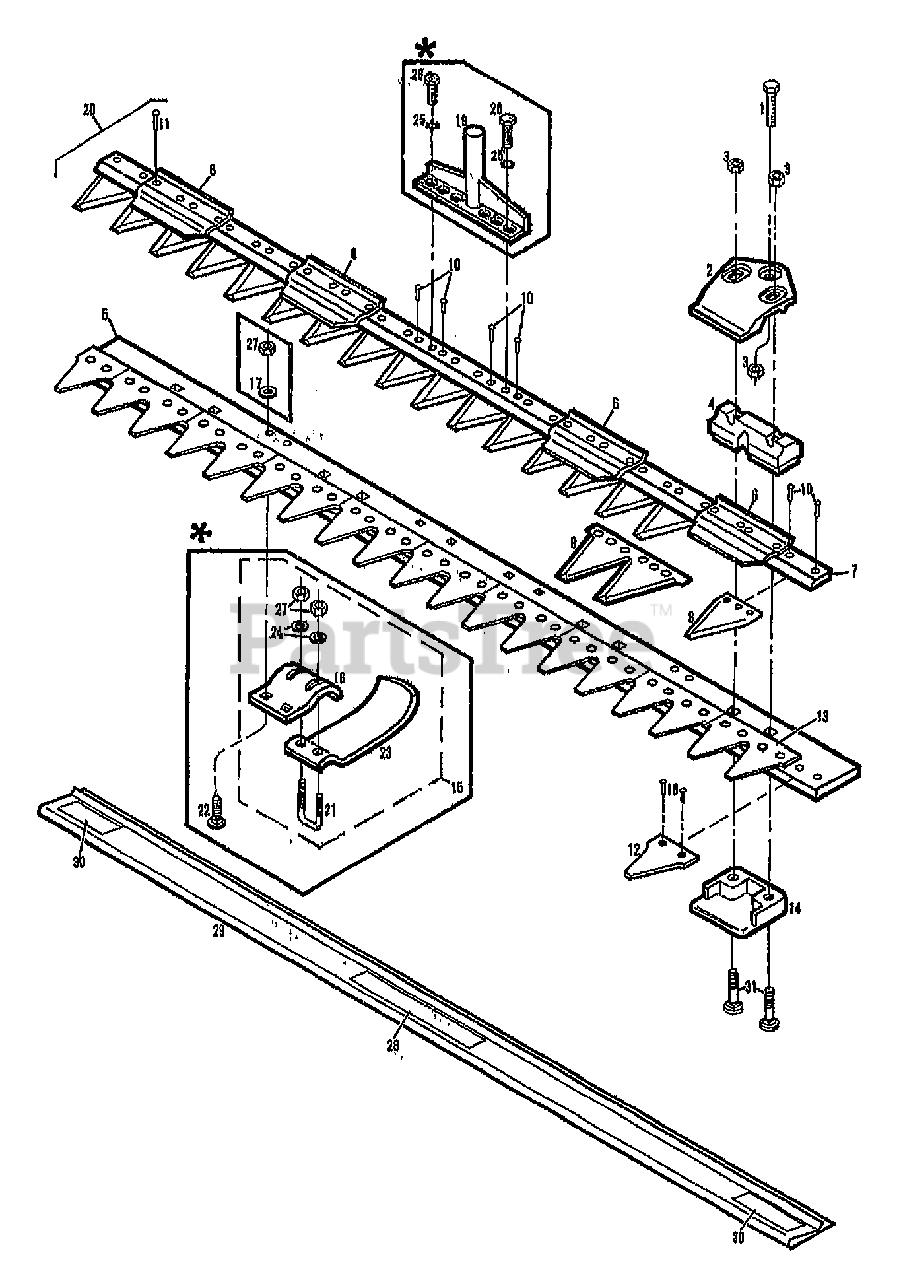

SICKLE BAR Parts Diagram

  • Title

Troy-Bilt 1765990

ASSM-CUTTER BAR 34"

$

$

Not available

MTD 1766743

ASSM-CUTTER BAR 38"

$

$

Not available

Troy-Bilt 1766744

ASSM-CUTTER BAR 42"

$1635.99

$

Usually ships in 3-6 days

0

1

MTD 1766745

SCR-HHC M8-1.25X30

$

$

Not available

2

Troy-Bilt 1766746

CLIP-HOLD DOWN

$67.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 1766747

NUT-H/LK M8
(Superseded to 712-0692)

$6.99

$

In Stock, only 2 left!

0

4

Troy-Bilt 1766748

GUIDE-KNIFE

$33.99

$

Usually ships in 3-6 days

0

5

MTD 1765991

KNIFE-BACK BAR 34"

$

$

Not available

5

Troy-Bilt 1766753

BAR-BACK 38"

$

$

Not available

5

Troy-Bilt 1766754

BAR-BACK 42"

$

$

Not available

6

MTD 1766755

PLATE-WEAR

$

$

Not available

7

Troy-Bilt 1766929

BAR-KNIFE 34"

$

$

Not available

7

Troy-Bilt 1766756

BAR-KNIFE 38"

$308.99

$

In Stock, only 1 left!

0

7

Troy-Bilt 1766757

BAR-KNIFE 42"

$296.99

$

Usually ships in 3-6 days

0

8

MTD 1766758

KNIFE SECTION SINGLE

$

$

Not available

?9

Troy-Bilt 1767069

KNIFE SECTION (DOUBLE) 34"

$40.99

$

In Stock, Qty 7

0

?9

Troy-Bilt 1767069

KNIFE SECTION (DOUBLE) 38"

$40.99

$

In Stock, Qty 7

0

?9

Troy-Bilt 1767069

KNIFE SECTION (DOUBLE) 42"

$40.99

$

In Stock, Qty 7

0

10

Troy-Bilt 1766760

KIT-RIVET 5X17 12 PKG
(Superseded to 1768294)

$22.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 1766761

KIT-RIVET 5X20 12 PKG
(Superseded to 1768295)

$

$

Not available

12

Troy-Bilt 1766764

PLATE-LEDGER SINGLE

$

$

Not available

13

Troy-Bilt 1766765

PLATE-LEDGER DOUBLE

$

$

Not available

14

Troy-Bilt 1766767

RUNNER

$34.99

$

Usually ships in 3-6 days

0

15

MTD 1766769

ASSM-SKID 2PC SET W/HDW (INCL. 16,21-24 & 27)

$

$

Not available

16

MTD 1766770001

SHOE-SPUR HOLDER PNT

$

$

Not available

17

Troy-Bilt 1766774

WASHER-FLAT M8

$

$

Not available

18

Troy-Bilt 1766776

KIT-RIVET/SEC 6X20=12 PER
(Superseded to 1768296)

$

$

Not available

19

Troy-Bilt 1768550

KIT-KNIFE HEAD & PITMAN
(Superseded to 1773525)

$

$

Not available

20

Troy-Bilt 1767584

ASSM-34" BLADE T/B SICKLEBAR (INCL. 6-11)

$

$

Currently unavailable

20

Troy-Bilt 1767585

KNIFE 38" (INCL. 6-11)

$

$

Currently unavailable

20

Troy-Bilt 1767586

ASSM-42" KNIFE T/B SICKLEBAR (INCL. 6-11)

$

$

Currently unavailable

21

MTD 1767071

BOLT-U 5/16"-18

$

$

Not available

22

MTD 1186102

SCR-CARR 5/16-18X1.25 G2ZP

$

$

Not available

23

MTD 1766773001

SHOE-PNT

$

$

Not available

24

Troy-Bilt 1107382

WASHER-FLAT 5/16 SAE
(Superseded to 936-0275)

$

$

Not available

25

Troy-Bilt 1766751

WASHER-LK .312 INT TOOTH
(Superseded to 936-0104)

$4.99

$

Usually ships in 3-6 days

0

26

MTD 1766752

SCR-HH M8

$

$

Not available

27

Troy-Bilt 1110107

NUT-H/LK 5/16-18
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 13

0

28

Troy-Bilt 1766939

DECAL-DANGER

$

$

Currently unavailable

29

MTD 1766777

COVER-BLADE

$

$

Not available

29

MTD 1766934

GUARD-BLADE 38"

$

$

Not available

29

Troy-Bilt 1766935

GUARD-BLADE 42"

$

$

Not available

30

Troy-Bilt 1766940

DECAL-ESM

$

$

Currently unavailable

31

Troy-Bilt 1766768

SCR-HH M8X45

$4.99

$

Usually ships in 3-6 days

0

?32

Troy-Bilt 1766766

KIT-BLADE MAINT T/B SKLBR

$

$

Currently unavailable
