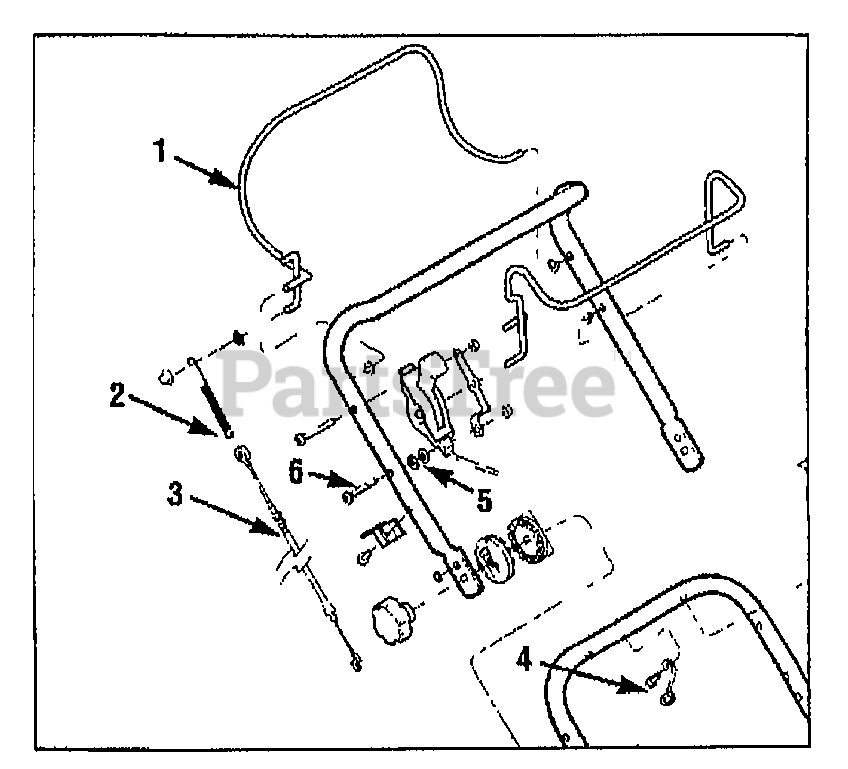

34024 - Troy-Bilt 21" Mulching Walk-Behind Mower BAIL ASSEMBLY, DRIVE CONTROL CABLE, ROPE GUIDE Parts Diagram

21" Mulching Walk-Behind Mower

BAIL ASSEMBLY, DRIVE CONTROL CABLE, ROPE GUIDE Parts Diagram

  • Title
1

Troy-Bilt 1904202

BAIL-BBC VINYL COATED {34311/34312/34313}

$

$

Currently unavailable

2

Troy-Bilt 1909994

SPRING-EXTENSION {34311/34312/34313}
(Superseded to 1915922)

$12.99

$

Usually ships in 3-6 days

0

3

MTD 1915042

CABLE-CONTROL DRIVE {34311/34312/34313}

$

$

Not available

4

Troy-Bilt 1768535

GUIDE-ROPE {34311/34312/34313}

$

$

Not available

5

Troy-Bilt 1767439

WASHER-.5X.25X.06 ZP @DEPL {34311/34312/34313}

$

$

Not available

6

Troy-Bilt 1100811

SCR-HH 1/4-20X1.5 G5ZP {34311/34312/34313}
(Superseded to 710-0606)

$5.49

$

In Stock, Qty 10

0
