34023 - Troy-Bilt 21" Mulching Walk-Behind Mower HANDLE BAR AND MOWER CONTROLS Parts Diagram

21" Mulching Walk-Behind Mower

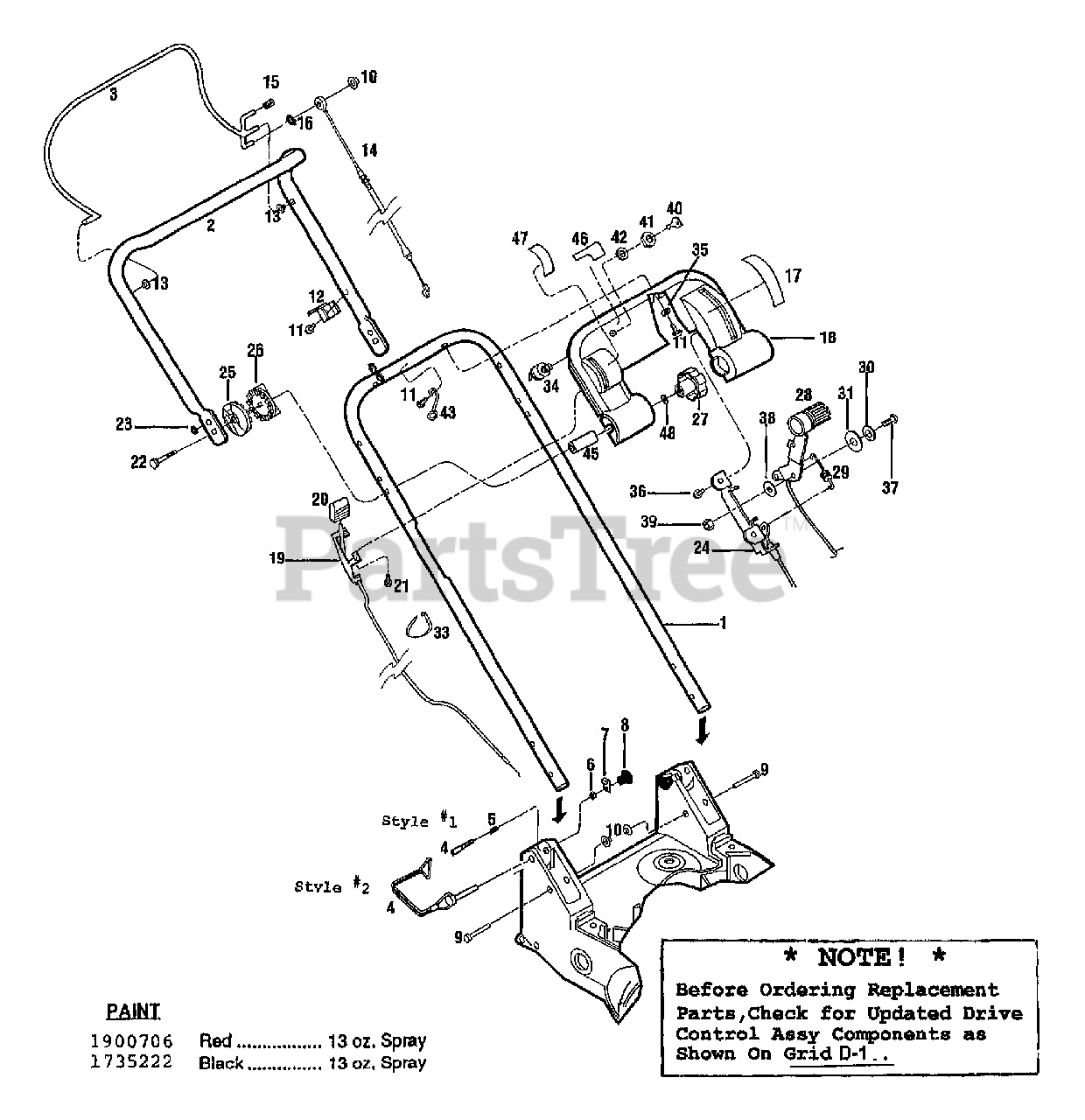

HANDLE BAR AND MOWER CONTROLS Parts Diagram

  • Title

1

MTD 1902638001

HANDLEBAR-LOWER

$

$

Not available

1

MTD 1902802001

HANDLEBAR-LOWER PNT

$

$

Not available

2

MTD 1767435001

HANDLEBAR-UPR PNT

$

$

Not available

3

MTD 1902096

BAIL-CONTROL VINYL COATED

$

$

Not available

4

MTD 1766534

PIN-STOP

$

$

Not available

4

MTD 1900383

PIN-LK SQ. #W51620LP

$

$

Not available

5

MTD 1766531

SPRING-COMPRESSION

$

$

Not available

6

Troy-Bilt 1186229

NUT-HEX 1/4-20 ZP
(Superseded to 712-3006)

$4.99

$

In Stock, Qty 19

0

7

MTD 1766532

ARM-STOP ZP BLACK CHRMATE

$

$

Not available

8

Troy-Bilt 1766537

KNOB
(Superseded to 720-0279)

$4.49

$

Usually ships in 3-6 days

0

9

Troy-Bilt 1766536

PIN-CLEVIS ( @DEPL)
(Superseded to 911-0813)

$6.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 1908679

CAP-PUSH .312

$2.49

$

In Stock, only 1 left!

0

11

Troy-Bilt 1754128

SCR-FLANGE 1/4-20X3/4 GR5

$3.99

$

In Stock, only 2 left!

0

12

Troy-Bilt 1749977001

BRKT-CONTROL CABLE

$

$

Not available

13

Troy-Bilt 1908677

BUSHING-PLASTIC (BAIL)

$

$

Not available

14

MTD 1765935

CABLE-ENGINE BRAKE

$

$

Not available

15

Troy-Bilt 1908678

CAP-PLASTIC (BAIL)

$

$

Currently unavailable

16

Troy-Bilt 1908673

GRIP-RING EXT .312 ID

$

$

Not available

17

Troy-Bilt 1902417

DECAL-WHEEL DRIVE

$

$

Not available

18

MTD 1902299

CONSOLE-HANDLEBAR

$

$

Not available

19

MTD 1765917

CABLE-THROTTLE

$

$

Not available

20

Troy-Bilt 9057

KNOB-WHEEL DRIVE CABLE
(Superseded to GW-9057)

$8.49

$

In Stock, only 1 left!

0

21

MTD 1766502

SCR-M10-16X.88 SPECIAL

$

$

Not available

22

Troy-Bilt 1902324

SCR-CARR 5/16-18X4.56
(Superseded to 1903101)

$

$

Not available

22

Troy-Bilt 1903101

SCR-CARR 5/16-18X4.56

$

$

Not available

23

Troy-Bilt 1765879

RETAINER .25

$7.99

$

In Stock, only 1 left!

0

24

Troy-Bilt 1766511

CABLE-CLUTCH

$

$

Not available

25

Troy-Bilt 1903404

QUADRANT-OUTER (WAS 1767425)
(Superseded to 1903404099)

$

$

Not available

26

Troy-Bilt 1903417

KIT-QUADRANT INNER (WAS 1767375)

$24.99

$

In Stock, Qty 6

0

27

MTD 1767400

KNOB-HANDLE ADJUST

$

$

Not available

28

Troy-Bilt 1903737

KIT-DRIVE CABLE MULCHER

$

$

Currently unavailable

29

Troy-Bilt 1767651

SPRING-EXTENSION

$26.99

$

Usually ships in 3-6 days

0

30

MTD 1767648

WASHER-BELLEVILLE

$

$

Not available

31

MTD 1716233

WASHER-1.0X.25X.06 ZP

$

$

Not available

33

Troy-Bilt 1763682

TIE-CABLE, REUSABLE
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

34

Troy-Bilt 1723798

SWITCH-EL IGNITION (INCL. 40-42)(MODEL 34023)
(Superseded to 1900455P)

$

$

Not available

35

Troy-Bilt 1765591

WASHER-FLAT, .265 I.D.

$

$

Not available

36

MTD 1766507

SCR 1/4-15X.88 SPECIAL

$

$

Not available

37

MTD 1765593

SCR-RH 1/4-20X.75

$

$

Not available

38

MTD 1767649

BUSHING-NYLON

$

$

Not available

39

Troy-Bilt 1734398

NUT-HT LK 1/4-20
(Superseded to 912-0291)

$

$

Not available

40

Troy-Bilt 96520

KEYS-IGN T/BLAZER 1 PAIR (MODEL 34023)
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

41

Troy-Bilt 92018

NUT-HEX/JAM 5/8-32 ZP(MODEL 34023)
(Superseded to 712-0252)

$5.99

$

Usually ships in 3-6 days

0

42

Troy-Bilt 94021

WASHER-LK 5/8 INT TOOTH (MODEL 34023)

$

$

Currently unavailable

43

Troy-Bilt 1768535

GUIDE-ROPE

$

$

Not available

45

Troy-Bilt 1766587

SPACER

$

$

Not available

46

MTD 1765894

DECAL-ELEC START (MODEL 34023)

$

$

Not available

47

Troy-Bilt 1768576

DECAL-THROTTLE

$

$

Not available

48

MTD 20545

WASHER-#.75X.32X.09 ZP

$

$

Not available

Troy-Bilt 1900706

PAINT-RED SPRAYCAN POWDER
(Superseded to 788-0638A)

$24.99

$

Usually ships in 3-6 days

0

Troy-Bilt 1735222

PAINT-BLACK SPRAY
(Superseded to 788-0637A)

$30.99

$

In Stock, only 1 left!

0
