34023 - Troy-Bilt 21" Mulching Walk-Behind Mower ELECTRIC START SYSTEM Parts Diagram

21" Mulching Walk-Behind Mower

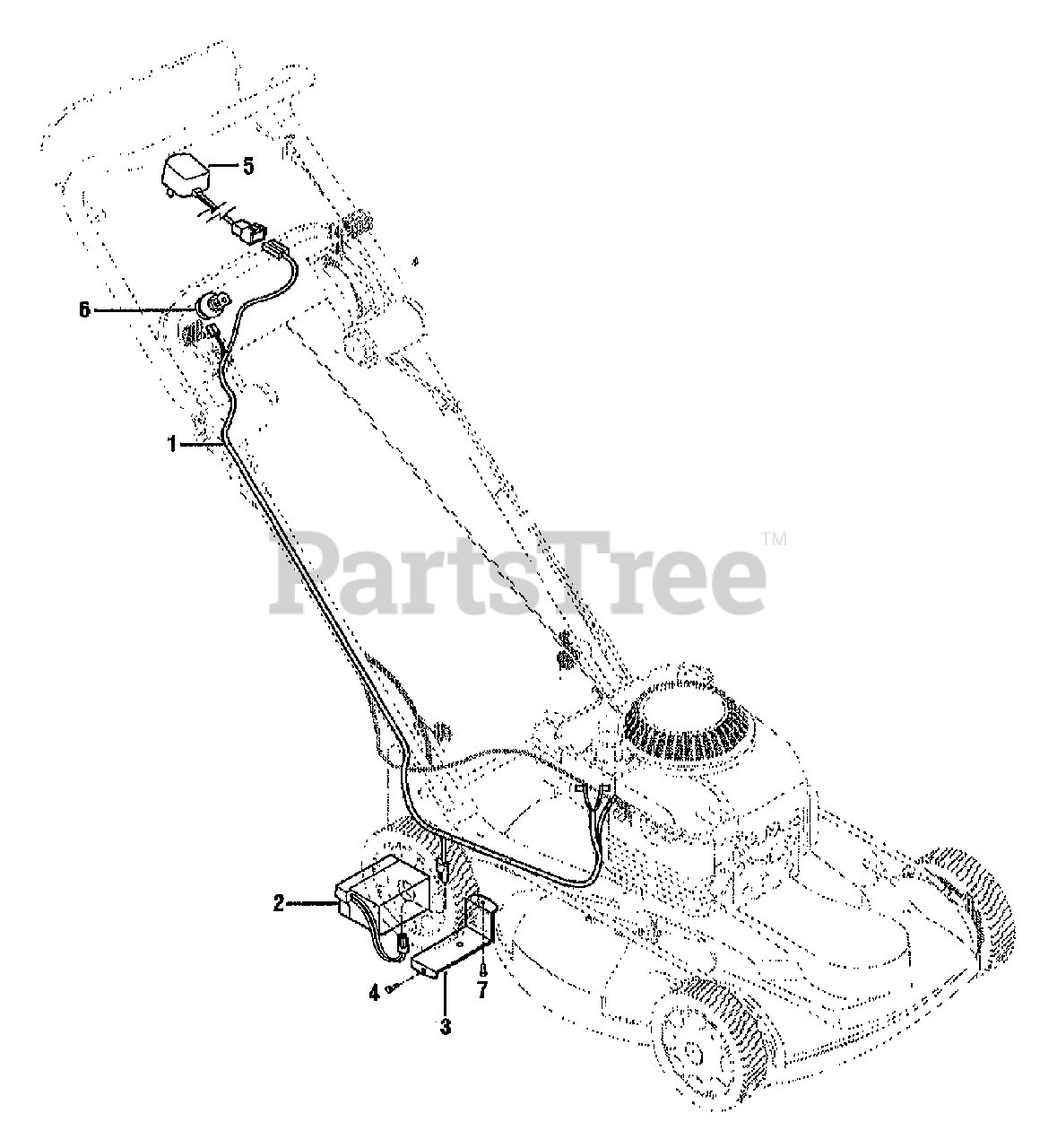

ELECTRIC START SYSTEM Parts Diagram

  • Title
1

Troy-Bilt 1765888

HARNESS-WIRE

$

$

Not available

2

MTD 1903686

KIT-BATTERY REPLACE

$

$

Not available

3

MTD 1765887001

BRKT-BATTERY PAINTED

$

$

Not available

4

Troy-Bilt 1754128

SCR-FLANGE 1/4-20X3/4 GR5

$3.99

$

In Stock, only 2 left!

0

5

Troy-Bilt 1768449

CHARGER-BATTERY
(Superseded to 725-13345)

$65.99

$

Usually ships in 3-6 days

0

6

0

SEE GRID C-3

$

$

Not available

7

Troy-Bilt 9552

SCR-HWH 1/4-20 X .5 STH
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0
