34022 - Troy-Bilt 21" Mulching Walk-Behind Mower CUTTING HEIGHT AND WHEEL ASSY Parts Diagram

21" Mulching Walk-Behind Mower

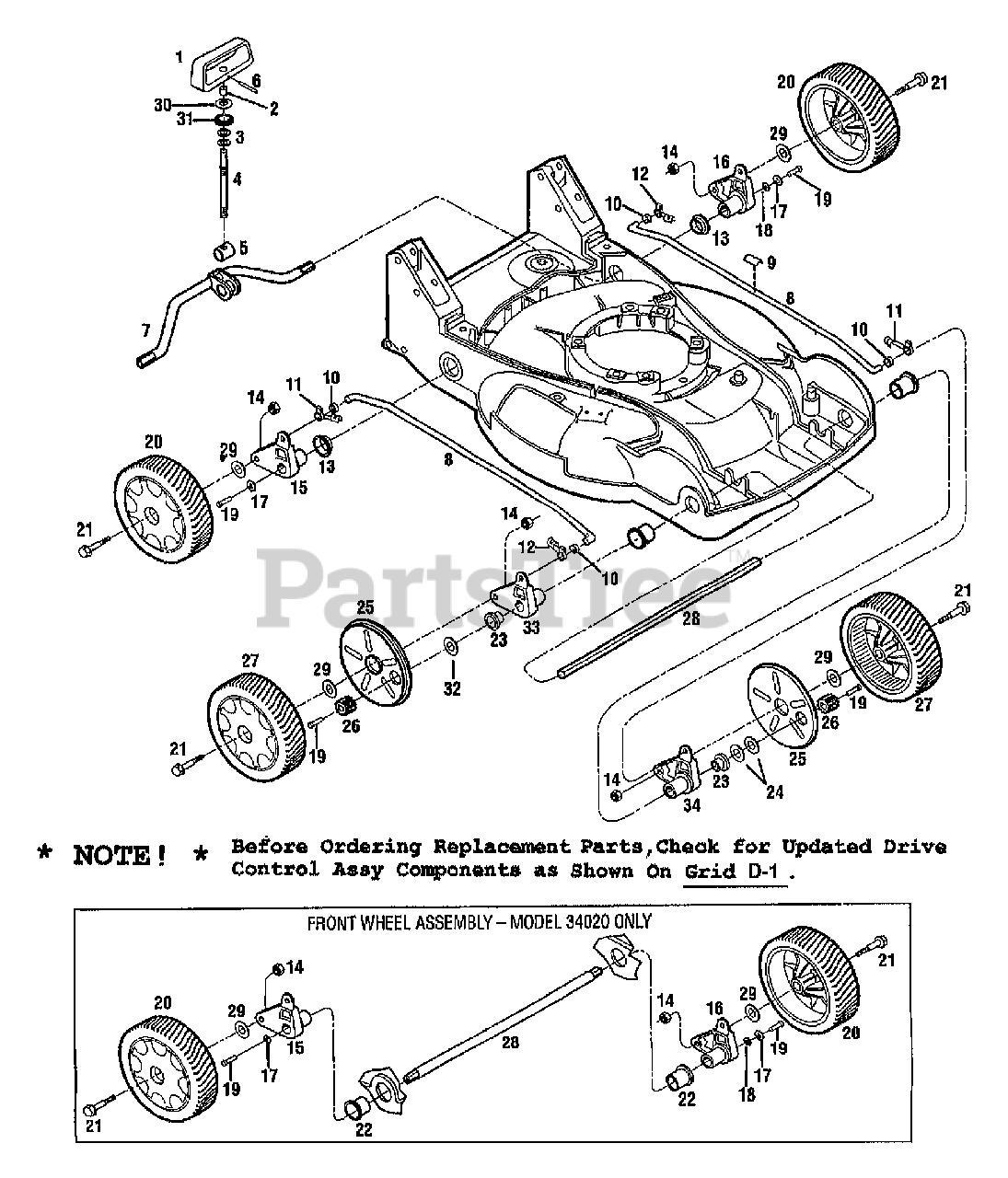

CUTTING HEIGHT AND WHEEL ASSY Parts Diagram

  • Title

1

MTD 1754149

HANDLE-HEIGHT ADJ

$

$

Not available

2

Troy-Bilt 1762886

SPACER-HANDLE

$

$

Not available

3

Troy-Bilt 20546

WASHER-#.88X.51X.063 ZP
(Superseded to GW-20546)

$

$

Not available

4

Troy-Bilt 1764815

SCR-HANDLE ADJUST

$

$

Currently unavailable

5

Troy-Bilt 1765594

PIVOT-SCR ADJUST
(Superseded to 1902765)

$

$

Not available

6

MTD 1120210

PIN-ROLL .188X1.0

$

$

Not available

7

Troy-Bilt 1768578

AXLE-REAR E-COATED

$

$

Not available

8

MTD 1764818010

LINK-HEIGHT ADJ PNT

$

$

Not available

9

MTD 1767792

DECAL-INDICATOR

$

$

Not available

10

MTD 1768962

BEARING-NYLINER

$

$

Not available

11

Troy-Bilt 1765551

CLIP-ROD (RIGHT REAR/LEFT FRONT)

$8.99

$

In Stock, only 1 left!

0

12

Troy-Bilt 1765550

CLIP-ROD (LEFT REAR/RIGHT FRONT)

$11.99

$

In Stock, only 1 left!

0

13

Troy-Bilt 1766500

BEARING-AXLE ARM REAR

$

$

Not available

14

Troy-Bilt 1110108

NUT-H/LK 3/8-16
(Superseded to 712-0375)

$4.49

$

In Stock, Qty 6

0

15

Troy-Bilt 1902280

ARM-AXLE W/BUSHING RH {34020,34021,34022, 34023,34311}(REAR ARM ONLY)

$52.99

$

Usually ships in 3-6 days

0

16

MTD 1902281

ARM-AXLE W/BUSHING LH {34020,34021,34022, 34023,34311}(REAR ARM ONLY)

$

$

Not available

17

Troy-Bilt 1765591

WASHER-.78X.25X.08 ZP @DEP {34020,34021, 34022,34023,34311}

$

$

Not available

18

Troy-Bilt 1767439

WASHER-.5X.25X.06 ZP @DEPL {34020,34021, 34022,34023,34311}

$

$

Not available

19

MTD 1769064

SCR-HXSKT 1/4-20X.75

$

$

Not available

20

Troy-Bilt 1765740

ASSM-TIRE & WHEEL {34020,34021,34022,34023, 34311}
(Superseded to 753-08091)

$46.99

$

In Stock, Qty 13

0

21

MTD 1903416

SCR-SHLDR MOD. RADIUS

$

$

Not available

22

MTD 1764817

BRG-AXLE ARM FRONT {34020}

$

$

Not available

23

0

BEARING, AXLE (EXCEPT MODEL 34020) (SEE GRID D-7)

$

$

Not available

24

MTD 1902283

WASHER-.92X.5X.03 HT {NOT 34020}

$

$

Not available

24

Troy-Bilt 1902284

WASHER-.92X.5X.016 HT {NOT 34020}

$11.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 1902415

SHIELD-WHEEL W/STEP {NOT 34020}
(Superseded to 1917083)

$15.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 1764570

PINION-DRIVE {NOT 34020}
(Superseded to 1764570099)

$11.99

$

In Stock, only 1 left!

0

27

MTD 1765750

ASSM-TIRE & WHEEL (DRIVE) {NOT 34020}

$

$

Not available

28

Troy-Bilt 1768579

AXLE-FRONT E-COATED {34020}

$

$

Currently unavailable

28

Troy-Bilt 1909402

AXLE-DRIVE ROUND W/KEYWAY SLOT)(SEE GRID D-1)

$83.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 1909311

WASHER-.88X.406X.09 ZP

$

$

Not available

30

Troy-Bilt 1185816

WASHER-SPEC

$3.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 1708850

WASHER-RUBBER

$

$

Not available

32

Troy-Bilt 1983638

WASHER-THRUST .92X.5X.06 {34021,34022,34023, 34311}

$

$

Not available

33

0

ARM, AXLE, RIGHT HAND W/AXLE ARM BEARING

Note: (MODELS 34021,34022,34023,34311)(SEE GRID D-7)

$

$

Not available

34

0

ARM, AXLE, LEFT HAND W/AXLE ARM BEARING

Note: (MODELS 34021,34022,34023,34311)(SEE GRID D-7)

$

$

Not available
